ANENG ST210 Digital Multimeter 6000 Counts NCV Tester True RMS AC/DC Volt Meter Frequency Current Voltage Factor Meter

2 sold in last 8 hours
mickcara
00568-1
In stock
$39.00
Size Guide
Color *
Red
Black
$39.00
customers are viewing this product
Tags:

   ANENG ST210 Digital Multimeter 6000 Counts NCV Tester True RMS Portable AC/DC Voltage Meter LCD Backlight

 Description:

 6000 counts is a pocket-sized 3 5/6 digits true effective value automatic scanning digital meter.

 No need to turn the dial to select the function, according to the input voltage/current/resistance/current difference, the meter will automatically identify and measure.

 Stable performance, high precision, high reliability, clear reading, overload protection function.

 Driven by AAA 1.5V battery, uses a large-screen LCD display and uses boost power supply.

 Even at the edge of a 2.3V low battery, it can ensure the backlight and ultra-high brightness of the flashlight.

 Easy to carry and is a favorite of most users for the instrument, the backlight can be on for a long time or automatically turn off after 15 seconds.

 This series of meters can automatically identify DC and AC voltage, AC and DC current 600A, resistance, without any switching, and can also manually switch to measure capacitance, diode, continuity test, and other parameters.

 A tool with superior performance. An ideal tool for laboratories, factories, radio enthusiasts and families.



 Specification:

 Display mode: liquid crystal display;

 Maximum display: 5999 (5 5/6) digits automatic polarity display;

 Measurement method: double integral A/D conversion;

 Sampling rate: about 3 times per second;

 Over-range display: the highest position displays "OL";

 Low voltage display: '' '' symbol appears;

 Working environment: (0-40)℃, relative humidity <80%;

 Power supply: AAA 2* 1.5V battery (not included)

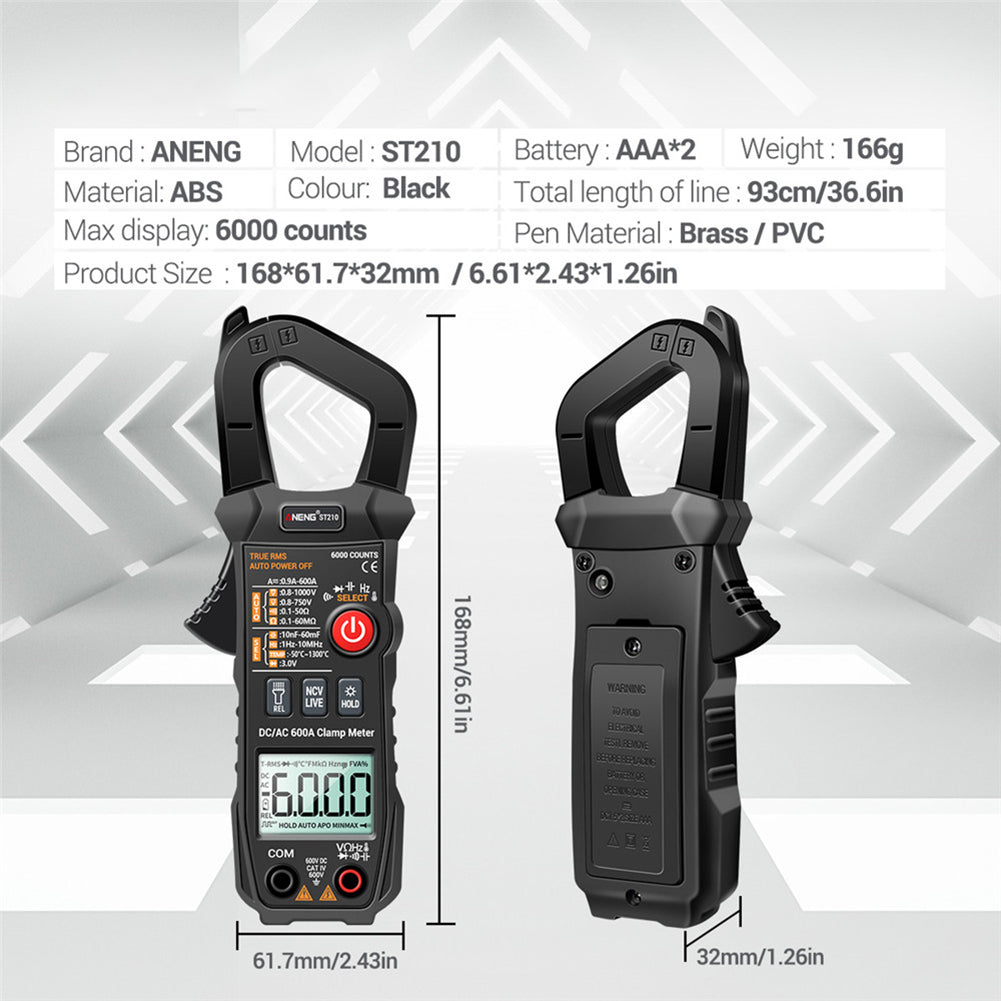

   Size(LxWxH): 176x67x33mm/6.93*2.64*1.3in

   Color: Black, Red



 Feature:

 DC voltage DCV: yes

 AC voltage ACV: yes

 DC current DCA: yes

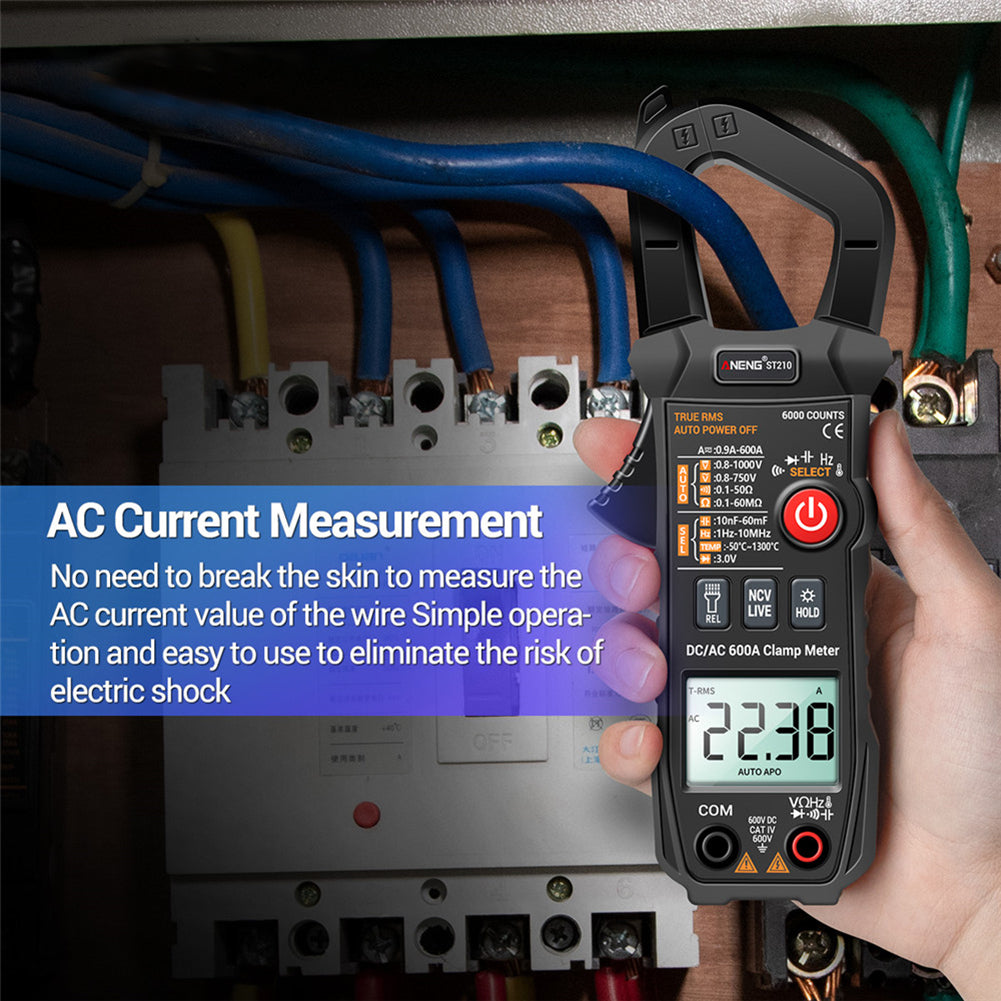

 AC current ACA: yes

 Resistance/diode/continuity test/capacitance: yes

 Frequency F: yes

 NCV: yes

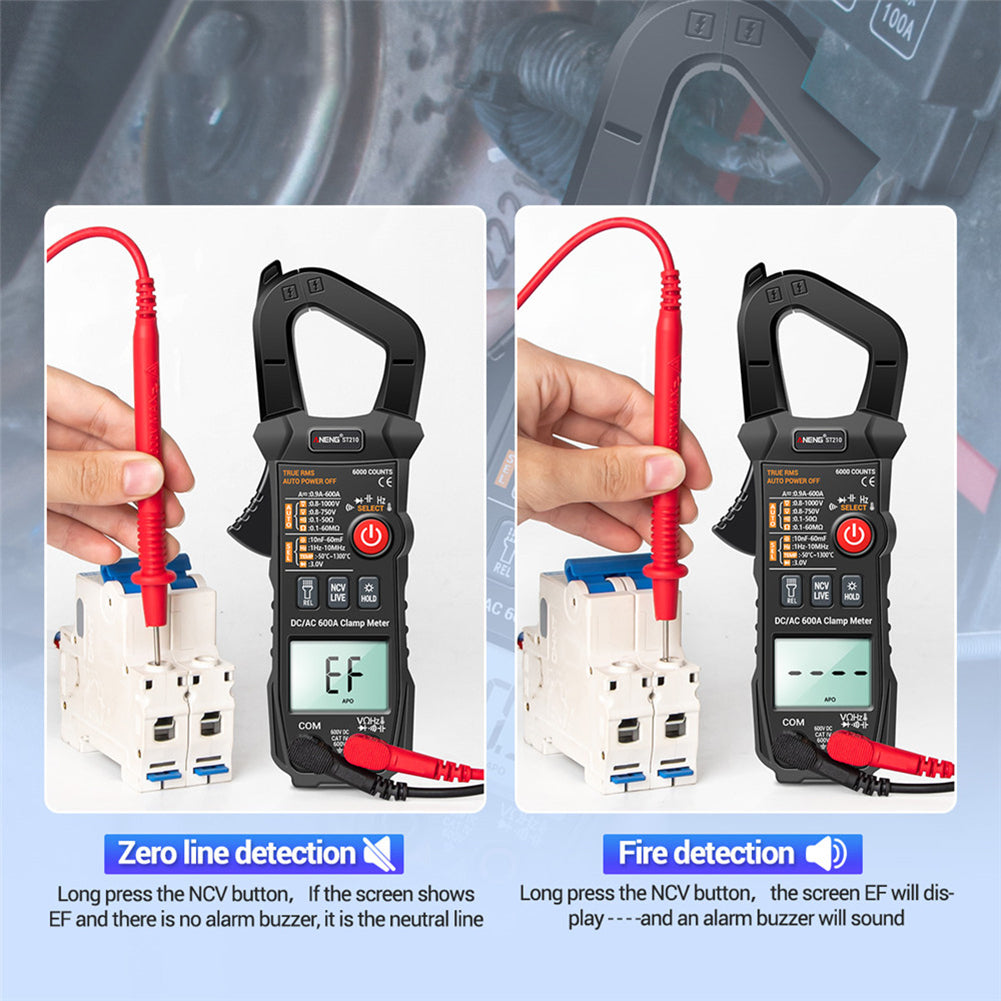

 Neutral/FireWire test: yes

 Full unit symbol: yes

 Backlight manual/automatic turn off: yes

 True RMS measurement: yes

 Temperature (℃/℉): yes

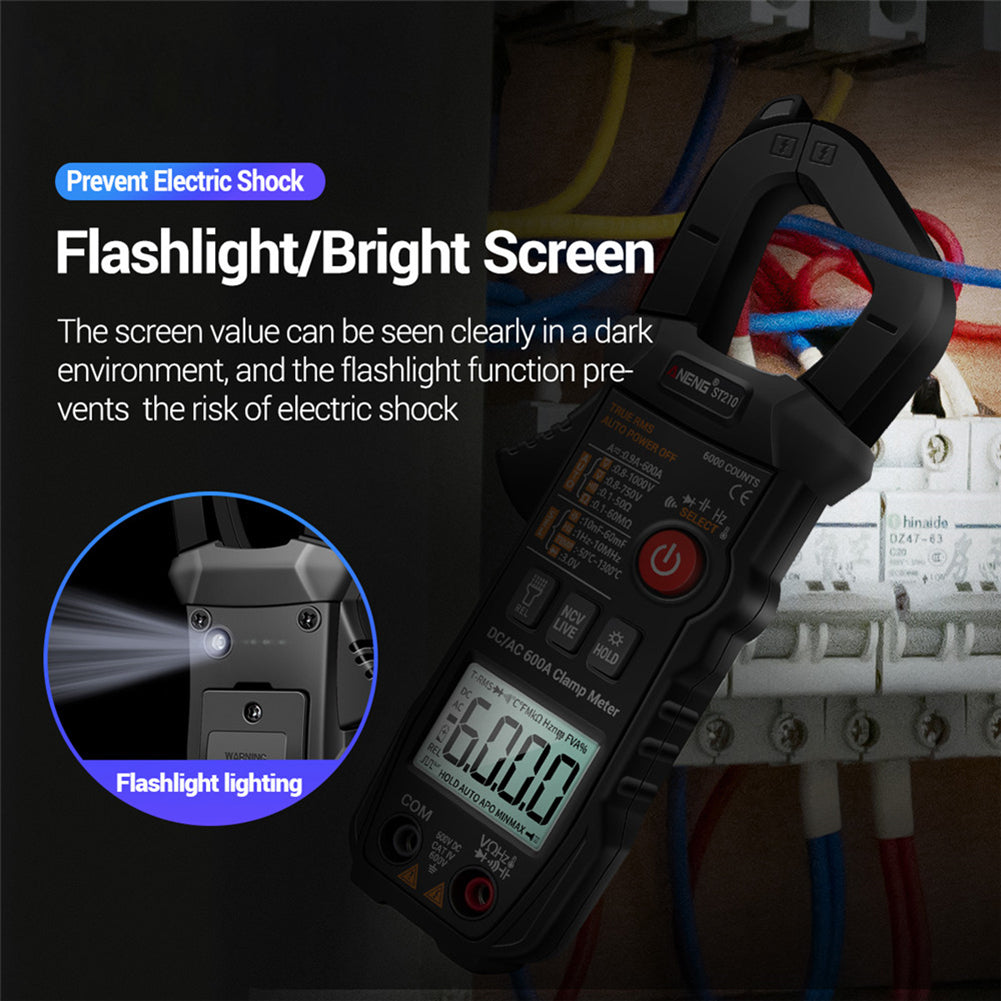

 Flashlight lighting: yes



 Technical index:

 DC voltage/AC voltage automatic scanning test (DCV/ACV)

 Range/accuracy  6000counts    resolution

 DC/AC6V           ±(0.5%+3)      0.001V

 DC/AC60V                               0.01V

 DC/1000V                                0.1V

 AC750V            ±(0.8%+10)     1V



 Resistance (Ω)

 Range/accuracy    6000counts   resolution

 600Ω                  ±(0.8%+5)     0.1Ω

 6kΩ                    ±(0.8%+3)     1Ω

 60kΩ                                       10Ω

 600kΩ                                     100Ω

 6MΩ                                        1kΩ

 60MΩ               ±(2.5%+3)       10kΩ



 AC and DC current (DC/ACV A)

 Range/accuracy  6000counts    resolution

 60A                    ±(2.5%+30)   0.01A

 600A                                       0.1A



 Capacitance (C)

 Range/accuracy  6000counts   resolution

 10nF                 ±(3.5%+20)   10pF

 100nF                                    100pF

 1uF                                        1nF

 10uF                                      10nF

 100uF                                    100nF

 1mF                                       1uF

 10mF                                     10uF

 60mF               ±(5%+3)         100uF



 Frequency measurement

 Range/accuracy  6000counts   resolution

 10Hz                  ±(0.1%+3)    0.01Hz

 100Hz                                    0.1Hz

 1kHz                                      1Hz

 10kHZ                                    10Hz

 100kHz                                  100Hz

 1MHz                                     1kHz

 10MHz                                   10kHz



 Temperature measurement (℃/℉)

 Range/accuracy               6000counts                            resolution

 (-20-1000 )℃ ±(1.0%+5)<400℃;±(1.5%+15)≥400℃       1℃

 (0-1832 )℉    ±(0.75%+5)<750℉;±(1.5%+15)≥750℉      1℉



 Note:

 Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

 Please allow 1-3mm measuring deviation due to manual measurement.

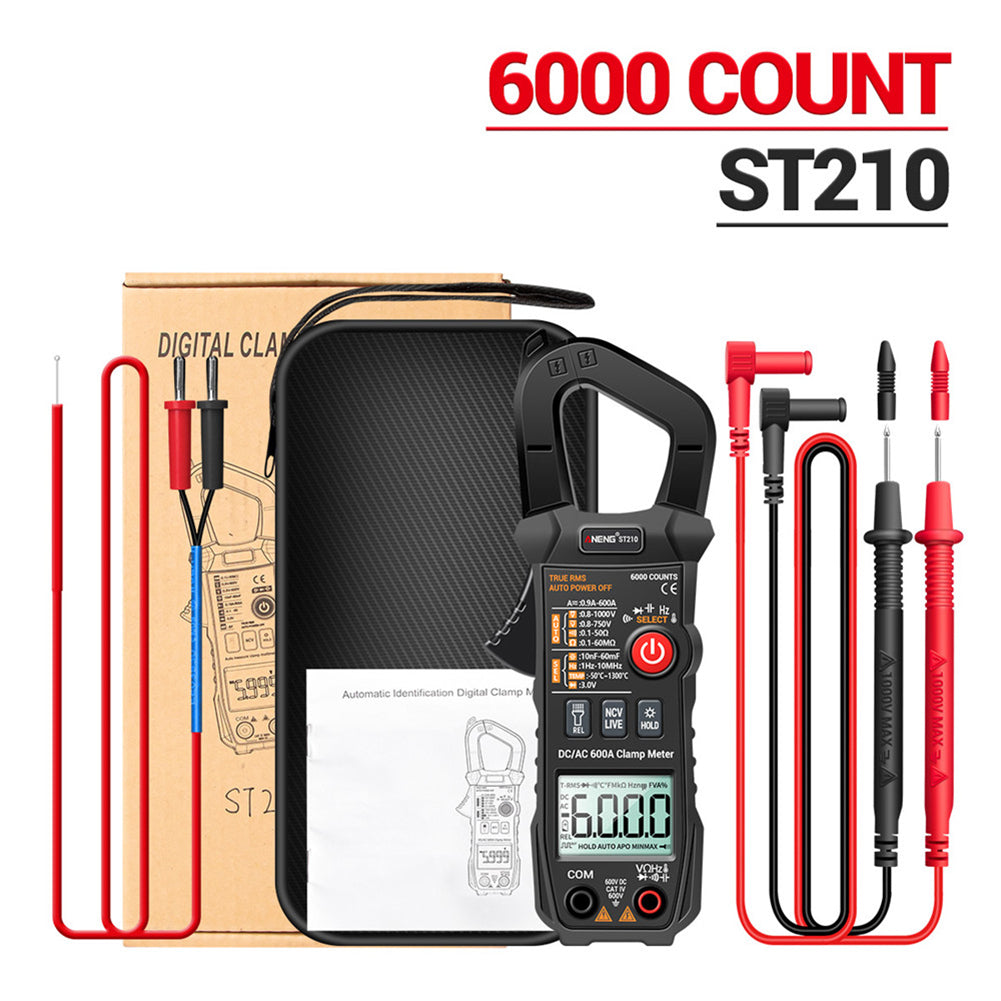

   1*Multimeter



 1*Instruction



 2*Test Leads



 1*Thermocouple
