Input Impendence (Ω): 50
V.S.W.R: ≤ 1.5
Consumption Electric: 10mA
Polarization Intensity: R.H.C.P
Supply Voltage: DC3.3~5.0V
The Sound Coefficient: ≤1.5dB
Axial Ratio: 3Db
Gain (dBi): 29dB±3dB(LNA)
Max Input Power: (w) 5
VSWE(Output VSWE): ≤1.8
Operating Temperature -40℃~+85℃
Storing Temperature -40℃~+90℃

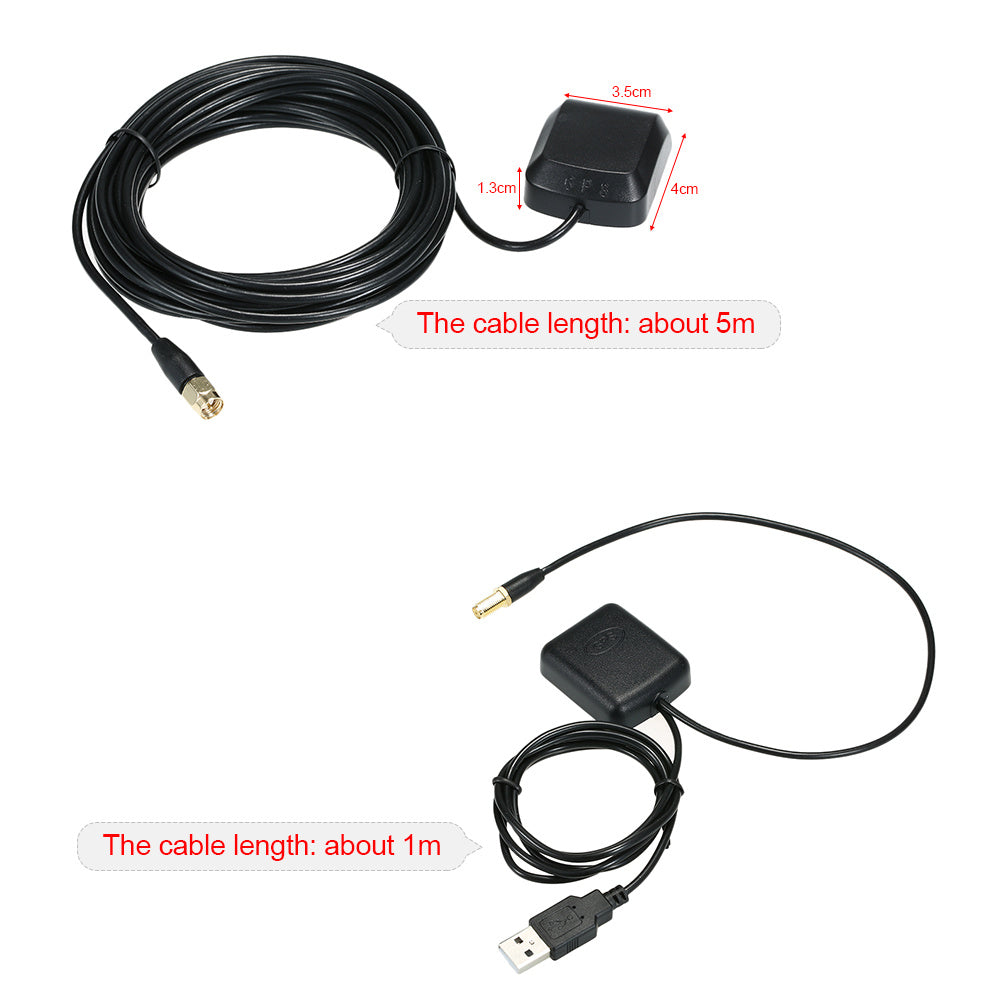

Cable Length approxi. 5M/15FT(receiver part)+ 1M/3FT(transmitter part)
Package size: 13 * 13 * 3cm / 5 * 5 * 1in
Package weight: 142g / 5oz
Notes:
Before powering on the product, make sure that the receiving part and the transmitting part must be separated by 2 meters to be energized. Otherwise, the receiving part will not work properly due to self-excitation damage

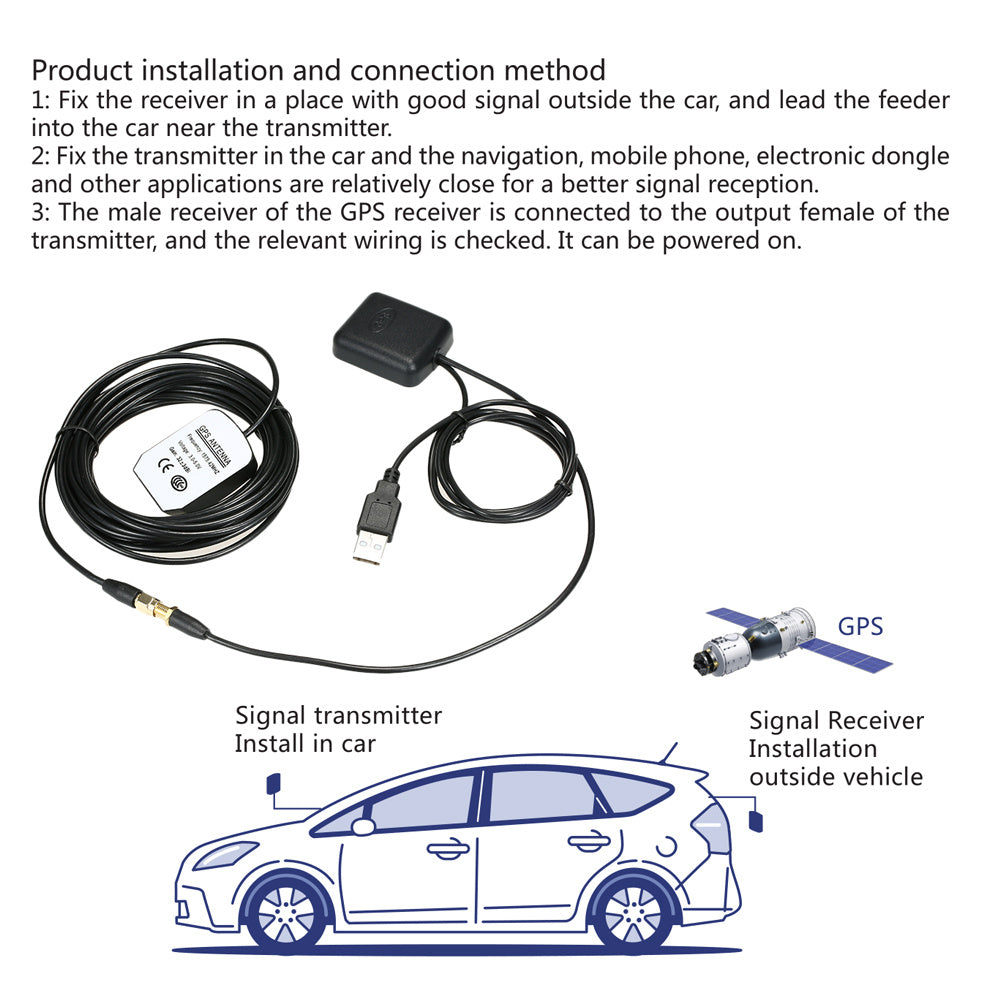

Product installation and connection method
1. Fix the receiver in a place with good signal outside the car, and lead the feeder into the car near the transmitter.
2. Fix the transmitter in the car and the navigation, mobile phone, electronic dongle and other applications are relatively close for a better signal reception.

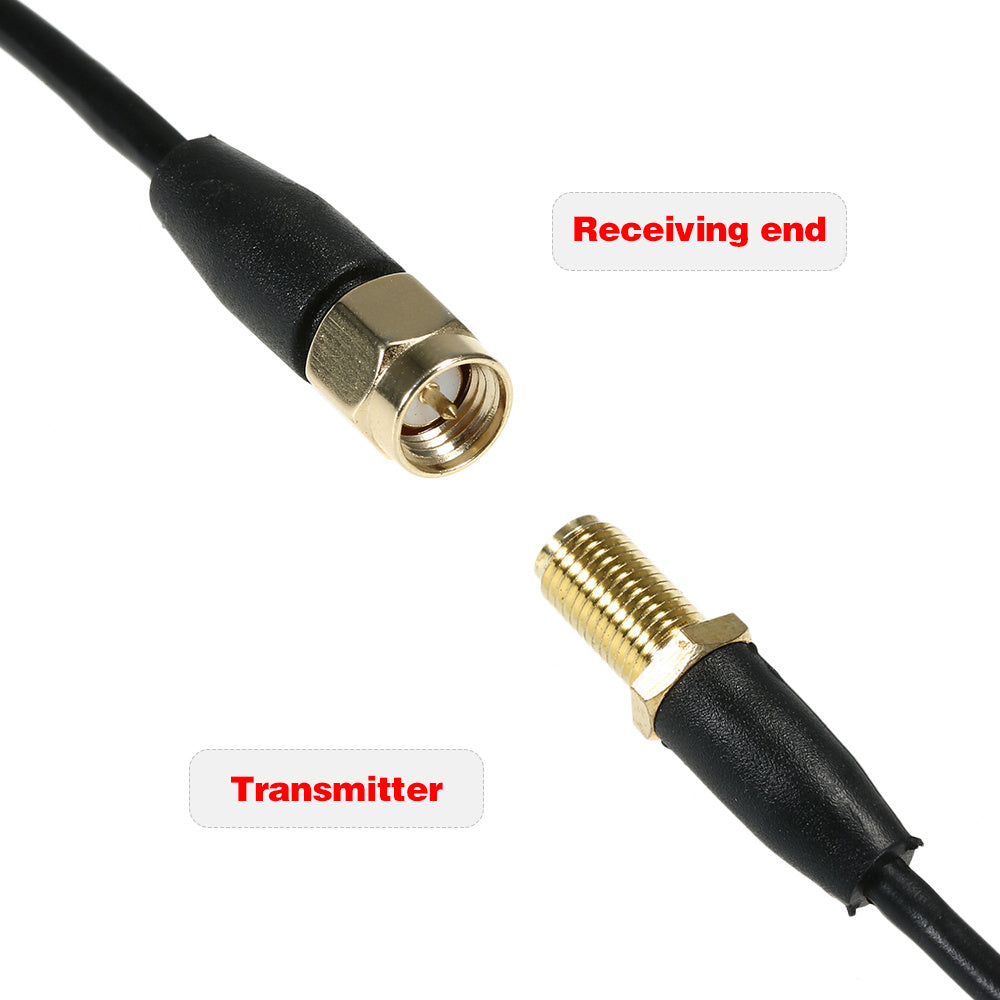

3. The male receiver of the GPS receiver is connected to the output female of the transmitter, and the relevant wiring is checked. It can be powered on.

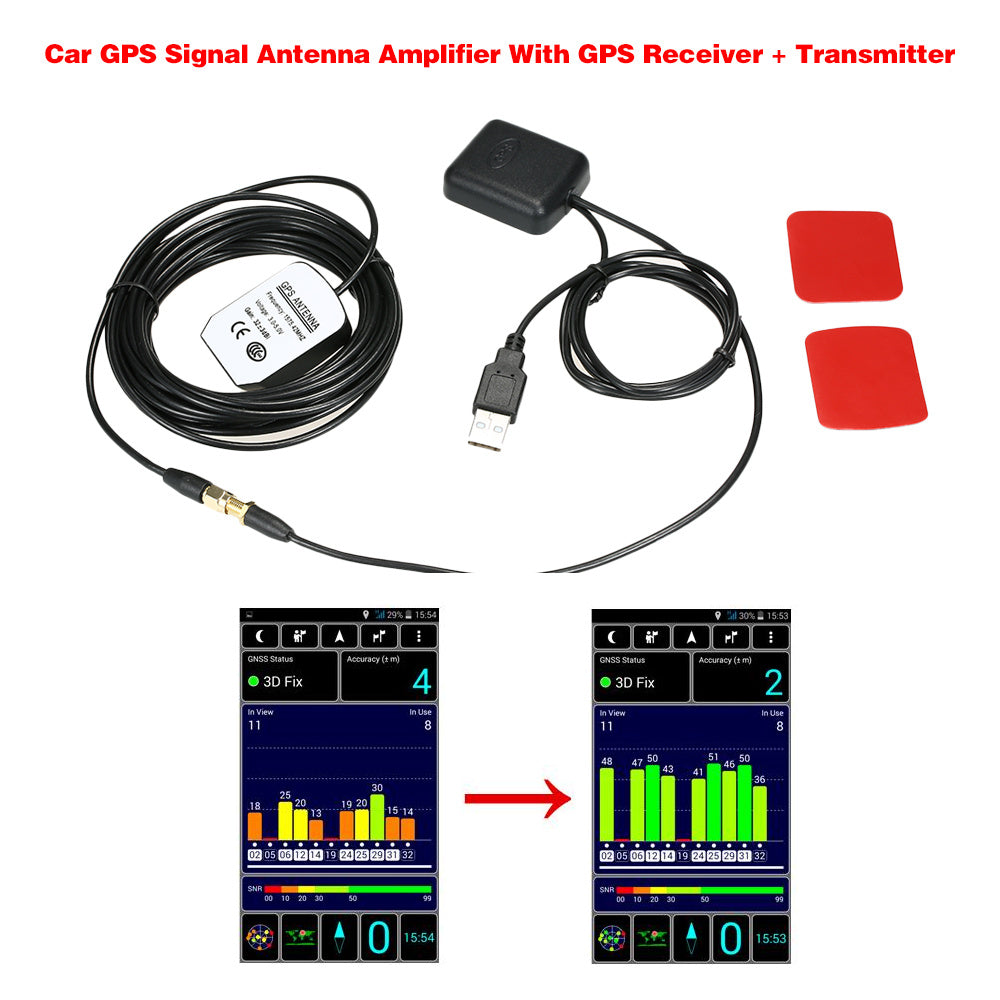

Package List:

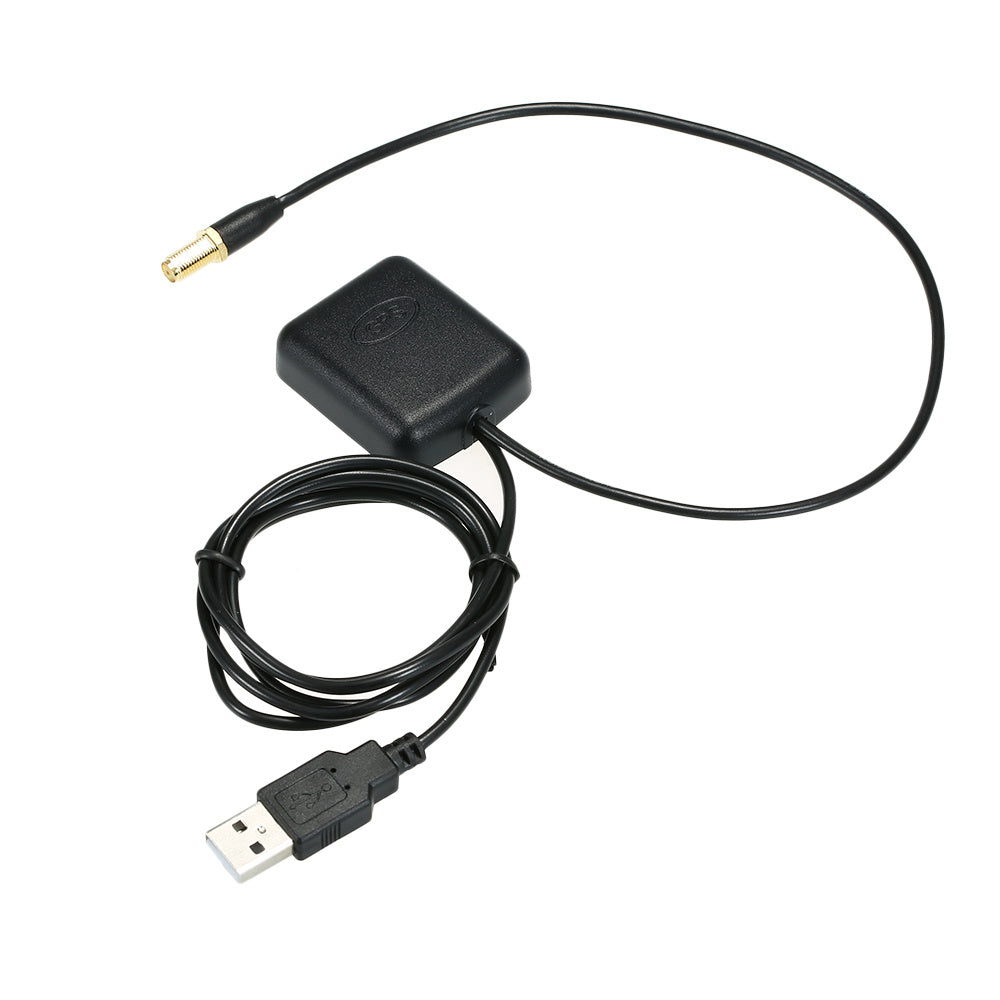

1 * Antenna Transmitter
1 * Receiver

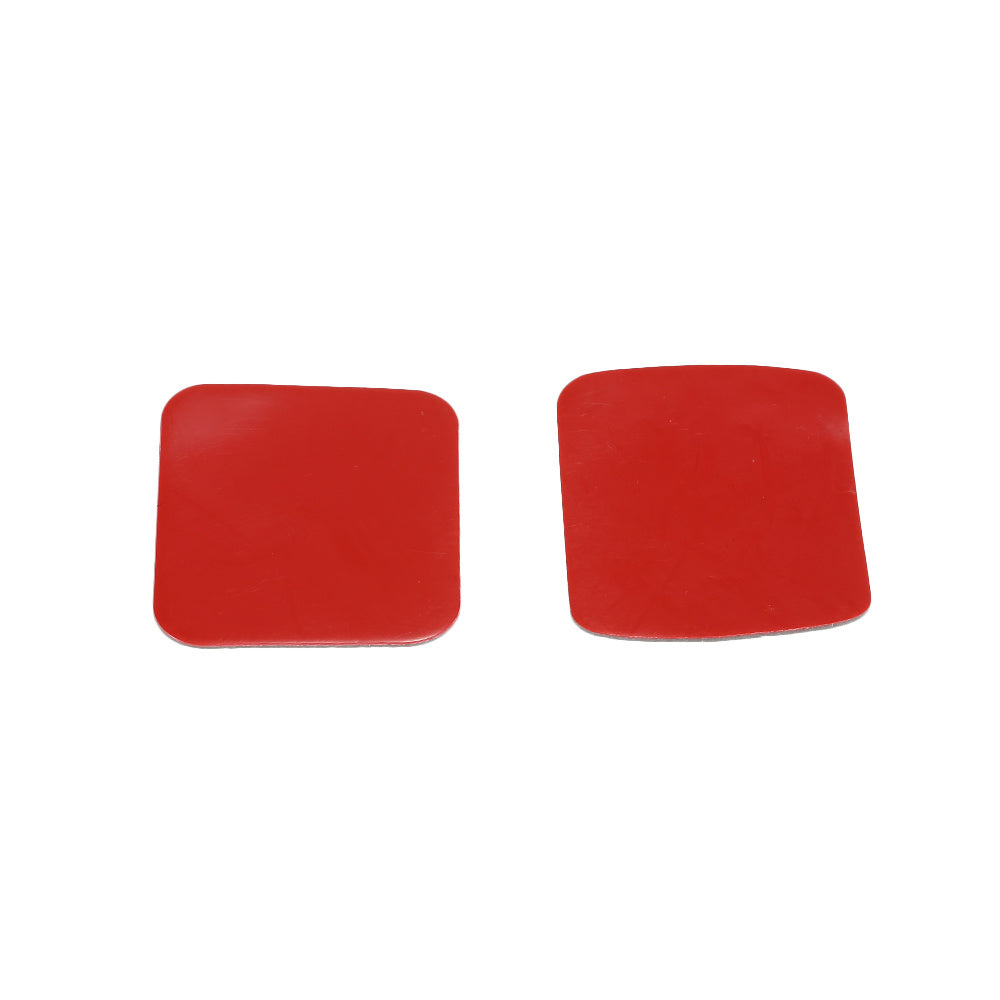

2 * Adhesive Sticker
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
