This lock is widely used in apartments, office, hotel, rental house.

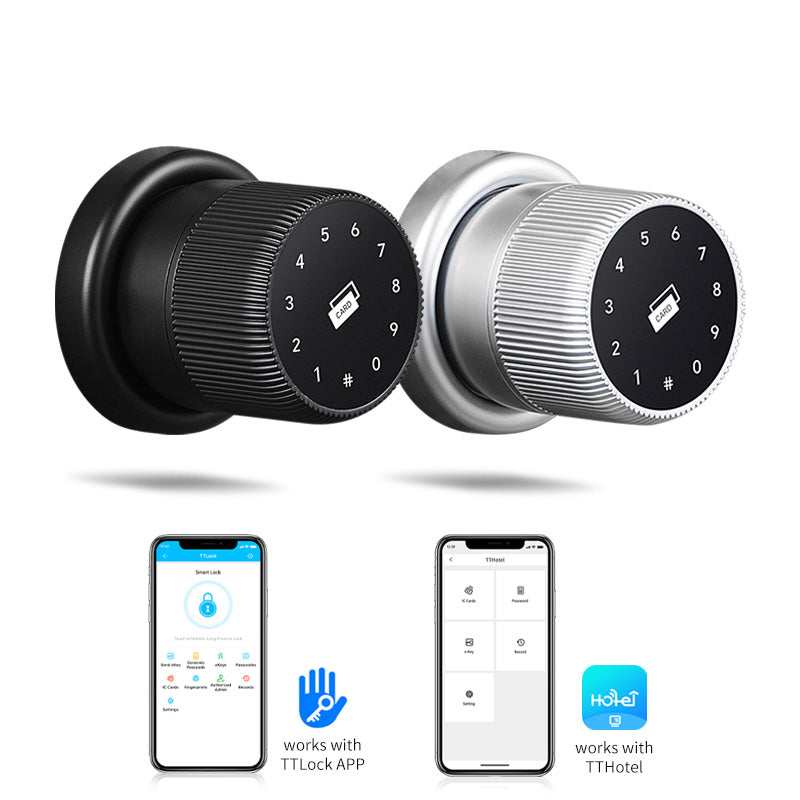

The lock can work both TTlock app and TThotel app.

TTlock app is mostly for apartments and office use;

TThotel is mostly for hotel use, it is the online hotel management system, which can be remotley controlled on computer and phone app.

 Lock Details

 Lock material: aluminum alloy

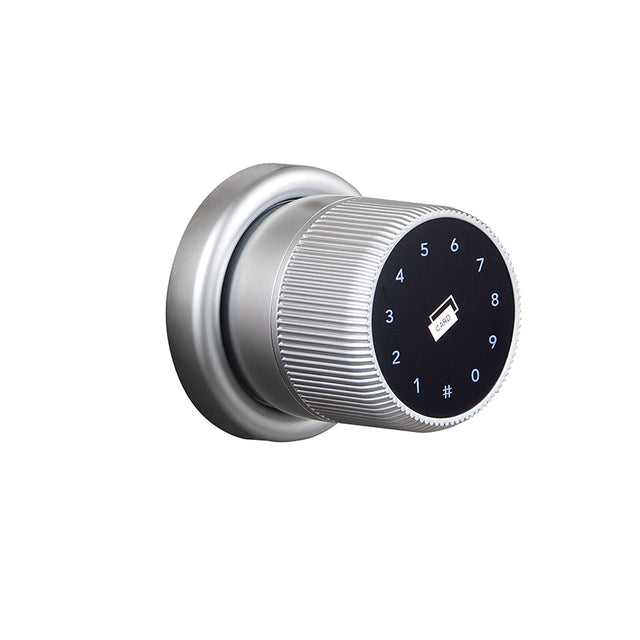

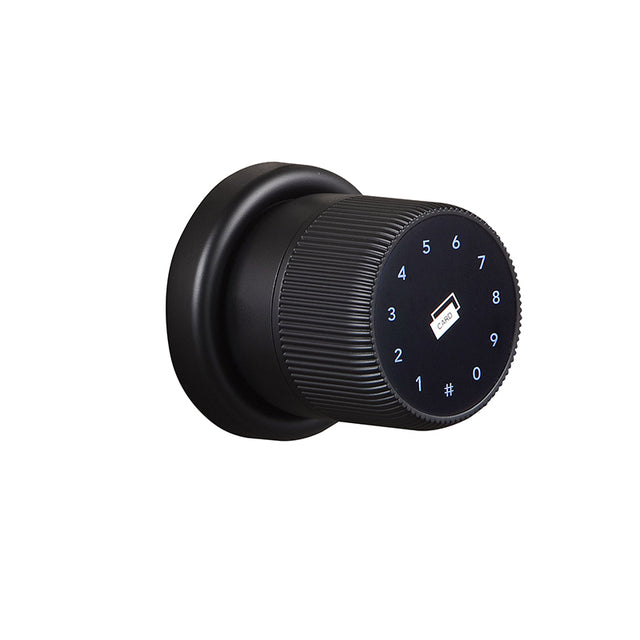

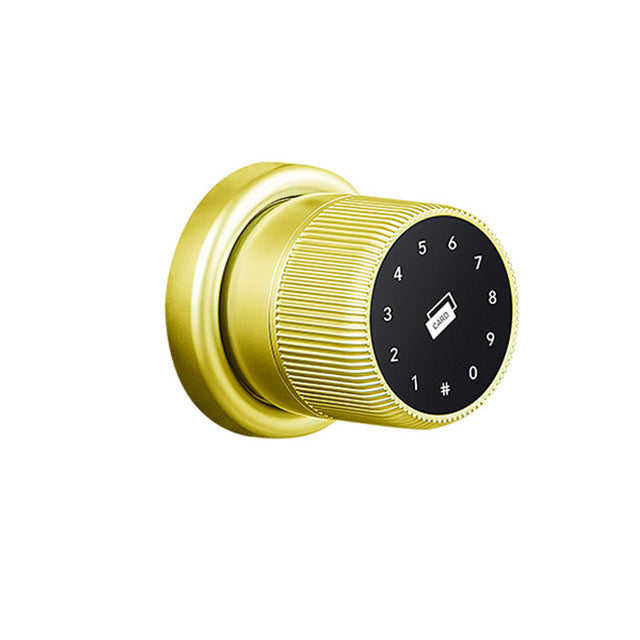

Color: silver, black, golden

Card type: 13.56mhz card

Bluetooth standard: bluetooth 4.0BLE

Support phone system: Android 4.3/IOS7.0

Power supply: 4pcs AA batteries

Low voltage alarm: support

Working temperature: -40~70 degree

Working current: less 200mA

Standby current: 35uA

Unlock way: APP, password, card, keys

App send password: no limited

Custom password： 150pcs

Fit for door thickness: 38-70mm

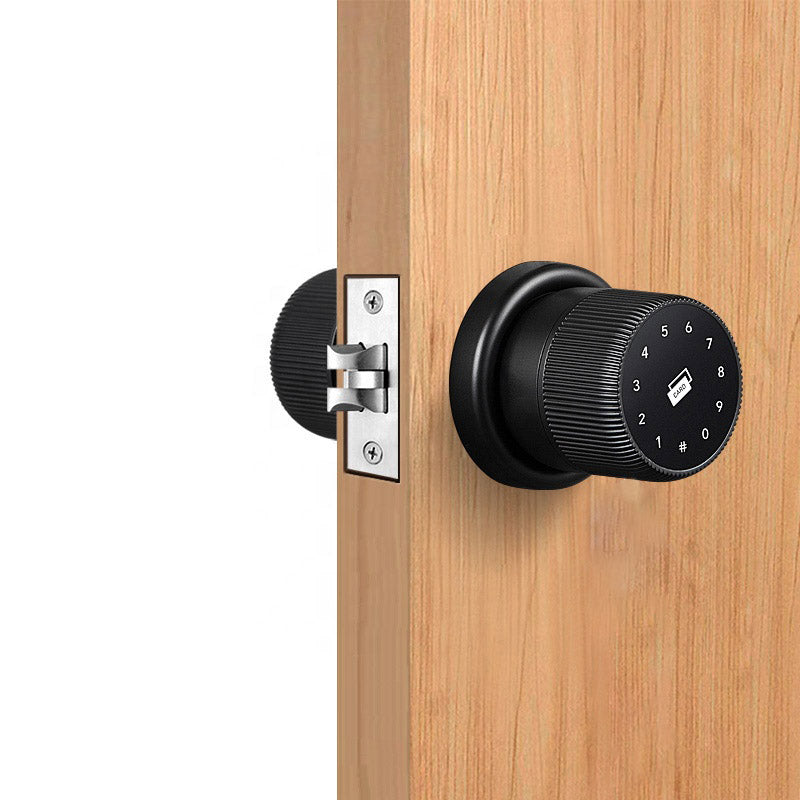

Fit door type: wooden door, steel door, anti-thieft door

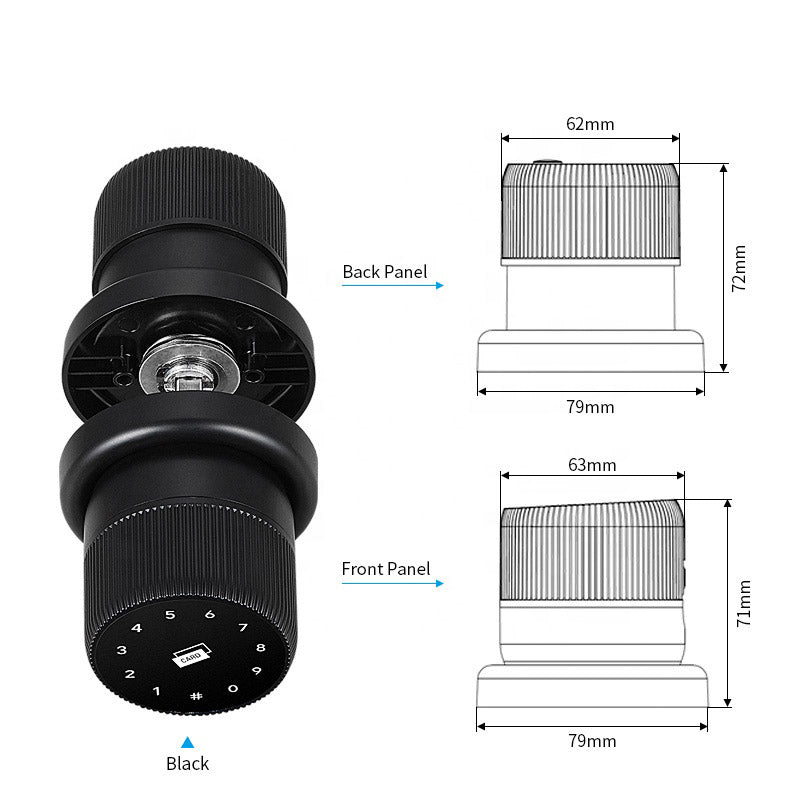

 Size

 For aparmtent use

 For apartment or rental house use, you can download the TTlock app on smart phone.

 Send e-Key and Password to unlock

 The e-key and password with the valid time, which is portable for you to manage in rental house,

 Connect to Alexa

 With the wifi gateway, the lock can connect to Alexa and google home.

 For Hotel use

 TTHotel is a online management system for hotel/apartment/school management. People use it to issue cards, passcodes, and ekeys.

TTHotel manages buildings, floors, rooms, guests and staff.

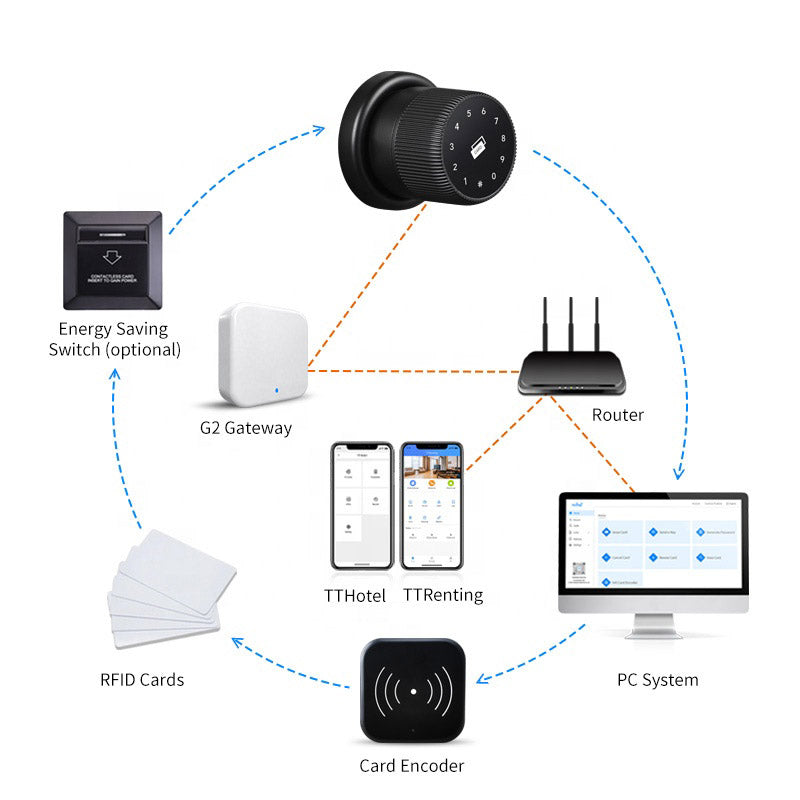

TTHotel manages various devices, such as smart lock, lift controller, card encode, gateway.

TTHotel system includes a Windows desktop software which is used to issue card, a hotel app which is used to manage devices, a guest app which is used to unlock with phone.

 TTHotel System is an intelligent hotel management software which is suitable for centralized/ distributed hotels and apartments.

The software consists of a web side management system and a tool APP, which includes various practical functions such as room, staff, intelligent hardware control and convenient check in It solves all kinds of problems encountered in hotel management and improves management efficiency It is centralized The best choice for intelligent management of hotels and decentralized apartments.

 Management system

 There is web management system and windows system for the Front Desk.

There is app for staff.

There is app for Guests.

It is very portable for the boss to check the hotel status online,

 Home

 Here are six modules: Issue Card/Generate Passcode/Renew Card/View Card/Cancel Card/Messages/View Card

Introduction/Init Card Encoder/ Feedbacks/ Scan the QR code

If you are prompted to " unrecognized card encoder ", when you issue the card, you can click " Init Card Encoder " to initialize the card

The card encoder should be initialized in this hotel system first. And it can only be used in your hotel

 3 Ways to unlock

 You can send eKey, password and IC cards to guests to unlock door.

 The following operation for your reference:

 1, Set the hotel room information in the software

 2, Log in

The employee can log in with his registered phone number;

Users who have not granted Web login permission cannot log in;

Press“Create a Hotel”to get into the creation interface;

Press“Help”to check the encoder user manual;

Press“Guest APP&mini program”to download the QR code;

Click "hotel APP" and "guest APP& mini program" to scan the code or download the corresponding QR code;

It can be placed at the hotel front desk for guests to scan the code;

 Employees (granted with APP login rights) can log in using their mobile phone number and password

Employees ( does not granted with APP login rights) can not log in

When s uccessful login, the interface jumps to the APP homepage

 3, Add lock

On the APP homepage, you can see the list of added locks, add + to add the lock, select the door to be added and then touch the lock When

the lock status is "Addable", click + to add it successfully After the addition is successful, click + to check if the door lock can be used normally.

 4, Lock setting

Four functions of card module:

 • check and report loss card

 • check and delete avilable password

 • check and read records

 • lock setting

When the card need to be reported, card module will shows · ” icon. Hotel staff can enter the IC card list, view and report the

card

The door opening record needs to be read by using the mobile APP near the door lock.

 Click [Setting] to enter the lock setting page, you can view the basic information of the lock and can calibrate and update the lock time and version.

The administrator has unlock password s for all locks

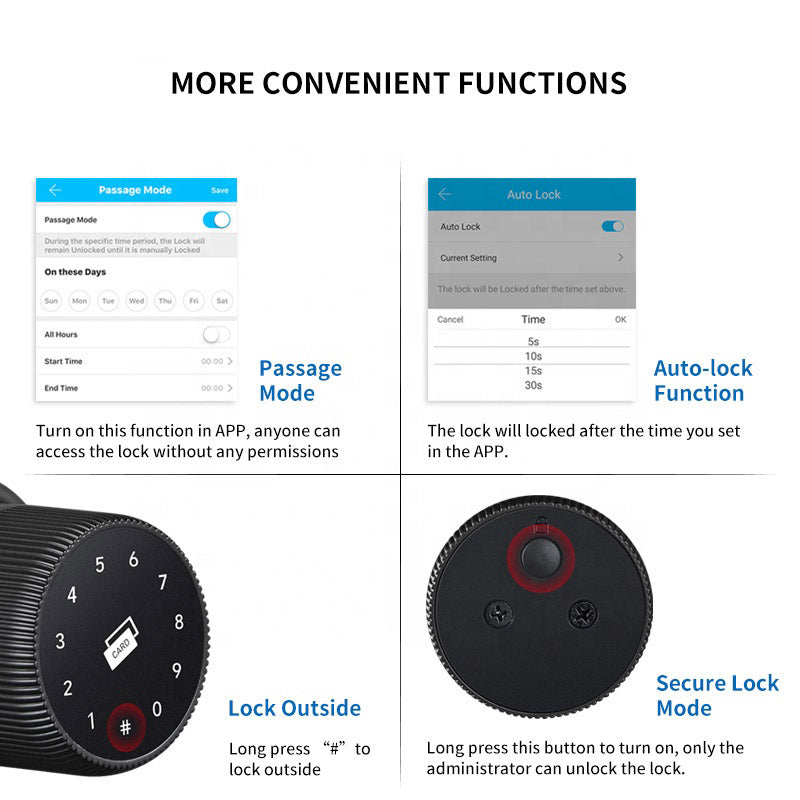

The normally open mode can be applied to a common door. When this mode is turned on, the public door will not automatically lock during the

normally open time.

When there is a problem with the lock, you can click the diagnosis to report the configuration information in the lock, and the professional staff can help resolve the fault.

Notice: the lock of the room that the tenant is checking in cannot be deleted. The room card should be returned, password and key should be deleted before deletion.

 If you want more details, please contact us for manual and video. My whatsapp +86 17727439775

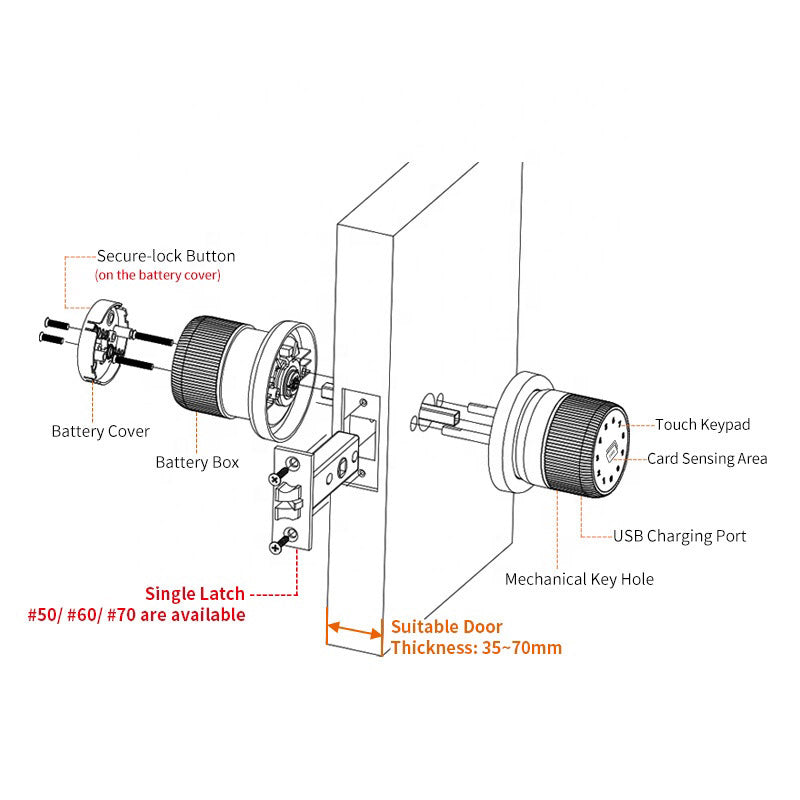

 Installation

 If your door is new door, then you can directly order our lock to install.

Just follow the template to drill the door size, and install it.

 How to choose the lock for old door?

 If your door is old door, please send us the old lock picture, and the size of A and B, then we will help you to confirm the mortise you need.

We have some other mortise to fit different doors. Therefore, please contact us for more details.
