Features:
Adopt a large LCD display of 3.2 inches, 240 x 320 RGB resolution with a resistive touching screen.
Wear-resistant functional buttons design, with four-way arrows buttons, a 360° rotation button, and select buttons.
The built-in microphone, built-in loudspeaker, and external loudspeaker design make it have sound input and output functions, and the built-in loudspeaker and external loudspeaker will switch automatically.

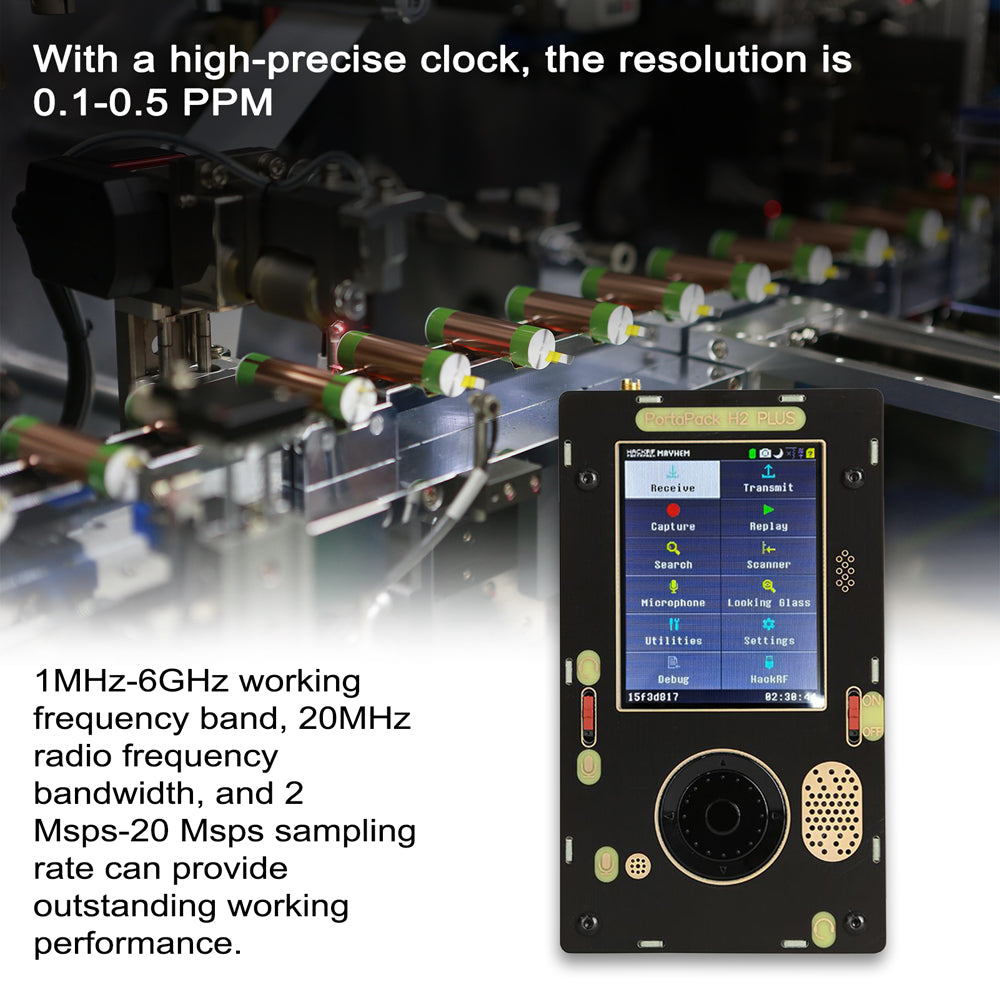

With a high-precise clock, the resolution is 0.1-0.5 PPM.

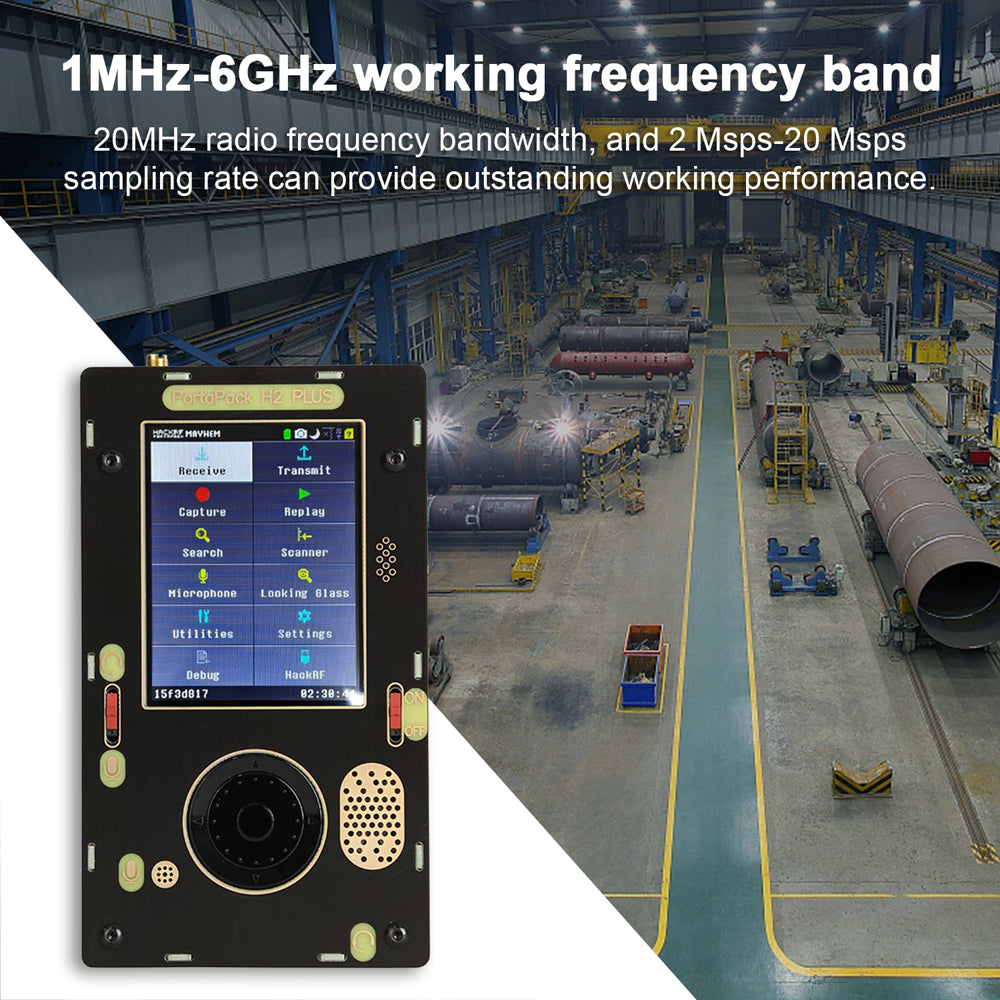

1MHz-6GHz working frequency band, 20MHz radio frequency bandwidth, and 2 Msps-20 Msps sampling rate can provide outstanding working performance.
Suitable for wireless communication technology research: ZigBee, WiFi, LTE, ADS-B, DVB, and other wireless application systems; source/channel coding and decoding, modulation and demodulation, sampling, filtering, synchronization, multiplexing, spread spectrum, channel emulation port.
Information safety technology research: wireless communication attacks such as eavesdropping, coaxing, replay, identity impersonation, blocking, and other attacks; Wireless communication physical layer safety protections: RSSI and CSI-based keys generation, identity authentication, anti-interference mechanism.
Specifications:
Name: HackRF + Portapack H2 Plus Set
Material: printed circuit board
Battery: 1 * 3.7V, 1400mAh battery (included)
Duplex mode: half-duplex transceivers
Radio frequency bandwidth: 20M Hz
Sampling rate: 2 Msps-20 Msps
Power supply/transmission interface: USB2.0
Transmit power:
5-15dBm (10M Hz-2150M Hz)
13-15 dBm (2150-2750 M Hz)
0-5 dBm (2750-4000 M Hz)
-10-0dBm (4000-6000 M Hz)
Received power: -5dBm
Clock Accuracy: 0.1-0.5ppm
Working frequency band: 1M Hz-6GHz
Main chip:
Wireless RF Transceivers MAX2837 (2.3-2.7 GHz transceivers)
Mixer RFFC5072 (30M Hz-6GHz)
Processor LPC43xx ARM Cortex-M4
Complex Programmable Logic Device: CPLD CoolRunner-II
Package size: 210 * 135 * 60mm / 8.27 * 5.31 * 2.36in
Package weight: 470g / 1.04lb
Packing List:

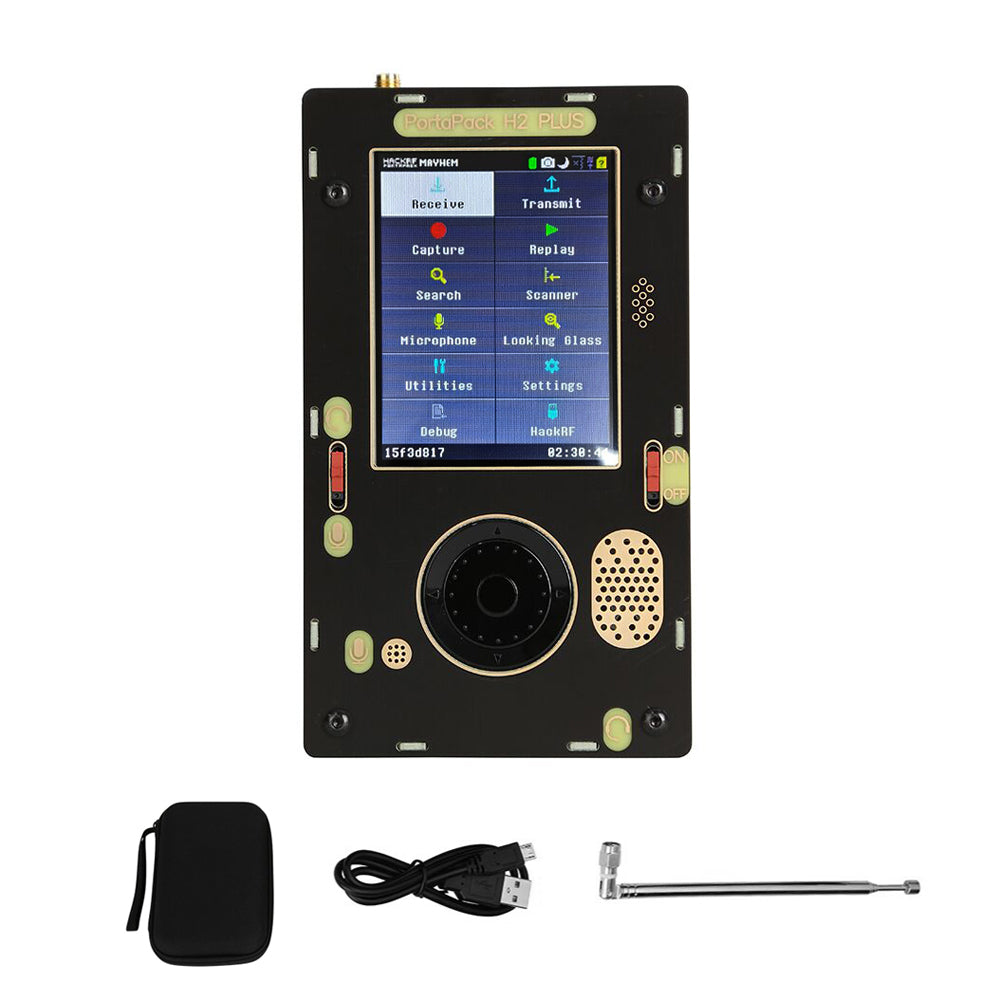

1 * HackRF + Portapack H2 Plus + outcase
1 * USB Cable
1 * Antenna
1 * Bag
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
