Features:
200MHz bandwidths
1GSa/s Real Time sample rate
Large (7.0-inch) color display,WVGA(800x480)
Record length up to 40K
Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
USB host and device connectivity, standard
Multiple automatic measurements
Four math functions, including FFTs standard
Provides software for PC real-time analysis
Characteristic:

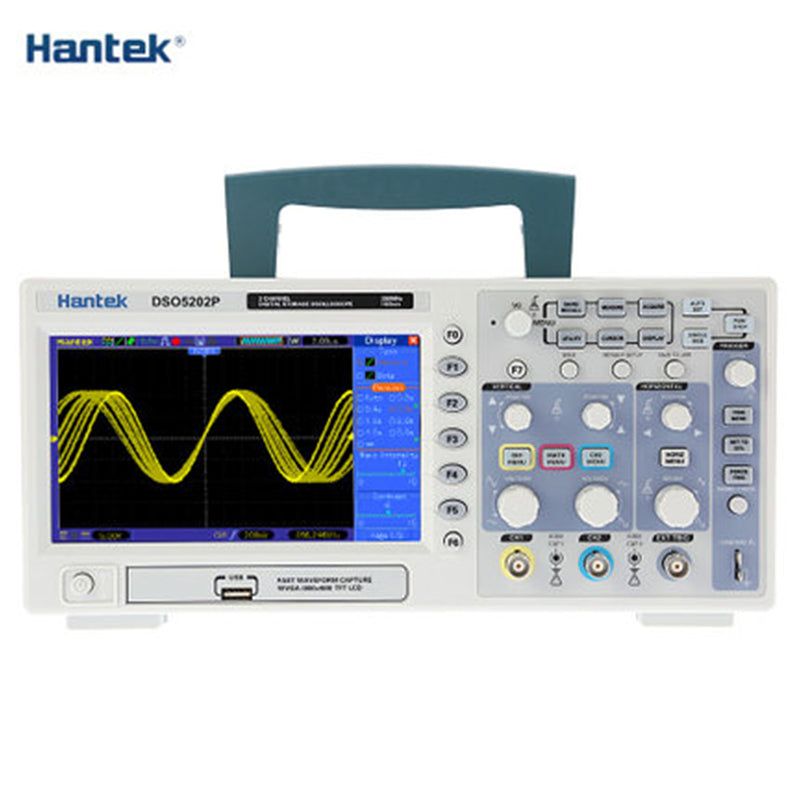

ModelDSO5202P
Bandwidth200MHz
Channel2
Real-Time Sample1GSa/s
Equivalent Sample25GSa/s
Record Length 24K
Rise Time1.7ns
Time Base Accuracy±50ppm
Time Base Range2ns/div-40s/div
Input Impendance1MΩ
VOLTS/DIV Range2mV/div~5V/div
A/D Converter8 bit
Position Range±50V(5V/div), ±40V(2V/div~500mV/div),
±2V(200mV/div~50mV/div), ±400mV(20mV/div~2mV/div)
DC Gain Accuracy±3% for Normal or Average acquisition mode, 5V/div to 10mV/div;
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
Bandwidth Limit20MHz
Trigger TypesEdge, Video, Pulse, Slope, Over time, Alternative
Trigger SourceCH1, CH2, EXT, EXT/5, AC Line
Math+,-,x,÷,FFT
Cursor MeasurementVoltage difference between cursors: ΔV;
Time difference between cursors: ΔT;
Reciprocal of ΔT in Hertz (1/ΔT);
Auto MeasuermentFrequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF
Display7"TFT 16K Color LCD, 800*480 dots
Size313mm x 108mm x 142mm
Weight2.08KG

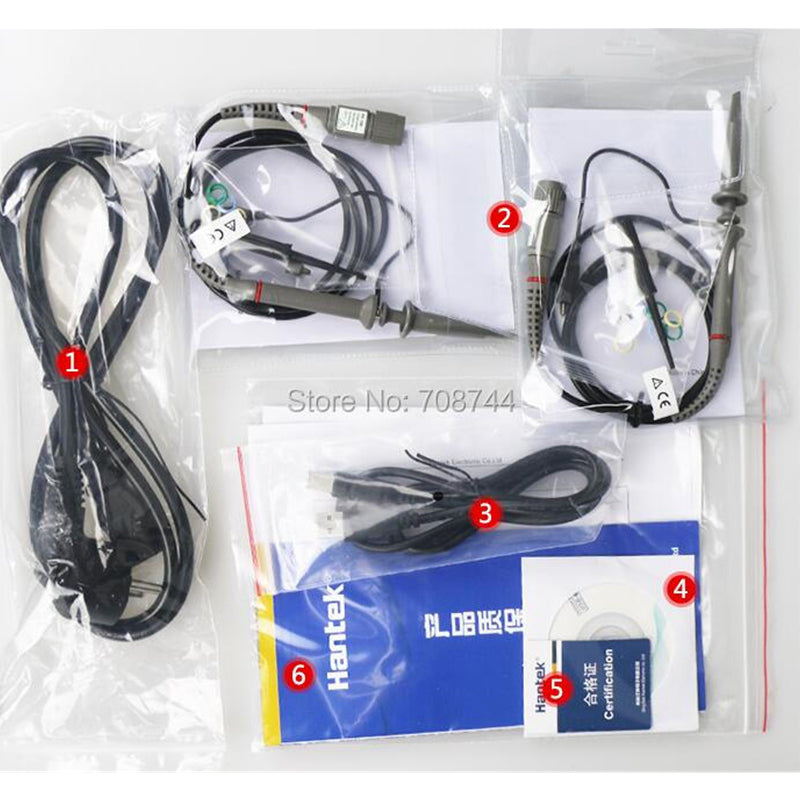

Package (gift box):
1 x 5202P oscilloscope
2 x oscilloscope probe
1 x USB cable
1 x power cabl
1 x CD & manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
