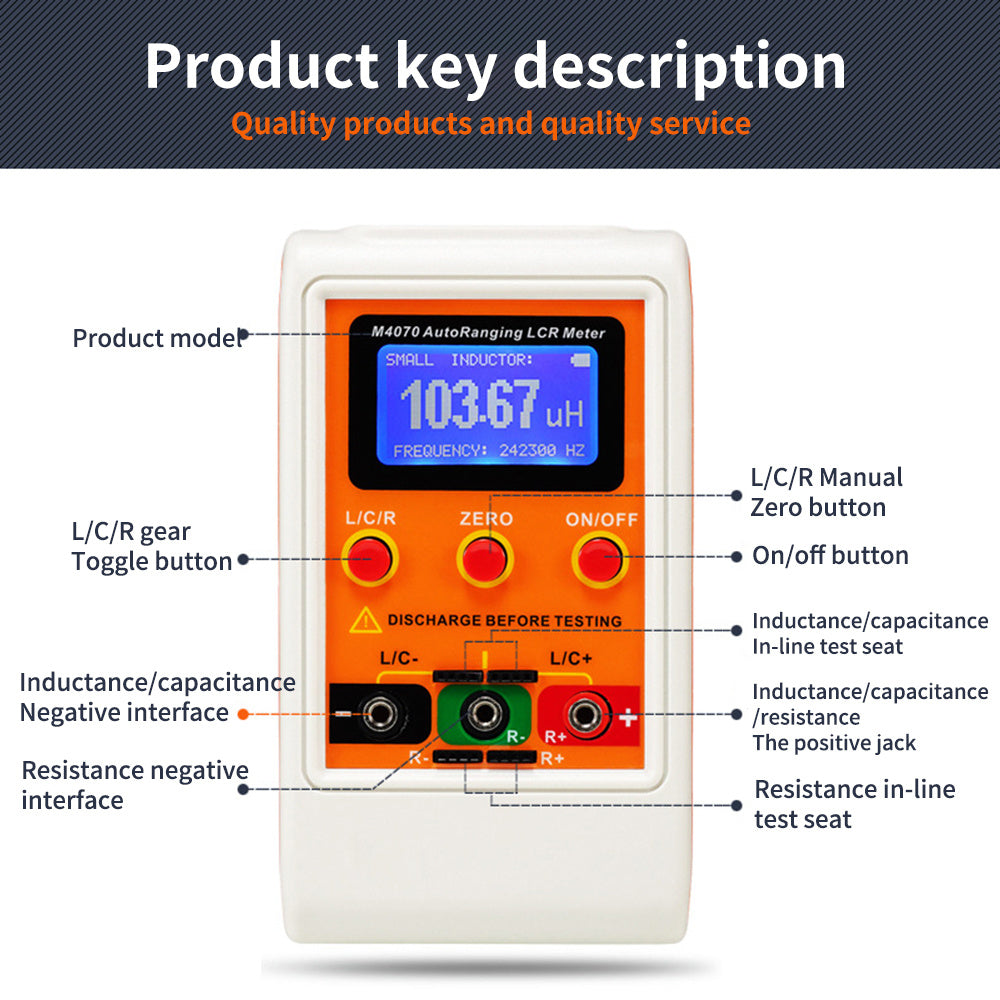

Features:
1. MINI USB port: DC5V charging, built-in lithium battery.

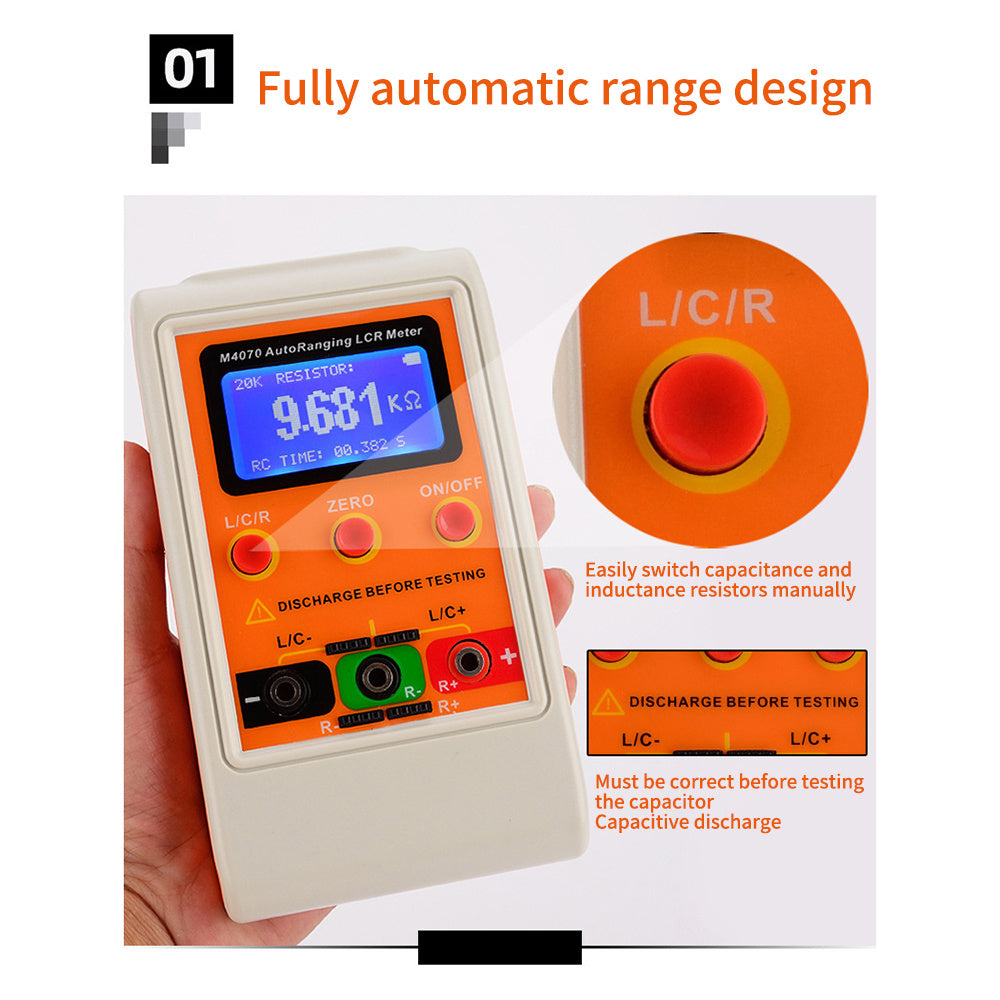

2. Fully automatic range design: manually switch capacitance and inductance resistance easily.

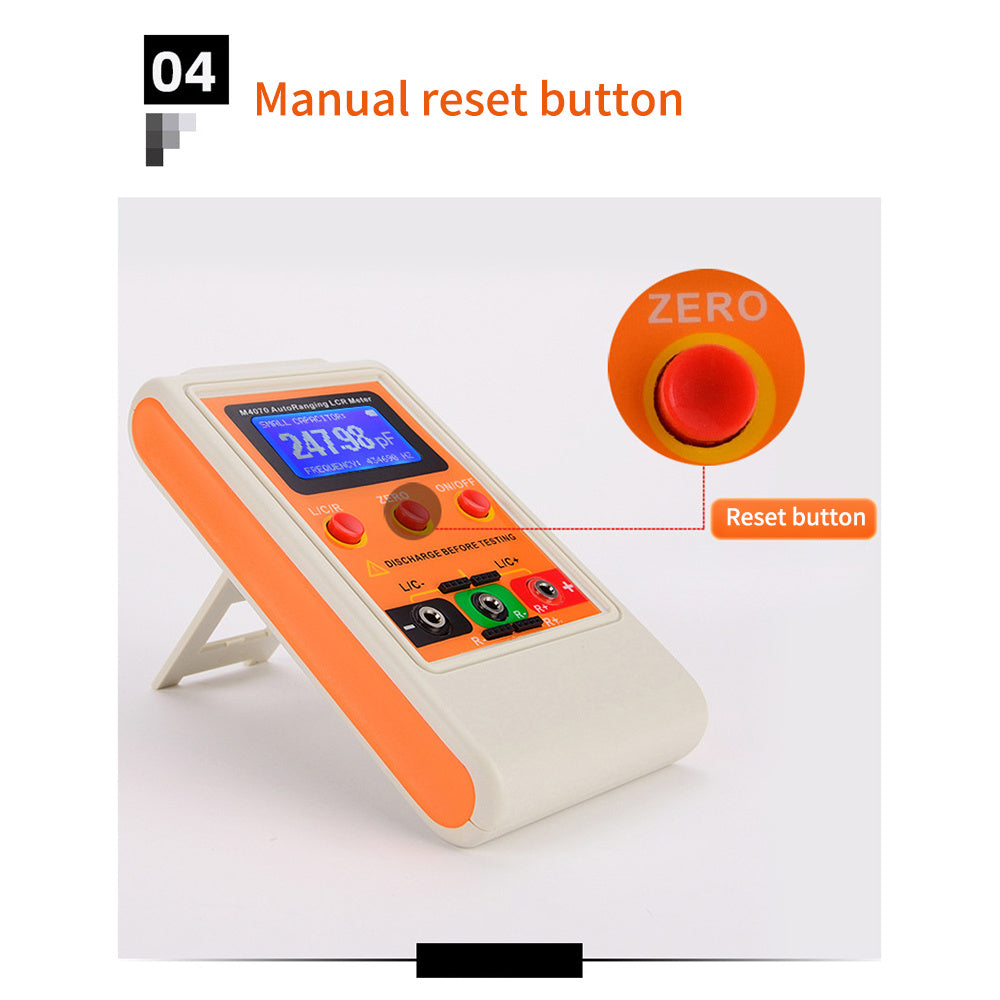

3. Manual reset button: to remove errors and facilitate accurate testing of small numerical components.

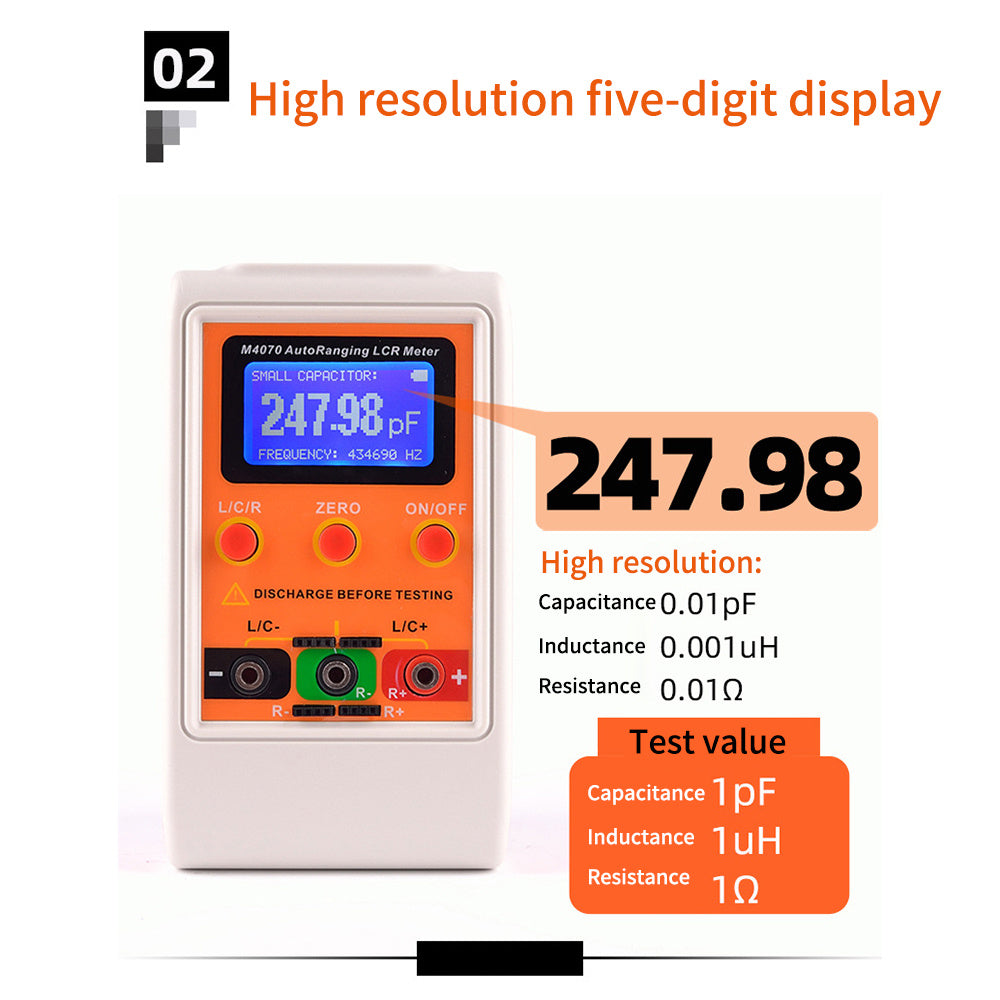

4. High resolution five-digit digital display: high precision 1%, capacitance 1pF, inductance 1uH, resistance 1Ω.
5. USB computer driver: convenient data collection, professional electronic engineers engineering detection use.
Specifications:

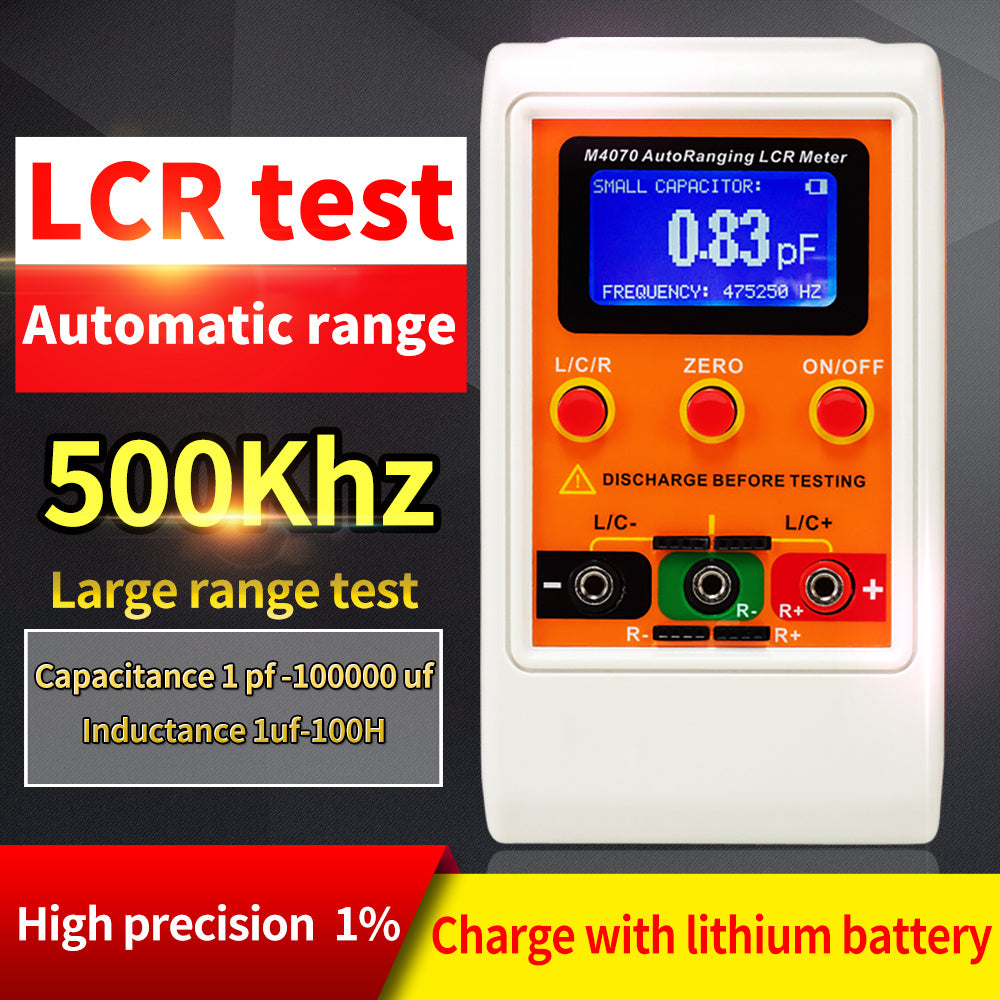

Model: M4070 LCR tester
Range mode: Automatic
LCR measurement parameters: Main parameter: L/C/ R
Zero clearing function: open/short circuit frequency sweep zero clearing
Test frequency: C: 10 to 500Khz, L: 10 to 360Khz
Interface: Mini-USB(virtual serial port)
Charging interface: Mini-USB (500mA)
Test method: Automatic LC and RC vibration
Display: 128*64 dot matrix LCD main and secondary parameters simultaneously display with backlight
Calibration: Automatically calibrate internal standard capacitance upon startup
Fuse protection: 200 MA
Test level range: ~1.5Vrms
Accuracy: L: 1%+1 word, C: 1%+1 word, R: 0.5%+1 word
Battery: Built-in 3.7V battery
Measurement speed/test time: 3 times/second, 100mF large capacitance 30 seconds)
Display range:
C: 0.00pF~100.000mF,
L: 0.000uH~100.00H,
HZ(LC test frequency): 0 to 900000Hz,
S(RC test time): 0000~99.999,
R: 0.00Ω to 10.000MΩ
Shipping list:

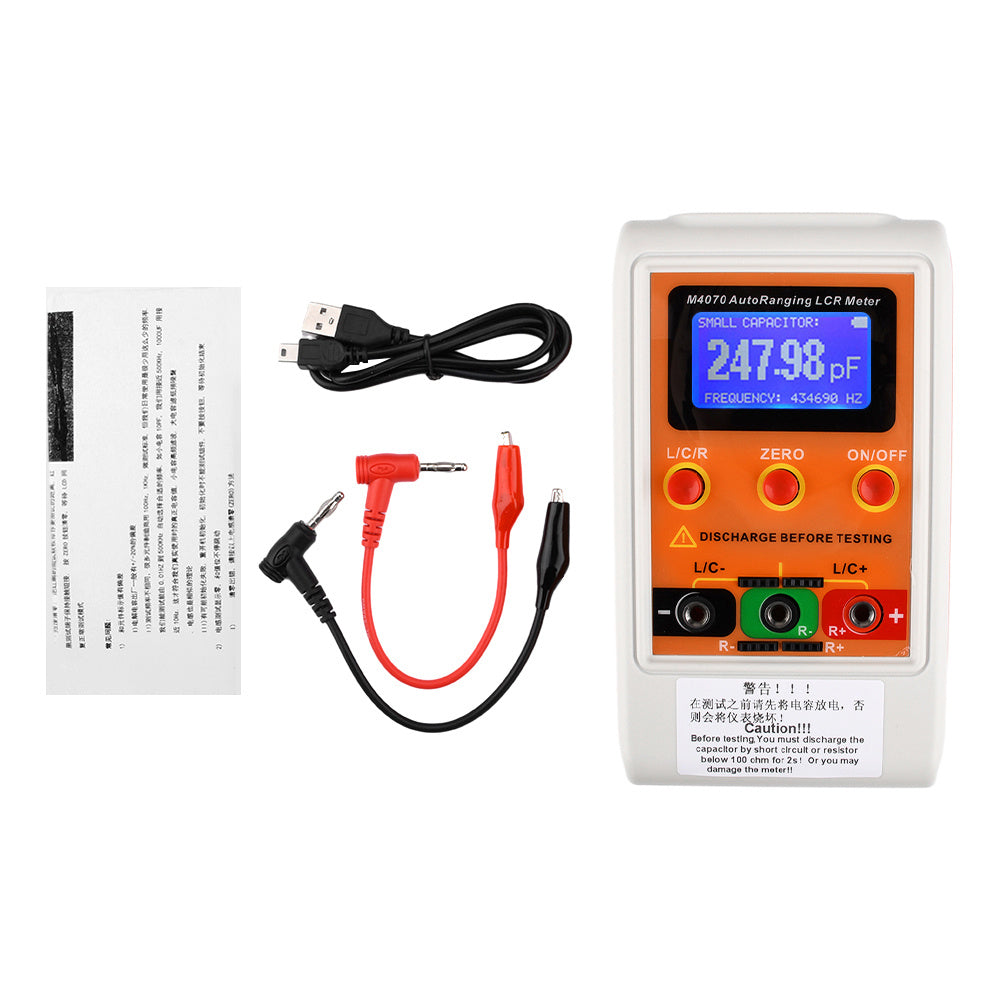

Host *1+ instruction *1+ data cable *1+ crocodile clip *1
