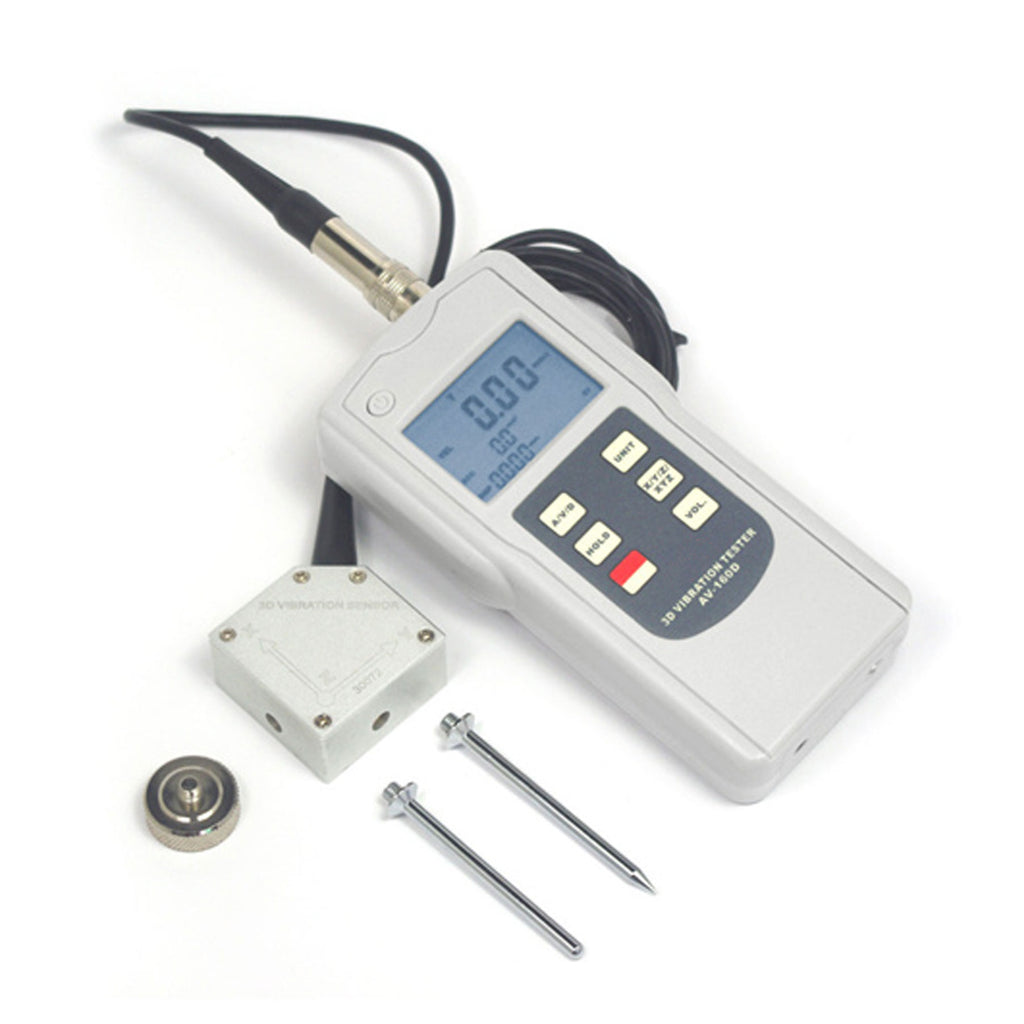

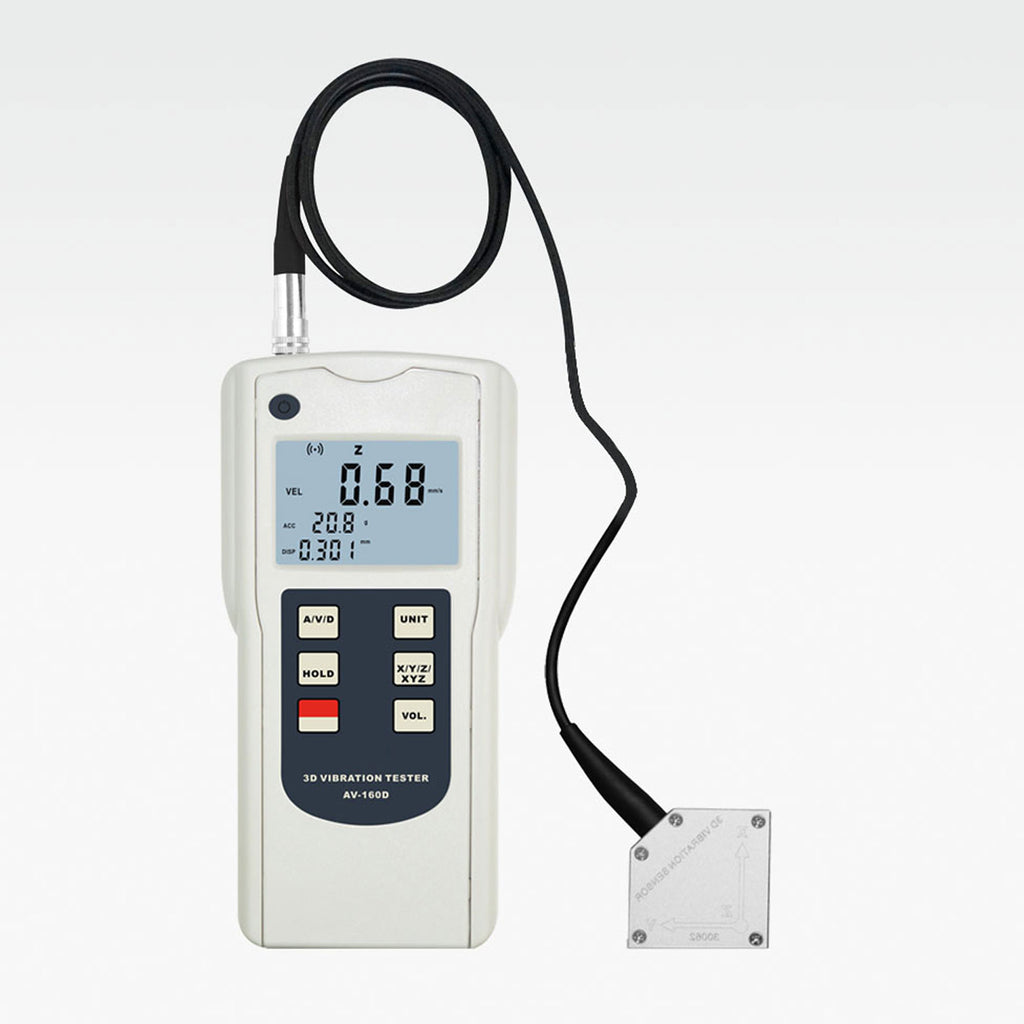

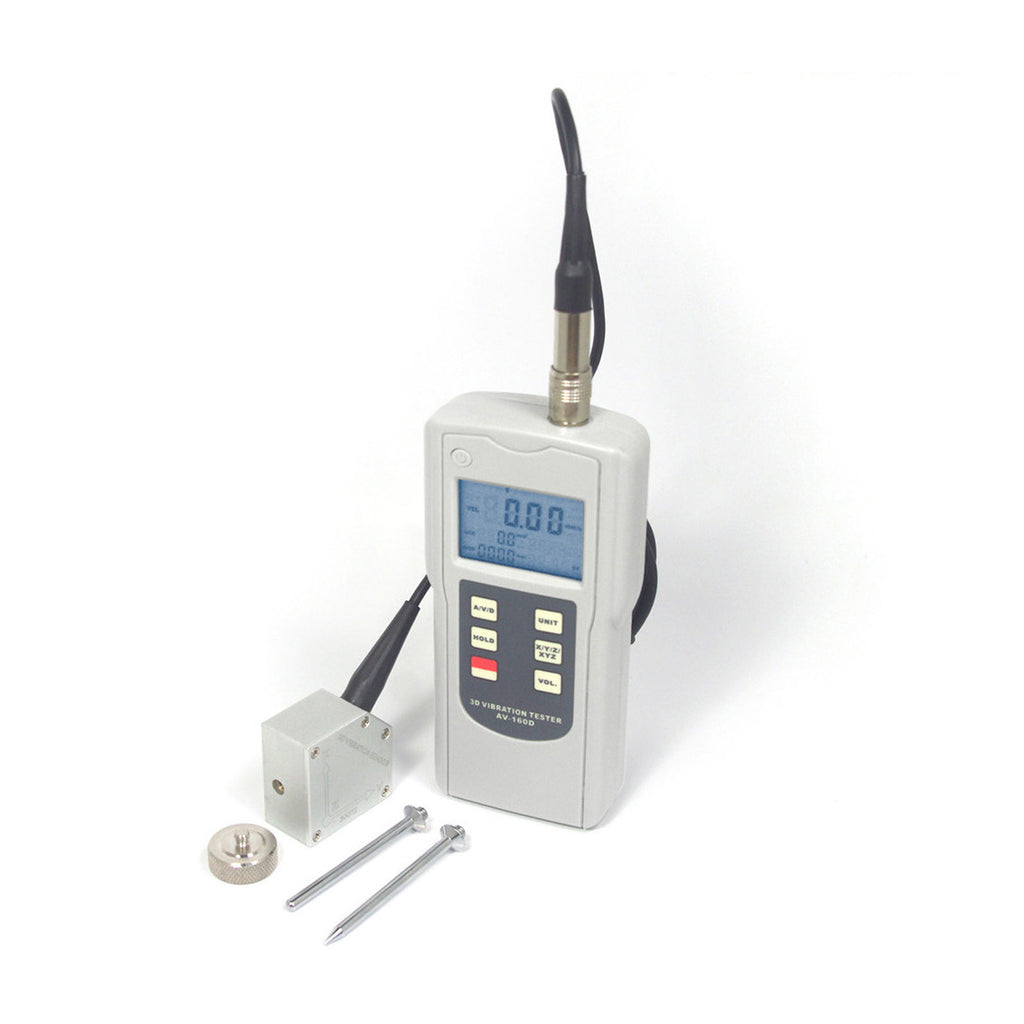

AV-160D Portable 3D Vibration Tester Meter Analyzer 3-Axis Piezoelectric accelerometer Vibration Sensor

   Product Description

   The 3D Vibration Tester Applied to the periodic motion measurements to detect moving mechanical imbalances and misaligned. Designed for on-site measuring various mechanical vibration, for quality control, running time and prior equipment maintenance data. Selection of high-performance accelerometers to achieve accurate, replicable measurement It has a bearing condition measurement function.

   Product Feature

   * In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance,misalignment and other mechanical faults in rotating machines.

   * Specially designed for easy on site vibration measurement of all rotating machinery forquality control, commissioning, and predictive maintenance purposes.

   * Individual high quality accelerometer for accurate and repeatable measurements.

   * Wide frequency range (10Hz~10kHz) in acceleration mode.

   * AC output socket for headphones and recording.

   * Optional headphones for use as electronic stethoscope.

   * Bearing condition monitoring function.

   * Use USB data output with connection PC.

   * Provide Bluetooth data output choice.

   Product Parameters

                  Vibration Sensor

      3-Axis Piezoelectric accelerometer

                Axial Vibration

      Any one axis of X ,Y,Z or 3 axes of XYZ

                Accuracy

      ±5%+2 digits

                Measurement Range

      Displacement :  0.001-4.000 mm  equivalent peak-peak / 0.04-160.0 mil

                Velocity :              0.1-400.0 mm/s  true RMS / 0.004-16.00 inch/s

                Acceleration :      0.1-400.0 m/s² equivalent peak / 0.3-1312 ft/s² / 0.0-40g

                Frequency Range

      Displacement : 10Hz. ~ 1kHz.

                Velocity :10Hz. ~1kHz.

                Acceleration: 10Hz. ~ 10kHz.

                Operating Conditions

      Temperature : 0-50 ℃

                Humidity : below 95% RH

                Analogue Output

      AC output 0~2.0V peak full scale (load resistance: above 10k)

                Power Supply

      4x1.5vAAA (UM-4) Battery

                Size

      140x70x30mm

                Weight

      130g (Not including Batteries)

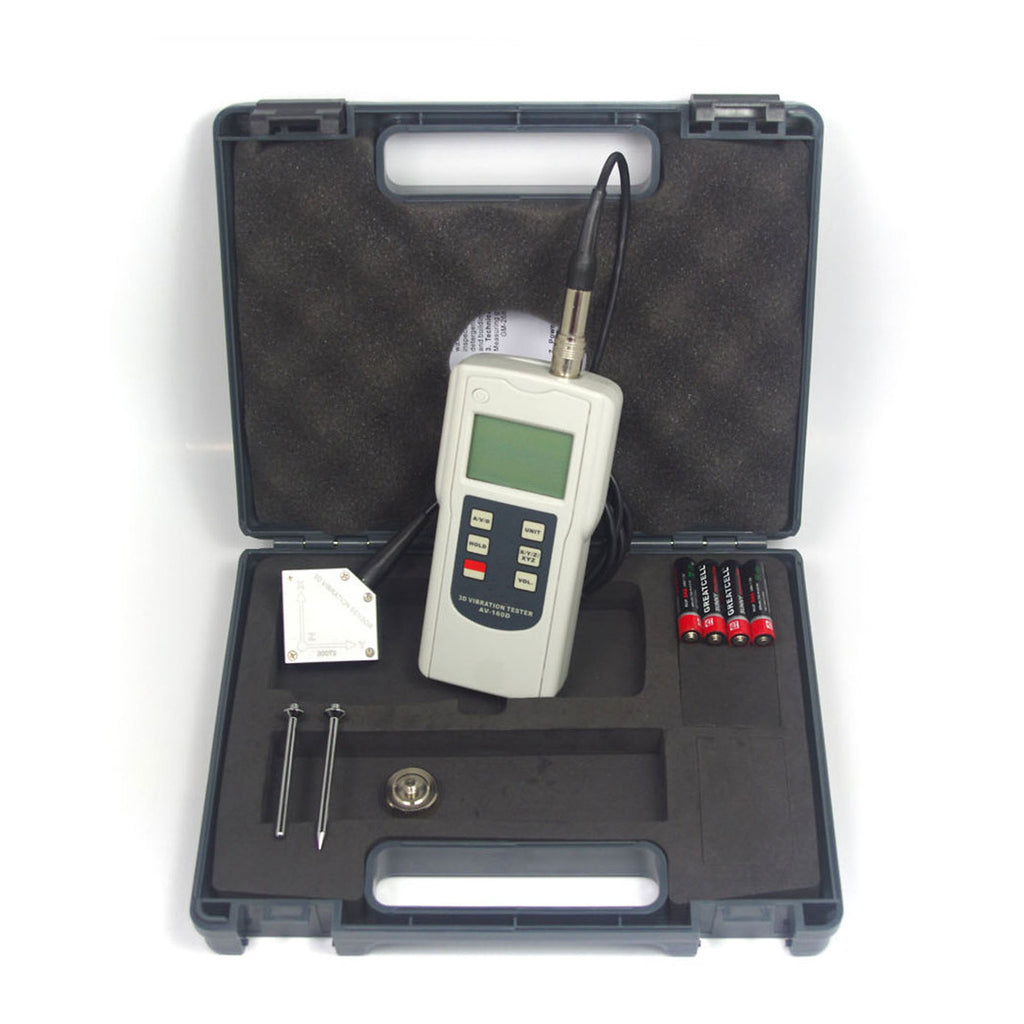

Standard Accessories

      Main Unit

Magnetic suction seat

                Probe (cone)/Probe (spherical)

                Portable box

                Brochures

                Piezoelectric sensor

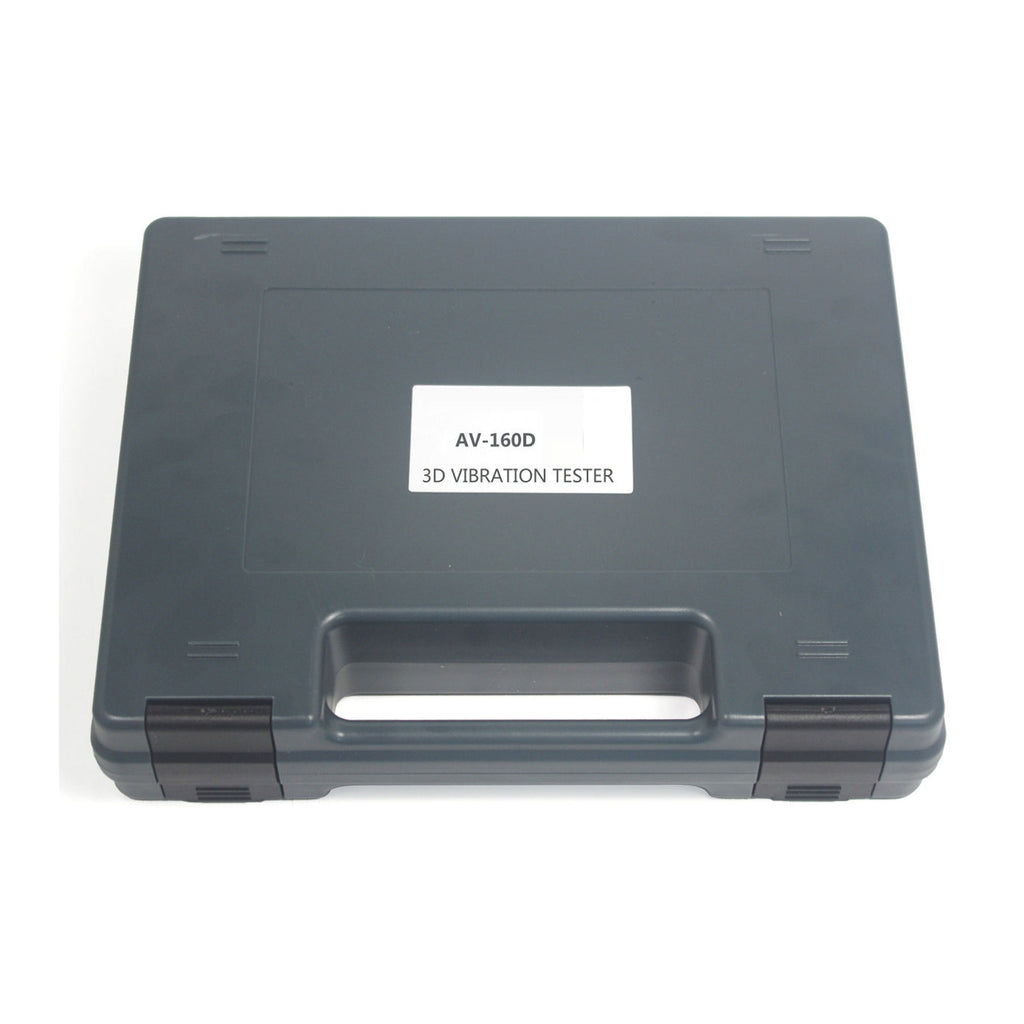

                Carrying Case

                Operation Manual

Optional Accessories

      Headset

                USB data output

                RS-232 data output

                Bluetooth™ data output
