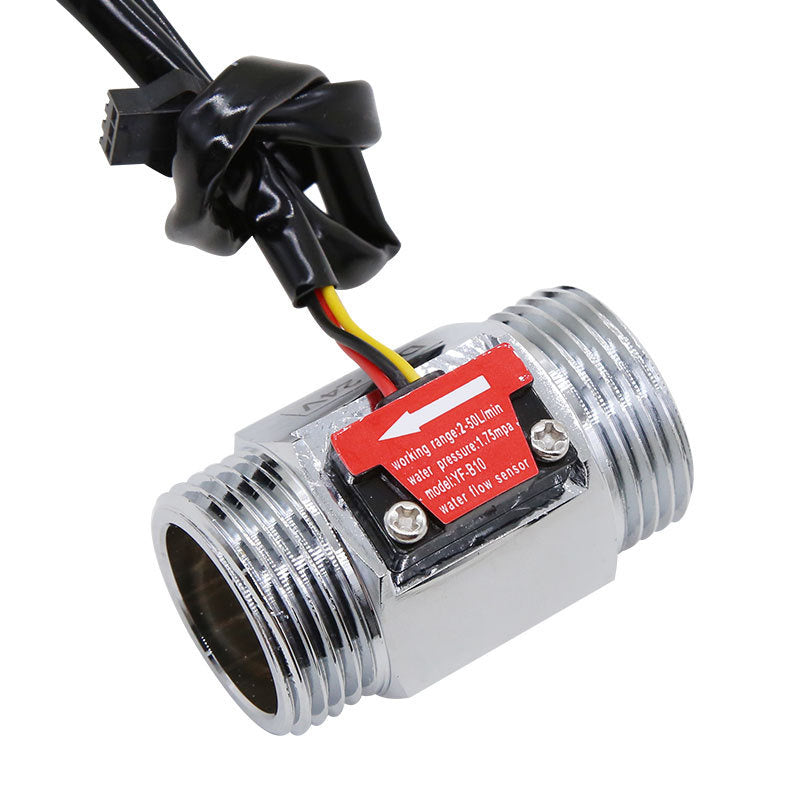

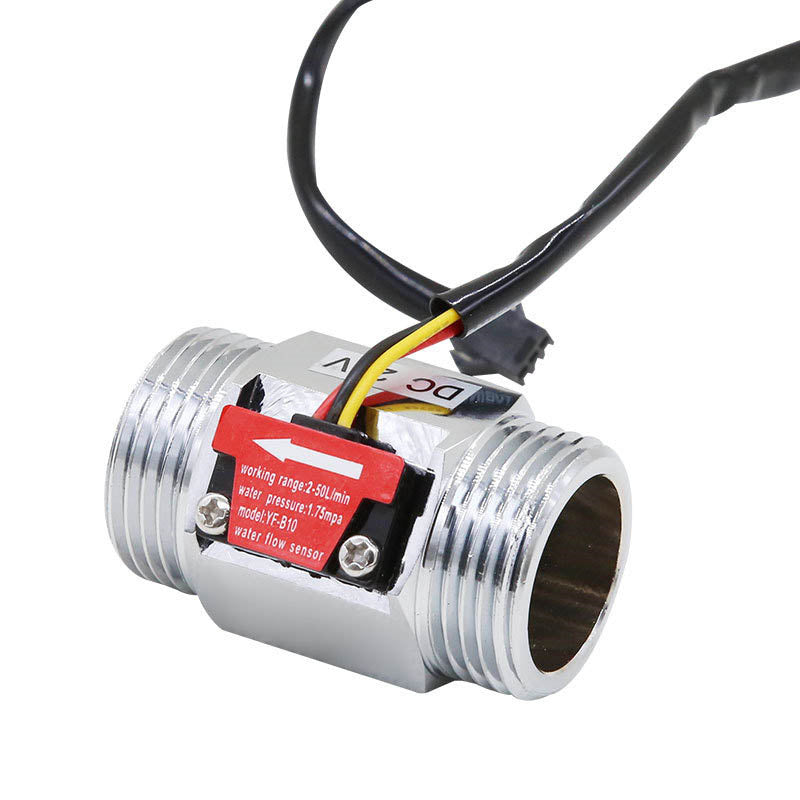

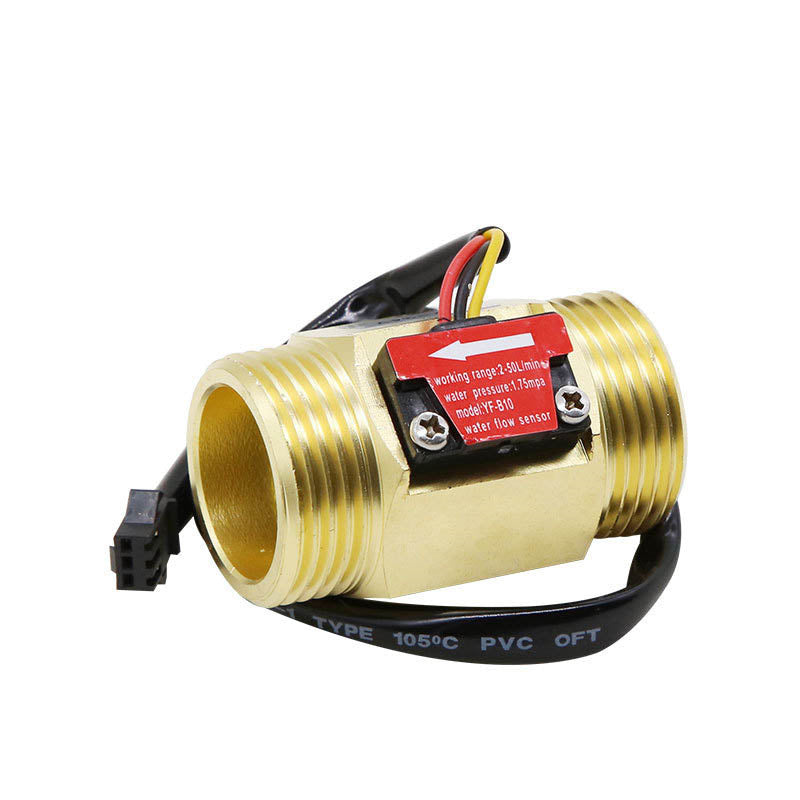

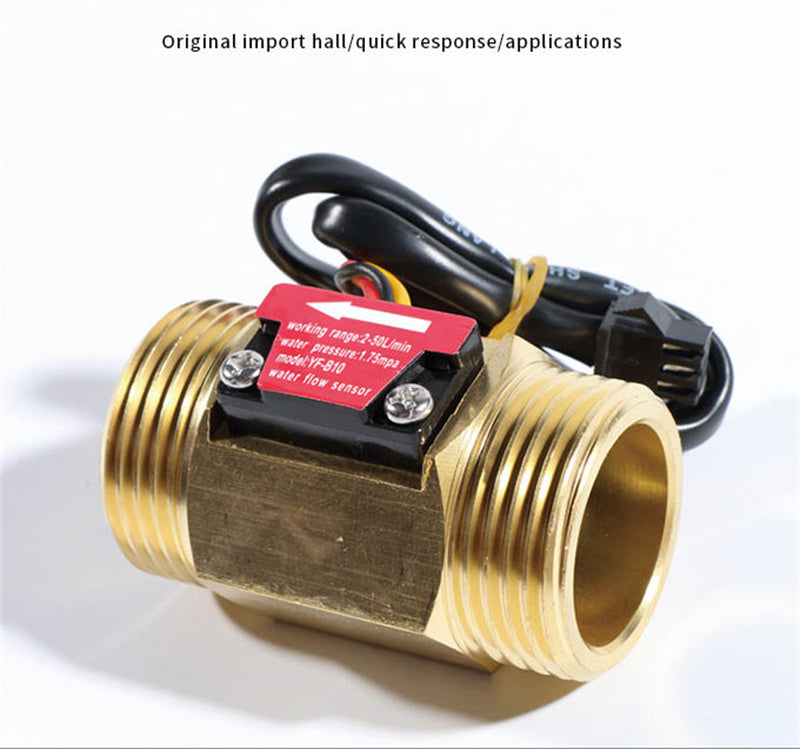

B10 G1" 1inch Water Diesel Brass Hall Effect Turbine Water Flow Sensor Turbine Flowmeter 2-50L/min
Product Model YF-B10
Rated voltage DC=5V

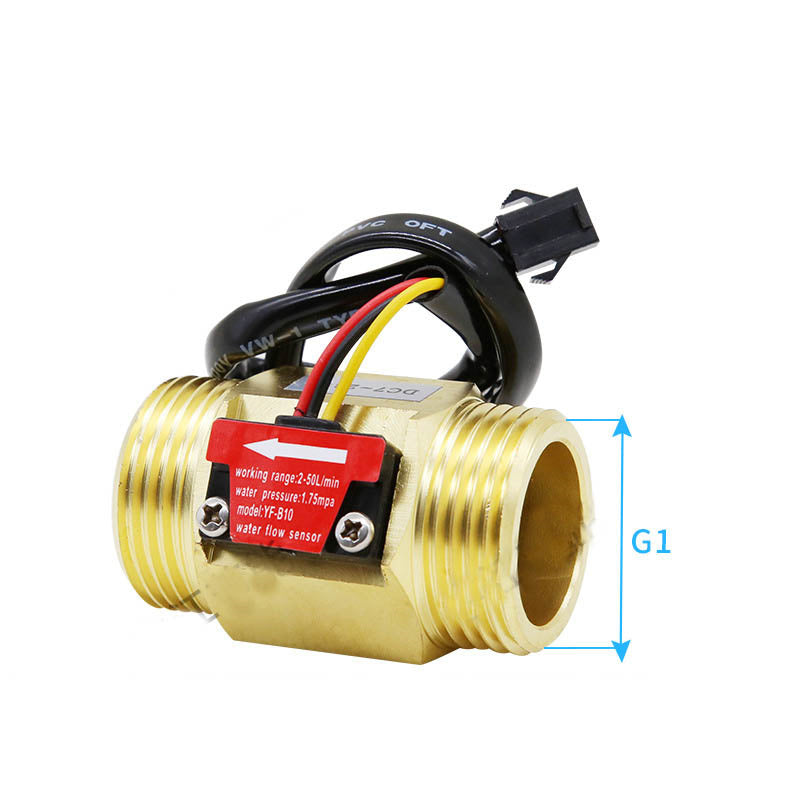

Thread size : Male 1 inch
Size: 58mm L
Color : Golden color
Flow rate : 2~50L/min
Flow Pulse: (6*Q-8) Q=L/Min±5%
Max.Working Current : 15mA (DC5 V)
Min. Working Voltage: DC 4.5V
Working Voltage:DC 5V~15V
Load Capacity: =10 mA (DC 5 V)
Operating Working Temperature : -25 Degree centigrade to +60 Degree centigrade
Liquid Temperature: 60
Accuracy : 5%~10%
Pressure: >1.75MPa
