Introduction

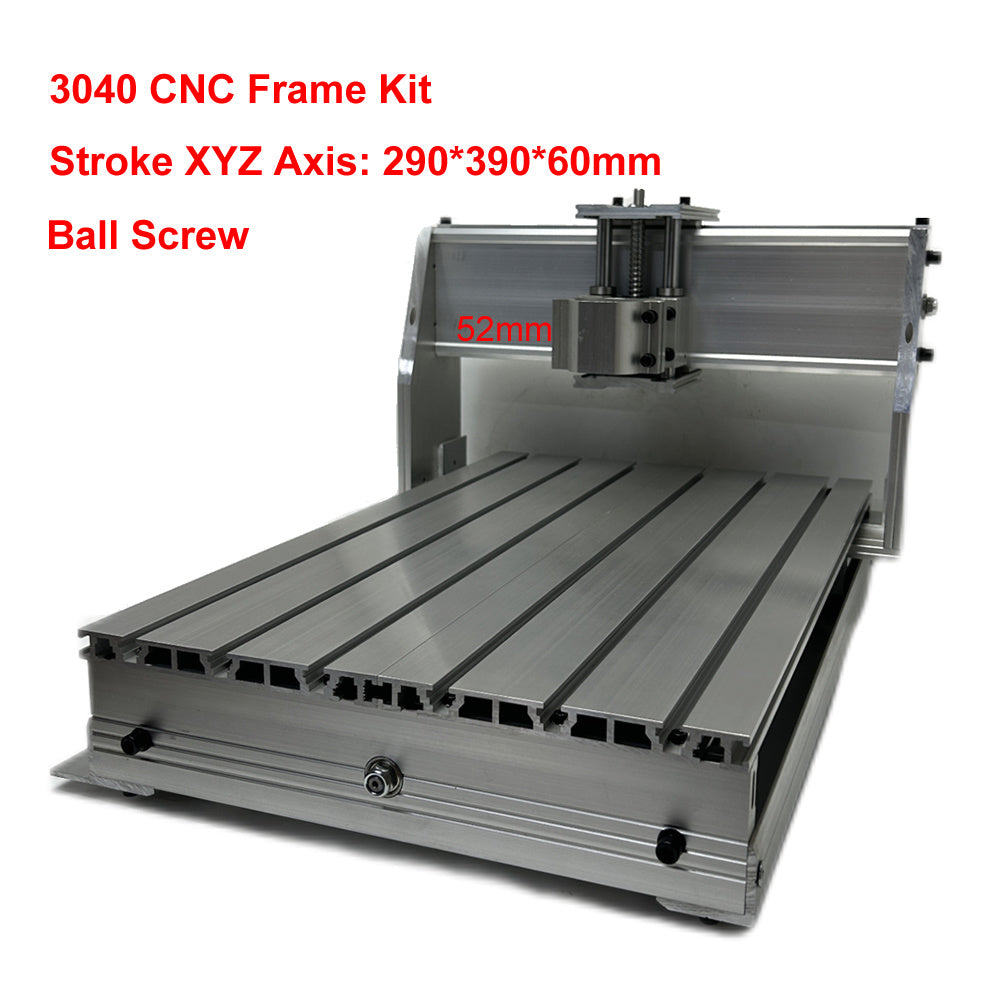

1. Three-axis effective stroke: X290mm, Y390mm, Z 60mm
2. Maximum feeding height: ≤70mm
4. Table size: 320mm*525mm
5. Slot width: 7.5mm
6. Ball screw type: XYZ axis TBI1204 ball screw;

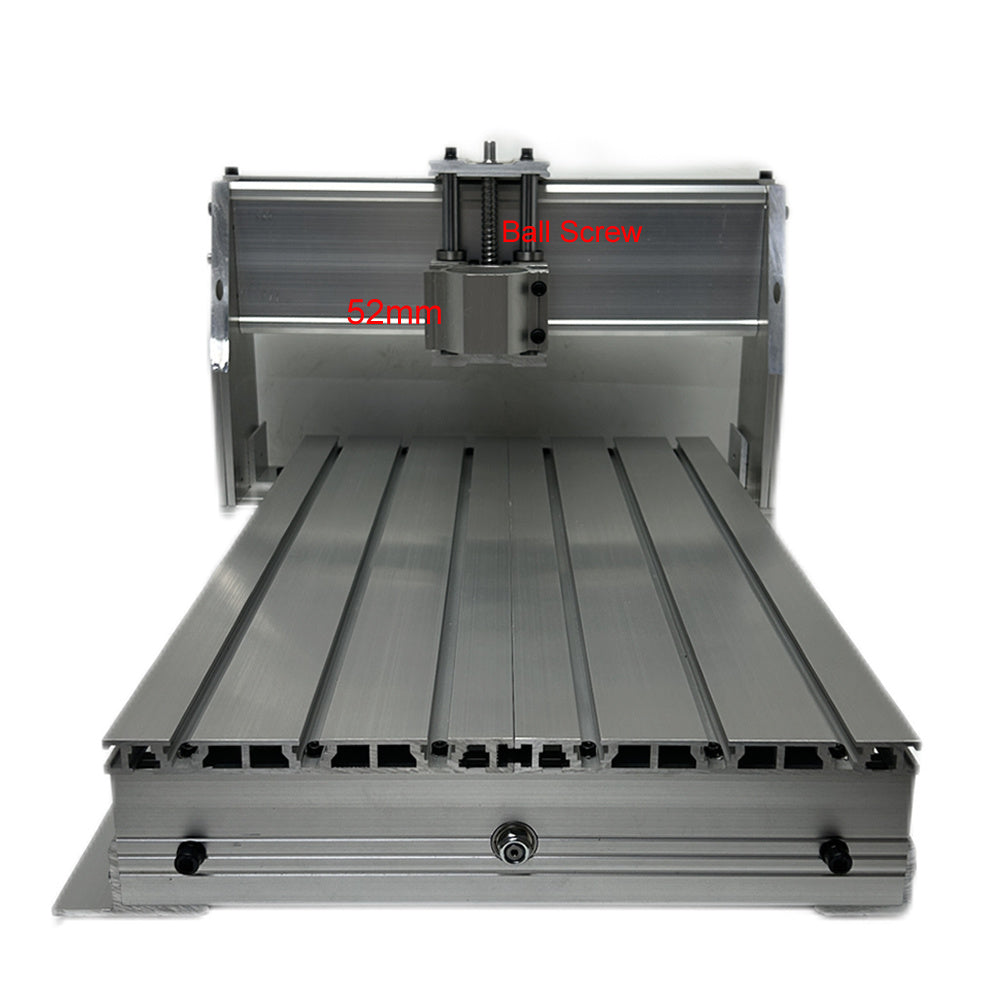

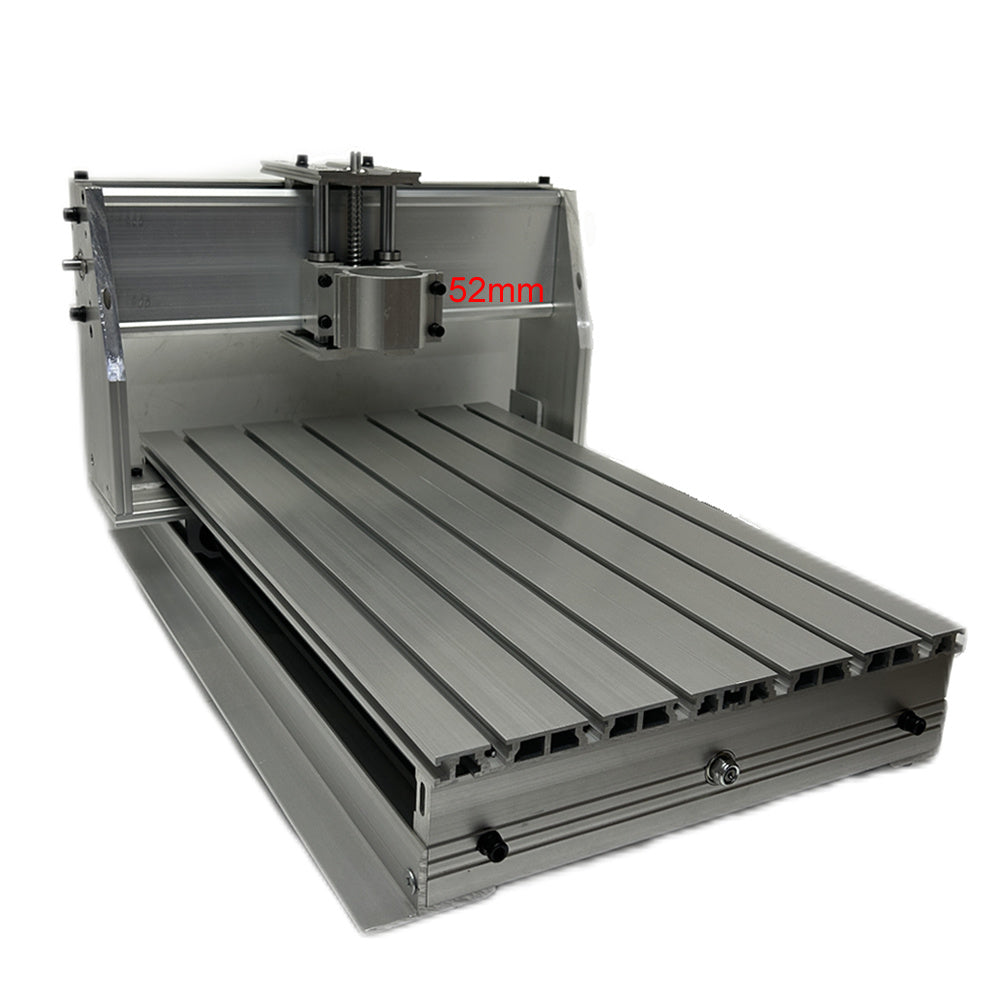

7. Spindle holder diameter: 52mm
8. The material of the whole machine: all 6061-T5, high strength, precision processed by CNC machining center, all surfaces are anodized.
9. Carton packaging size: 550*440*350
10. Stepper motor: Fit NEMA 23 57mm stepper motor (frame not include stepper motor)
10. Package weight: about 18kg
FAQ
Q:Can this frame use for engrave steel and aluminum
A:Yes,this frame can use for steel and aluminum.
Q:What’s the precision of this frame
A:C7 type ball screw theoretical accuracy is 0.05MM
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
