BAOFENG UV-5RE dual band VHF 136-174MHz & UHF 400-520MHz 128ch 5W PROFESSIONAL FM TRANSCEIVER WITH EARPIECE

  Features:

    Dual-band handheld transceiver with display fucntion menu on the display"LCD".    DTMF encoded.    Lithium-ion battery with high capacity.    Commercial FM radio receiver(65MHz ~ 108MHz).    Incorporates 105 codes"DCS" and 50 privacy codes"CTCSS" programmable.    Function"VOX"(voice operated transmission).    Alarm function.    Up to 128 memory channels.    Broadeband(Wide)/Narrowband(Narrow),selectable.    High power/ low (4W/1W) selectable.    Display illumination and programmable keyboard.    Function"beep" on the keyboard.    Dual Watch/dual reception.    Selectable Frequency Step 2.5/5/6.25/10/12.5/25kHz.    Function"OFFSET"(frequency offset for repeater access).    Battery saving function"SAVE".    Timer transmission"TOT" programmable.    Selecting the Scan Mode.    Function Busy Channel Lock"BCLO".    Built-in RX CTCSS/DCS scan.    Built-in LED flashlight.    Programmable by PC.

  Specifications:

  GENERAL:

  Frequency  range: 65MHz-108MHz(Only commercial FM radio reception)

                                      VHF:136-174MHz(RX/TX);UHF:400-480MHz(RX/TX)

  Memory channels: Up to 128 channels

  Frequency stability: 2.5ppm

  Frequency step: 2.5/5/6.25/10/12.5/25kHz

  Antenna impedance: 50Ω

  Operating temperature: -20°c to +60°c

  Supply voltage: Rechargeable Lithium-Ion DC7.4V 1800mAh

  Consumption in standby: ≤75mA

  Comsumption in reception: 380mA

  Consumption in transmissio: ≤1.4A

  Mode of operation: Simplex or semi-duplex

  Duty cycle: 03/03/54 min.(RX/TX/Standby)

  Weight: 130g(approximate)

  TRANSMITTER:

  RF power: 4W/1W

  Type of modulation: FM

  Emission class: 16KΦF3E/11KΦF3E(W/N)

  Maximum deviation: ≤±5kHz/≤±2.5kHz(W/N)

  Spurious emissions: <-60dB

  RECEIVER:

  Receiver sensitivity: 0.2µ V(at 12dB SINAD)

  Intermodulation: 60dB

  Audio ouput: 1000mW

  Adjacent channel selectivity: 65/60dB

  Package Contents:

  1× Baofeng UV-5RE(VHF:136-174MHz/UHF:400-520MHz Dual Band)

  1× 7.4V 1800mAh Li-ion Battery Pack

  1×  SMA-Female Dual Band Antenna

  1× Belt Clip

  1× ENG Manual

  1× Desktop Charger ( 100V ~ 240V ) with Correct Adapter for your Country

  1× Earpiece

  1× Wrist Strap

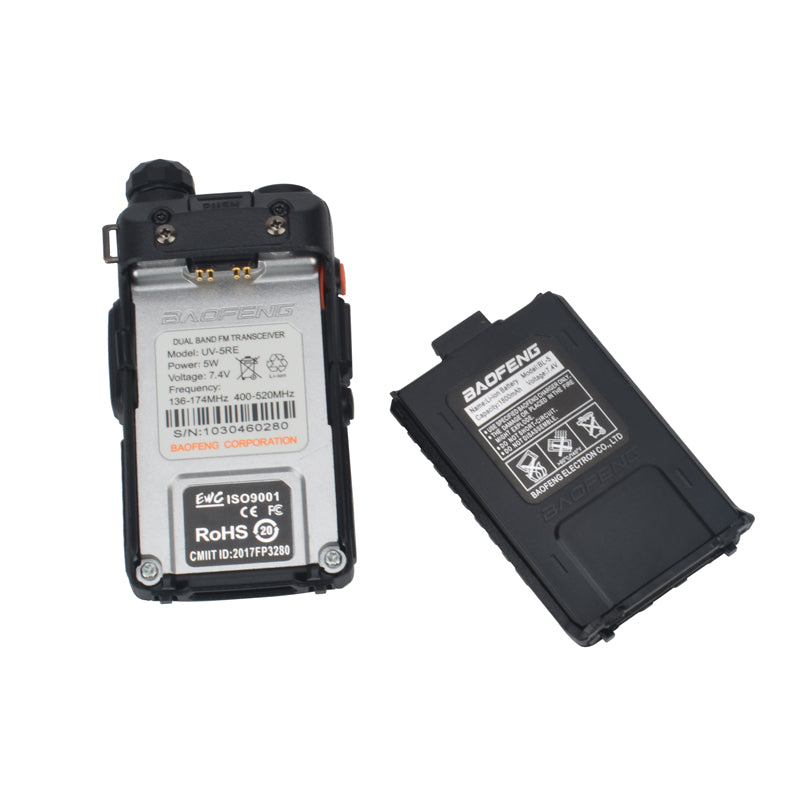

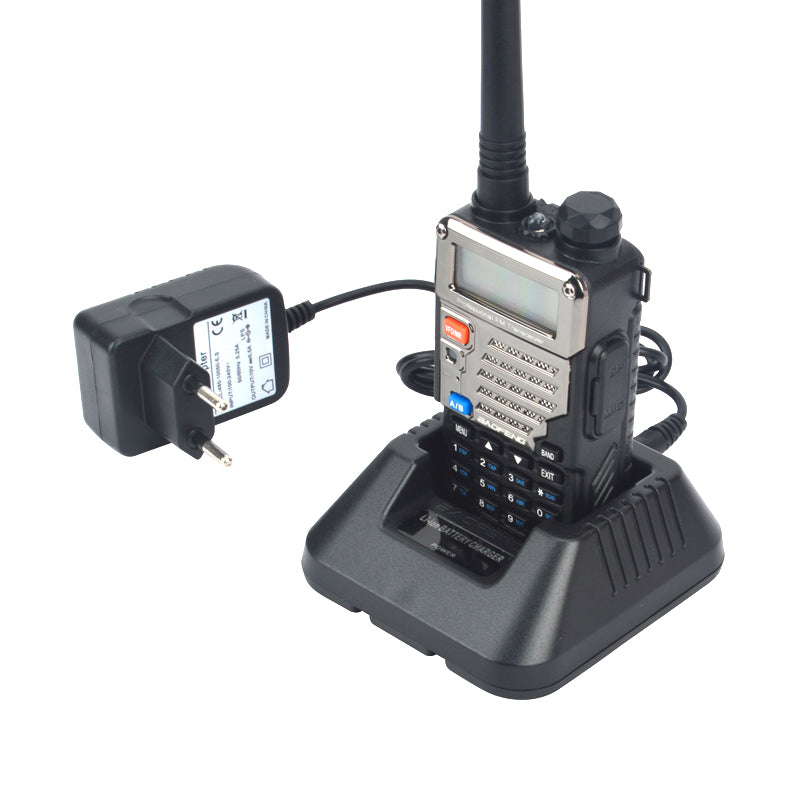

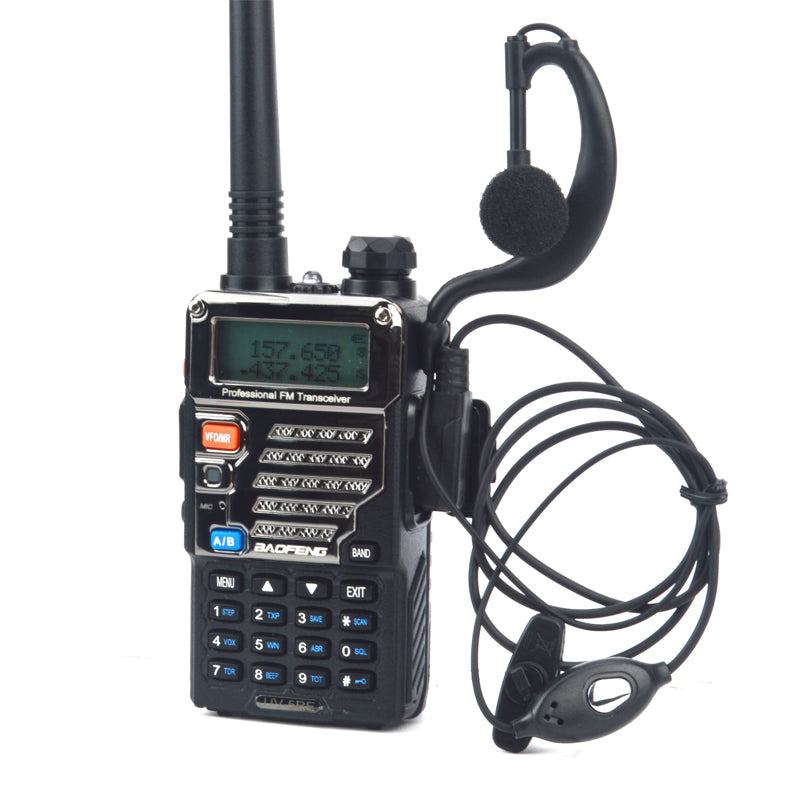

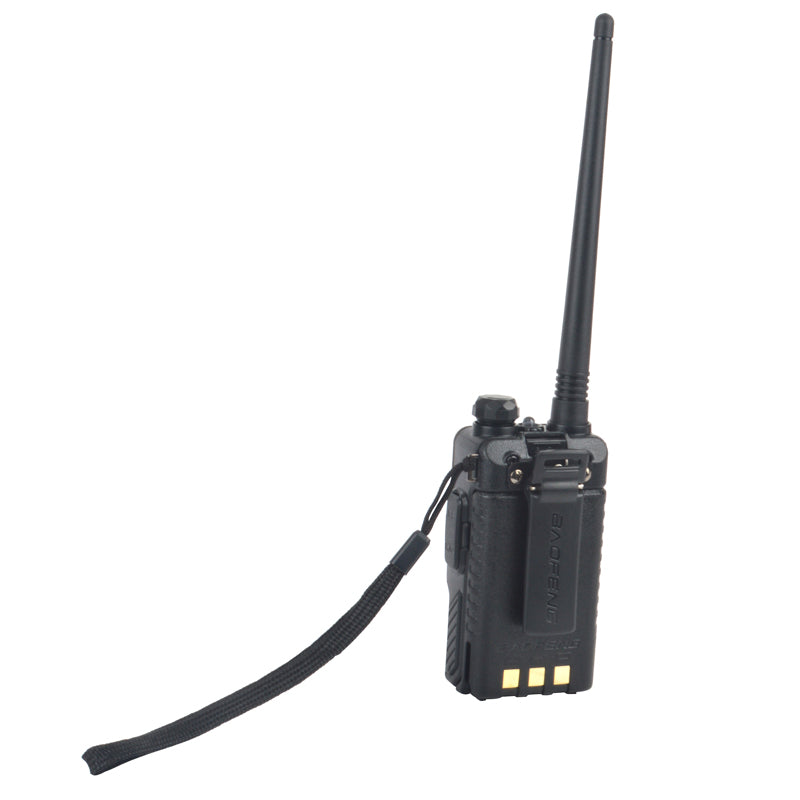

  Photos:
