Features:
Wider Ranges: This tester has a measuring ranges of 0.01mΩ~200Ω. Compared with traditional battery internal resistance testers, it has a wider measuring ranges and a wider ranges of applications.
Low Resistance Measurement Function: Short press the power button to turn on the low resistance function, and measure the internal resistance of 0.30-0.50 milliohms.
Various Battery Tests: This tester can measure lithium ion, lithium polymer, lithium iron phosphate, alkaline, dry battery, nickel metal hydride, nickel cadmium, button battery, etc.
Portable Size: This battery internal resistance tester with portable size and easy to carry, you can share this product with your friends and families.

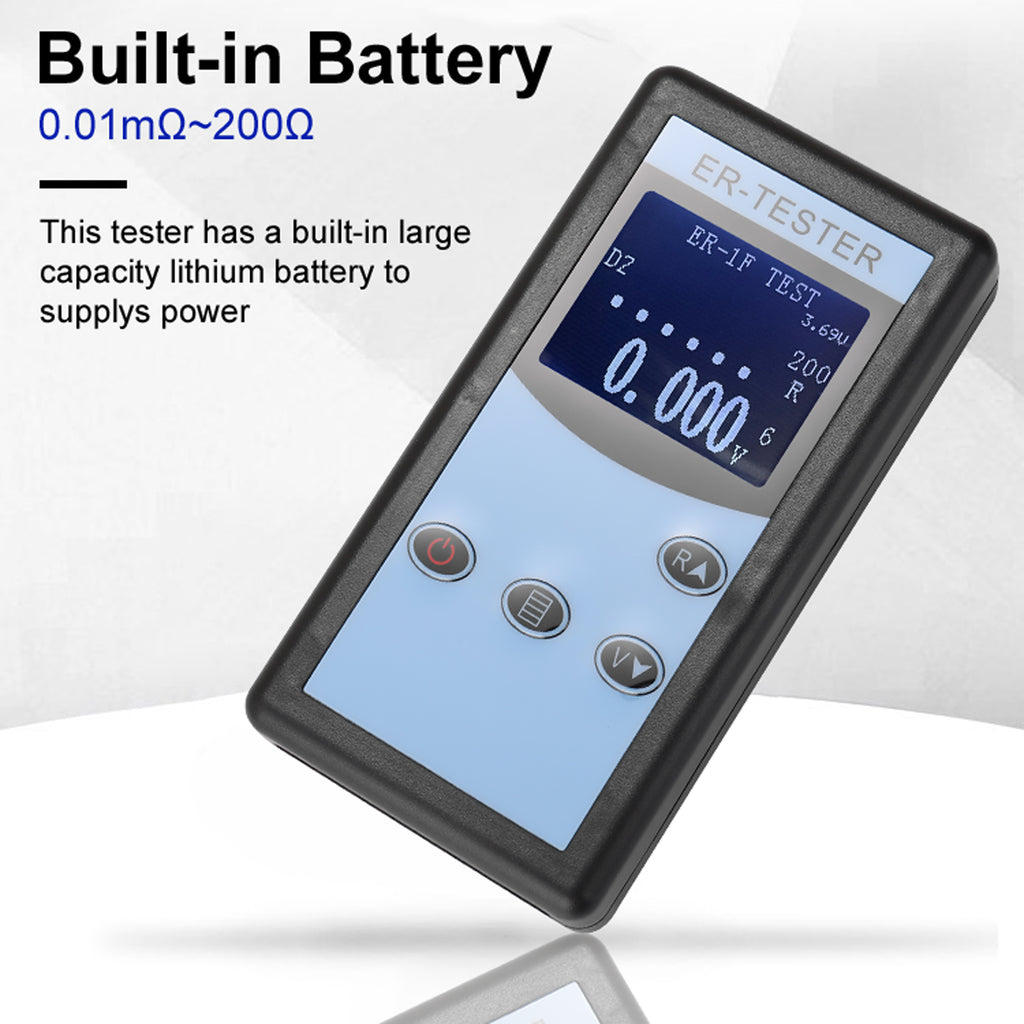

Built-in Battery: This tester has a built-in large capacity lithium battery to supplys power, you can recharge it in time when the battery voltage is under 3.5V.

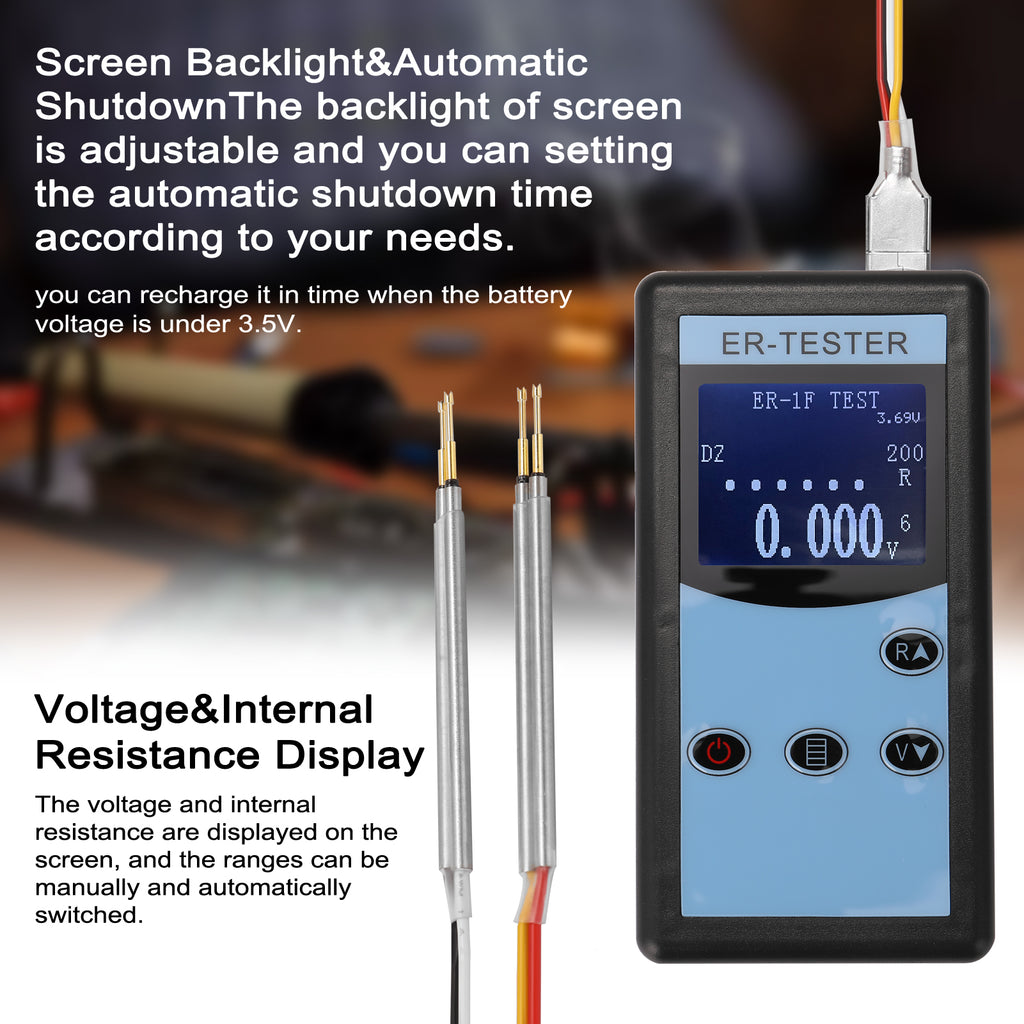

Screen Backlight&Automatic Shutdown: The backlight of screen is adjustable and you can setting the automatic shutdown time according to your needs.
Voltage&Internal Resistance Display: The voltage and internal resistance are displayed on the screen, and the ranges can be manually and automatically switched.
Specifications:
Material: plastics
Measuring ranges: 0.01mΩ~200Ω
Resolution: 0.01mΩ
Battery: 1 * lithium battery, 400mAh (included)
20mΩ:
Minimum resolution: 0.01mΩ
Accuracy: 0.7%+7
200mΩ:
Minimum resolution: 0.1mΩ
Accuracy: 0.5%+5
2Ω:
Minimum resolution: 1mΩ
Accuracy: 0.5%+5
20Ω:
Minimum resolution: 10mΩ
Accuracy: 0.5%+5
200Ω:
Minimum resolution: 0.1Ω
Accuracy: 0.6%+5
Voltage measuring:
Ranges: ±6V
Minimum resolution: 0.001V
Accuracy: 0.1%+5
Ranges: ±45V
Minimum resolution: 0.01V
Accuracy: 0.1%+5
Item size: 135 * 68 * 25mm / 5.3 * 2.7 * 1.0in
Item weight: 148g / 5.2ounce
Package size: 220 * 130 * 77mm / 8.7 * 5.1 * 3.0in
Package weight: 379g / 13.4ounce
Note: Please do not test the battery over 30v, it will burn the instrument.

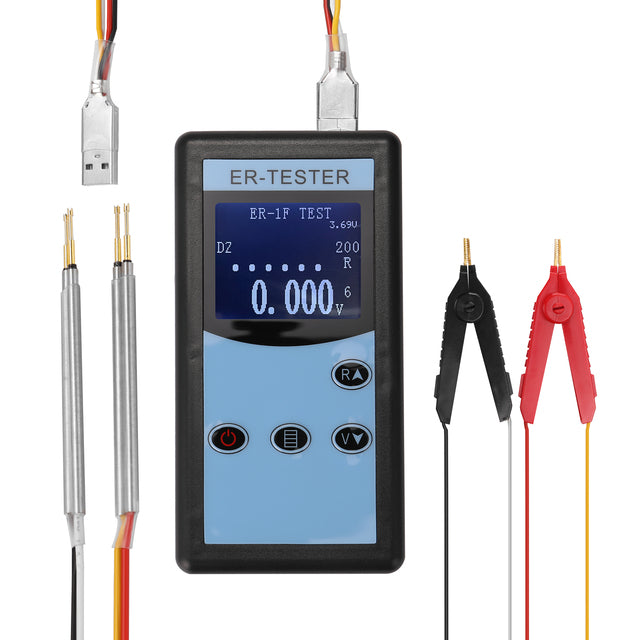

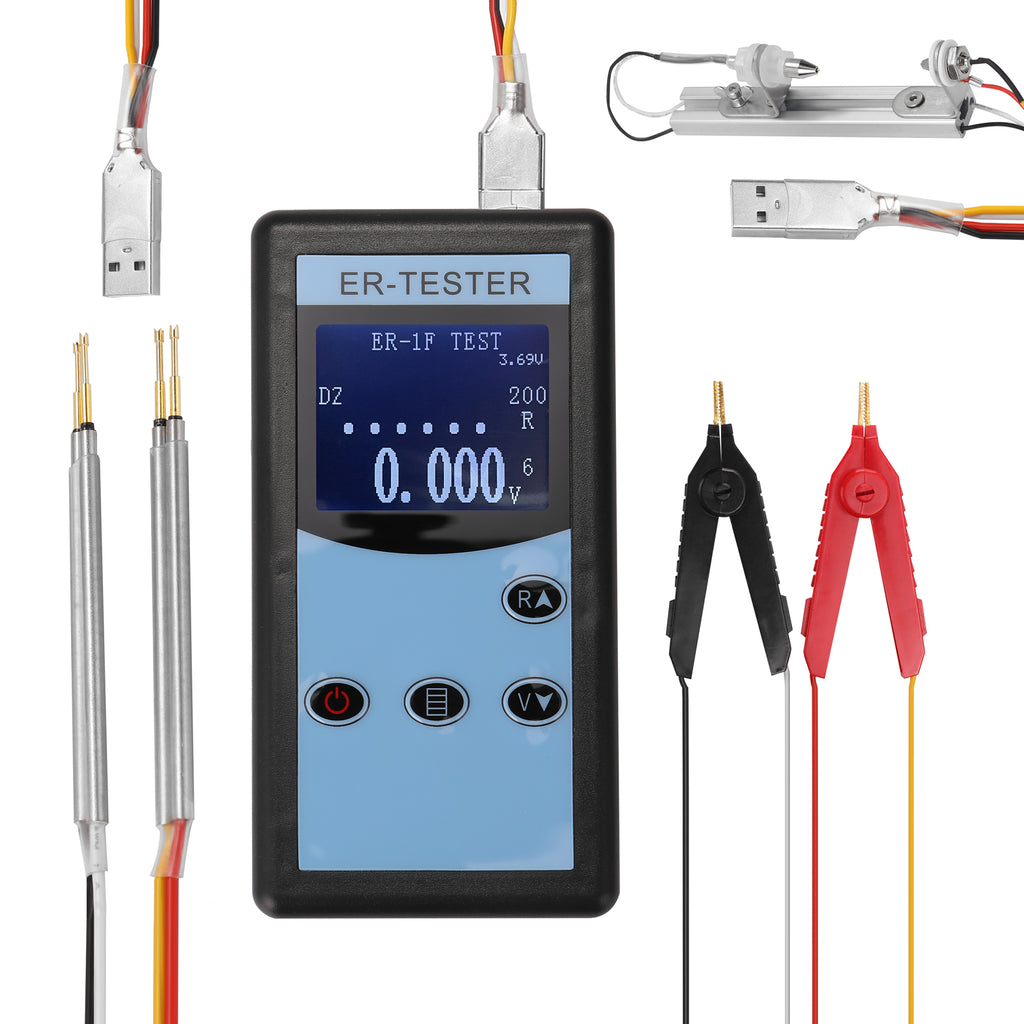

Packing list:
1 * Battery Internal Resistance Tester
1 * Testing Clip
1 * Pair Probe
1 * Four-wire Rack
