Technical Details

                                                               Manufacturer

            ‎Behringer USA

                                  Part Number

            ‎P0493

                                  Item Weight

            ‎10.6 ounces

                                  Product Dimensions

            ‎5.04 x 3.74 x 1.38 inches

                                  Item model number

            ‎DI600P

                                  Is Discontinued By Manufacturer

            ‎No

                                  Color

            ‎Black

                                  Item Package Quantity

            ‎1

                                  Special Features

            ‎The DI600P from Behringer is a passive direct box that facilitates connecting instruments to mixers without losing tone and allows connecting amplifier outputs of up to 3,000 Watts. It also converts any unbalanced signal to a balanced signal thereby eliminating unwanted noise. With its high-performance transformer, it also allows for using very long cables without the loss of high frequency content.

                                  Included Components

            ‎Passive Direct Injection Box

                                  Batteries Included?

            ‎No

                                  Batteries Required?

            ‎No

                                  Warranty Description

            ‎Please refer to http://www. Music-group. Com/warranty. Aspx.

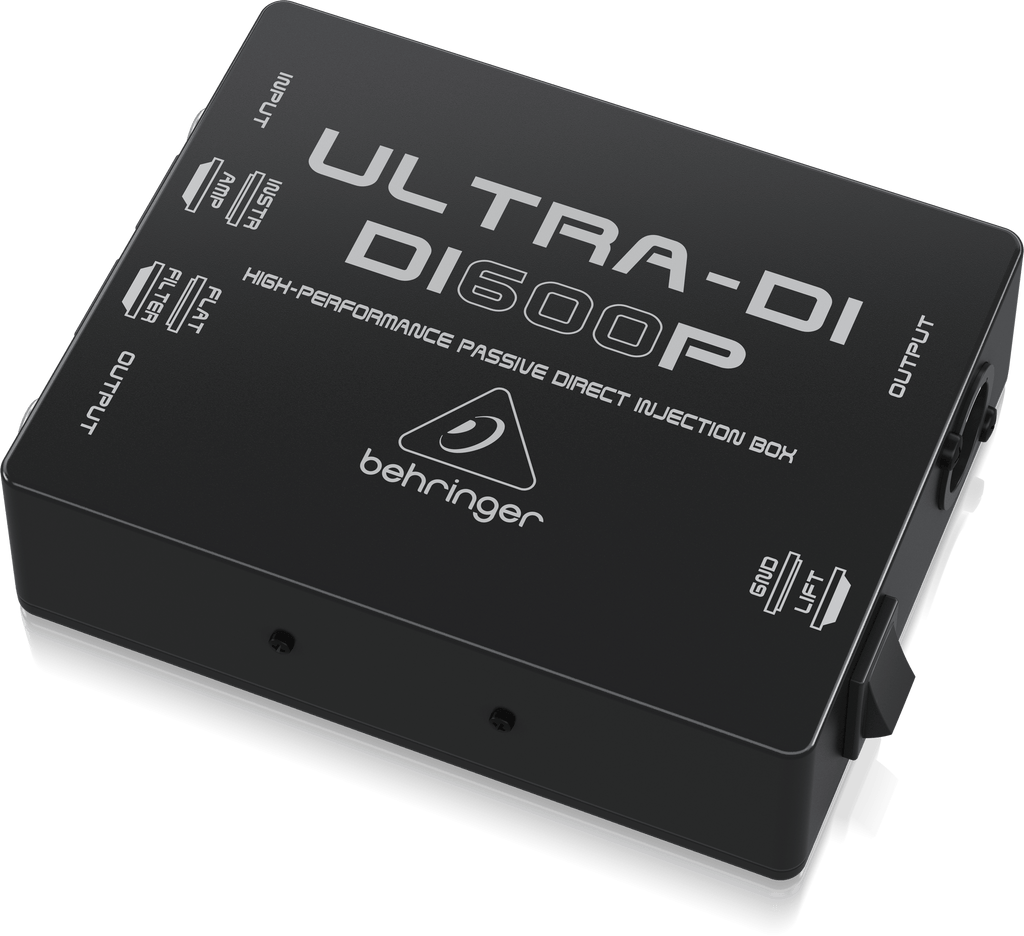

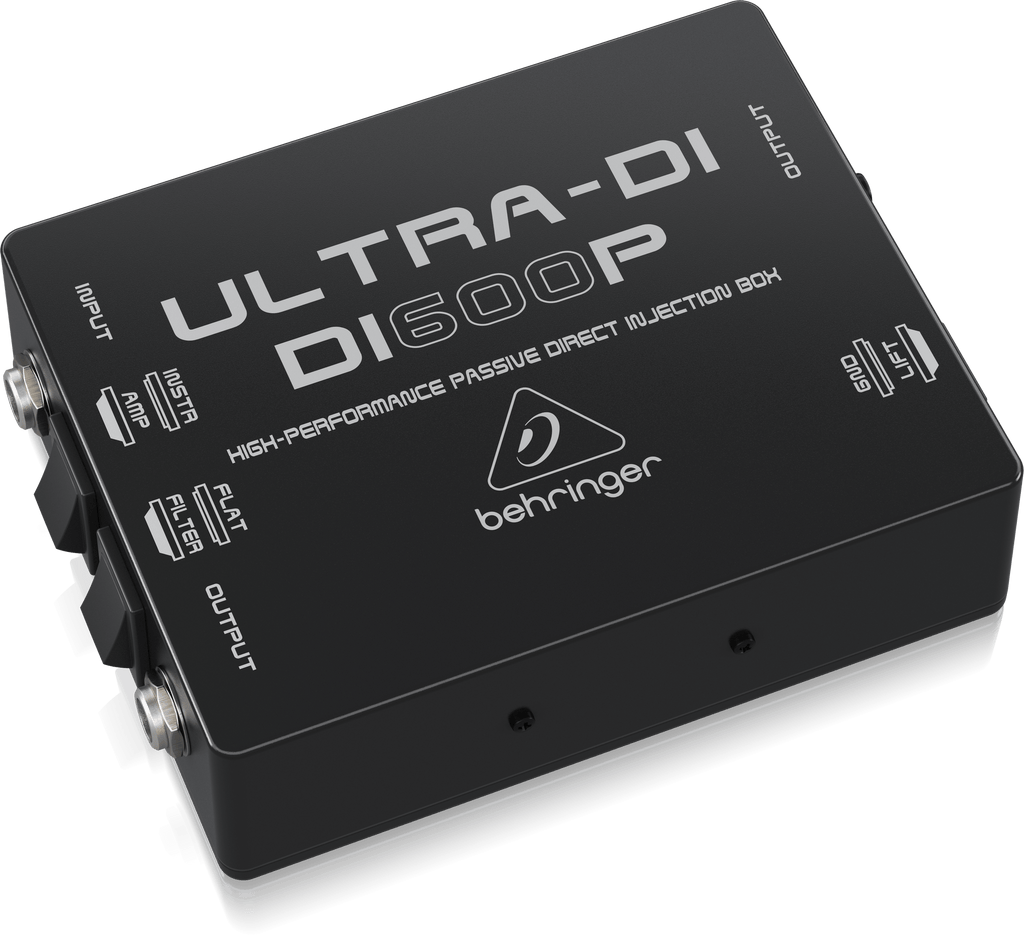

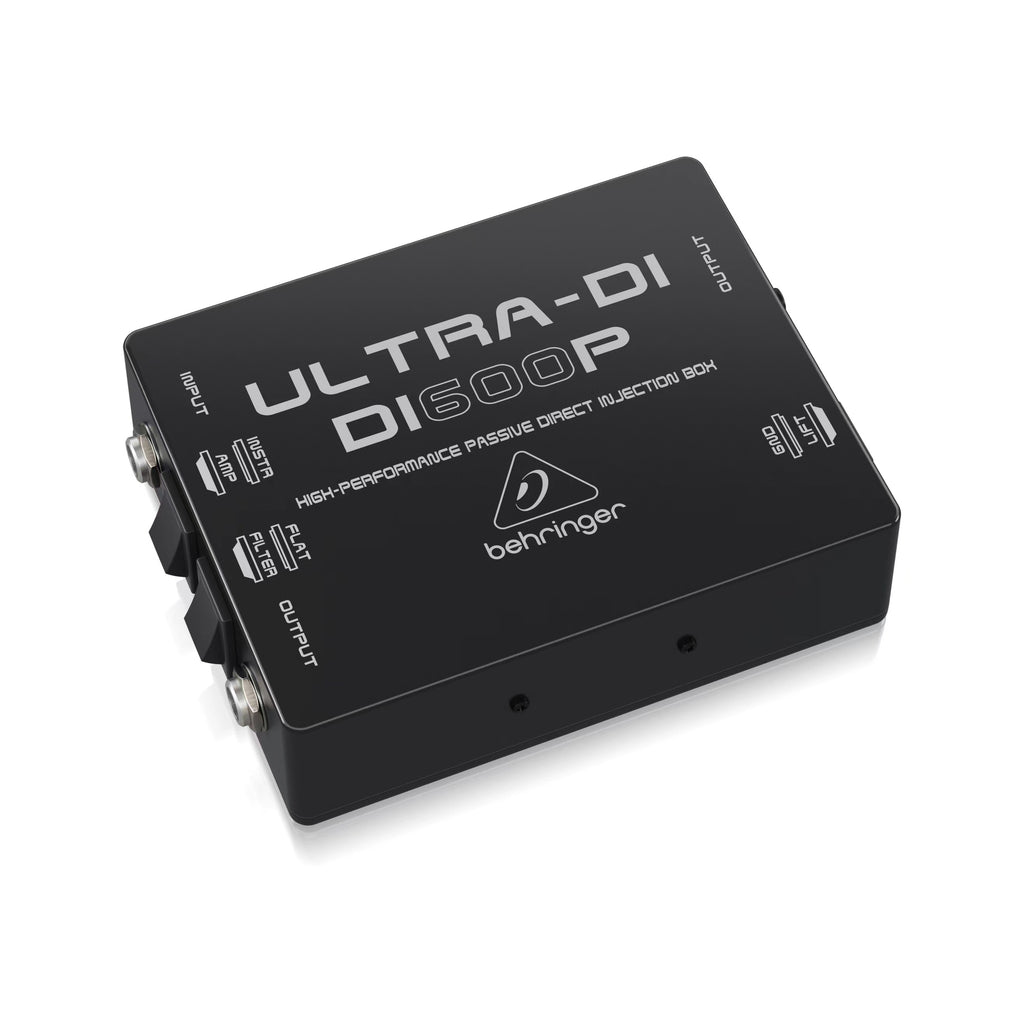

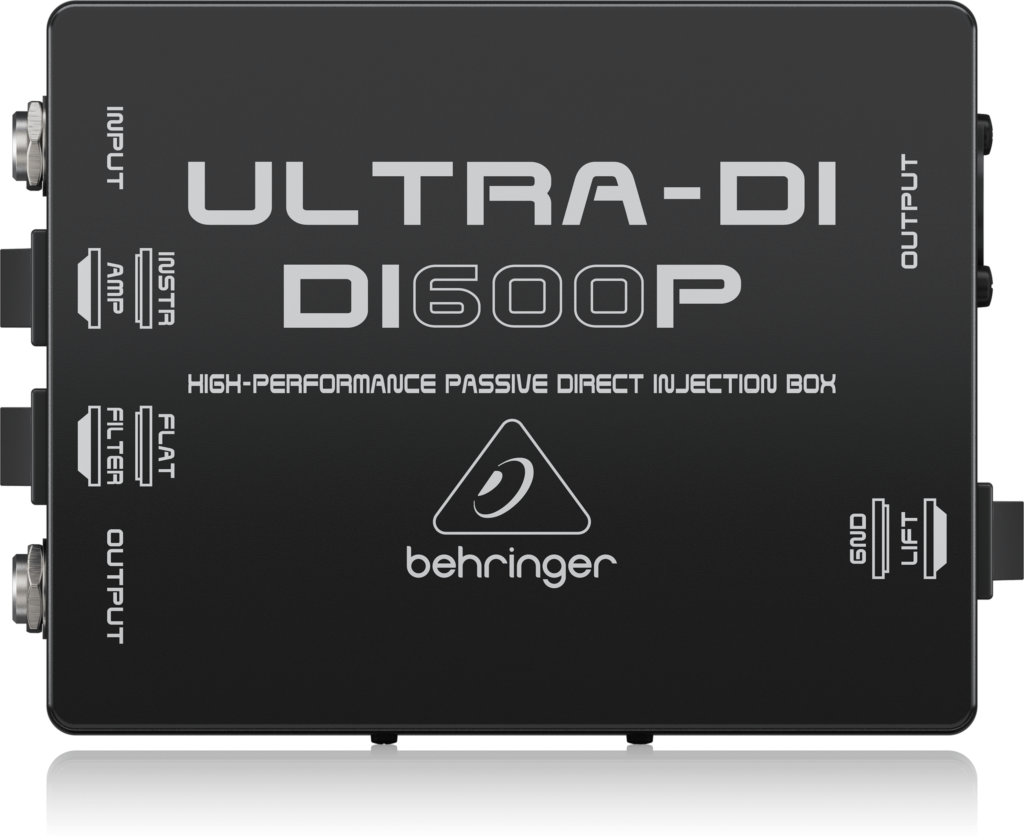

     BEHRINGER ULTRA-DI DI600P

   High-Performance Passive DI-Box

       Professional and multi-purpose direct injection box for stage and studio applications

    Provides impedance and signal matching for the direct connection of instruments to mixers and amplifiers

    Ultra-flat frequency response due to renowned BEHRINGER OT-2 transformer

    Allows direct connection to speaker outputs with up to 3,000 Watts

    Ground Lift switch eliminates typical ground loop problems

    Filter switch reduces annoying hiss and buzz

    Thru/Out jack lets you send the unbalanced signal to an onstage amplifier while the balanced signal is routed to the mixer

    ¼" TRS and gold-plated XLR connectors

    Ultra-rugged, road-suitable metal case

    High-quality components and exceptionally rugged construction ensure long life and durability

    Conceived and designed by BEHRINGER Germany

   The ULTRA-DI DI600P is a passive DI (Direct Injection) box for connecting a guitar, bass or keyboard directly to your mixer. With the DI600P as your go-between, impedance-matching problems become a thing of the past, and long cable runs will not sacrifice all of your precious tone.

   Directly to the Point

   With its parallel 1/4" IN and OUT jacks, the DI600P allows you to plug in your instrument and send the same signal to your onstage amplifier, while the XLR OUTPUT sends a balanced signal to your mixer. A ground lift switch eliminates hum associated with ground loops and our high-performance transformer provides the ultimate in signal integrity.

   Special Feature

   Just flip the INST/AMP switch and the DI600P can easily accommodate either the low-level signal of a high-impedance mic or guitar (INST mode), or the speaker output of a guitar amplifier (AMP mode). Even if your amp cranks out as much as 3,000 Watts, you get a perfect signal every time!

   Great Sound, Exceptional Value

   The ULTRA-DI DI600P is also ultra-compact, and we house it in a tough, road-ready metal case. This means the DI box will give you great sound gig after gig, session after session. And thanks to its low price, you can afford to outfit the entire band. See for yourself at your nearest BEHRINGER dealer.
