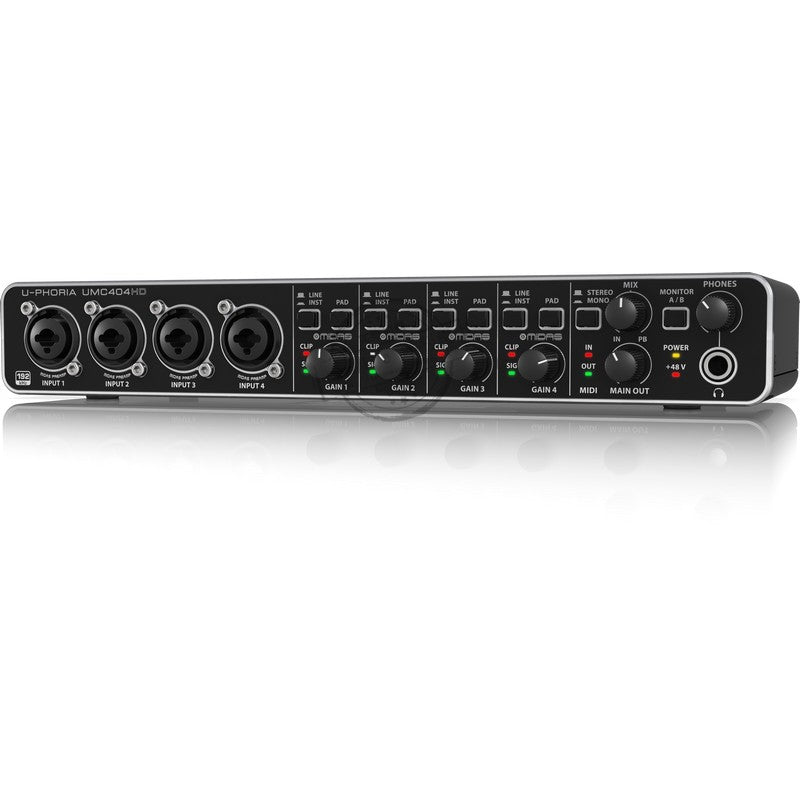

UMC404HD sound card product features/Data

      1. 4x4USB 2.0 audio/MIDI interface for recording microphones and musical instruments

      2. 24-bit/192kHz resolution provides professional sound quality

      3. Compatible with popular recording software, including Avid Pro Tools*, Ableton Live*, Steinberg Cubase*, etc.

      4. Stream 4 inputs/4 outputs and 1 MIDI I/O, with ultra-low latency to your computer, support Mac OS X* and Windows XP* or higher

      5. 4 microphone preamplifiers designed by Midas with +48 V phantom power

      6. Analog plug-in, used to use external effects, such as compressors, etc.

      7. Direct monitoring with zero delay during recording

      8. Input/play mixing control and stereo/mono switch, direct monitoring

      9. Powerful telephone output, with level control and monitoring AB signal source, DJ style prompts

      10. Signal and editing instructions can achieve overview

      11. Balance the main output on the XL R and 1/4" TRS connectors

      12. Free audio recording, editing and podcasting software, and 150 instrument/effect plug-ins can be downloaded from behringer.com

      Compatible system:

      Windows 7/8/ 10 and mac os10.13/10.12/10.1 1

      Android phones: Android phones that support TYPE-C transmission interface

      Apple mobile phone: does not support separate recording, live broadcast can be used with live broadcast 1

      UMC404HD sound card parameter/Parameter

      UMC404HD external sound card input:

      Preamplifier: 4xMIDAS design

      Type: 4 XLR/TRS combination connectors (microphone/line/instrument)

      Input level attenuation: 4xPad switch

      Frequency response: 10Hz-50kHz (O/ -3dB)

      Impedance: microphone input: 3kQ / instrument input: 1MR

      Maximum input level: microphone: -4 dBu/line: +20 dBu/instrument: -3 dBu

      Fantasy power supply: +48V, switchable

      UMC404HD external sound card output:

      Type: 1x1/4" inch stereo 2xTRS (main line output) 2x XLR (main line output) 4x 1/4" TRS&4xRCA (play line output)

      Frequency response: 10 Hz -43 dry Hz (0/+0.3dB)

      UMC404HD external sound card system data:

      Insertion type: 4x 1/4"TRS

      Insertion impedance: 100Ω send/10kΩ return

      Insert maximum input level: +3 dBu

      Dynamic range: 100 decibels, A weighted

      Frequency response: 10 Hz-43 kHz (0/+0.3 dB)

      MIDI /O type: 5-pin DIN; 1 in 1 out

      Supported sampling rate: 44.1/48/88.2/96/176 4/192kHz

      Computer bus connection type: USB 2.0, type B

      Operating system Mac OS X*, Windows XP* or higher

      Power consumption: 2.5 W max

      Power supply: USB interface (bus powered by computer) and adapter

      Dimensions (HxWxD): 45.81 X 292 X 130mm

      Weight: 1.2 kg

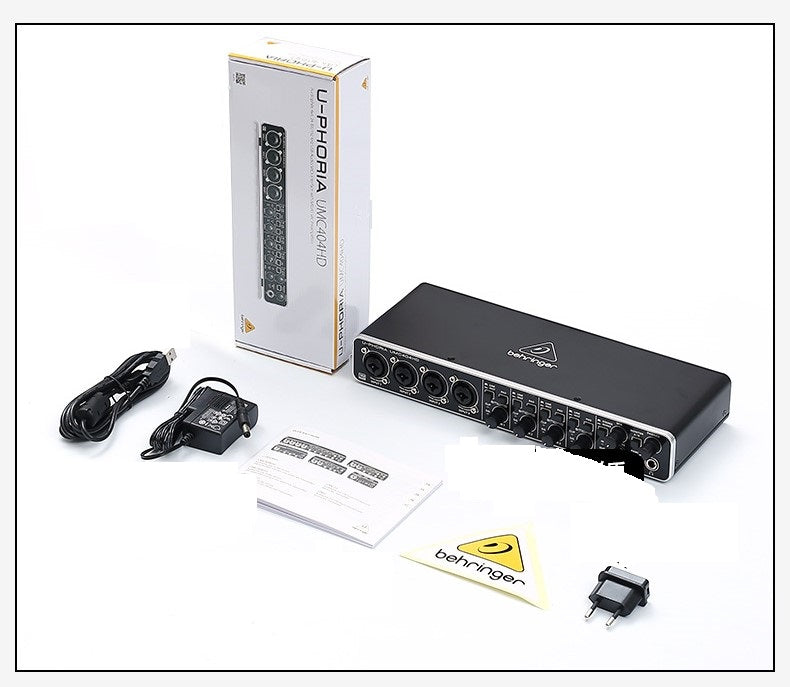

      Free gift: 3.5mm to 6.5mm gold-plated adapter
