Features:
1. Application: This product is suitable for heating cables, electric heating films, electric heating belts, water manifolds, electric two-way valves, heat sinks for heating, steam rooms, wall-hung boilers.
2. Appearance design: This thermostat uses an oval design to make it softer, an integrated window, a simple black and white match, and a unique UI design interface.
3. Screen: Negative display screen, full of mystery, to provide you with stylish smart home life.
4. Scope of application: The smart thermostat can be used in smart homes, shopping malls, and industrial operations.

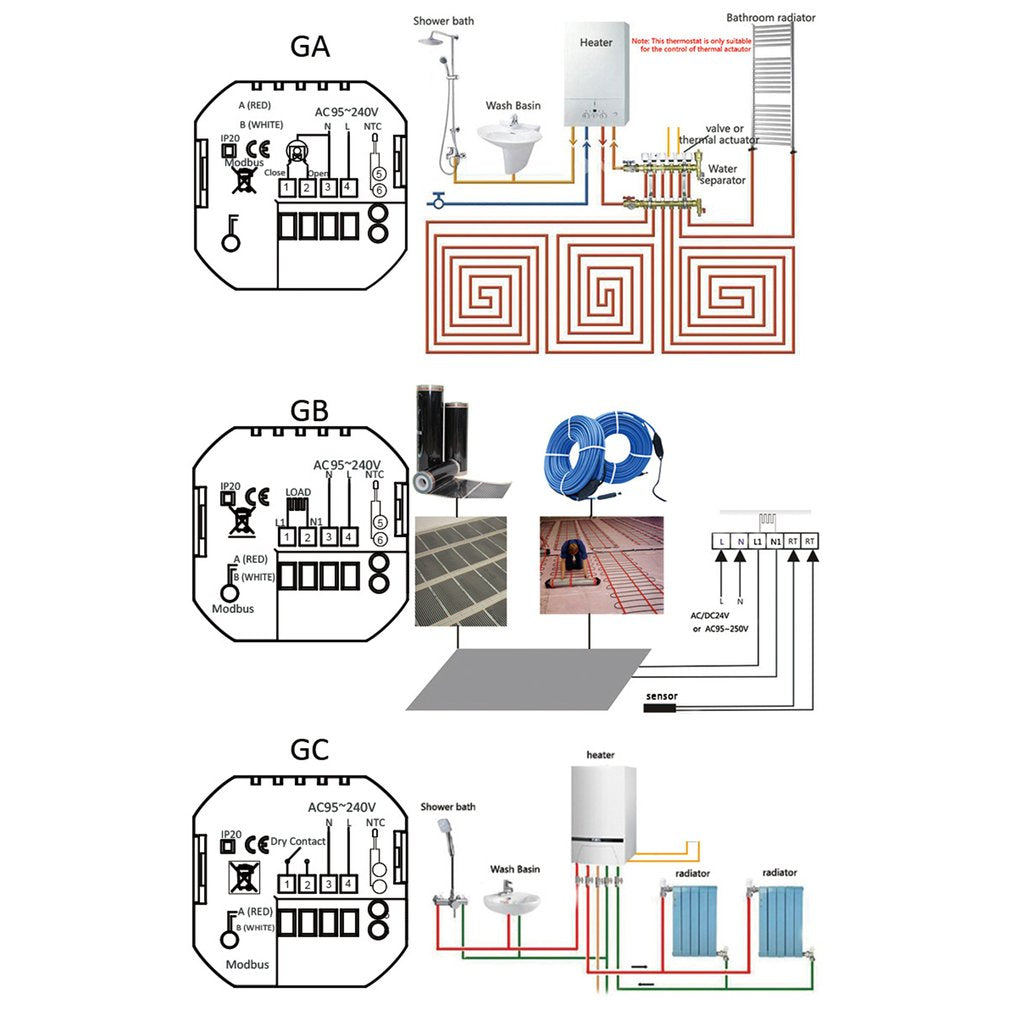

5. Product installation: (1) Confirm that the power supply is turned off. (2) Remove the mounting plate. (3) Complete the wiring according to the wiring diagram. (4) Select the appropriate hole to install the screws. (5) Check whether the wiring is correct, and Look for the correct direction, the thermostat display panel. (6) Press the thermostat back to the mounting plate to complete the installation.
Description:
Smart thermostat has a wide range of applications and can provide you with a more comfortable and smart life.
Specifications:
Model: BHT-001

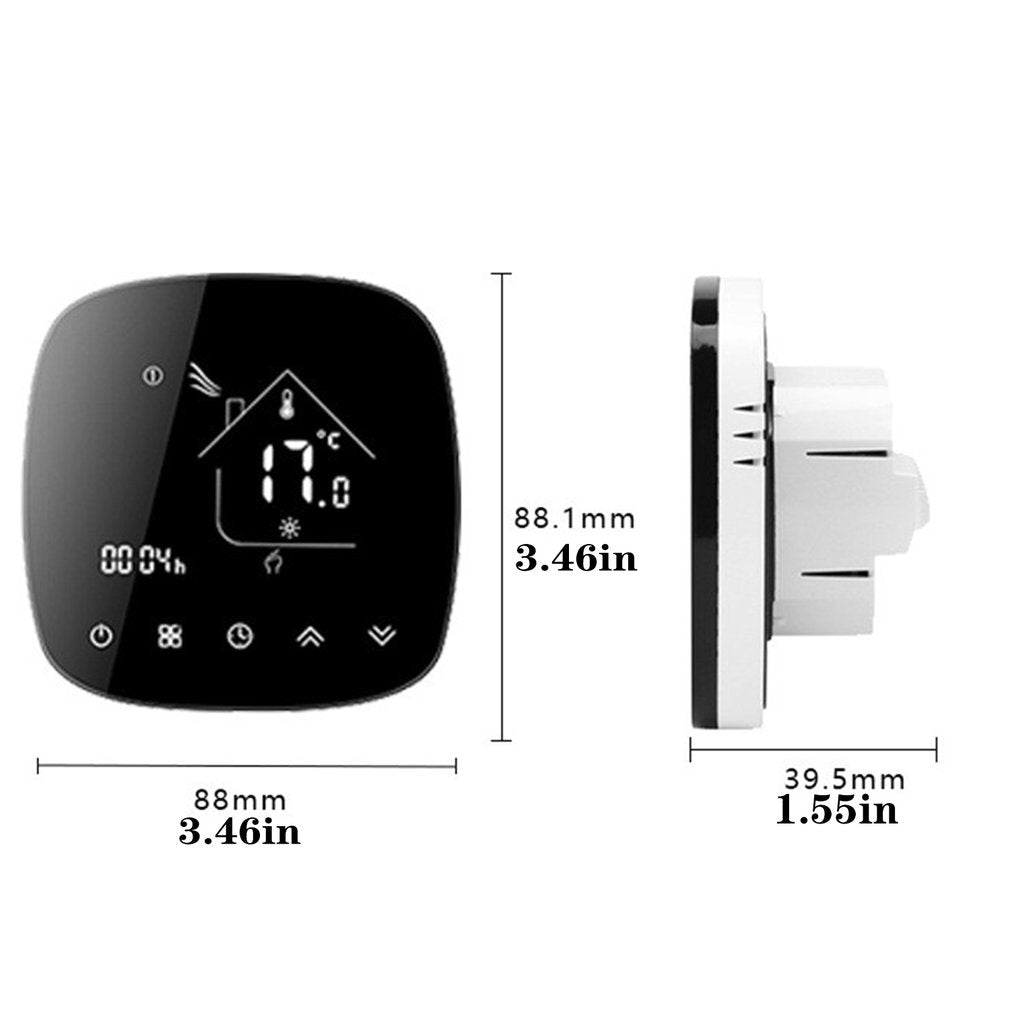

Size: 88.1*88*39.5mm
Sensing: NTC
Display: LCD screen
Frame: Aviation Aluminum Silver
Panel color: black
Material: PC+ABS (flame retardant)
Operation mode: capacitive touch button
Display: negative display
Scope of application: heating
Dust rating: IP20
Manual language: English/Chinese

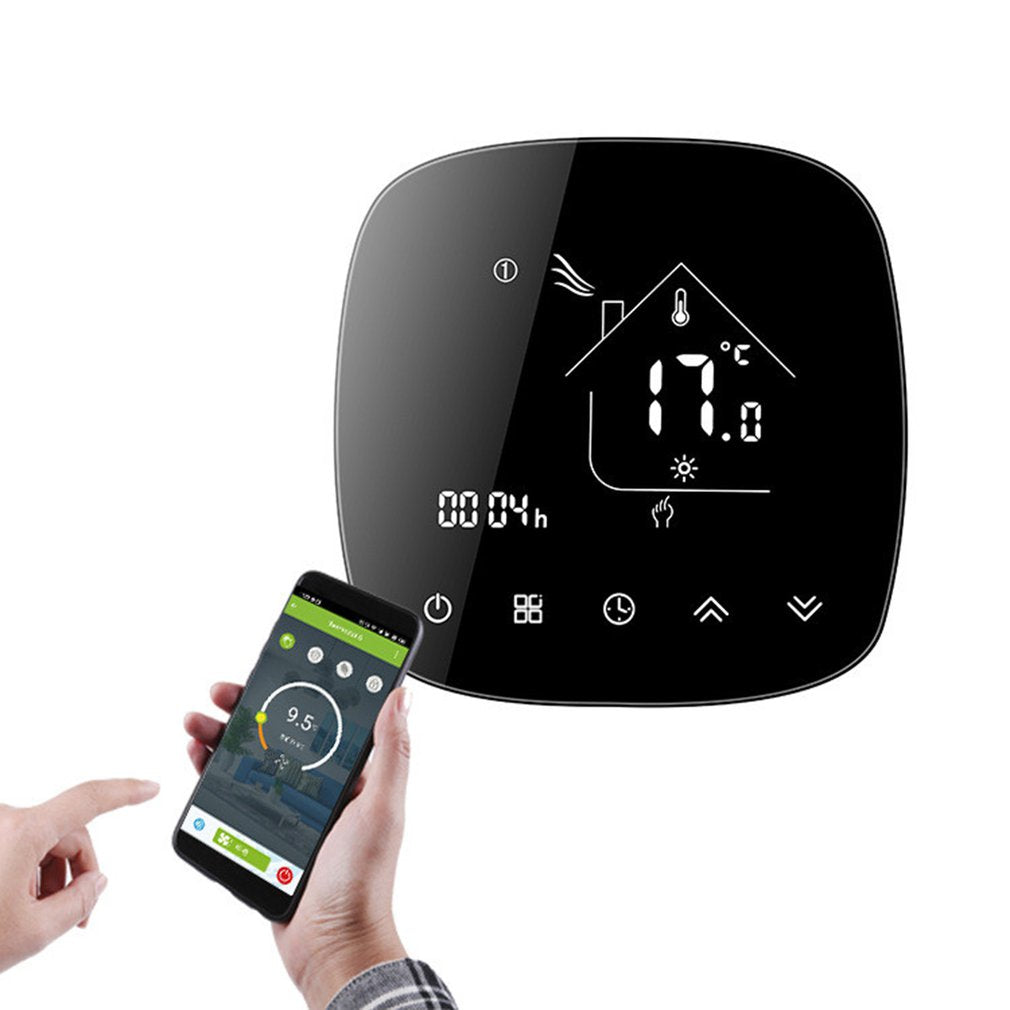

Incidental function: WIFI (for Android/ios) / micro adjustment
Voltage: 24V/95-240VAC, 50-60HZ
Current: 1A-inductive load, 3A-resistive load
Installation method: cassette installation (86mm*86mm/European box 60mm)
Package Included:
1* Smart Thermostat (Without Battery)
1* Sensing Line
1* Manual
1* Packing Box
1* Certificate
1* Screw Set
Notes:
1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
