Features:
【Concise Appearance】: Compact size, easy to carry and does not occupy an area, the portable pen type makes it can be easily carried, and say goodbye to the traditional heavy and difficult to carry.
【Large LCD Display】: Large LCD color display, red and green backlight alarm, larger font is perfect for middle-aged and elderly electricians use, easy to operate.
Power-on measurement, automatic identification of the measurement signals, no need to change gears, simple and convenient to use. Power on the direct measurement of ACvoltage and DCVoltage, resistance, circuit on and off, with higher precise, and more accurate measurement to meet various measurement needs

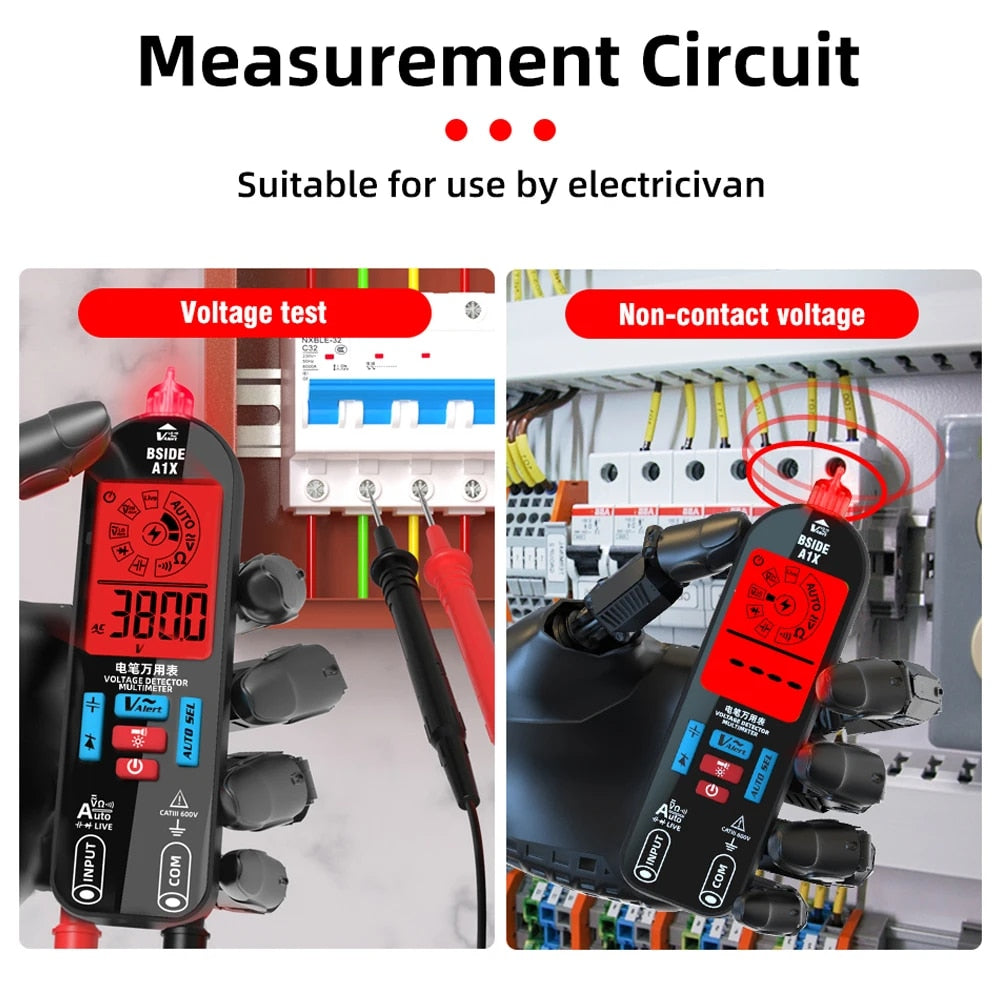

【Multifunctional Function】: Support live zeroline and fireline judgment, line breakpoint detection, it can measure ACvoltage and DCVoltage, resistance, on/off, frequency, diode, NCV induction test, live zeroline and fireline judgment. And automatic shutdown after 15 minutes of no operation.
【Triple Alarm】: Sound and light alarm, with higher precise, and more accurate measurement to meet various measurement needs.

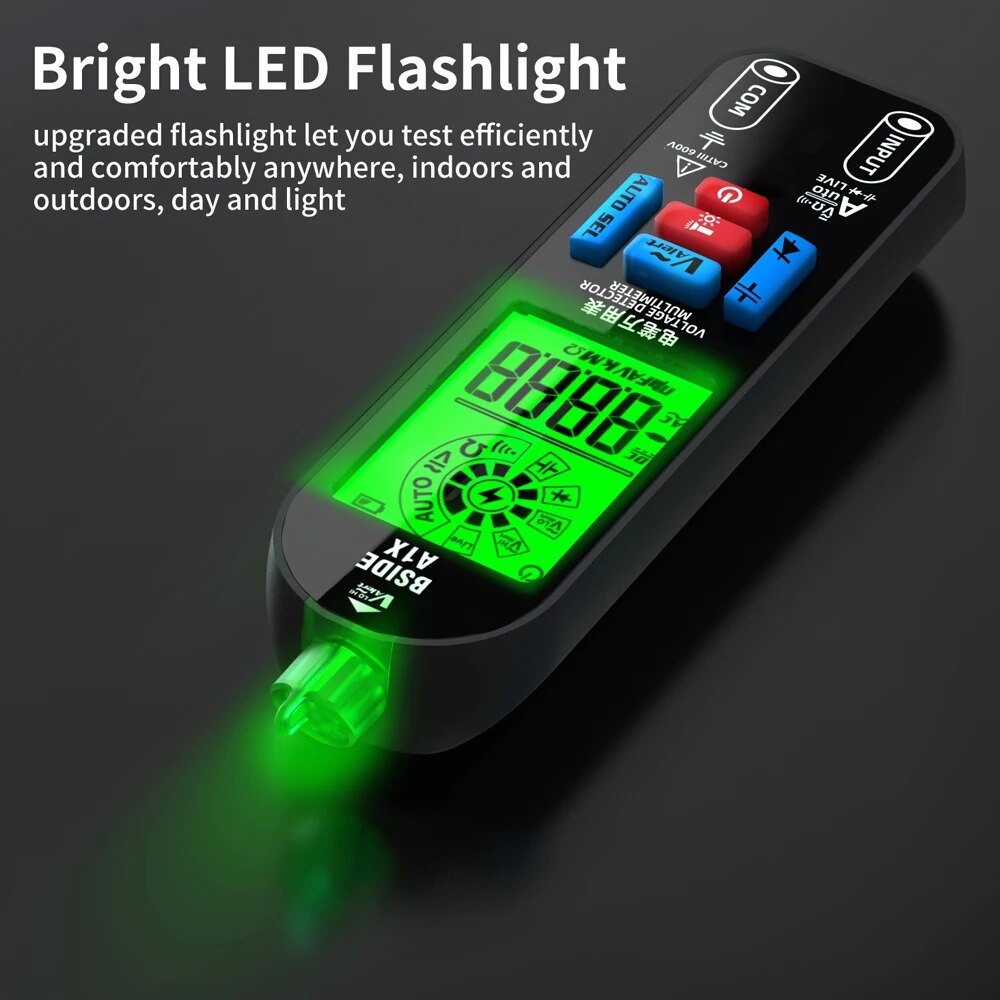

【LED Flashlight】: With flashlight for easy illumination and use when measuring in dark environments.
【Lithium Battery】: Built-in 400mAh lithium battery, Type-C cable charging, longer lifespan, fearless use.
【Wide Applications】: It can be widely used in electrical testing, automotive repairing, and more household improvements, industrial electrical maintenance, etc.
Specifications:
Name: Test Pen Multimeter
Material: plastics
Type: with storage bag, without storage bag (optional)

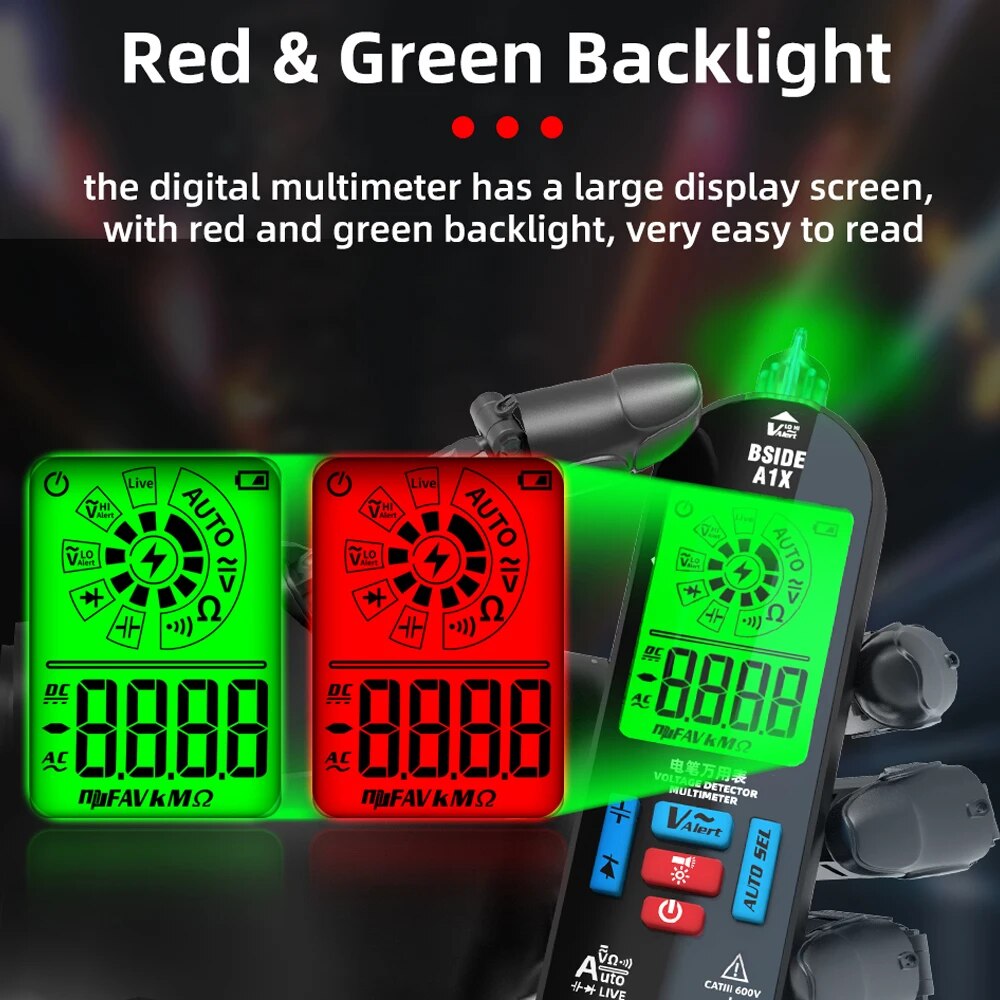

Screen: LCD display with red and green backlight
Battery: 1 * 3.7V, 400mAh lithium battery (included)
DCVoltage: 0-520V (DCMode), 0.5-520V(auto mode), 0.001V, ± (0.8% +3)
ACvoltage: 0-520V (ACmode), 0.5-520V(auto mode), 0.001V, ±(1.2%+5)
Resistance: 0-19.99ΜΩ, 1Ω, ±(1.2%+5)

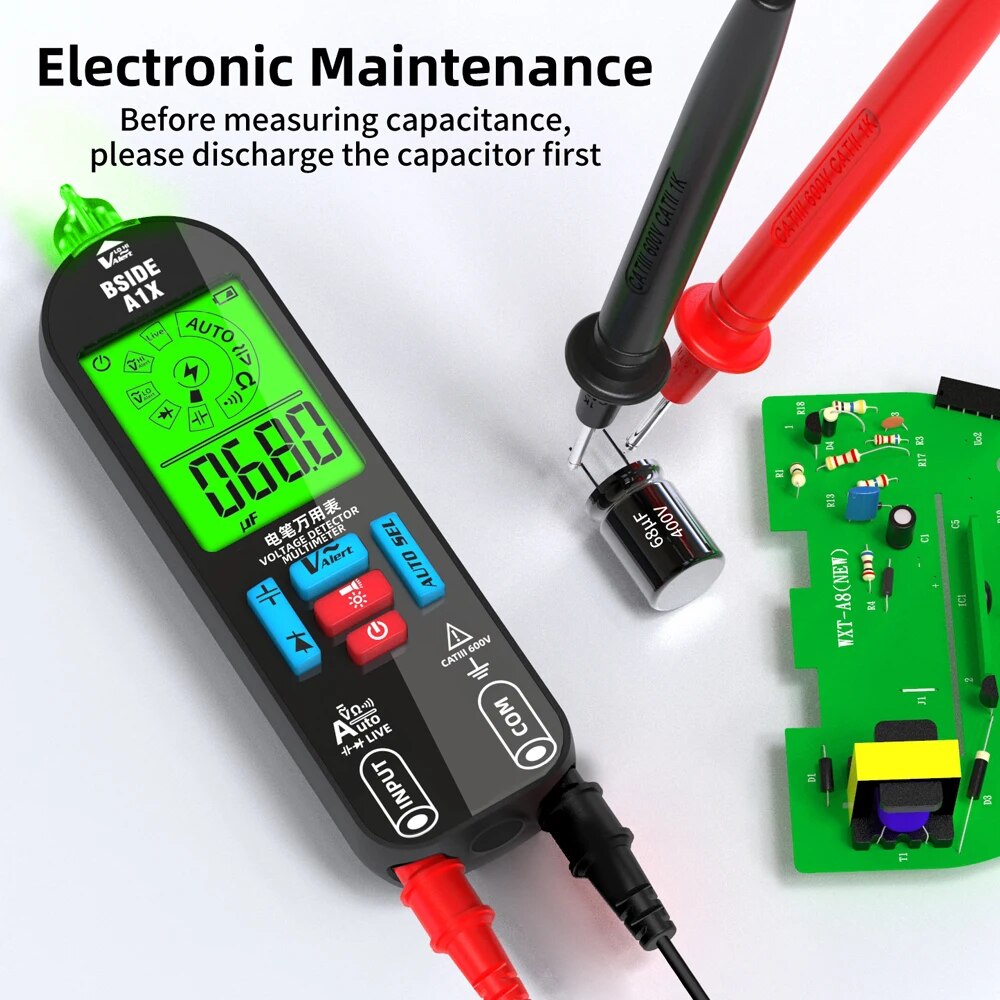

Capacitance: 1nF-1999μF, 0.01nF, ±(3.5%+8)
Buzzer on/off: when the measured resistance <50Ω buzzer sounding
Non-contact voltage detection alarm: support
Firewire discrimination: yes
Automatic shutdown: time about 15 minutes
Flashlight: yes
Diode measurement: less than 3V diode auto-recognition

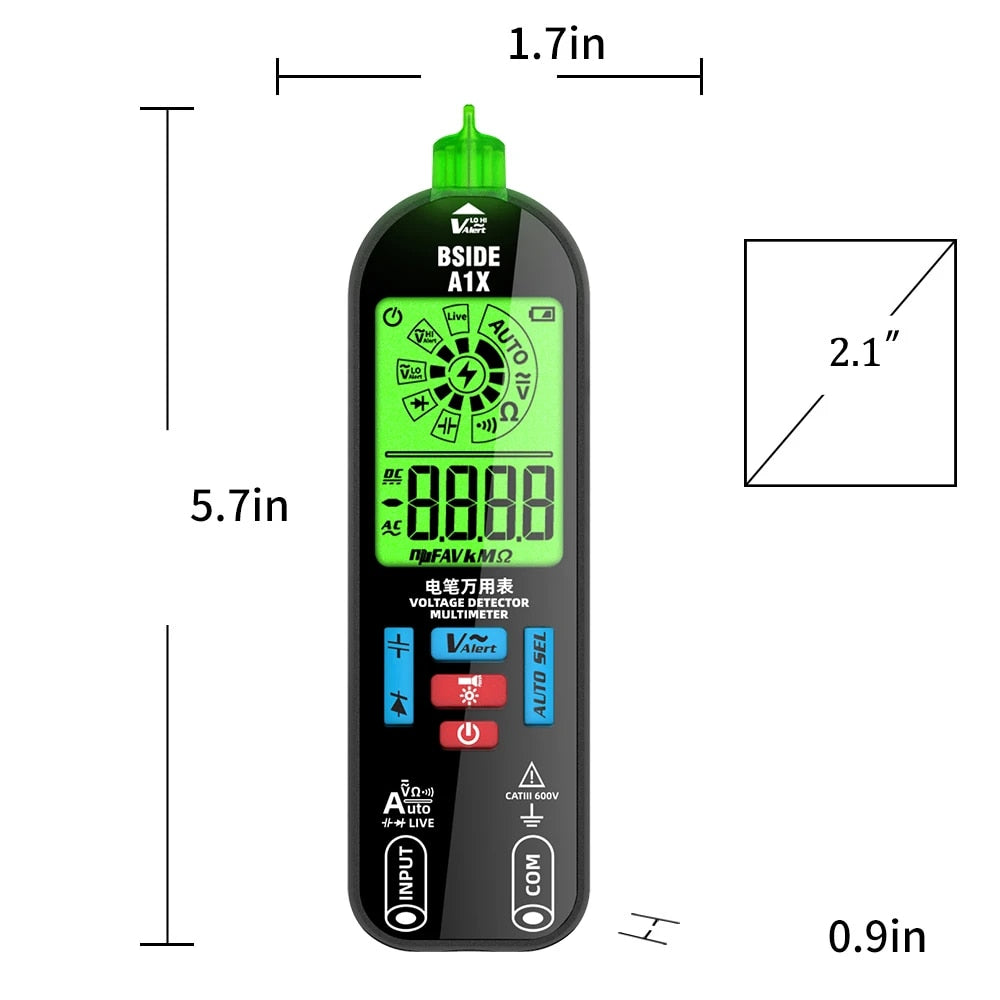

Item size: 145 * 44 * 25mm / 5.71 * 1.73 * 0.98in
Item weight: 73g / 2.57ounce
Package size: 175 * 73 * 38mm / 6.89 * 2.87 * 1.50in
Package weight: 178g / 6.28ounce

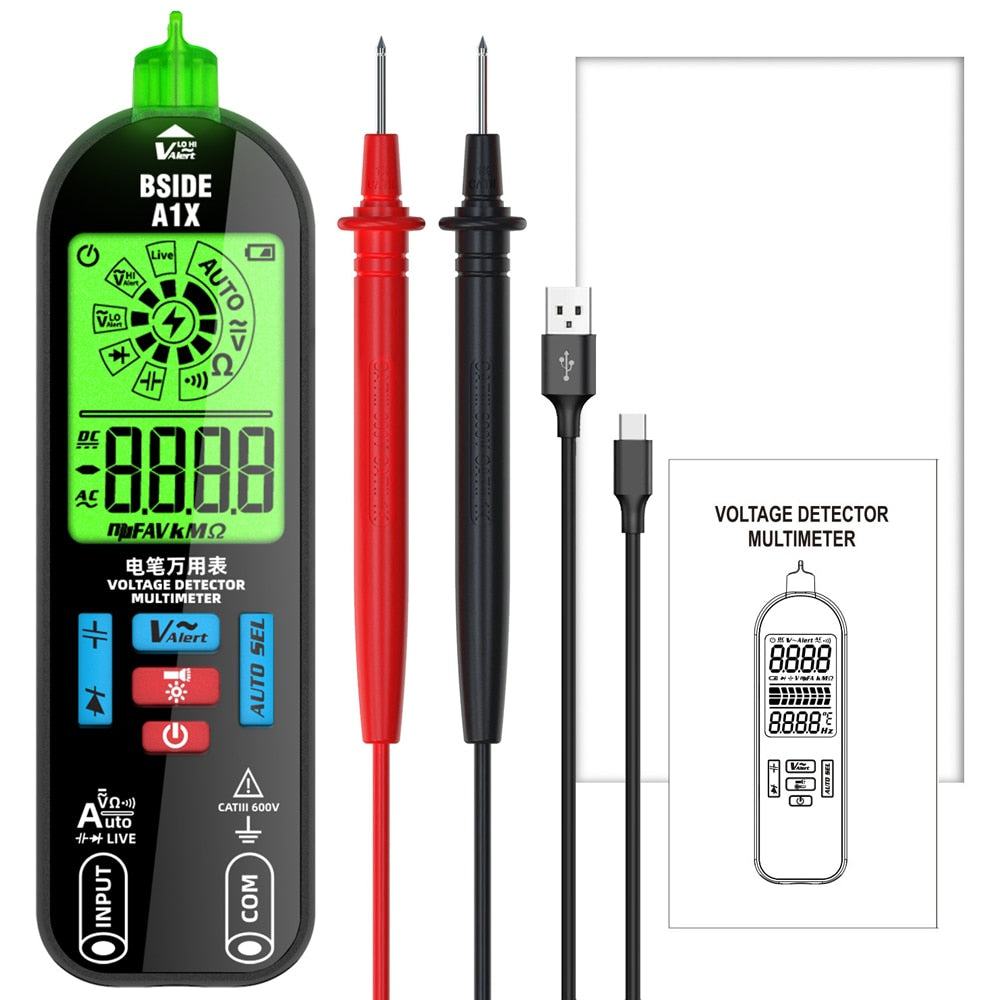

Packing List (without storage bag):
1 * Multimeter
1 * Type-C Cable
1 * Guideline
OR

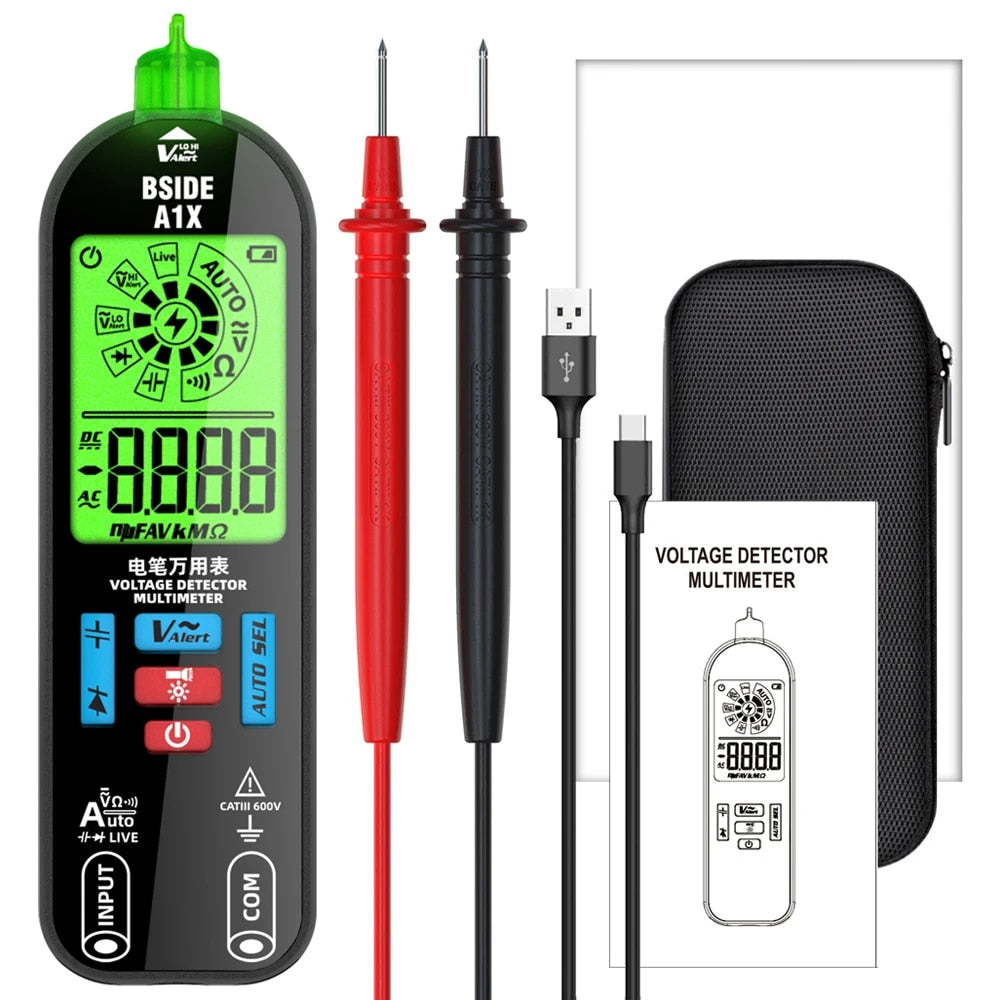

Packing List (with storage bag):
1 * Multimeter
1 * Type-C Cable
1 * Guideline
1 * Storage Bag
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
