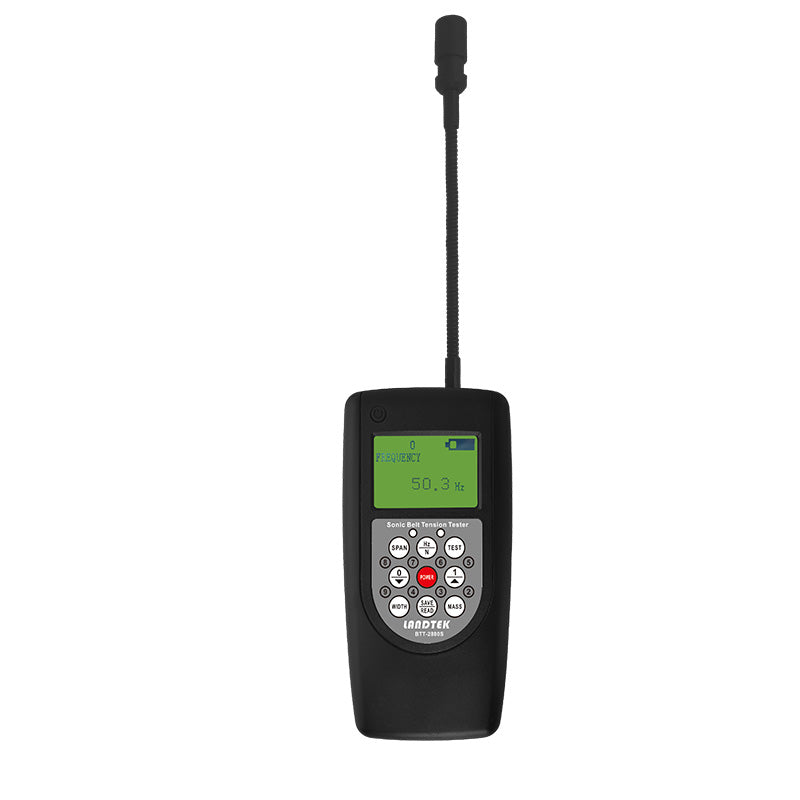

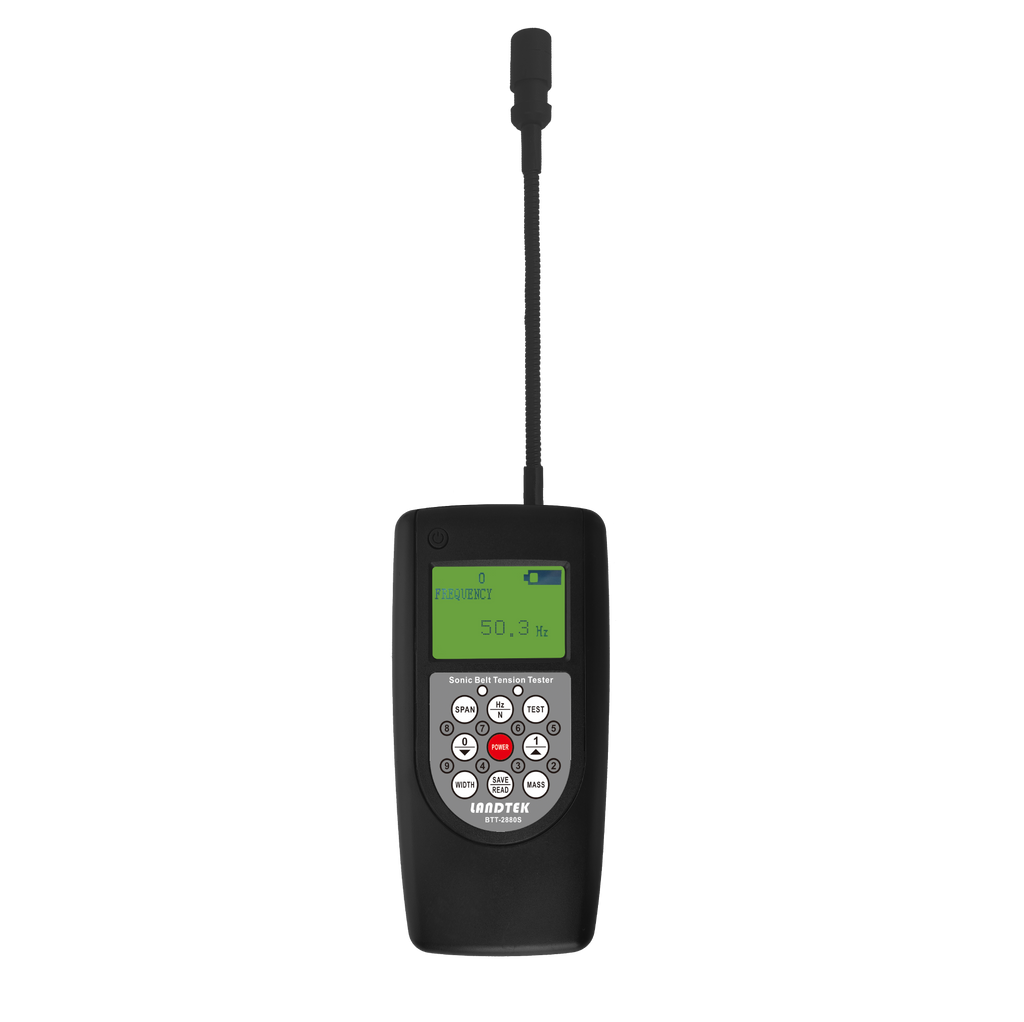

Overview:
This instrument can be used to measure the vibration frequency
(unit: Hertz) of the transmission belt when it is hit or moving fast.The
tester uses a microphone mounted at the end of the measuring probe
for measurement.After measuring in Hertz, the tester can use this
data to calculate the belt tension in newtons.
NOTE: The operation of the is reliant on the correct belt
informationbeing inputted.Please ensure the correct belt
manufacturers' data is used
Features:
*Adjustable probe.
* Can store 20 set belt parameters.
* Maximum frequency: 680 Hz.
* Automatic shutdown, etc.
Principle:
The calculation and measurement are based on the principle of "transverse vibration of string".The tester will pick up the vibration of the belt and record it as a frequency.Enter the mass, width, and span
in the following formula.frequency
The relationship between and tension can be calculated in the following formula： T=4xMxWxS2 xF2 x10-9
Specifications:
Measuring range
10Hz-680Hz
Belt free strand length
Max 9999 mm
Belt width
Max 999.9 mm/R
Belt mass
Max 999.9 g/m
Precision
±1HZ<100HZ AND ±1%>100HZ
Digital sampling accuracy
< 1%
Display accuracy
土1Hz
Overall accuracy
< 5%
Operating temperature
+10° C~ +50° C
Transport temperature
-5 ° C~-70° C
Display
LCD
Measurement unit
Hz/N
Power supply
4×1.5V AAA
Housing
Plastic(ABS)
Dimensions
140mmx7mm2x34mm
Package size
248mmx206mmx52mm
Standard Accessories
Main Unit (one)
Operating Instructions (one copy)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
