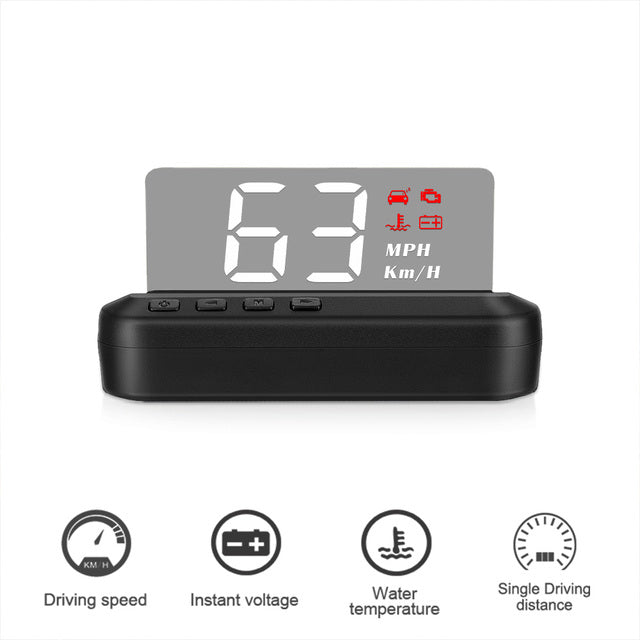

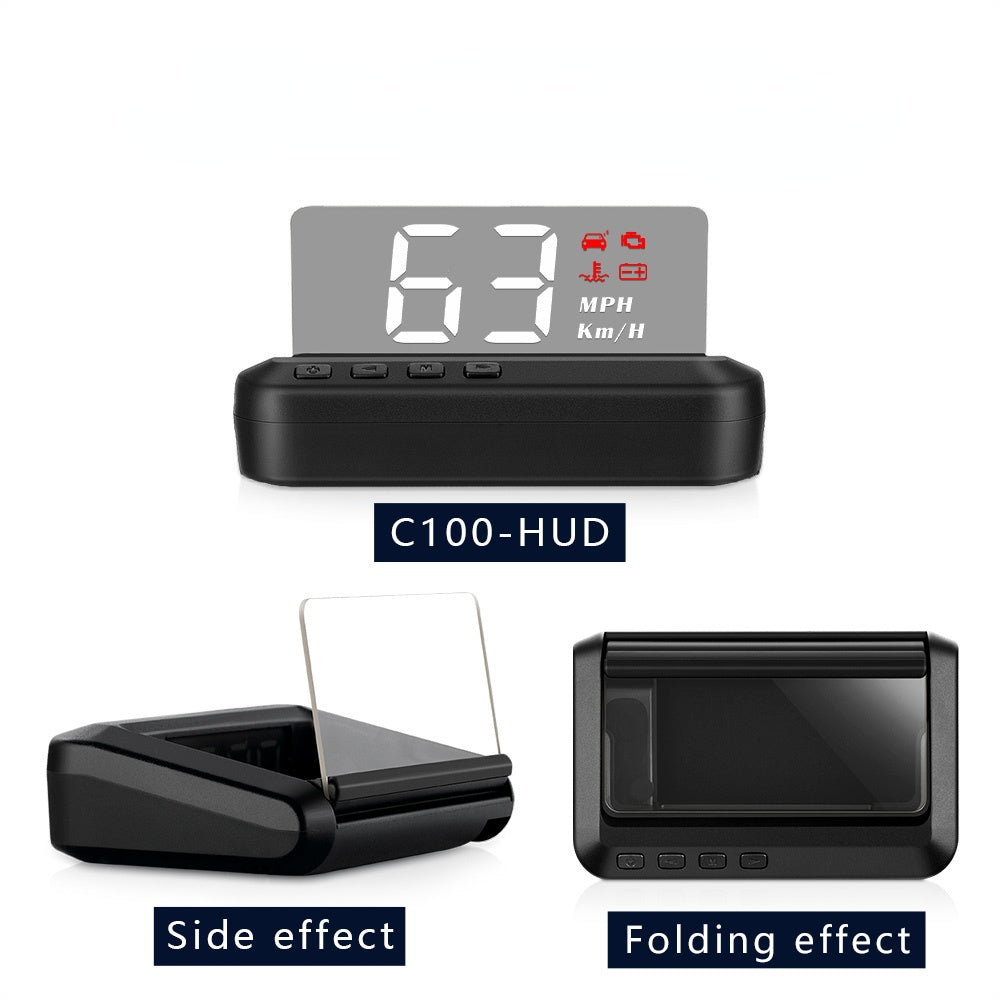

C100 OBD2 HUD Head Up Display KM/h MPH Car Speed Projector Mirror

 HUD Main Functions:

 -Speed(Km/h or MPH),over speed alarm

 -RPM, RPM Alarm

 -water temperature(°C or °F), high water temperature alarm

 -voltage, low voltage alarm

 menu or auto adjust the brightness

  Please note:

 1.Please manually turn off the HUD,when you don't drive your car for more than a week.

 2.OBD System Only Compatible With Petrol Car ,Not compatible With Diesel Car Electric Car hybrid vehicle.

     Accessories

   1*device+1*OBD2 cable, 1*anti-slip mat, 1*User manual

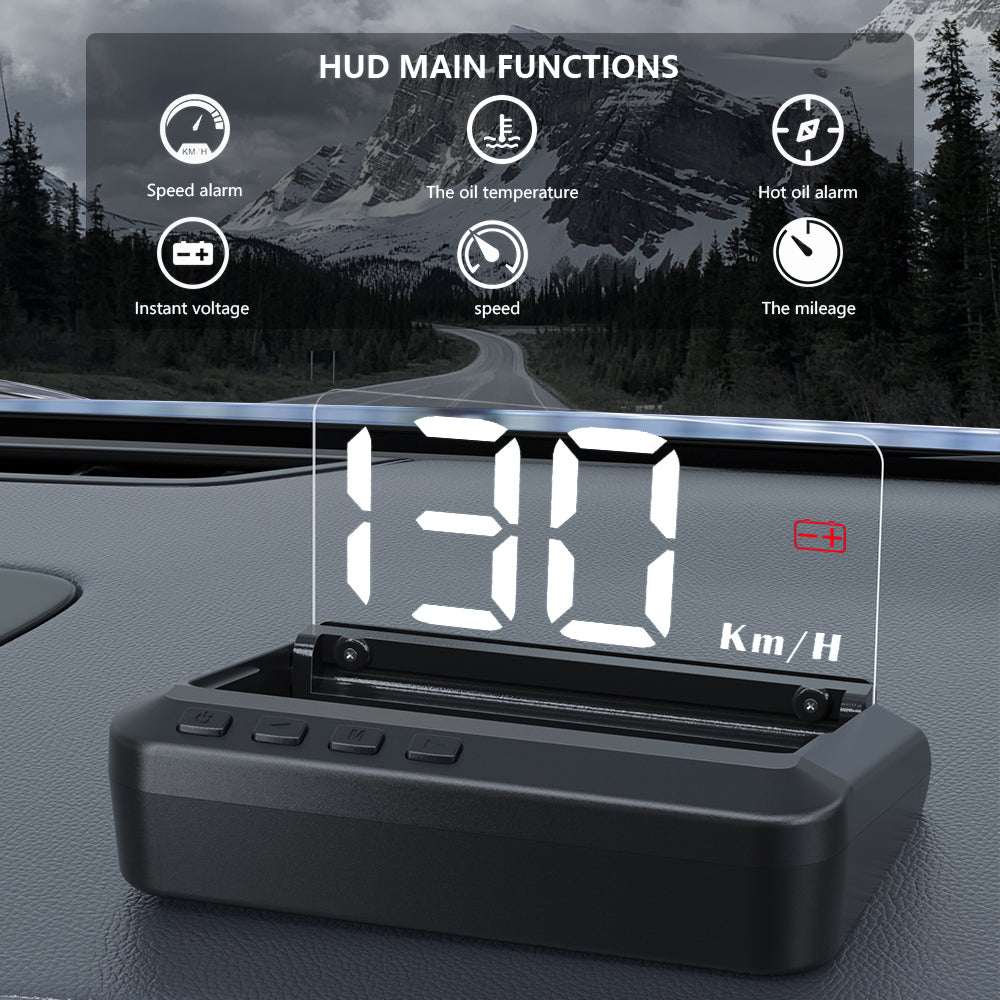

  HUD MAIN FUNCTIONS

  Speed alarm/The oil  temperature/Hot oil alarm/Instant voltage/Speed/The mileage

  Short pull up to switch display mode

  mode 1: speed

 mode 2: Speed + RPM

 mode 3: Speed + Water Temperature

 mode 4: Speed+ RPM + Water Temperature

  Clear the fault code

  Product Introduction:

  HUD short for Head Up Display,the main function is to display the car dashboard information (e.g.speed,RPM,water temperature,voltage,trip distance etc ),and keep the driver eyes always on road to avoid the dangerous of lowering down head to read the dashboard.

   button function:

  turn off/turn on

 1.Short Press'<'.

 (1)to switch the display mode

 (2) to setup menu options

 2.Long Press'<'.

 Turn off the buzzer and press for 2 seconds to turn on the buzzer again.

 3.Short Press'M.

 OBD system: to switch voltage, water temperature,vehicle speed during OBD system, enter into menu setting to switch menu options or parameter values.

 4.Long press'M'.

 to enter into menu settings (see instructions for Menu 1-12) and press 5 seconds to save and exit

 5 Short Press'>'.

 Switch speed mode,add menu or parameter after entering setting.

 6.Long Press'>'.

 (1)To confirm all of the LED lights can be worked.

 (2)To clear engine fault code.

   Restore setting:

  Unplug the power supply,long press'M' button and hold until all of the LED lights on.

  Product Introduction:

  1.Multi function : speed,engine RPM,water temperature,voltage,driving distance

 2.Fatigue driving , Engine Error

 3.Water temperature icon ,voltage icon

 4.Light sensor:HUD can automatically adjust the brightness according to the environment

 5.MPH=Speed Mile/hour,KM/H=kilometer/hour, MPH=Mile/hour.

   Buyer Show

  EASY INSTALLATION

  Easy to install,plug and play

   Product Features:

  1. Geyiren CAR 100% Brand Guarantee

 2. Safty driving, Keep your eyes ahead, No need to down your head to see Dashboard while driving

 3.Nano-technology to eliminate double reflections, more clarity

 4. Easy to Install, Only need connect the HUD with Car OBD port by OBD cable, HUD will display when car engine on / off

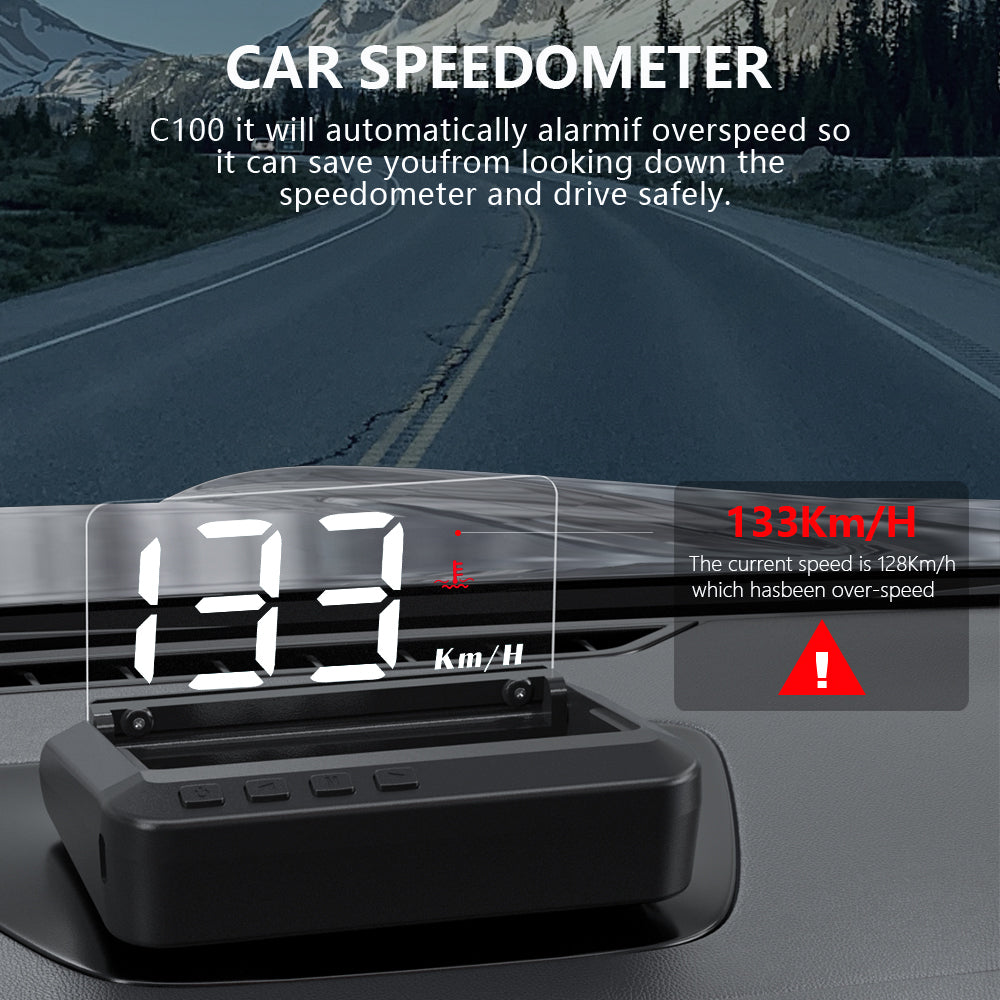

 5. Over-time driving Alarm, Low Voltage Alarm, Over-speed Alarm, High temperature Alarm, Engine faulty Alarm6. KMH & MPH Switch Freely.

 7. Compatiable for: Cars in OBD II Standard (after 2007 years)(Diesel cars, pure electric cars, hybrid cars cannot be used)

 8. Installation position: On Center Console

 9. Connection: Connect with Car OBD port

 10. Display information: speed, RPM, water temperature, voltage, single driving distance, low voltage alarm, high water temperature alarm, over speed alarm, freely switch between kilometers & miles.

 11. Multi-color design makes the screen clearer and easier to read

 12. 5-level brightness adjustment, automatic and manual brightness adjustment mode

   Incompatible models (will updated...)But you can choose our GPS

  HUDChevrolet Niva 2019     Nissan Altima  2017  Jeep Wrangler 2015     Nissan tiida 2011    lada samara  2014/ 2007fortuner 2010KIA RIO Sedan AT  2015     mitsubishi outlander premium  2019    Mitsubishi Pajero 2007     glc 2020Subaru Forester 2010( EU version and TLC Prado 120, EU version)......

 Diesel vehicles, hybrid vehicles can only use GPS C100is not compatible

   FAQ

   1.The screen without any display, and no power

  Please do these operations: If OBD cable is tight enough,pull the OBD cable out several times. Try another car to test

  2.When HUD power on,HUD only show the car voltage and be automatic power off after 30 seconds driving.

  HUD is only available for cars with OBD2 and EOBD agreement(European:manufactured after 2003, Other region: after 2007)

 HUD Products don't support JOBD and OBDI,replace other vehicles that meet the OBD2 interface

  3. Inaccurate speed

  In the case of power-on,long press the 'M' button in to enter into menu option,menu displays 1,parameter displays 107.Fine tuning of the values according to the difference between HUD and car instrument(Example:the instrument displays 100 KM but HUD displays 105KM,then calculation should be default value 107-5=102.Long press the 'M' button to save your adjustment and exit.

  4.HUD can not auto power off(RPM or Speed not at O)

  When HUD is power on,long press the button in to enter into menu,set the voltage from 0 to 13.2V or 13.5V(Menu 10).HUD will turn off after 3 minutes.

  5.HUD will automatically restart

  Indicates that the car voltage is higher than the starting voltage 13.2 volts,what you should do is to set voltage to 13.6-13.8v(Menu).HUD will automatically on when voltage is higher than 13.2v.

   Pls contact with us if you got any questions
