Features:
IP67 waterproof rate, can protect the panel in case of temporary water immersion.

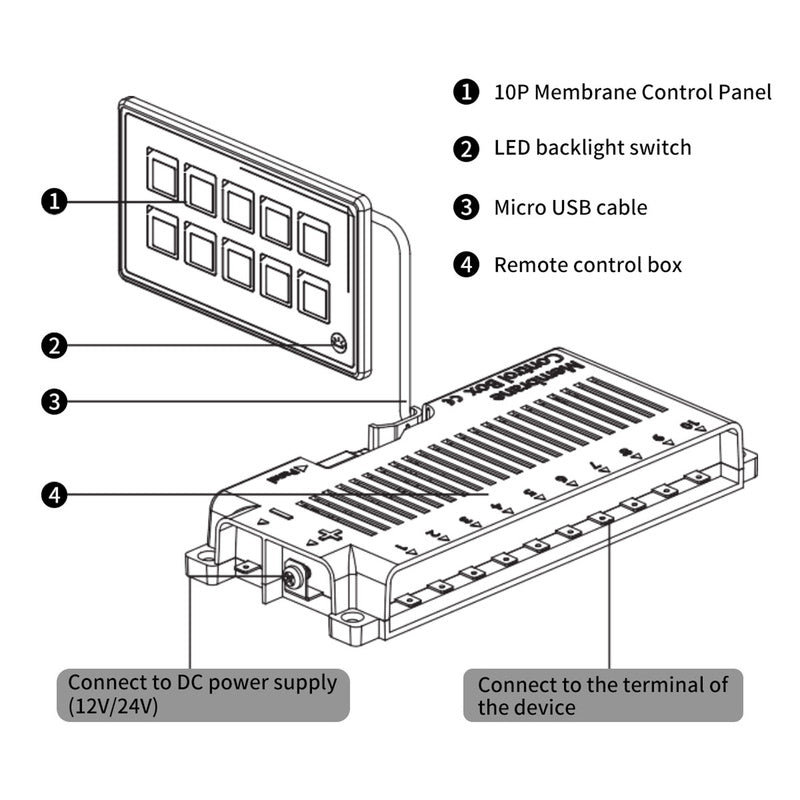

Flexible wiring, you can install the relay box 1 meter away from the touch screen, safe to use.
With backlight module design, convenient for operation in the dark.
All buttons are programmable as reset buttons (reset function is usually applied to horn or wiper applications).
60 pieces of various graphic and text label sticker sets are included.
Specifications:
Model: SP5110A
Circuit Protection: Built-in Resettable Fuse(PPTC)
Switch Ratings: 10A per branch circuit
Maximum Cumulative Current: 60A
Rated Voltage: DC 11-30V
Waterproof: IP67(Membrane Panel)
Power Terminals: M5 stud size ring terminals
Load Terminals: 250 quick terminals(male)
Material: PET
Color: Black
Item Weight: 469g/16.5oz
Package Weight: 526g/18.6oz
Package Size: 22.5*10*5cm/8.9*3.9*2in

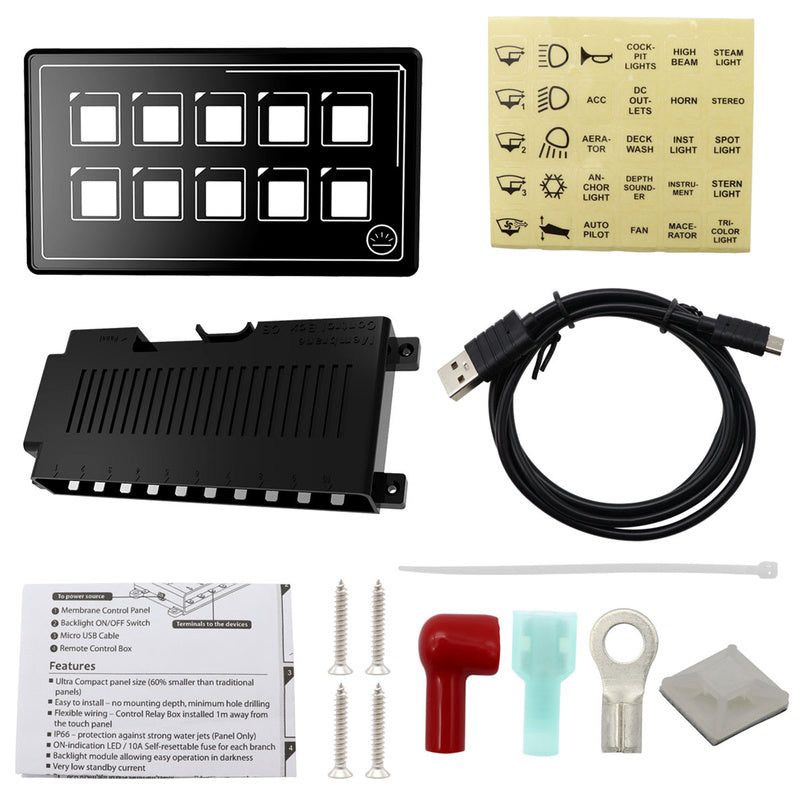

Package List:

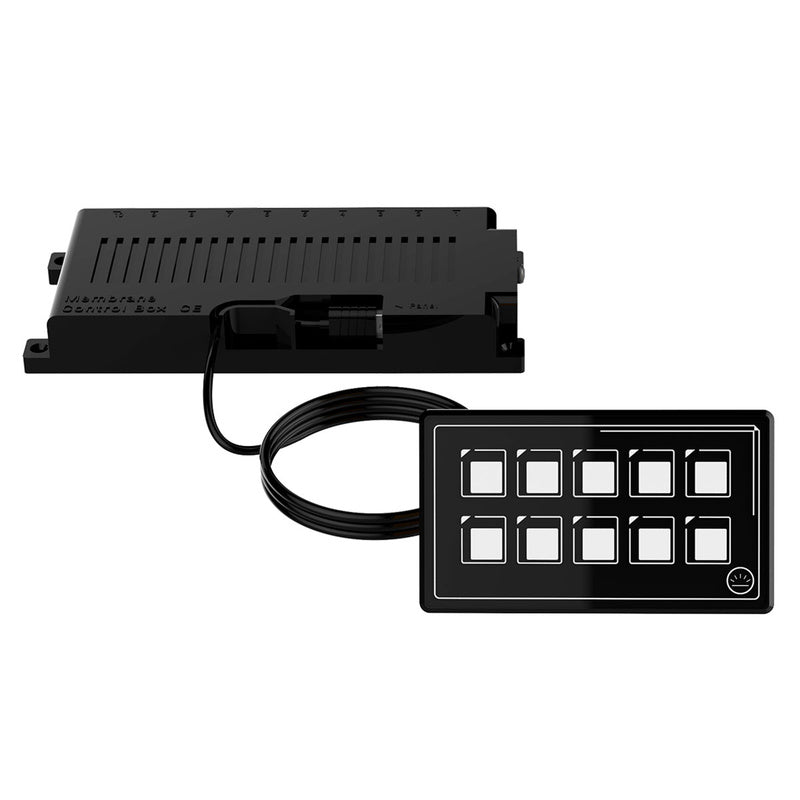

1*10P Membrane Control Switch Panel with Backlight Module
