Digital Backlight LCD Car Paint Coating Thickness Gauge Meter 0-2000um Film Thickness Meter Electroplate Metal Thickness Tester
Description:
The thickness gauge is used to measure the thickness of the plated and coated sheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper.
The measuring range is 0-2000UM.

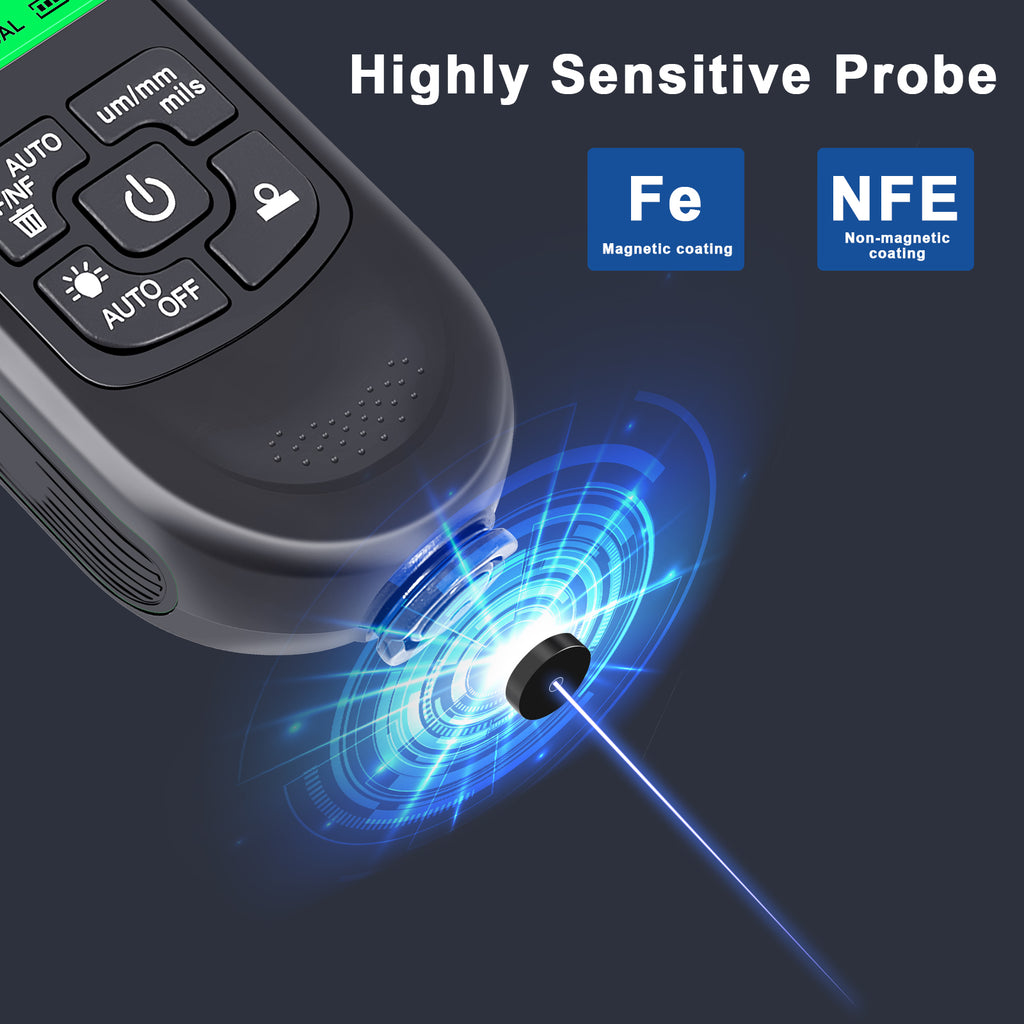

The gauge takes the precision integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates.
The Gauge is designed for non-destructively measuring the thickness of coating and painting.
It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.
Specification:

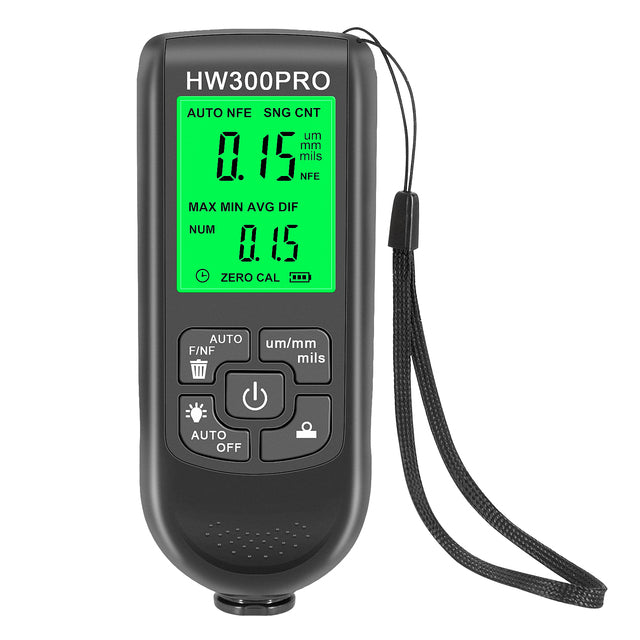

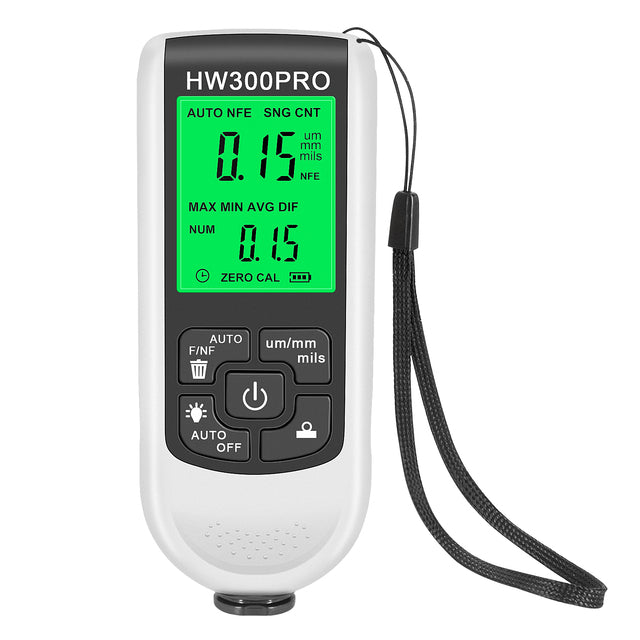

Product name: HW-300PRO coating thickness gauge
Product size: 122MM*50MM*22MM
Material: ABS
Resolution: 0.01mm/1mil
Measuring range: 0-2000UM
Measurement accuracy: ±(3%+1UM)
Power supply: 2x1.5V AAA batteries (not included)
Operating temperature: -10° ~ 50°
Accessories: Thickness gauge 1PCS + manual + calibration sheet, white box packaging
