Features:
Adopt magnetic induction and eddy current 2 measure methods.
Automatic identification of the ferrous or non-ferrous substrate.
Zero-point and multi-points calibration methods to correct the systematic error and ensure the accuracy.
3 colors warning light indicates the current value attribute. (Green: qualified, red: below the limit, yellow: above the limit)
The screen can be rotated up and down, large capacity memory chip can store 199 groups of data.
Equipped with large digital display, high practicality and usability.
High precision, stable performance, and non-destructive measurement.

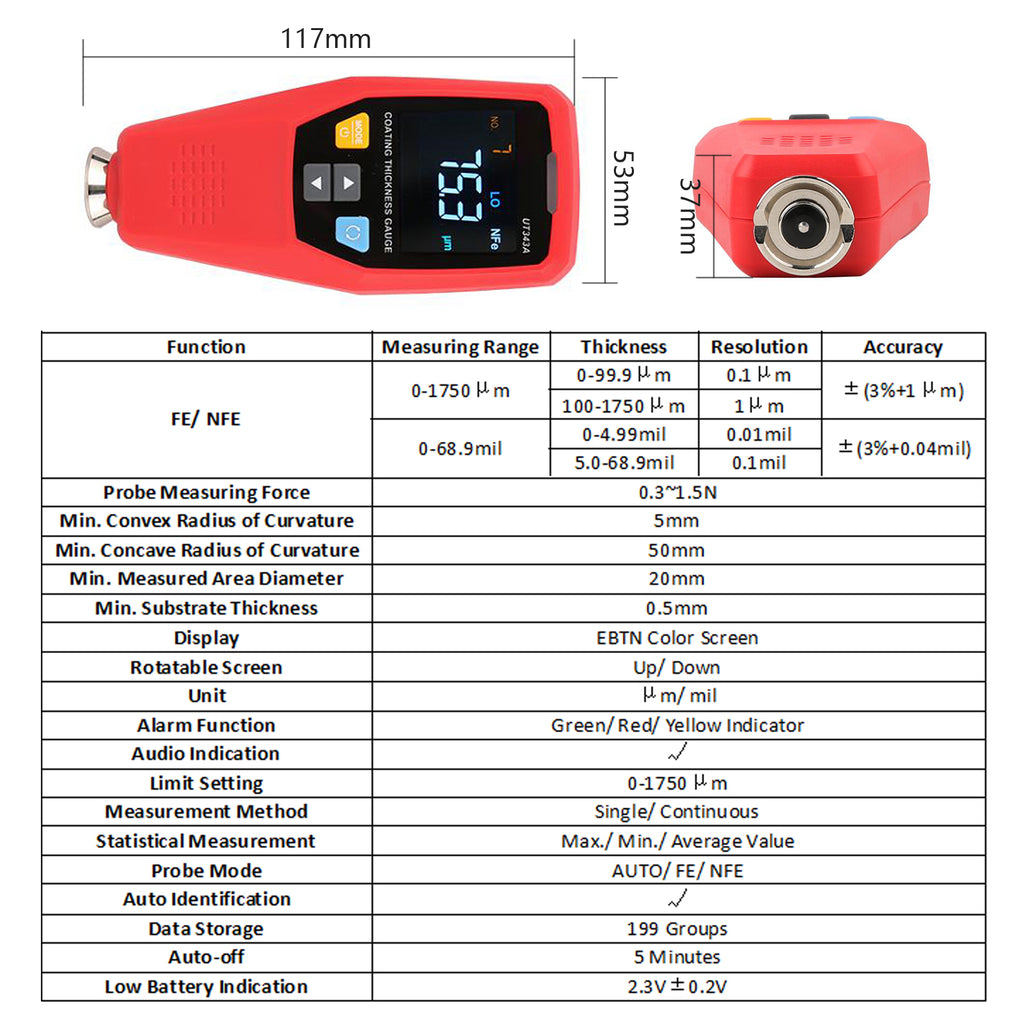

Specifications:
Display: EBTN Color Screen
Measuring Range: 0~1750μm (0~68.9mil)
Thickness:
0~99.9μm (Resolution: 0.1μm, Accuracy: ±(3%+1μm))
100~1750μm (Resolution: 1μm, Accuracy: ±(3%+1μm))
0~4.99mil (Resolution: 0.01mil, Accuracy: ±(3%+0.04mil))
5.0~68.9mil (Resolution: 0.1mil, Accuracy: ±(3%+0.04mil))
Minimum Convex Radius of Curvature: 5mm
Minimum Concave Radius of Curvature: 50mm
Minimum Measured Area Diameter: 20mm
Minimum Substrate Thickness: 0.5mm
Unit: μm, mil
Measurement Method: Single/ Continuous
Statistical Measurement: Max./ Min./ Average Value
Limit Setting: 0-1750μm
Probe Mode: AUTO/ FE/ NFE
Data Storage: 199 Groups
Auto-off Time: 5 Minutes
Other Function: Alarm Indication, Audio Indication
Working Environment: 0~40℃, ≤80%RH
Storage Environment: -20~60℃, ≤75%RH
Power Supply: 2 * AAA Batteries (NOT INCLUDED)
Item Size: 117 * 53 * 37mm / 4.6 * 2.1 * 1.5in
Package Size: 11.7 * 5.3 * 3.7cm / 4.6 * 2.1 * 1.5in
Package Weight: 300g / 10.6oz
Package List:
1 * Coating Thickness Gauge Set
