Support for LGA1150 Haswell processor;
Support dual channel DDR3 1066/1333 /1600MHZ memory;
Support iGPU Tuner/GPU overclocking technology;
USB3.0/SATA3.0;
Storage interface: 2 SATA3.0 6Gb/s interfaces (SATA1-2) 2 SATA2.0 3Gb/s interfaces (SATA3-4)
Motherboard series: For series
Chipset: For H81
CPU support: support LGA 1150 interface processor (TDP: 84W)
Memory support: 2 memory slot, support DDR3 dual channel 1066/1333/1600MHZ specification memory
image card support: 1 PCI Express 2.0x16 slot
Storage interface: 2 SATA3.0 6Gb/s interfaces (SATA1-2) 2 SATA2.0 3Gb/s interfaces (SATA3-4)

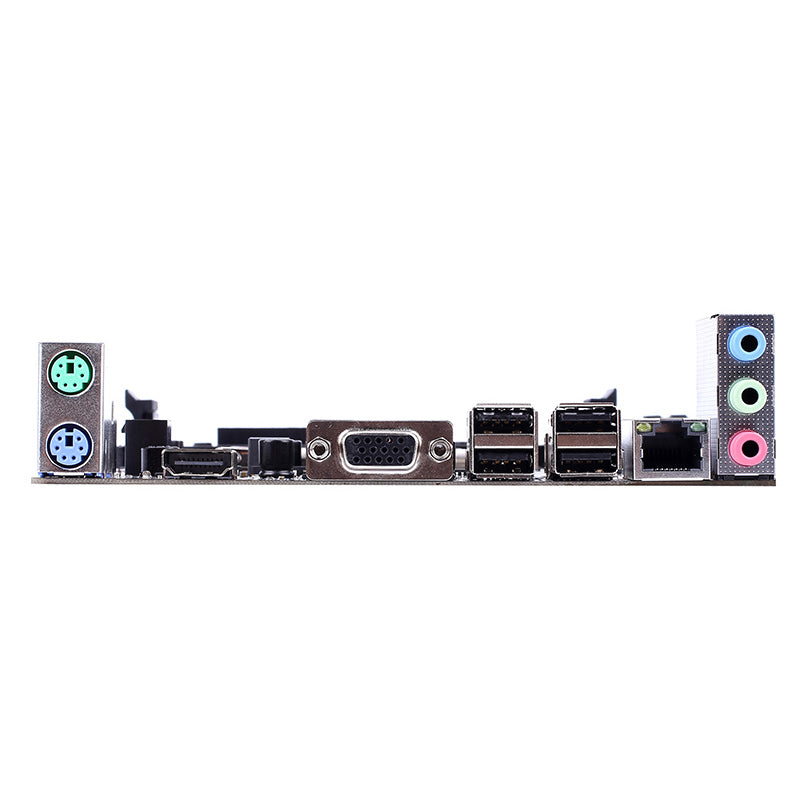

Expansion interface: I/O: 1 set of PS2 mouse and keyboard interfaces, 4 USB2.0 interfaces, 1 RJ45 network interface, 3 audio input and output jacks (6 channel support), 1 VGA interface, 1 HDMI Interface; onboard (expandable): 1 set of 9-pin USB2.0 pins, 1 set of 19-pin USB3.0 pins, 1 set of 9-pin COM pins
Expansion slots: 1 PCI Express 2.0x16 slot, 2 PCI Express x1 slots
System BIOS: 64M UEFI
Power management: support S1, S4, S5 wake-up, network S5 wake-up, scheduled boot, automatic boot on incoming calls
Hardware monitoring: CPU fan speed controllable, SYSTEM fan speed monitoring, CPU temperature monitoring, System temperature monitoring, and various groups of voltage monitoring
Onboard network card: RTL8105E-VD 100M
Onboard sound card: ALC662
Colour:black
Material: PCB
Size:170x216mm
Package Contents:
1x Motherboard
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
