Features:
Small in size, compact structure, light weight and easy to carry.
Uses the quality PWM control chip, which can accurately and effectively imitate the driving signals of the ECU to the various working conditions of the injectors, such as pre injection, discharge point, full load point and so on.
It can drive various brands of common rail injectors.
Easy to operate and can be tested with common n-ozzle tester.

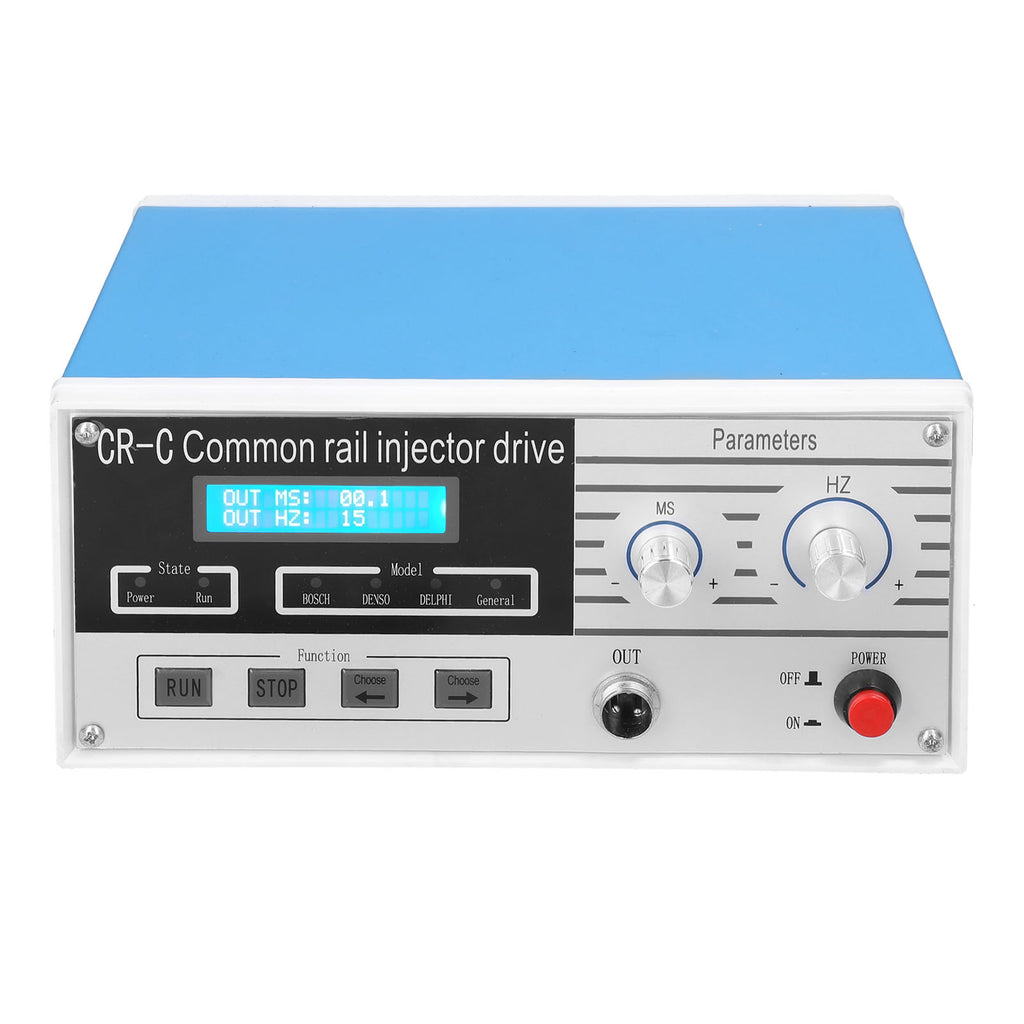

Equipped with large LCD screen to display the value of the frequency pulse width.
Indicator bar displays current status and driver mode.
Support select the drive mode through the left and right keys.
MS knob for adjusting the pulse width, HZ knob for adjusting the frequency.
It can detecting and repairing common rail injectors for customers, and can highly improve work efficiency.
It effectively reduces the threshold of maintenance equipment investment.
Specifications:
Name: Common Rail Injectors Detector
Model: CR-C
Testing-range: atomization effect, pre injection, discharge point and full load point.
Use power: AC110-240V
Plug: EU/US Plug (optional)
Working temperature: -30℃ to 70℃
Adjustable pulse width: 10MS
Adjustable frequency: 30Hz
Item size: 245 * 190 * 110mm / 9.65 * 7.48 * 4.33in
Item weight: 1610g / 3.55lb
Package size: 275 * 260 * 160mm / 10.83 * 10.24 * 6.30in
Package weight: 1856g / 4.09lb
Packing List:
1 * Common Rail Injectors Detector
