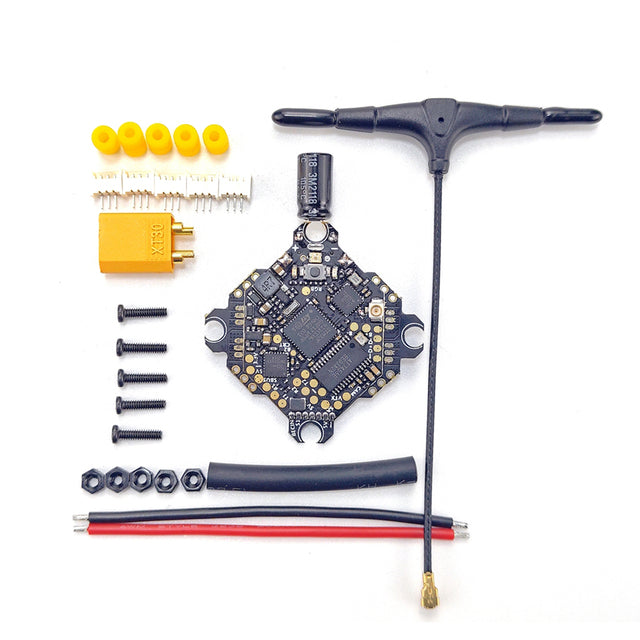

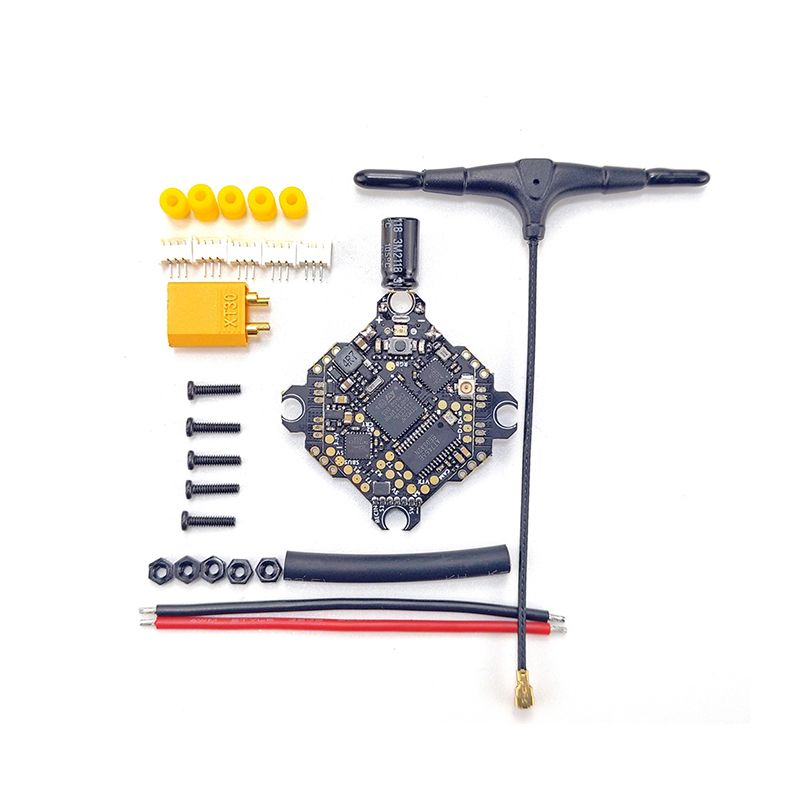

DarwinFPV ExpressLRS ELRS AIO F4 FPV Bluejay 2.4G Flight Controller BWhoop Betaflight 15A OSD BEC 1-3S 4In1 ESC
ELRS F4 AIO 15A
Flight Controller MCU: STM32F411CEU6(100MHz)
IMU: ICM-20689(SPI)
OSD: Betaflight OSD AT7456E
RF: SX1280(2.4GHz)
BEC output: 5V/2A & 3.3V/0.2A
Firmware target: betaflight_4.3.0_BETAFPVF4SX1280
2x Uarts(1,2)
1x SBUS(RX1 inverter)
1x Softserial_TX option
1x External USB solder pad
1x CRT(Current)
1x BUZZ
1x RGB

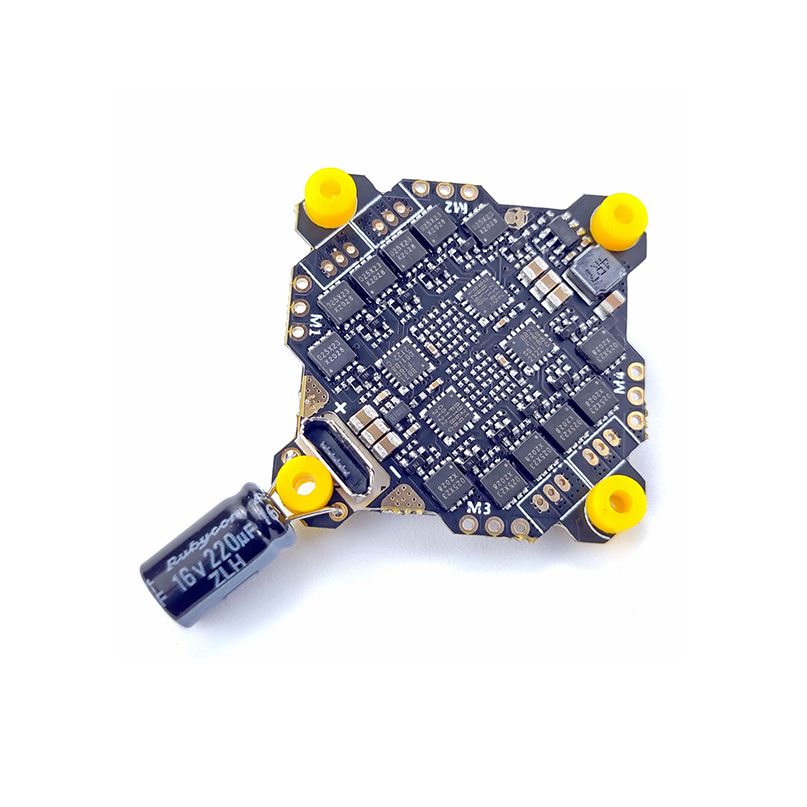

ESC MCU: EFM8BB21F16G
Input Voltage: 1-3S LiPo
Continuous current: 15A
MAX current (5seconds): 17A
ESC Traget: Bluejay_S_H_50_48_v0.14
Size: 37x36x10.8mm
Installing Hole: 25.5x25.5mm(M2)

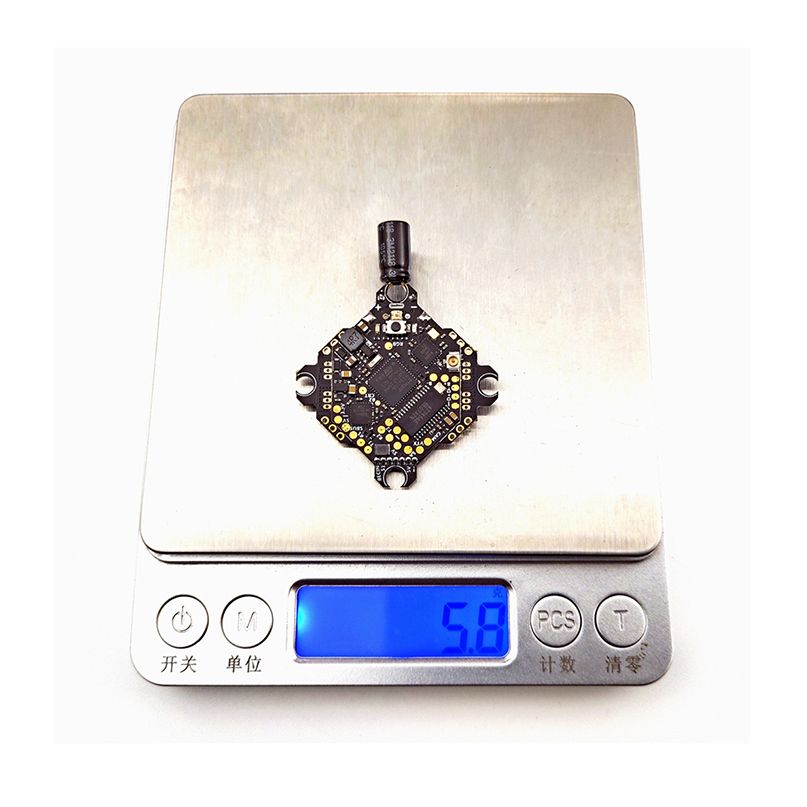

Weight: 5.0g
This is the updated version for Darwin AIO. We integrated the ELRS receiver
on the FC to make it easier to apply to the mini Drone. ESC adopts
Bluejay firmware and is compatible with 1-3S Lipo input, and the maximum
current reaches 17A.FC provides 2 sets of Uarts interfaces and at the
same time provides various external devices interfaces such as SBUS,
Softserial, CTR, BUZZ, RGB and so on , which perfectly solves the
problem of insufficient quantity of F411 Uarts.

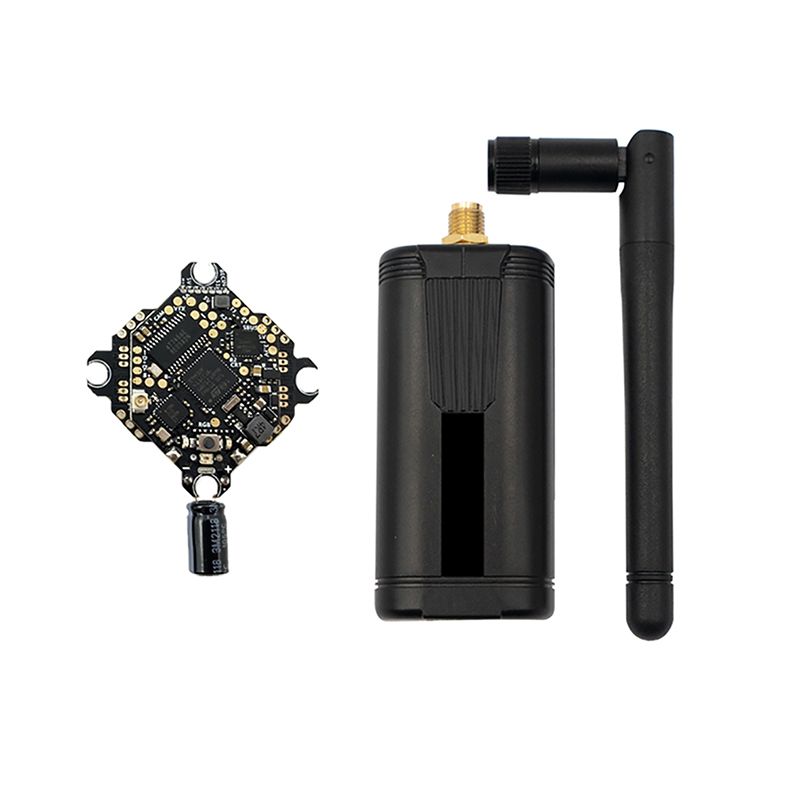

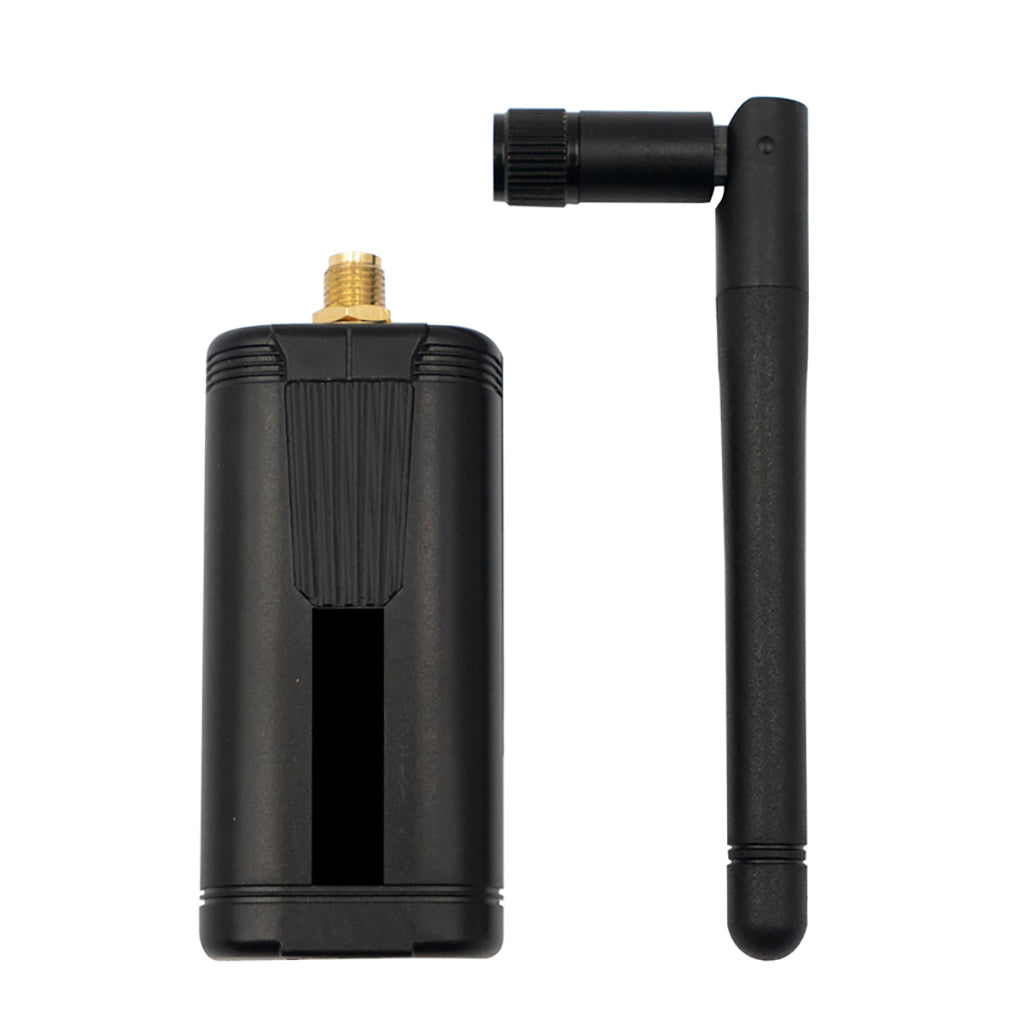

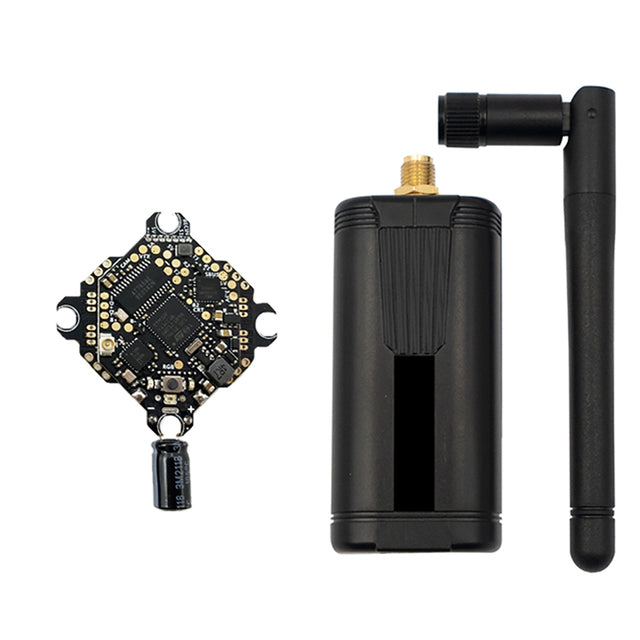

Darwin Vantac ELRS Lite TX Module is based on open source project.
2.4G transmit module， the aim of the ExpressLRS 2.4G aims to achieve
comprehensive performance in speed, latency and range. In addition, a
convenient feature of this module is the built-in WiFi module, which
enables wireless connection to upgrade firmware. Darwin Vantac ELRS Lite
TX Modules are compatible with remotes with lite-style module bays.
The specifications of the TX Module:
Packet refresh rate: 50HZ/100HZ/150HZ/250HZ/500HZ
RF output power:10mW/25mW/50mW/100mW/250mW/500mW
Frequency bands: 2.4GHz ISM
Input voltage: 5V~12V
USB port: Type-C
Darwin ELRS 2.4G TX Module use lite-style TX Module bays and it is compatible with the following remote control:Jumper T-lite、Betafpv LiteRadio 3、TBS Tango 2、Frsky Taranis X9 Lite、Frsky Taranis X-Lite
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
