Resolution
Video Resolution
1280*480
Photo Resolution
N/A
Camera
Sensor
OV7725 + OV7725
Len
4G Wide-Angle High Definition Camera
Viewing angle
140° + 120°
Rotation angle
90°
Camera Quantity
2
Zoom
Optical Zoom
Not Support
Digital Zoom
Not Support
Screen
size
2.7" 16:9
Resolution
960*240
Type
TFT
Backlight Type
Transmission
Rotation angle
Not Support
Memory
Built-in memory(NAND or NOR)
16Mb NORFLASH (Not For Recording Use)
Internal Cache
128Mb DDR2
External memorySD or TF Card)
MicroSD Card(TF Card) Up To 32gb,Class 6+
Microphone
Microphone
Support
Speaker
Speaker
Support
Aided Light
LED Infrared Light
Not Support
LED Light
Not Support
Port
Port
GPS/3.5 mm DC Port
HDMI
N/A
USB
N/A
DC IN
Support
AVOUT
Support
Power
Battery Type
Internal Lithium Battery
Battery Capacity
90mA
Max Power Dissipation
450mA/4.2V
Charger
5.5V Output Car Charger
Fixed mode
Holder
Car Holder
Other
Not Support
USB Port
PC function
N/A
USB
N/A
Web Camera
N/A
Feature
Hardware Feature

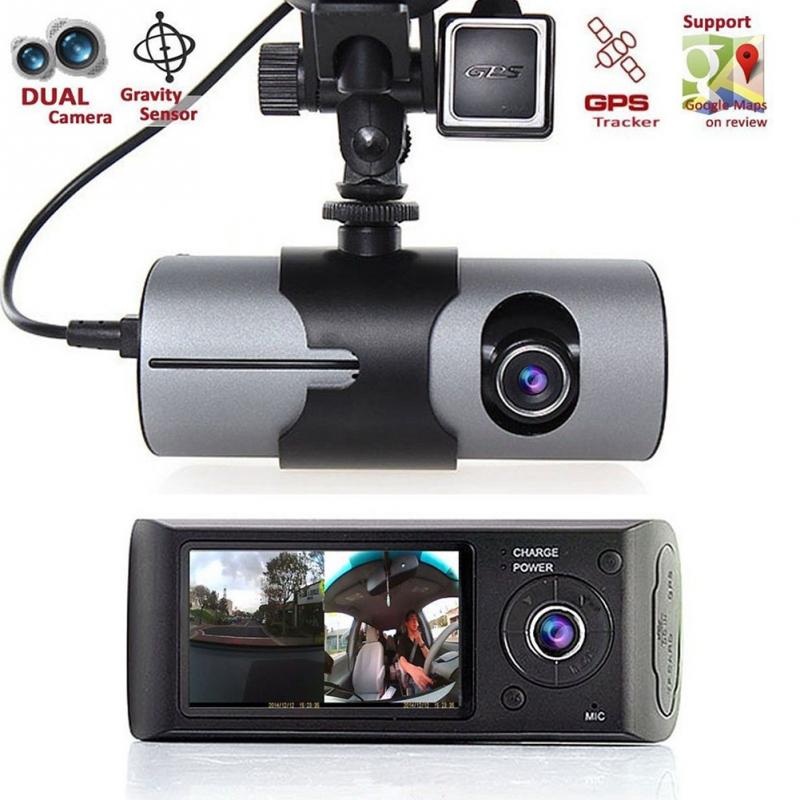

GPS Tracker Function
Internal high-sensitivity gravity sensor
dual lensone is for image outside the vehicleanother one is for image inside the vehicle
Emergency recording Key(Emergency Key SOS)
Software Feature
Build-in multi-function video playerDisplay synchronously driving track map and G-sensor data
Powerful GPS tracing functionconnect to Baidu map in Chinese mainlandto google maps elsewhere in the world
High-sensitivity gravity sensingwhen a crash occurred,Gravity sensor can trig to lock the current file recording automaticallySensor sensitivity is selected: LowMediumHighOr Off
Auto save video when low battery
Lock the file recording with a single keyso that important video files are not covered
The audio can be turn on/off. When the audio is off, the video recording is muted, so that the user's privacy can be protected.
Auto Screen switch OffOff,1min,3min,5min,
When low power, the machine can save the file recording automatically
TF card is protected by password. It is needed to input the password when checking the card, protect user privacy.
Support Frequency Setting (50 / 60 Hz)
after 60 senconds the display is turned off automatically 60S
GPS Tracker Recording
Support G-Sensor
Language
Language
English/Simplified Chinese/Traditional Chinese,etc
System
System support
Windows XP/VISTA/7
Photo Function
Format
Not Support
Resolution
Not Support
Video Format
Video Coding Format
AVI
Video Compression Type
Motion JPEG
Audio Coding Format
PCM
Video Resolution
Video Resolution
1280 x 480 30FPS (2CH Record)
640 x 480 30FPS (1CH Record)
Video FPS
Video FPS
1280 x 480 30FPS
640 x 480 30FPS
Recording Time
Recording Time(For Reference)
1280 x 480 30FPS (2CH Record) 30 Minutes/4GB
Size
Device Size (L*W*H)
130x59x45.5mm (L*W*H)
Packing Size
170x140x75
Weight
Device Weight
99g
Accessory
Car Charger
YES
USB Cable
NO
Car Holder
YES
Manual
YES
HDMI Cable
NO
TV-OUT Cable
NO
PC Dish
NO
Remove Control
NO
1 x Double camera car DVR
1 x Vehicle-mounted power supply
1 x Vehicle mount
1 x GPS module
1 x User guide
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
