Description:

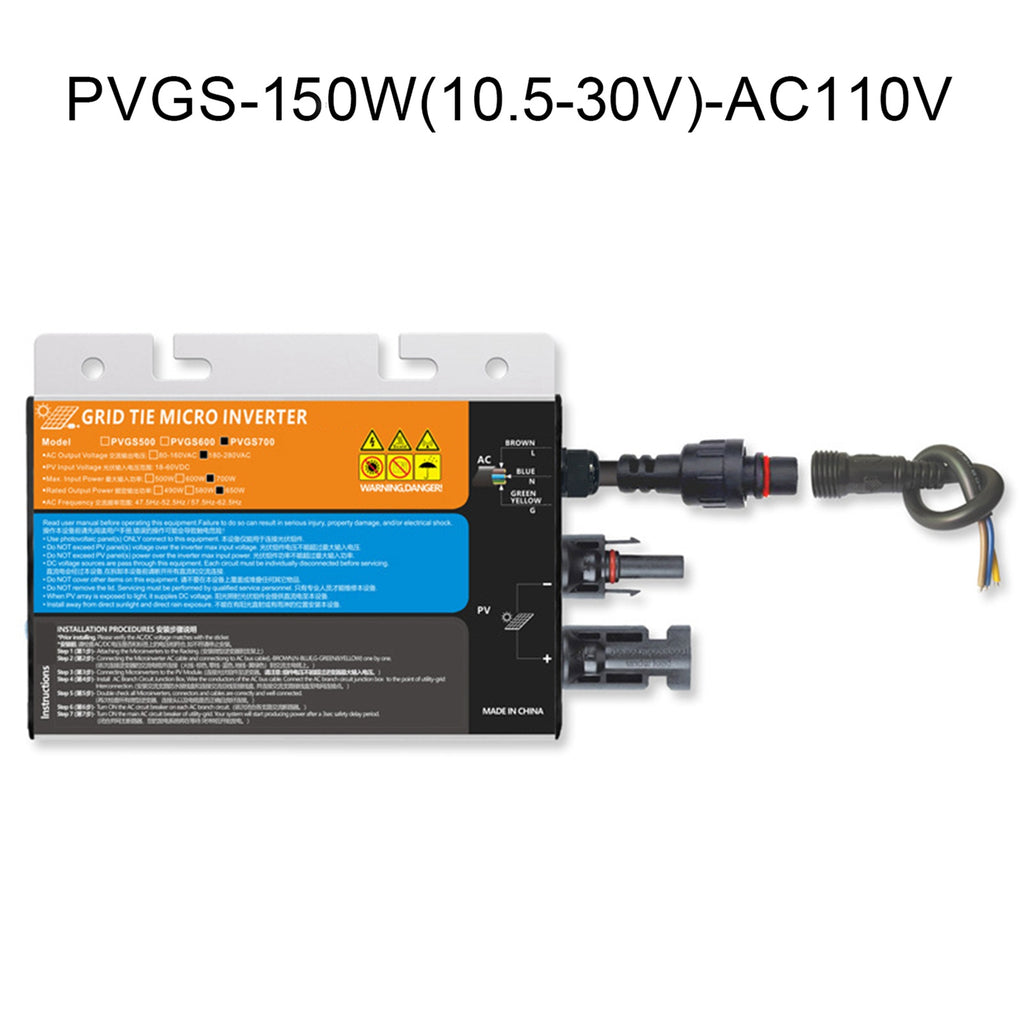

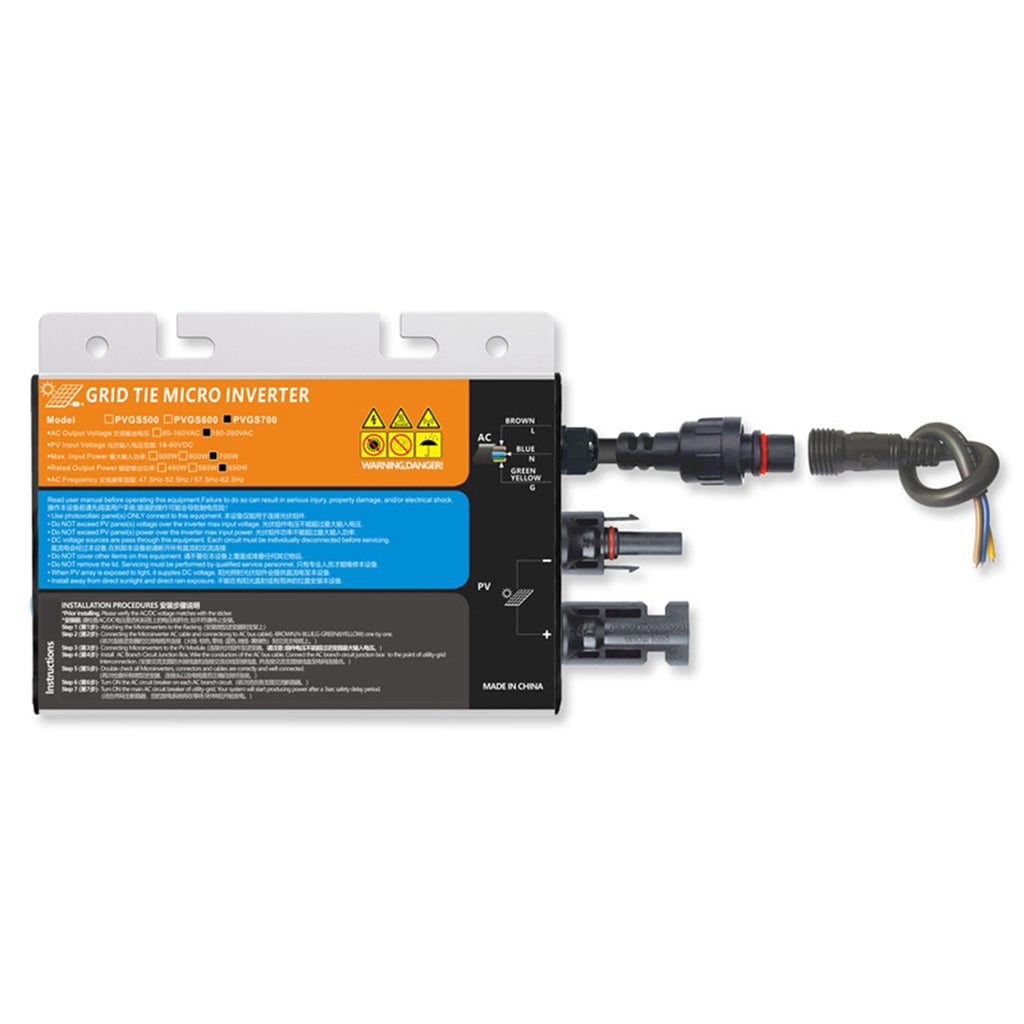

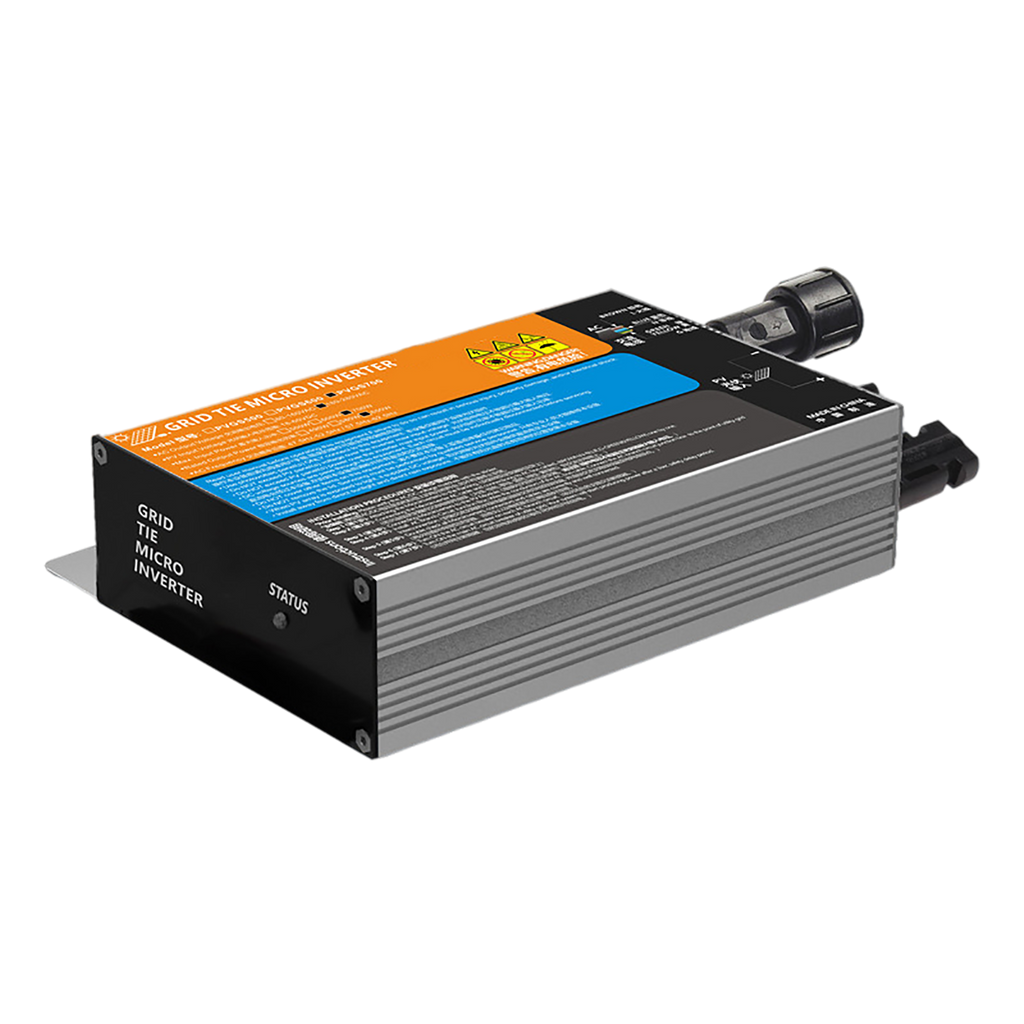

  120W/150W/180W Grid Tie inverter is a compact unit,which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid.The AC output from Smart Micro inverter is synchronized and in-phase with the utility grid.

  Specifications:

  Grid Tie Inversor Maximum Output Power:120W/150W/180W

  Rated Output Power:100W/130W/160W

  DC Input: 10.8V-30V(120W/150W/180W)

  AC Output Voltage: 120V/240V

  Frequency Range: 50/60HZ Auto

  MPPT Voltage Range:16V - 25V.(Working voltage Vmp(of a solar panel) must be in the MPPT range to ensure the good output efficiency).

  Solar Panel Voltage:  Vmp16-21V; Voc20-24V

  Solar Panel Power: maximum 120W/150W/180W

  Certification:CE

  User notice:

  • Use solar panel ONLY connect to this equipment.

  • This equipment is ON-GRID Microinverter, To make it work properly, it must be connected to the power grid correctly,and the power grid is working properly, When the power grid stopped working, it will also stop generating.

  • Do NOT exceed PV panel(s) voltage over the On Grid Tie Inversor max input voltage.(Voc<30)

  • Do NOT exceed PV panel(s) power over the On Grid inverter max input power.(120W/150W/180W)

  • The positive and negative poles of the solar panel cannot be reversed. If you extend the solar panel cable. You need to be careful about this problem.

  • Install away from direct sunlight and direct rain exposure.(Ventilated, dry, cool)

  Regarding the heating problem of the inverter:

  this is normal phenomenon. All electronic devices generate heat during operation. The inverter uses aluminum alloy material. Metal can conduct heat better. The inverter also has over-temperature protection if the temperature is high. Then the inverter will automatically reduce the working output efficiency. Or stop working. After cooling down, restart. It is recommended to install the inverter in a ventilated, dry and cool place.

  About inverter repair:(This is a common problem of micro-inverters)

  After a large amount of customer data feedback, the inverter cannot work because the DC or AC fuse is damaged. (The red light is on because the AC accessories are damaged, and if the light is off, the DC accessories are damaged)When you encounter this problem, we can send you accessories for free. And give you maintenance video instruction. You can easily replace it.

  If you have any questions after receiving the product, please contact us in time, we will give you good after-sales service, so you don't have to open disputes at will.

  About voltage:

  Recommended Solar Panel Voltage: Vmp16-21V; Voc20-24V(120W/150W/180W)

   LED DISPLAY:

  1.Green light steady=Microinverter in generating.

  2.Red flash=Microinverter in waiting.

  3.Red light steady

  a.Island protection.

  b.Over-temperature protection.

  c.Over/low AC voltage protection.

  d.Over/low DC voltage protection.

  e.Over/low AC frequency protection.

  f.Fault.

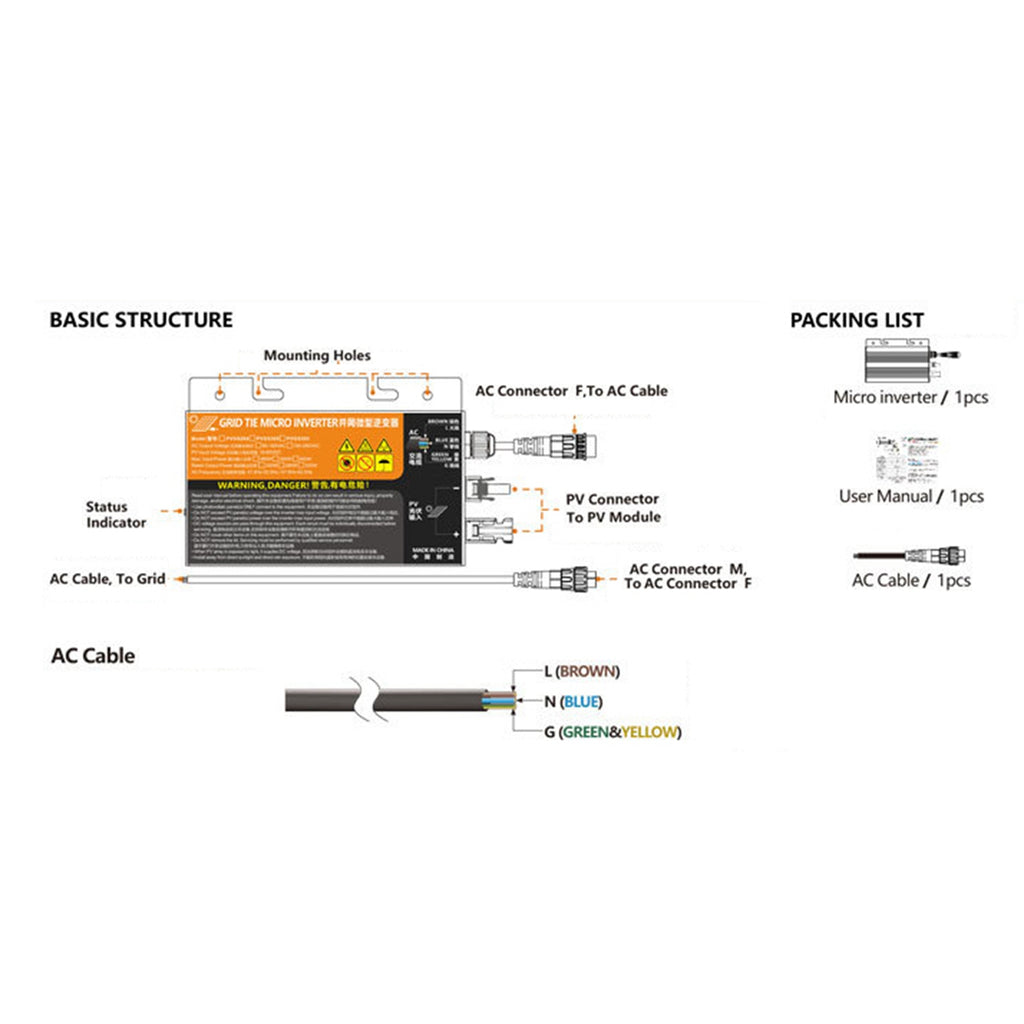

  Package Include:

  1XGrid Tie Inverter 1 x AC Cable 30CM 1 x English User's Manaul
