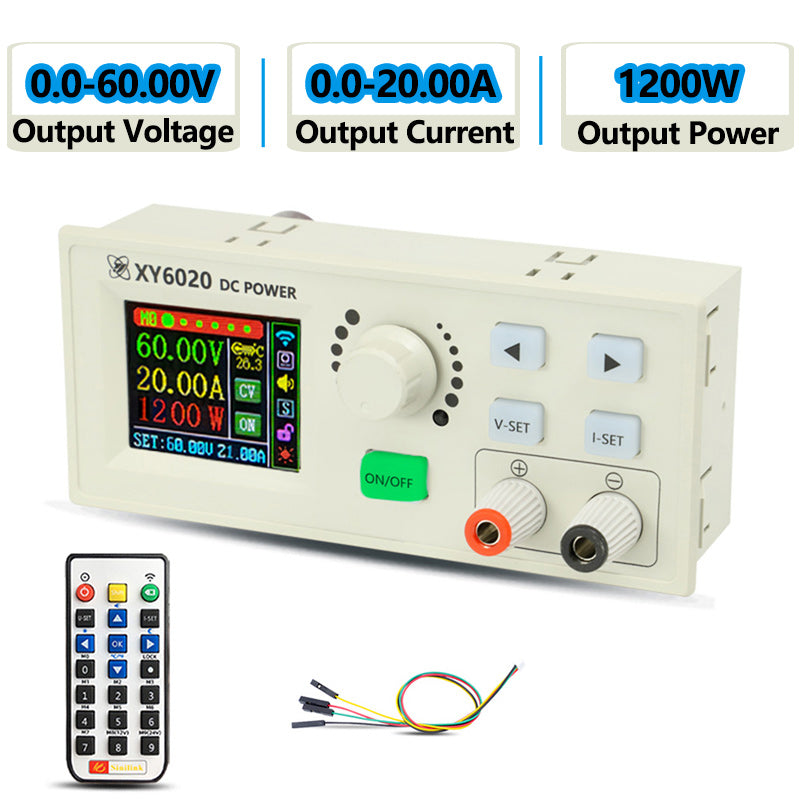

DC Power Supply CNC Adjustable Step Down Voltage Bench Power Supply Buck Converter 20A 1200W Constant Voltage and Constant Current
Description:
This is a kind of quality constant voltage constant current direct-current powersupply, with 60V output voltage, 20A output current, 1200W output power, strong and powerful. Large size 1.8inch colorful LCD screen, high brightness, multiple informations will displayed in one screen.
Features:

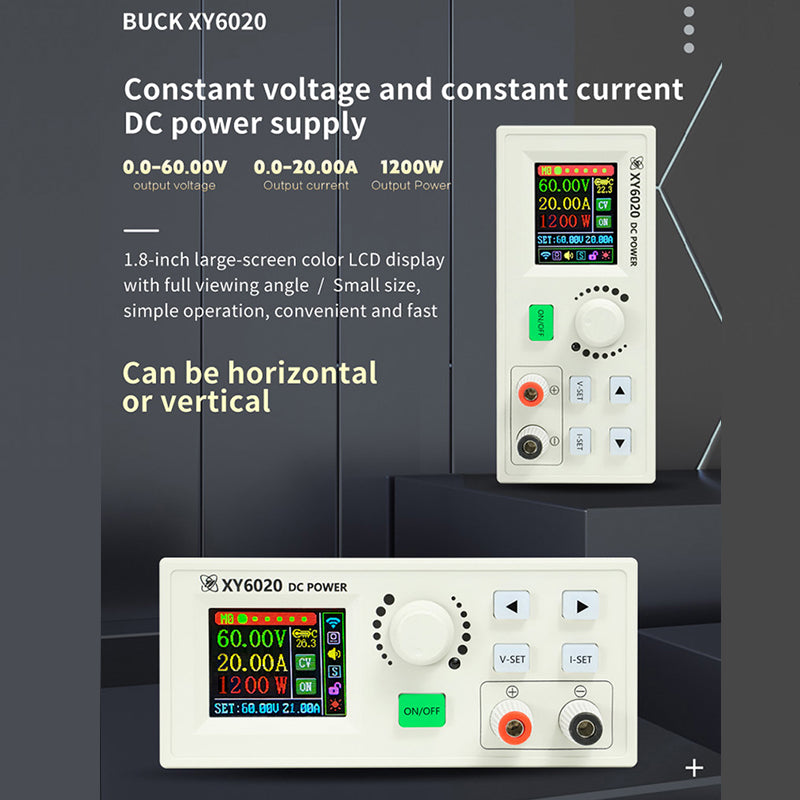

▲1.8in colorful LCD screen, horizontal and vertical screen adjustable.
▲Made of fine quality material, safer to use.
▲8 display colors can be matched freely.
▲With a remote controller for easy and convenient operation.
▲Support over temperature protections and automatically stop charging when over temperature.
▲High accurancy circuit board, stable performances.
Specifications:

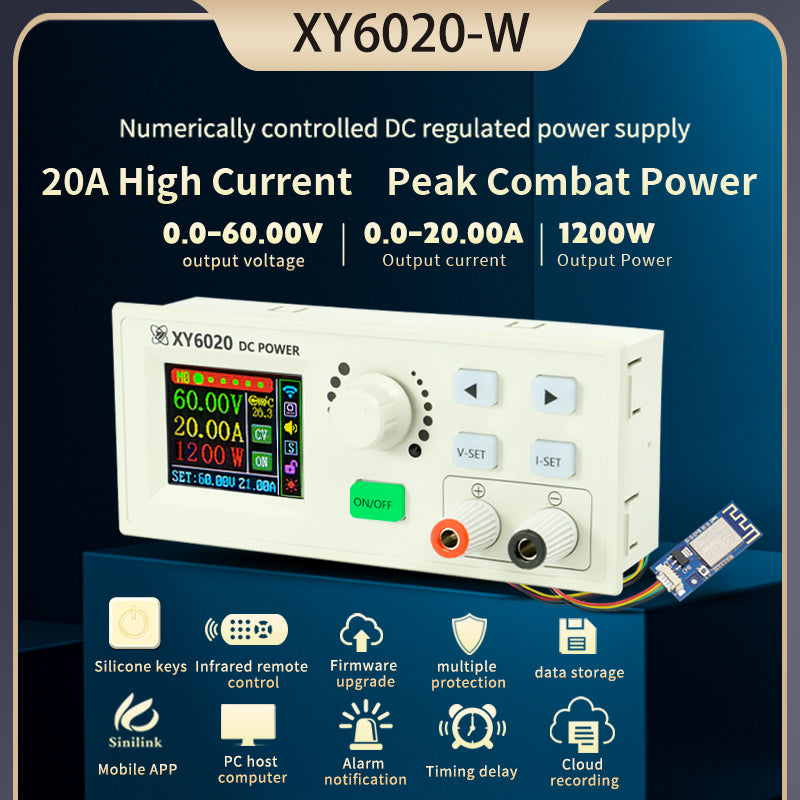

Type: XY6020 without Wi-Fi module ; XY6020-W with Wi-Fi module(optional)
Input voltage range: 6-70V ±1％
Output voltage range: 0-60V ±0.4％
Output current range: 0-20A ±0.5％
Output power range: 0-1200W
Input voltage measuring resolution: 0.01V
Output voltage setting measuring resolution: 0.01V
Current setting measuring resolution: 0.01V
Typical value of output ripple: 100mV VPP
Working temperature: -10 to 40℃
Capacity measuring range: 0-99999Ah ±2％
Power measuring range: 0-99999Wh ±2％
Working time measuring range: 0-1000h
Screen size: 1.8in
Remote controller battery: 1 * CR2025, 3V, 150mAH

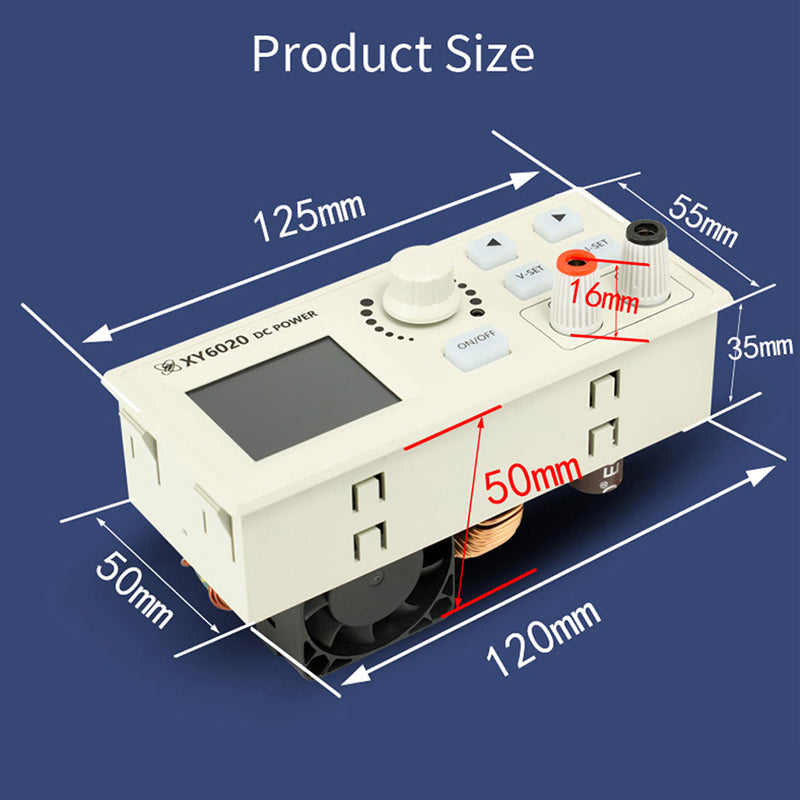

Item size: 125 * 55 * 35mm / 4.9 * 2.2 * 1.4in
Item weight: 256g / 9.0ounce
Package size: 150 * 100 * 90mm / 5.9 * 3.9 * 3.5in
Package weight: 341g / 12.0ounce
Packing List:
XY6020:
1 * Power Supply Module
1 * Temperature Sensor(1m)
1 * Remote Controller(not include battery)
1 * Serial Communication Line

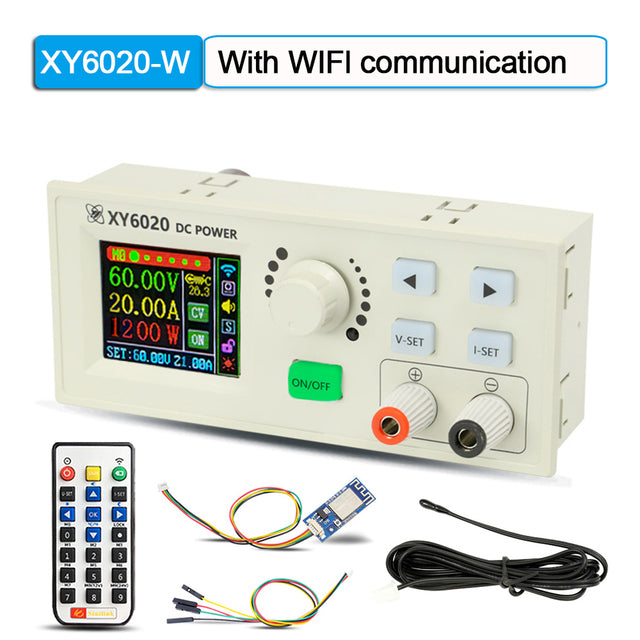

XY6020-W:
1 * Power Supply Module
1 * Temperature Sensor(1m)
1 * Remote Controller(not include battery)
1 * Serial Communication Line
1 * WIFI Communication module
