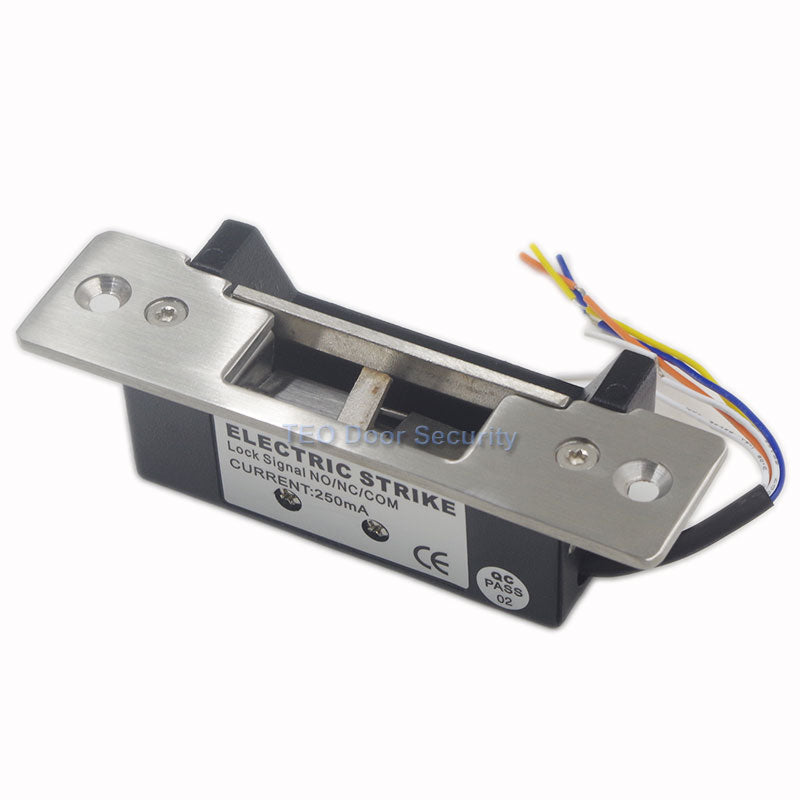

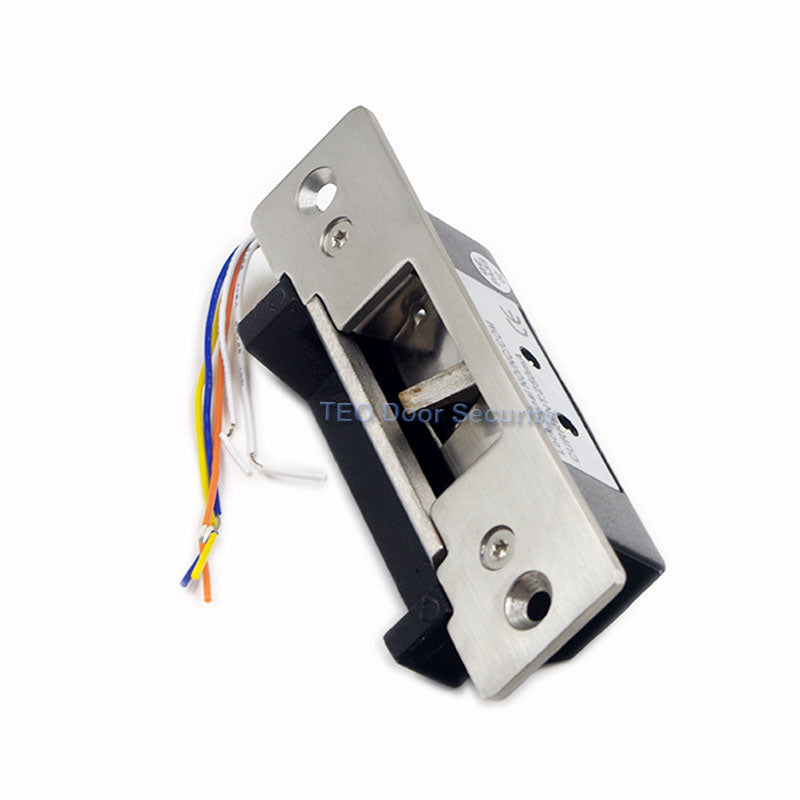

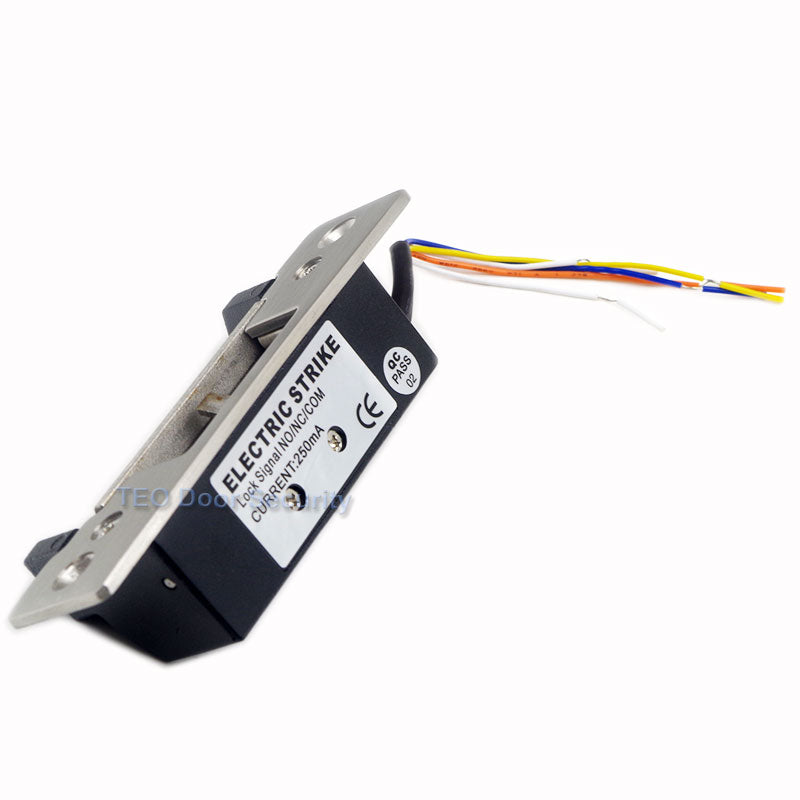

High Quality Fail Secure NO Door Lock American Standard Long Faceplate 500kg Holding Force Metal Door Strike With Signal Output
I.Main Features
Holding 500kg.
Aluminum, Stainless Steel Bolt
Testing to 1000000 cycles.
High-Temperature Painted,Durable and Beautiful Artical.
There are a group of lock signal output dry contacts in the lock, they are NO/NC/COM,used for remote monitoring the state of the lock is locked or not
CE Certificate by European Union, MACertificate by China Public Security office
Narrow-type Electric Strike hot in America
Factory default is No type(locked when Power OFF).
suitable for Wooden Door,Metal door,PVC Door
II.Specification
Lock Size
165Lx32Wx33Hmm
Strike Structure
Stainless Steel
Holding Force
500kg
Voltage
DC12V
Current
DC12V/250mA
Feature
Fail Secure(Unlocked when Power on)
IF you need fail safe(Unlocked when Power OFF)
Please contact us!
Signal Output
Door status Output,NO/NC/COM
Function
Built-out MOV
Surface Temperature
Within +20℃
Suitable Temperature
-10 to +25℃(14-131F)
Face plate Housing
Painted Steel
Suitable For
Wooden Door, Metal Door, PVC Door
Opening Mode
90 Degree Swinging Door
Weight
0.4kg
III.Wiring
White
+-
Blue
NC
Orange
COM
Yellow
NO
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
