Specifications:
model:DDS-3x25
output frequency:DC: 1Hz~25MHz (sine wave up to 75MHz)
resolving power:0.1%Freq
Waveform amplitude:± 3.5Vmax
Output impedance:50Ω
Output current:50mA lpeak=50mA
Number of channels:1 channel
DAC clock:2K~200MHz adjustable
Waveform length:4KSa
Vertical resolution:12 bits
Waveform stability:<30ppm
bandwidth:25M
Harmonic distortion:-50dBc(1KHz),-40dBc(10KHz)
Low pass filtering:no
frequency range:DC~50MHz
Input signal amplitude:400mVpp-18Vpp
Coupling mode:DC
Frequency measurement accuracy:±Time Base Error 1 Count
Input impedance:≥100KΩ
digit:12 digit digital output and 6 digit digital input
level:LVCMOS
temperature:0-70℃
humidity:<95%
size:185mm*150mm*27mm
weight:0.5Kg

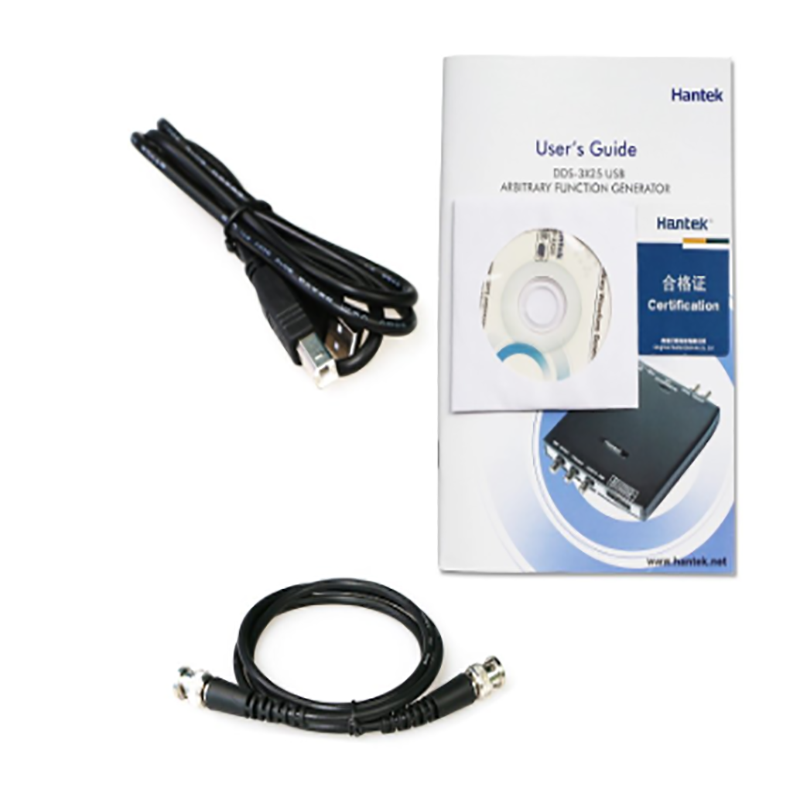

parts:1 BNC cable, 1 dual USB cable
