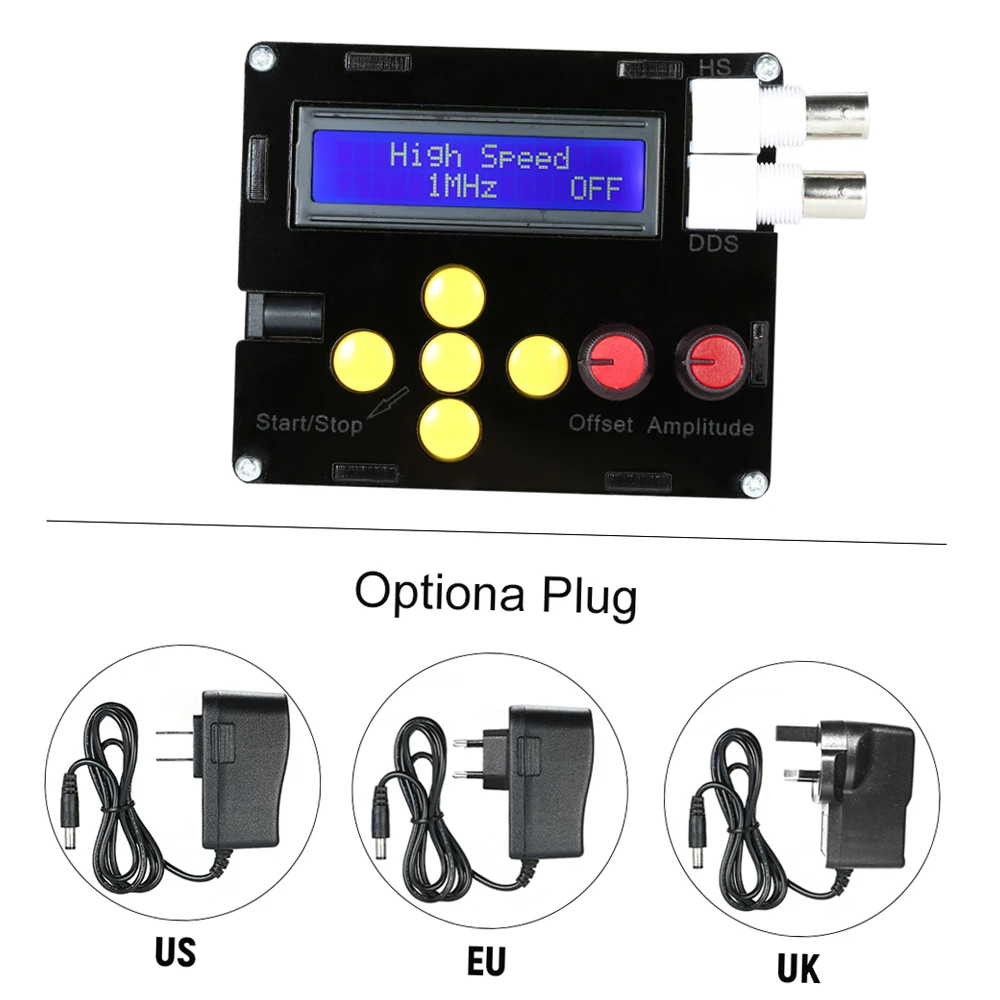

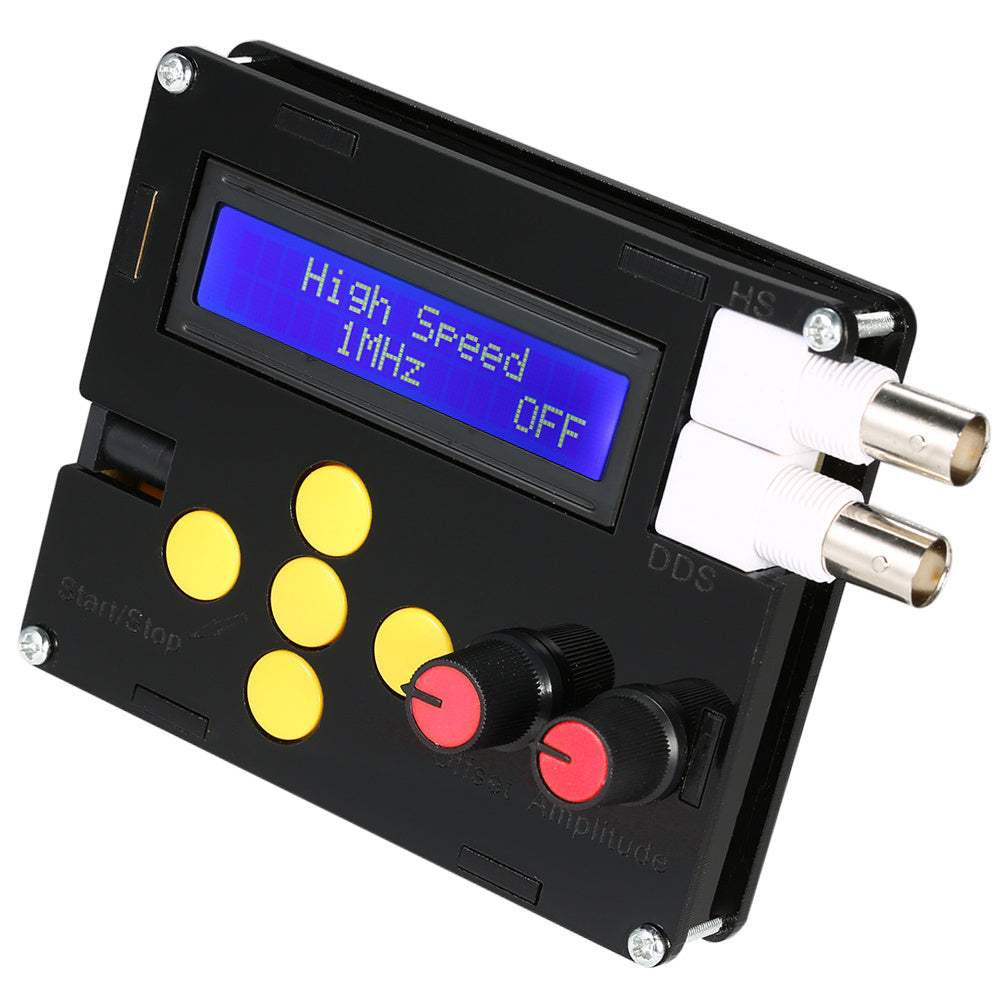

This Low Frequency Signal Generator is a professional product to generate sine/triangle/square/forward and reverse sawtooth wave.
Features:
Output Waveform: can output sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, electrocardiogram wave, noise wave. High-speed square wave.
Current: 160mA when the voltage is 5V.
High-speed frequency (HS) output up to 16MHz, Can choose 1MHZ, 2MHZ, 4MHZ, 8MHZ, 16MHZ.
All setting parameters can be saved, the power will restore the last used configuration automatically.
Can section into the value: 1, 10, 100, 1000, 10000Hz.
Comes with an USB cable for power supply.
Specifications:
Material: FR4 + Acrylic
Operating Voltage: DC4~10V
DDS Frequency Range: 1Hz-500kHz
Resolution: 1Hz
Sine Wave Distortion: 1% below 1kHz, 0.5% above 1kHz
Output Amplitude: maximum ±10V (P-P)
Output Impedance: 50ohms
DC Offset: maximum ±10V

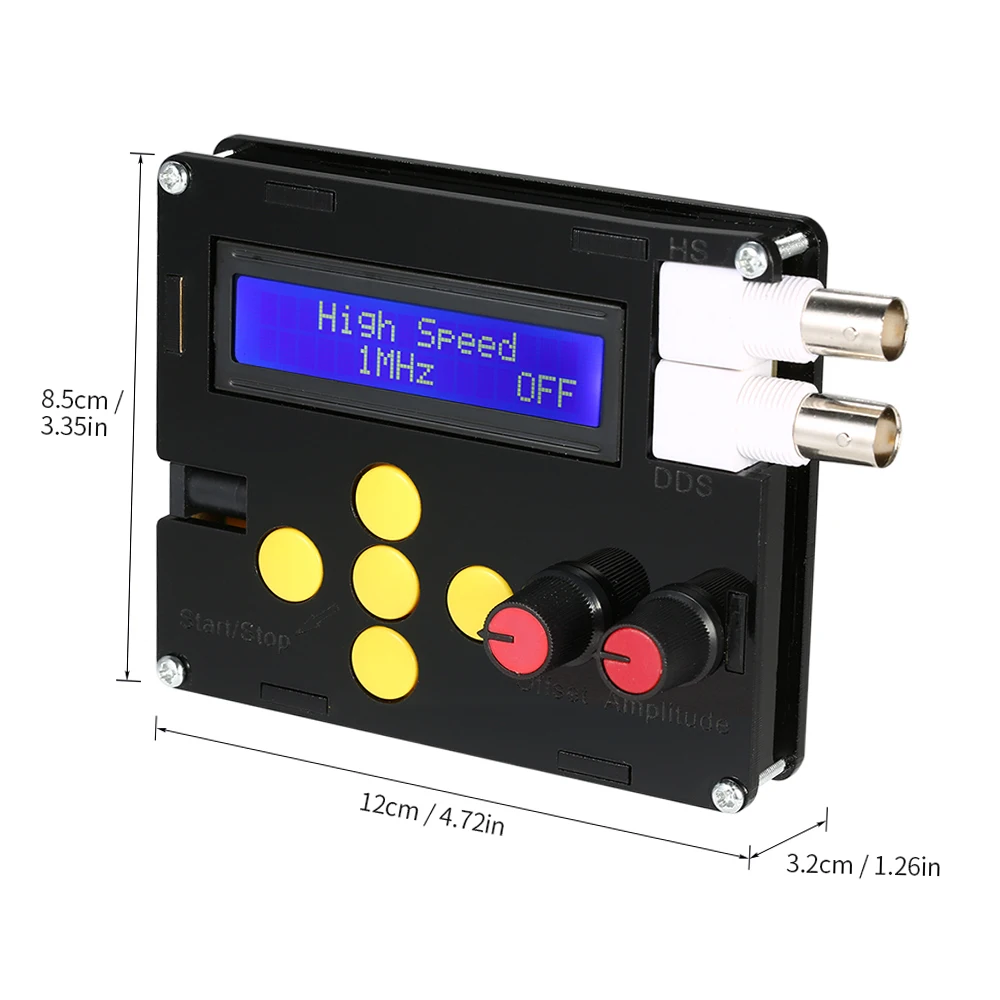

Item Size: Approx. 12 * 8.5 * 3.2cm / 4.72 * 3.35 * 1.26in
Item Weight: 147g / 5.19oz
Package Size: Approx. 16 * 11 * 5cm / 6.30 * 4.33 * 1.97in
Package Weight: 272g / 9.59oz
Note:
The instrument will be damaged if the voltage is higher than 10V.

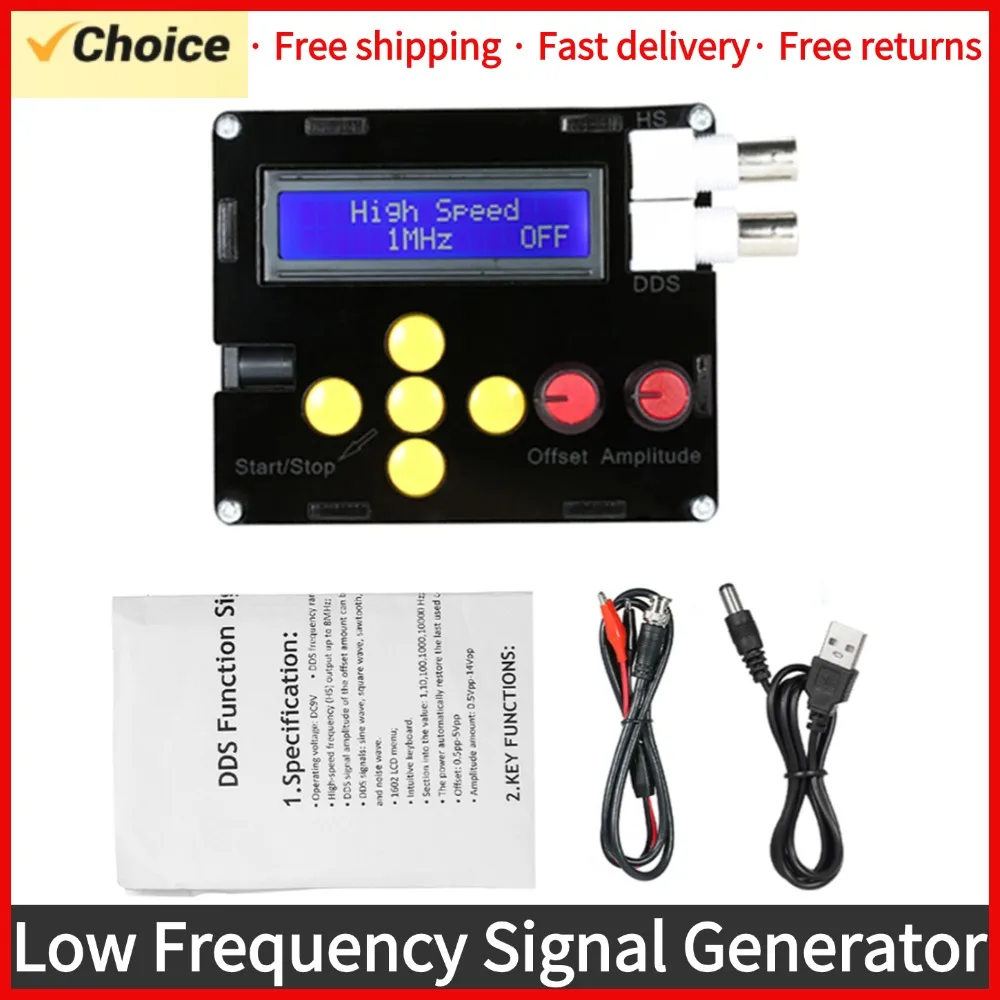

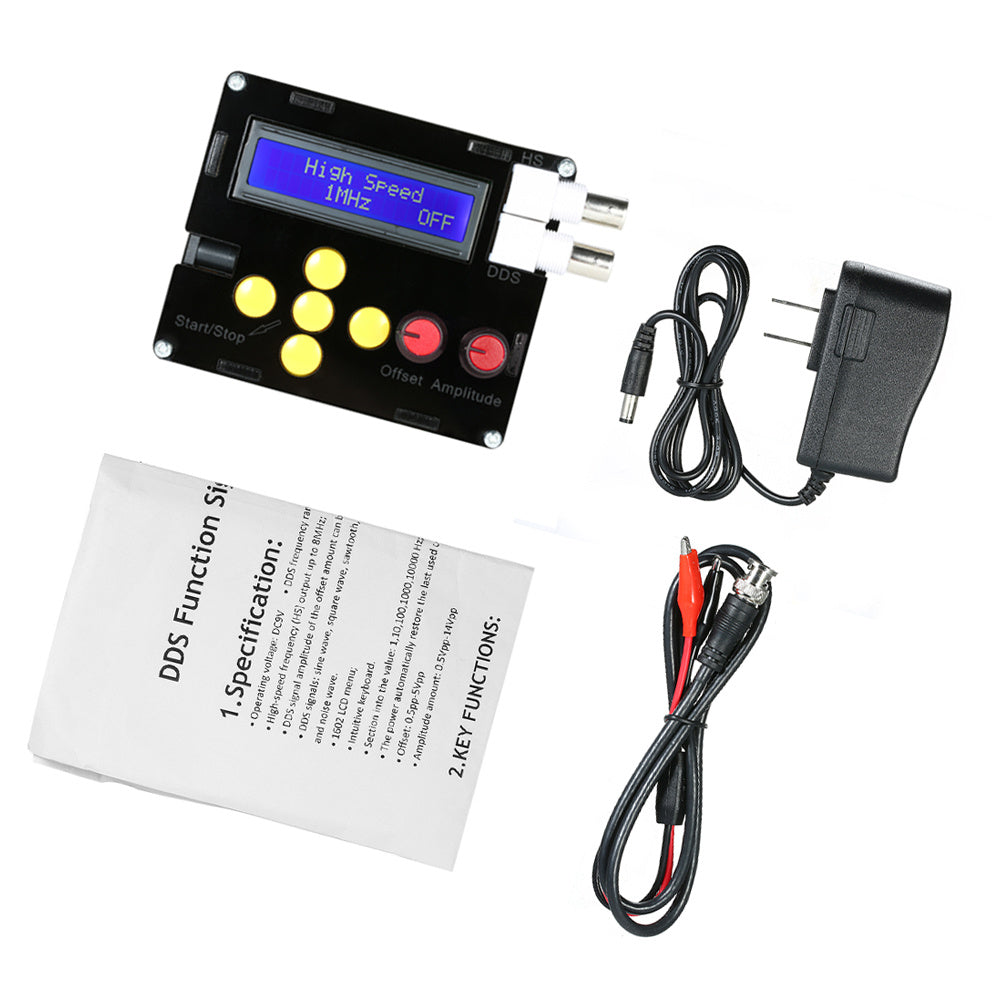

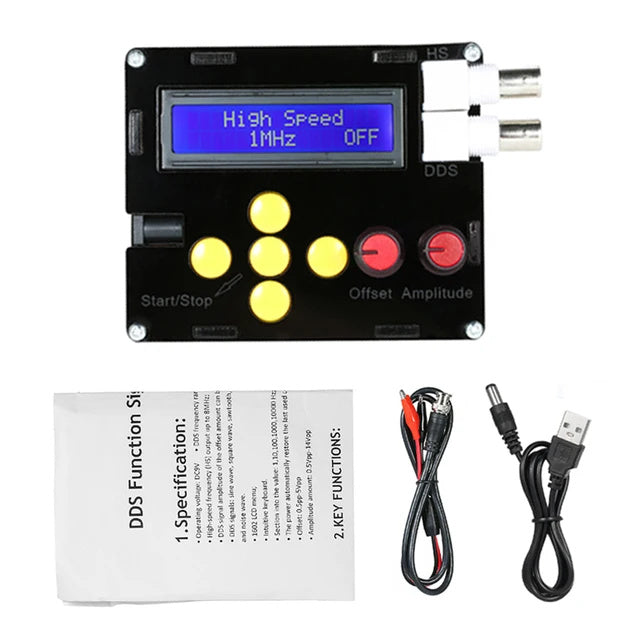

Package List:
1 * Signal Generator

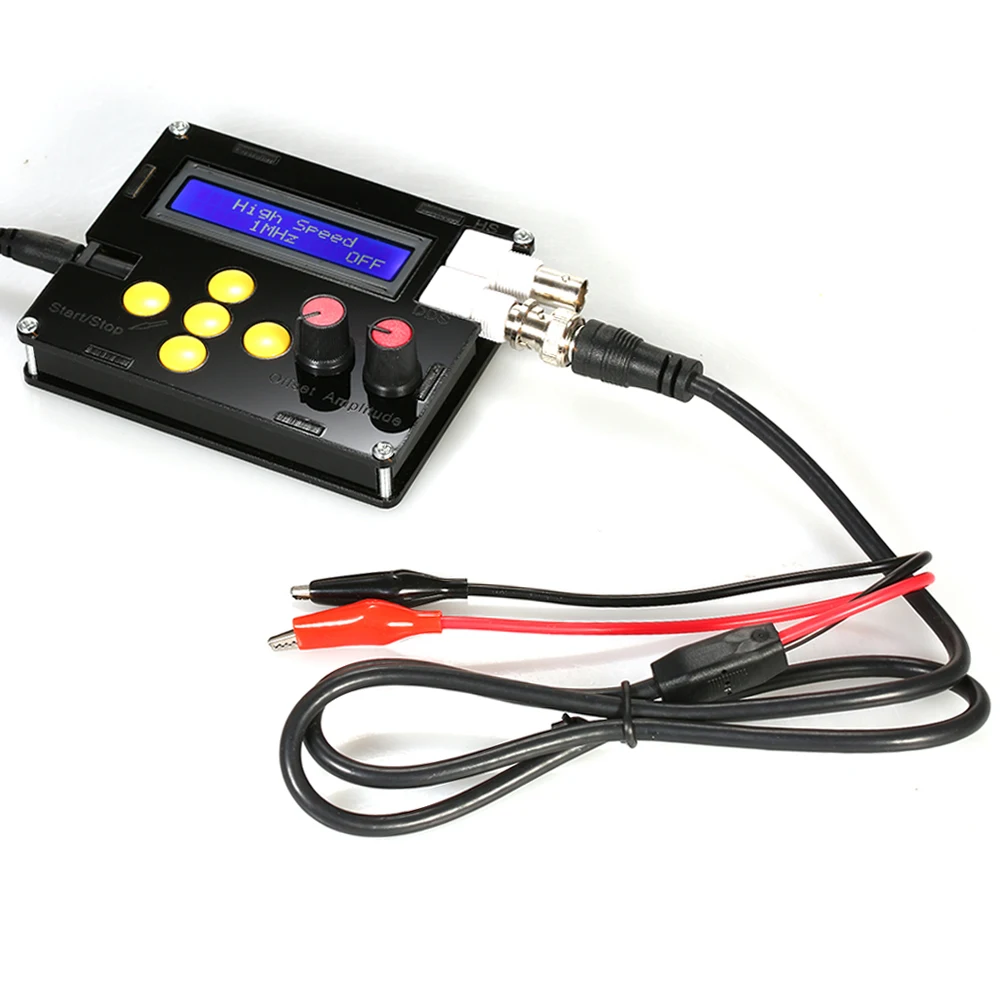

1 * Crocodile Clip Test Line
1 * USB Cable
1 * User Manual(English)
