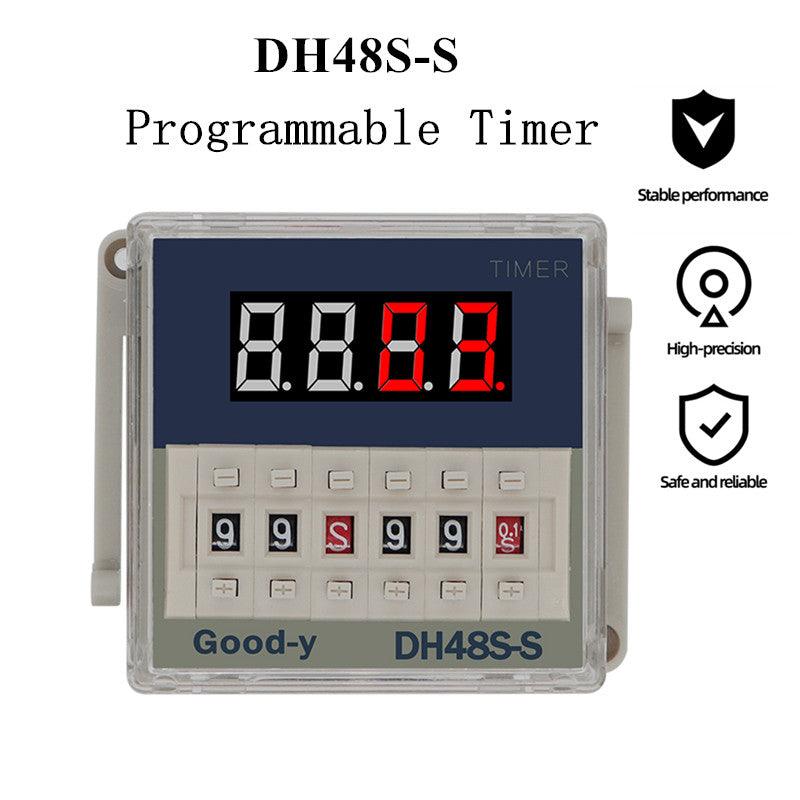

DH48S-S Programmable Timer 0.1s-990h Repeat Cycle SPDT Time Switch Relay time relay cycle control with Socket Base DH48S Din Rail
AC 110V 220V DC 12V 24V 40% off
DH48S-S digital display time reply is a kind of circular delay tupe rime reply suitable for control circuit with operationg supply voltage below and including 380V AC 50/60Hz or DC operating supply voltage of 220V,and it's made as time delay component to make or break circuit according to preset time.This product uses large intergrated circuit as a processor and owns excellent EFT and ESD anti-intereerence performance .

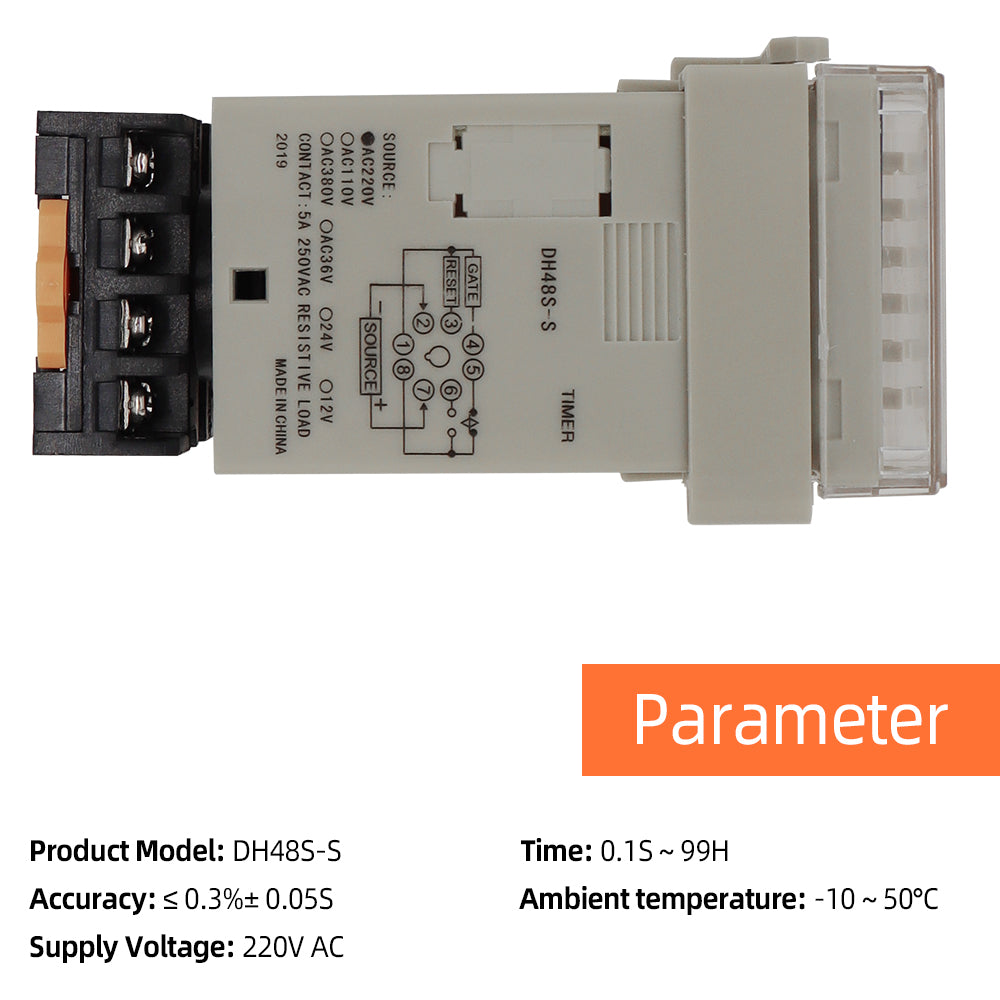

Specifications:
Model number：DH48S-S-1Z

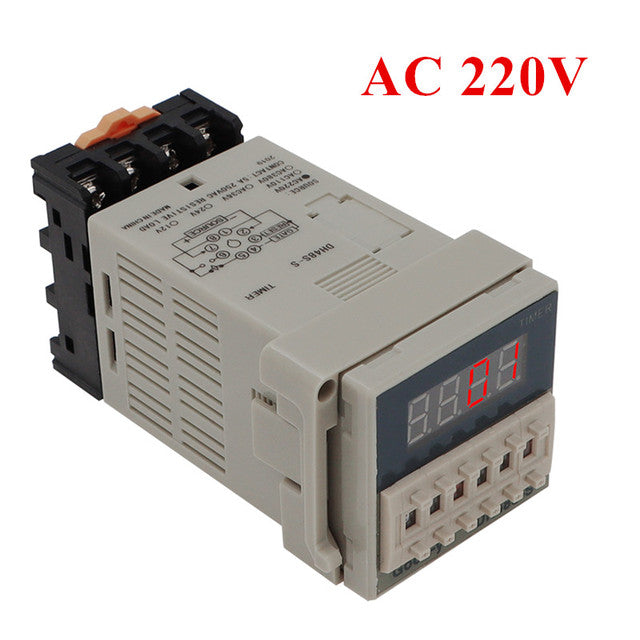

Supply voltage：220V, 110V or 380V AC, 50/60 Hz; 24V DC/AC, 12V DC, Multi Voltage 24-240V AC
Tolerance：-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage
Power consumption：2W max

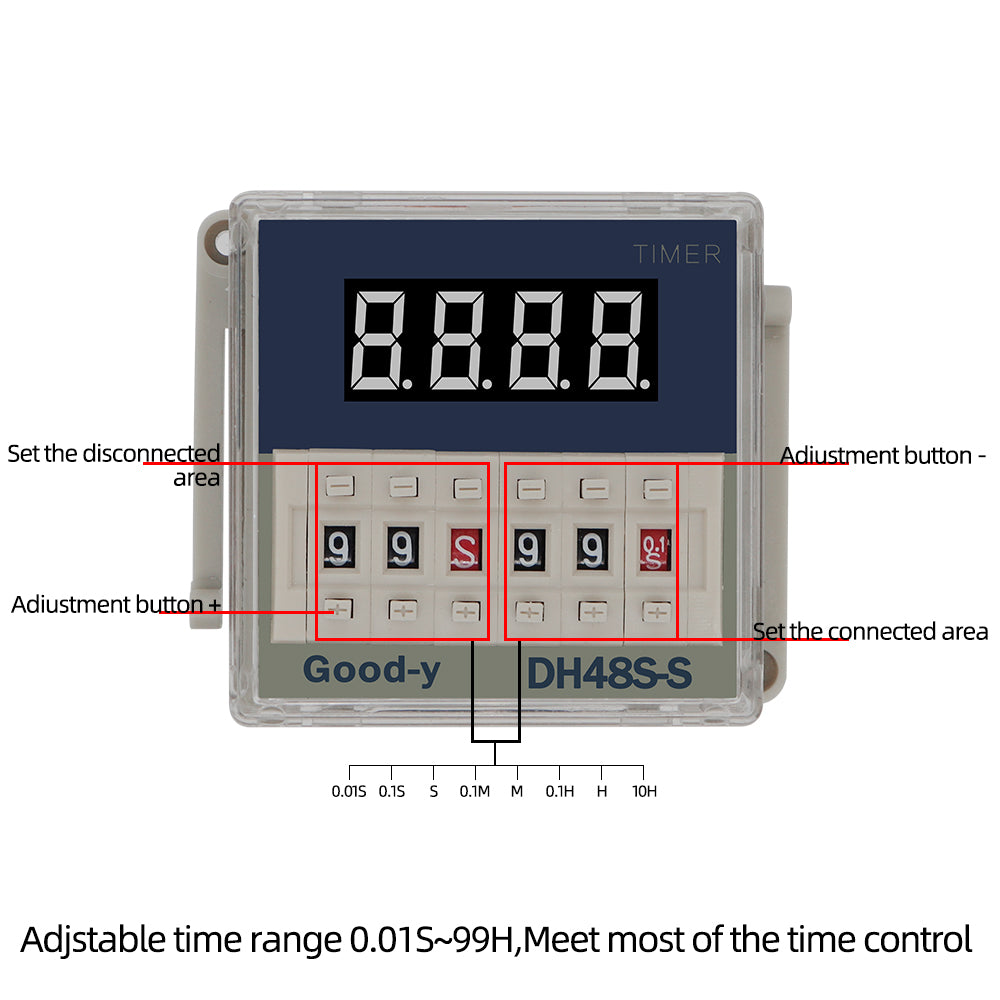

Setting method：Dial switch
Indication method：8-segment 4-digital display
External dimensions：48x48x97.4 mm
Perforate dimensions：45 10x45 10 mm
Contact rating：3A@250Vac, 5A@28Vdc
Repeat accuracy：±0.3%, ±0.05 sec
Setting error：±0.5%, ±0.05 sec
Termination：8 pins
Mounting：Panel or Din Rail mounted

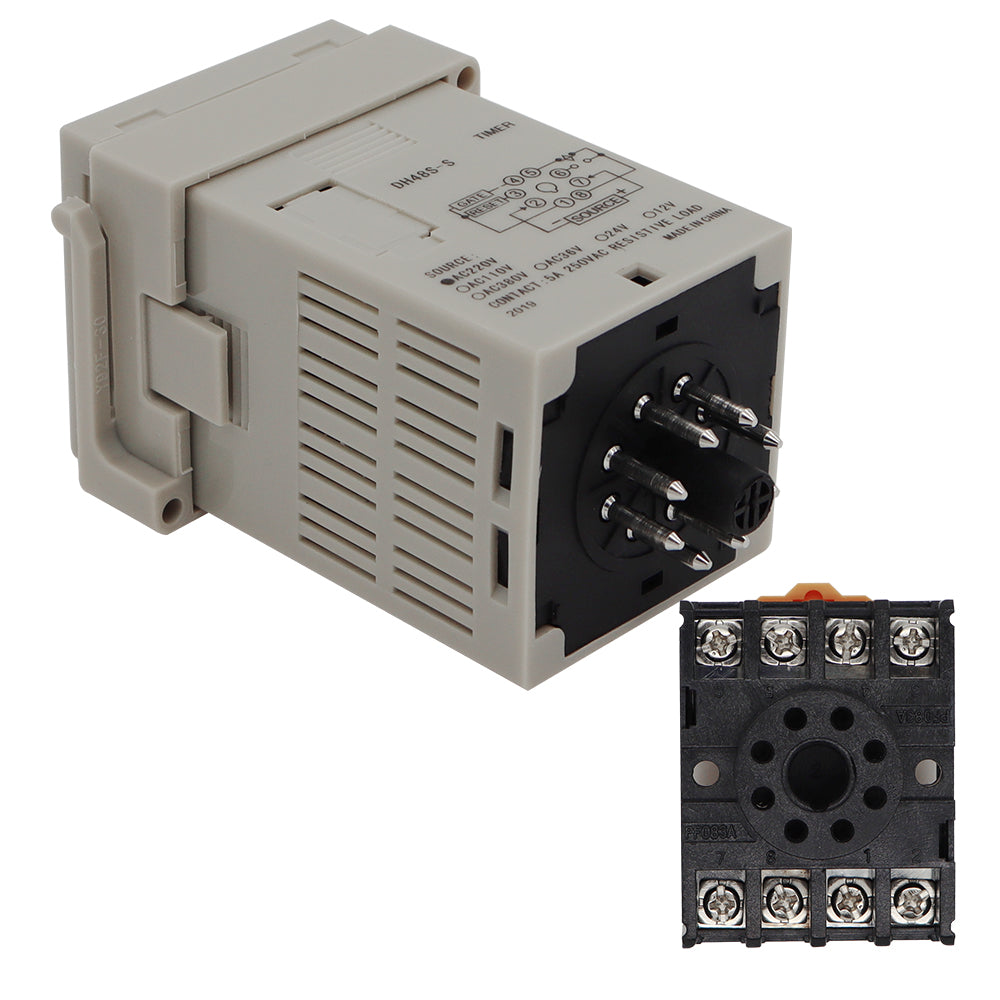

Matched socket：PF083A
Operating temperature：0 to 50 °C (32 to 122 °F)
Operating humidity：95% RH max, non-condensing
Instructions：
Preset delay value, and then the use of power
When the preset is finished, the cover is covered with a protective cover.

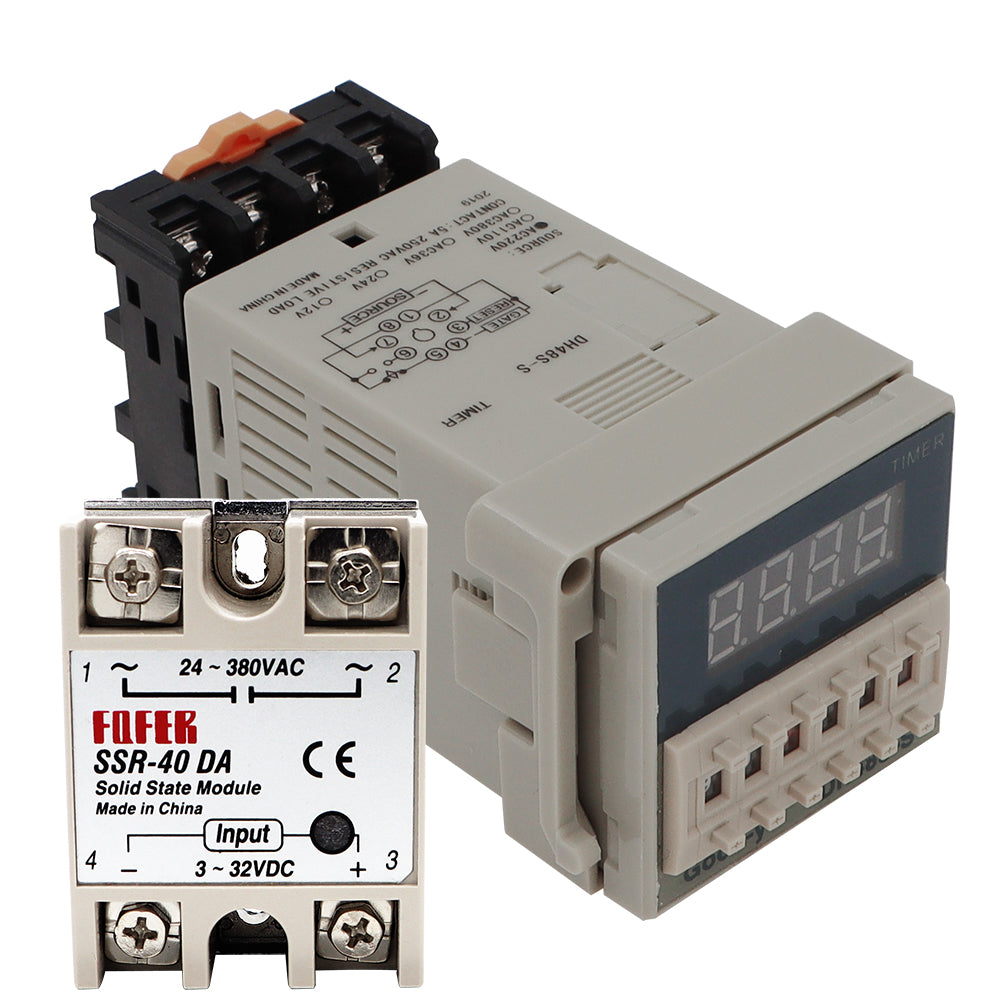

Drive larger current to be used with AC contactor

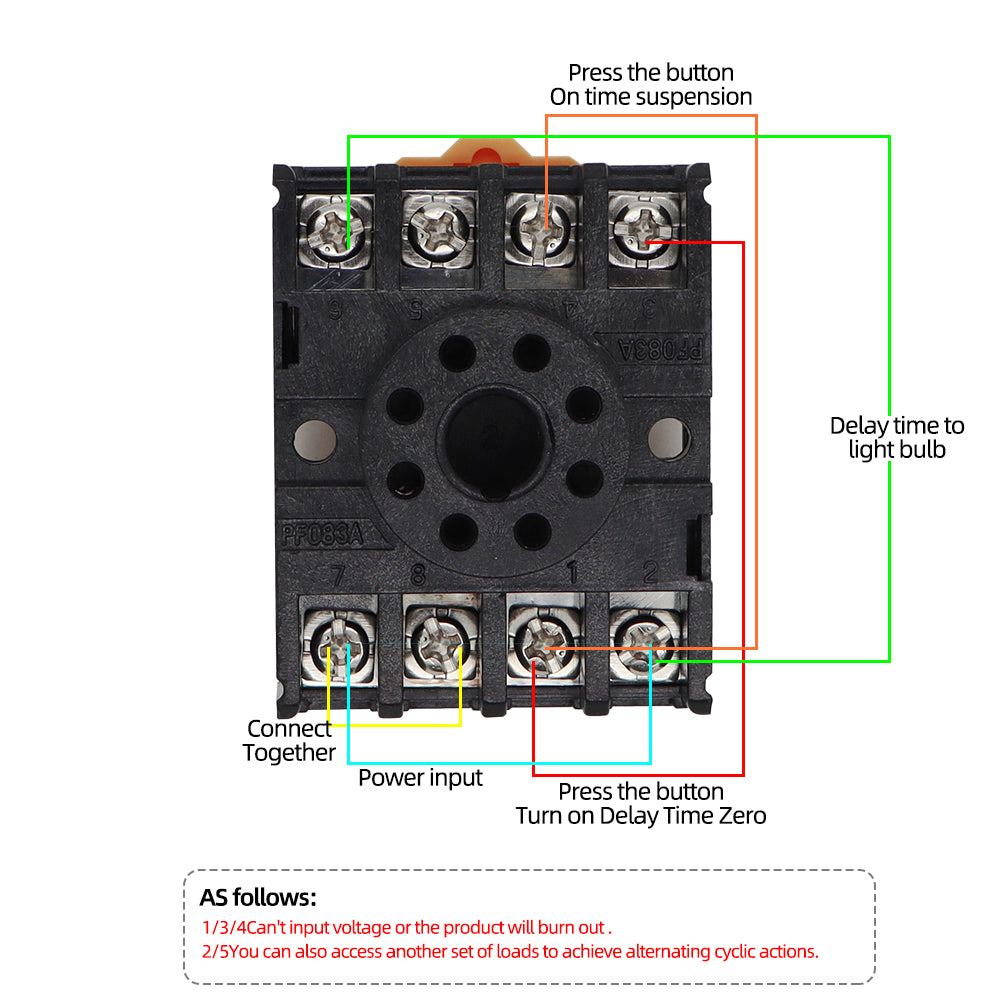

At any time when the reset function is connected to the 1,3 terminal, the contact
will be restored to its original position, and it will start from 0 after disconnection.
Reset and pause wire, please use the shielded wire
Pause and reset terminal voltage
