Feature:
1. Manual or Automatic: The DSE3110 can be used as a manual or automatic start module for single generator set applications and forms part of the DSE Next Generation Control Module.

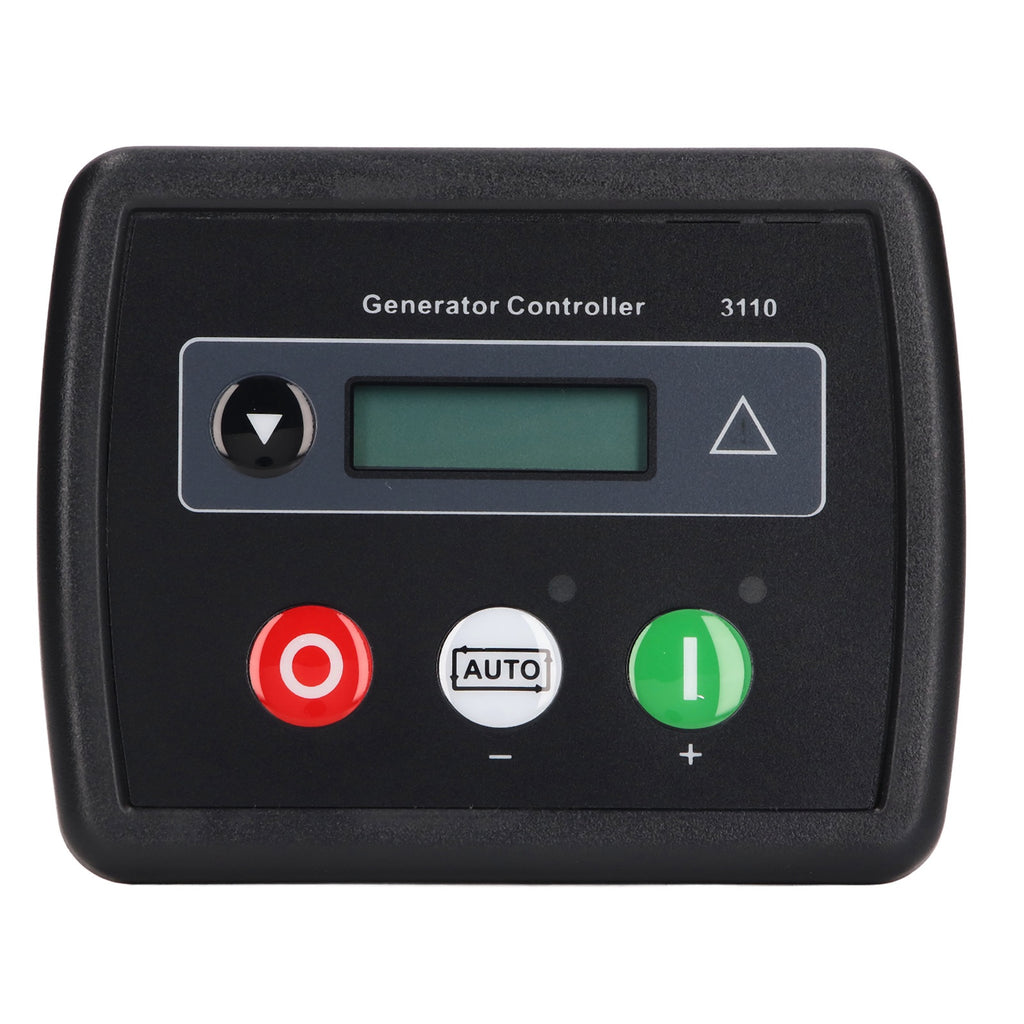

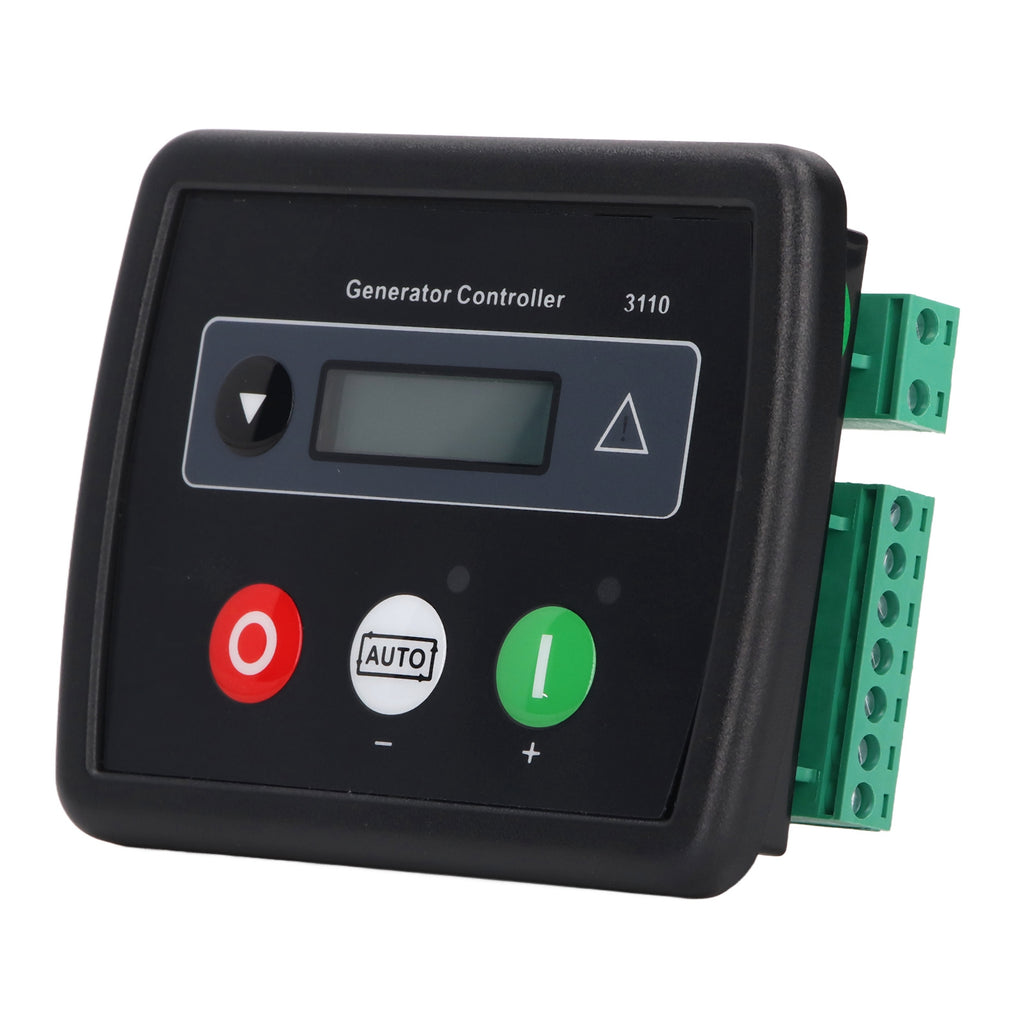

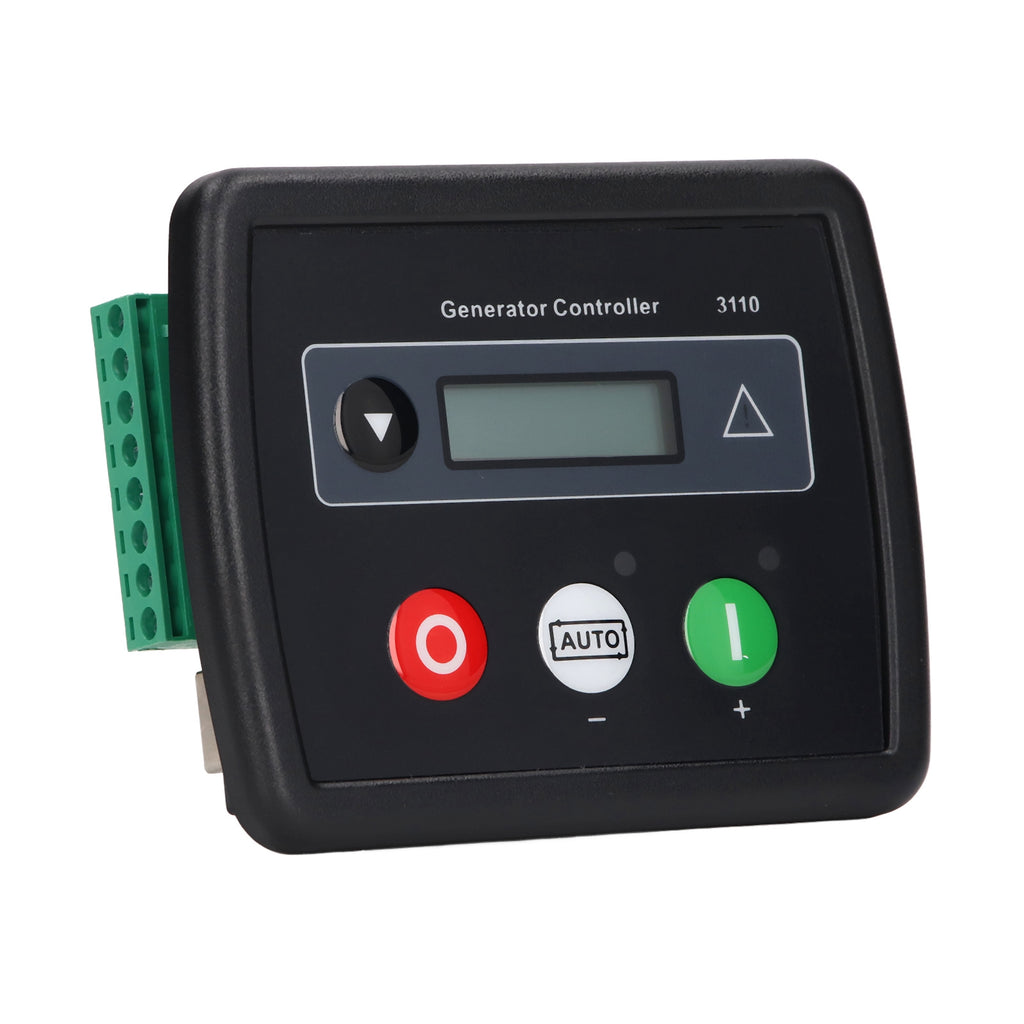

2. Backlit LCD Display: This diesel generator genset controller comes with a backlit LCD display that provides a clear indication of the engine status at all times.
3. Multifunctional: This generator set controller monitors engine speed, frequency, voltage and operating hours, and displays engine warnings and shutdown status.
4. Easy to Use: The generator controller module includes 6 digital inputs and 4 outputs. The module can be programmed using the front panel or using the DSE Configuration Suite PC software.
5. Application: Designed for use with both electronic and non electronic engines, this electronic generator controller module provides advanced engine monitoring and protection functions.
Specification:
Item Type: Generator Set Controller
Material: ABS

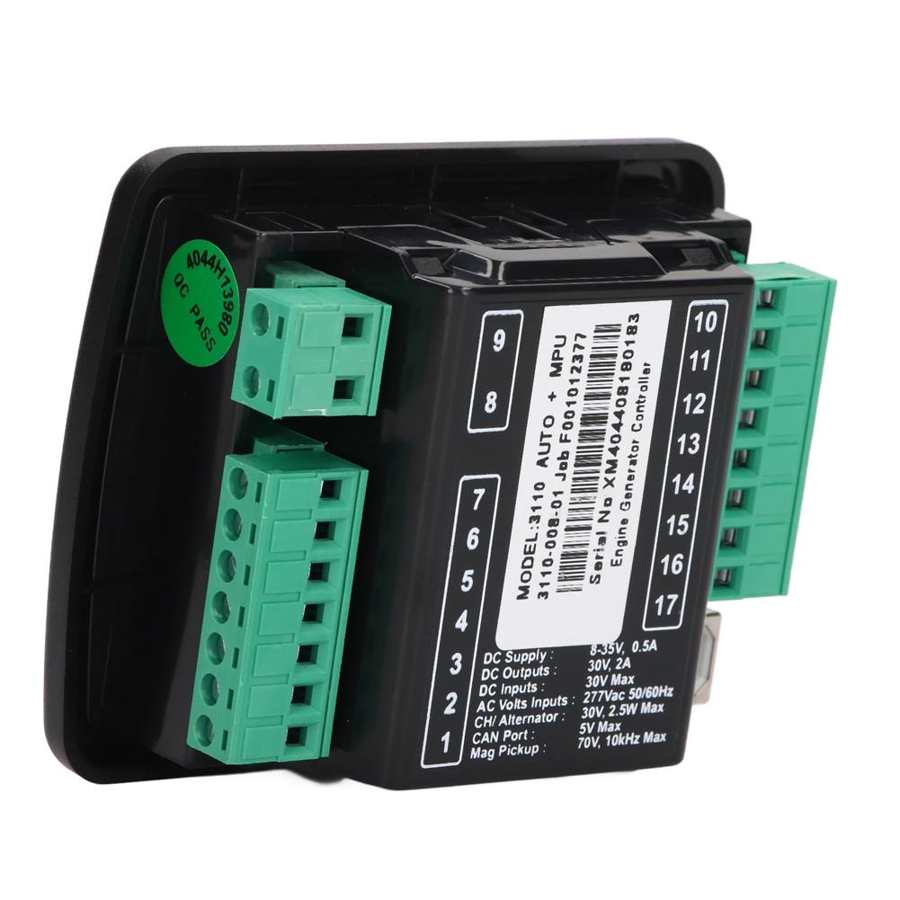

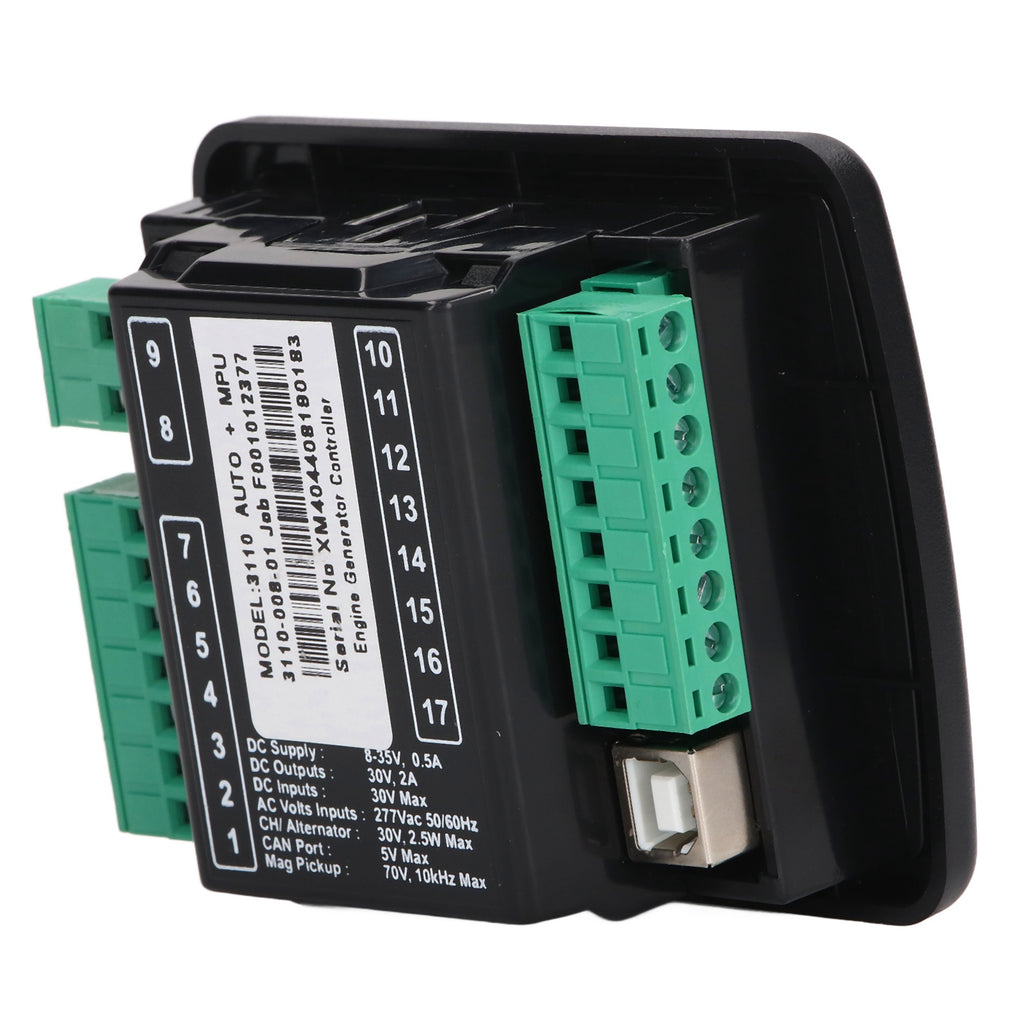

DC Power Supply: 8-35V, 0.5A
DC Output: 30V, 2A
DC Input: 30V Maximum
AC Voltage Input: 277 Vac 50/60 Hz
CH AC Generator: 30V, 2.5W Maximum
Can Port: 5V Maximum
MAG Pickup: 70V, 10KHz Maximum
Use: Universal in Ships, Power, Communications, Where Generators Are Needed
Gross Weight: Approx. 163g/5.7oz
Package List:
1 x Generator Set Controller 2 x Accessories
1 x Manual
