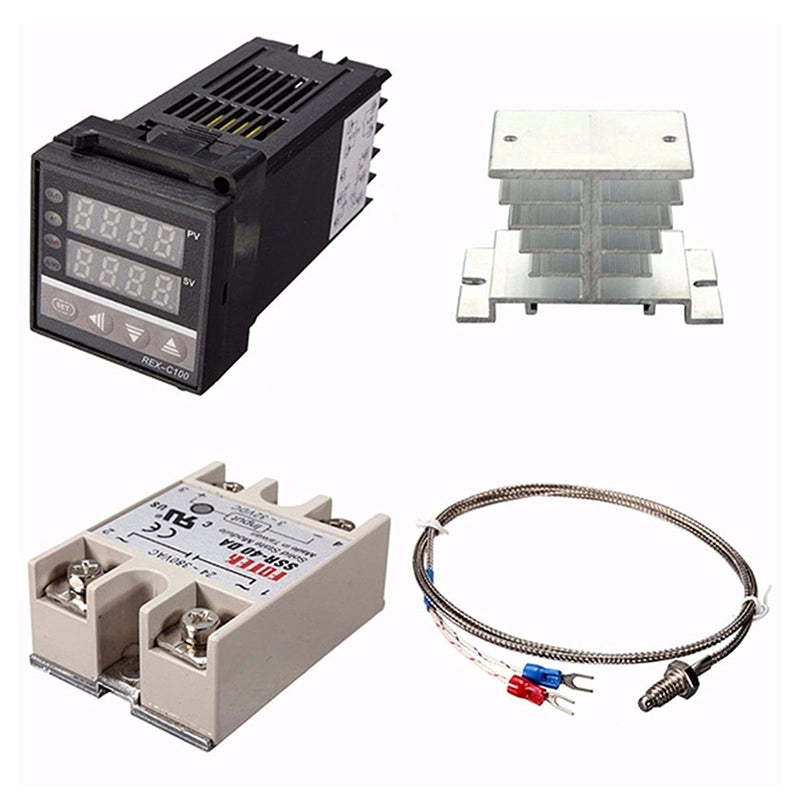

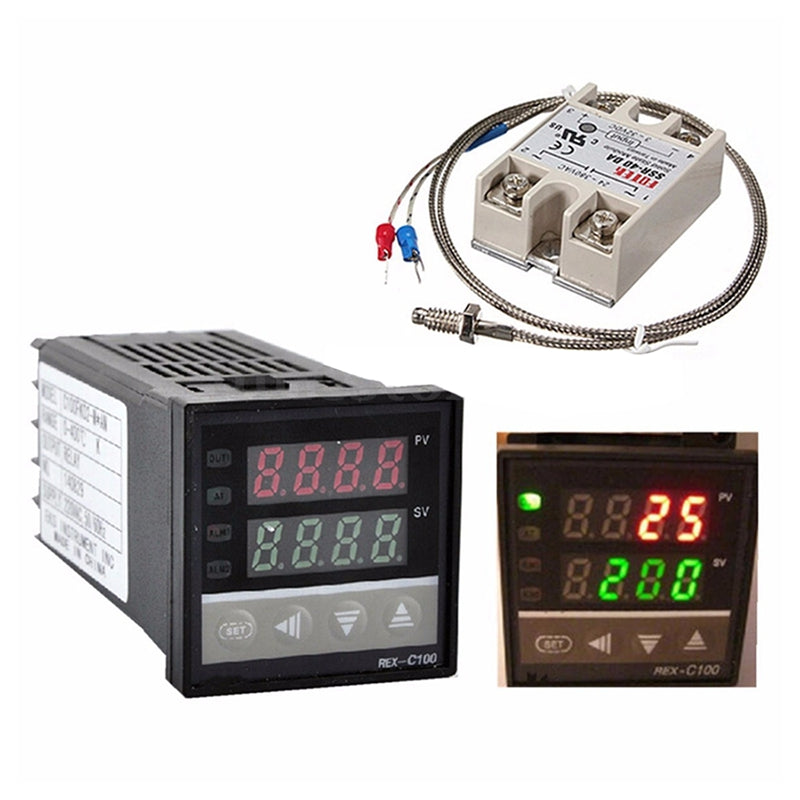

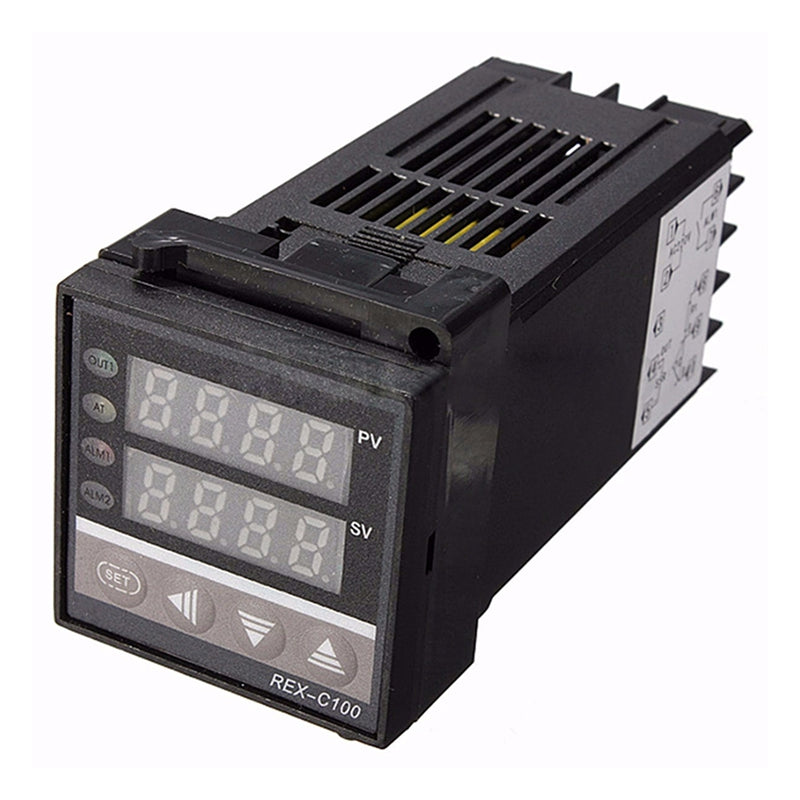

igital 220V PID REX-C100 Temperature Controller + max.40A SSR + K Thermocouple, PID Controller Set + Heat Sink
Cold-end compensation tolerance: +/-2 Celsius（can be modified by software in 0~50 Celsius）
Resolution: 14 bit
Sampling cycle: 0.5 Sec
Power : AC 100-240V 50/60HZ
Process value (PV), Setting value (SV)
PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
Relay output: contact capacity 250V AC 3A (resistive load)
Proportional band (P): 0~full range (ON/OFF control when set to 0)
Detective temperature range: 0 to 400 Celsius
Insulation resistance: more than the 50M ohm(500V DC)
Insulation resistance : 1500V AC/min
Insulation resistance : Power Consumption Less than 10 VA
Service environment: 0~50 Celsius
environment with no corrosive gas 30~85% RH
Aluminum Alloy Heat Sink
Specification:
Materail: Aluminium alloy.
Size:Roof:50mmX60mm.Foot:80mmX50mm.
Height:43mm.
Compatible with:Designed specially for single phase solid state relay.
Color :Silver

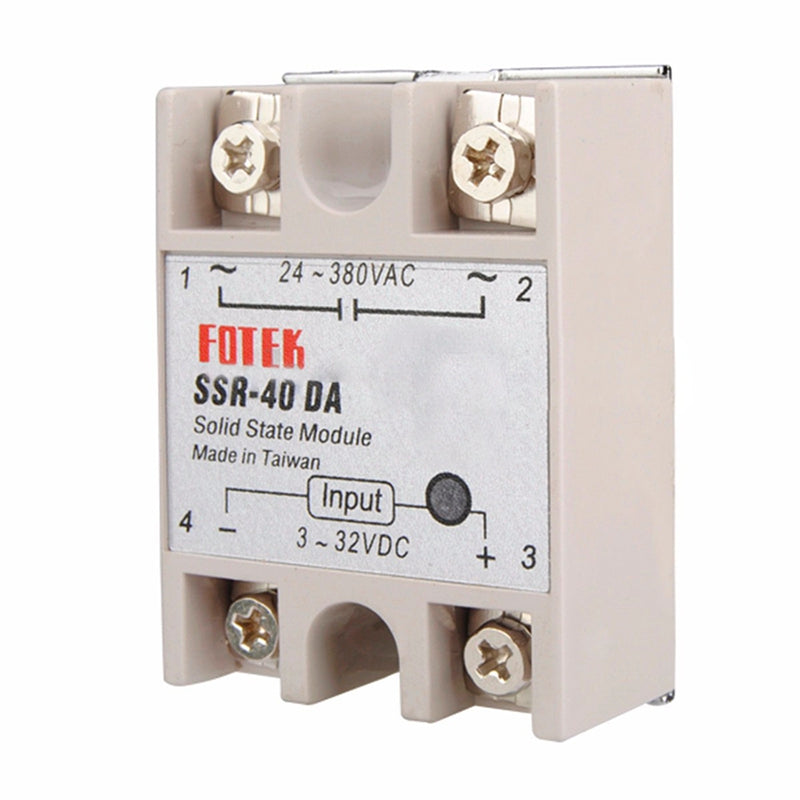

Max.40A SSR
Output Current:40A
Input Voltage:DC 3-32V
Output Voltage:24-380V AC
Output Voltage Range:Standard Type
Package Included:1 x PID Temperature Controller

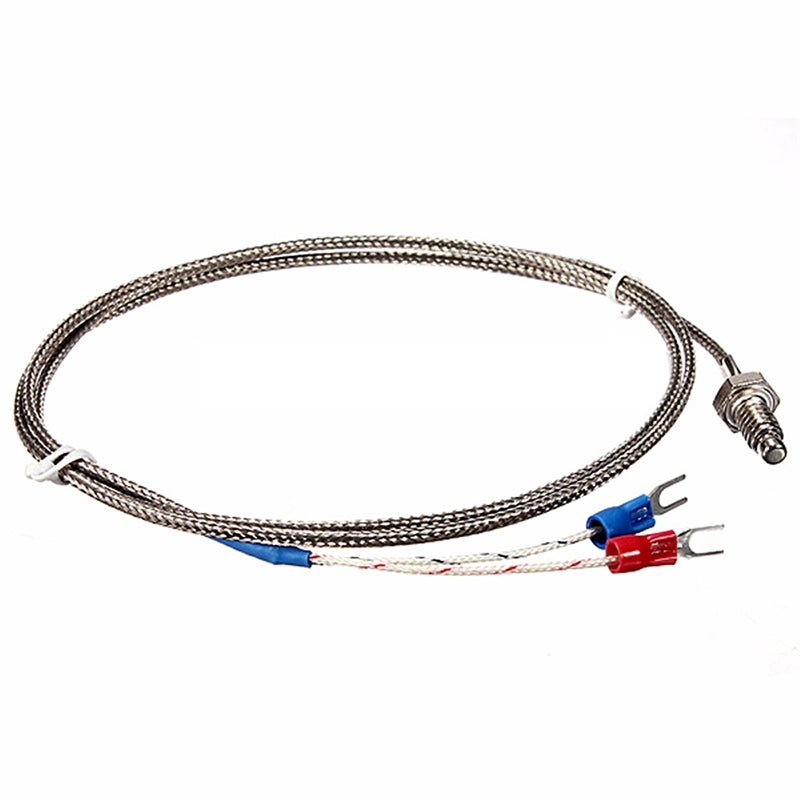

1 x K Type Probe Sensor
1 x Max.40A SSR
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
