atures:

 1, Small size, easy to carry, can be used for single hand;  Compact structure, built-in Rangefinder, WIFI, hot spot, azimuth, roll Angle, and other groups of sensors.

 2, Ttartup time is less than 5s, super long standby up to 7 hours, stable and reliable performance, can work day and night without difference, strong anti-fall and earthquake resistance, suitable for harsh monitoring environment.

 3, Can be one button to take photos and video, easy to capture monitoring details;  64 GB (up to 256 GB) of storage space for information transfer and evidence collection.

 4. Unique image processing algorithm, obvious noise reduction effect, unique digital enhancement algorithm and picture-in-picture amplification and automatic image stretching algorithm,

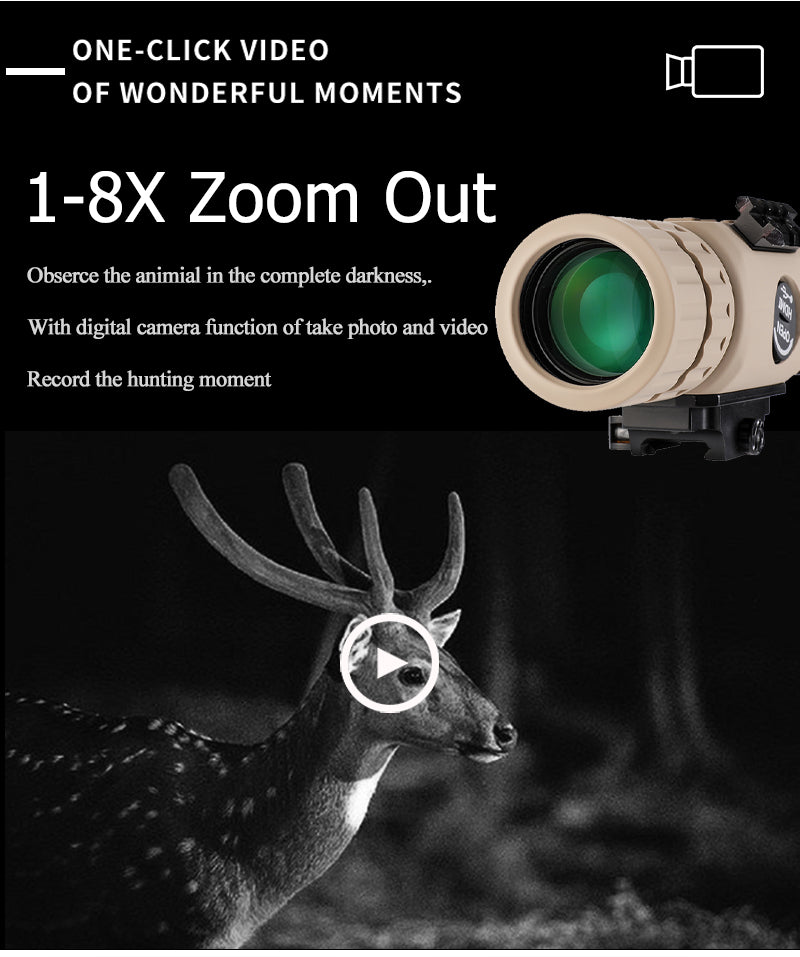

 5, 1024×768 ultra high resolution OLED eyepiece system, making the system imaging clearer;  1-8 times continuous zoom, longer detection distance, wider range.  Full color, black and white, low light mode is optional, brightness and contrast can be adjusted (easier to find targets in extremely harsh environment).

 6. Optical materials are made of unconventional materials with strong reliability and stability;  The lens is coated with infrared antireflective film and waterproof film for easy wiping and protection.

 Specifications:

 ▶ Lens focal length：50mm, F=0.8

Resolution：1920 x1080

Maximum frame rate：25 frames/SEC (1920x1080)

Color illuminance：0.00lLux

Black and white illumination：0.000lLux

Electronic amplification：1~8 times continuous amplification

Magnification modes: ordinary magnification and picture-in-picture magnification

Display mode：full color, black and white, and low light

There are 5 kinds of lines

Detection range：index for people(1.8m x

0.5m)/for vehicles (2.3m x 2.3m)

Detection range：1000m (typical weather

conditions) / 2500m (typical weather conditions)

Identification distance 280m (typical weather) / 600m (typical weather)

▶ Parameters of the eyepiece

0.5 inch OLED display, 1024×768 resolution

Contrast：1000:1

Exit pupil distance：35mm

Eyepiece magnification：12 times

▶ Image storage

Video Format：MP4

Image storage：JPG

Image resolution：1024x768

Storage capacity：64 (up to 256 GB)

▶ Data sensor

Supports automatic impact recording, which automatically prerecords and saves videos before and after impact. The duration and sensitivity of impact video can be adjusted

Supports one-click gun calibration.

Azimuth sensor：static accuracy 0.05° dynamic 0.1°

Acceleration sensor：2G-60g internal adjustable

Rolling Angle sensor：range ±90° Static accuracy 0.05° dynamic 0.1°

Pitch sensor：range ±90° Static accuracy 0.05° dynamic 0.1°

▶ Physical properties

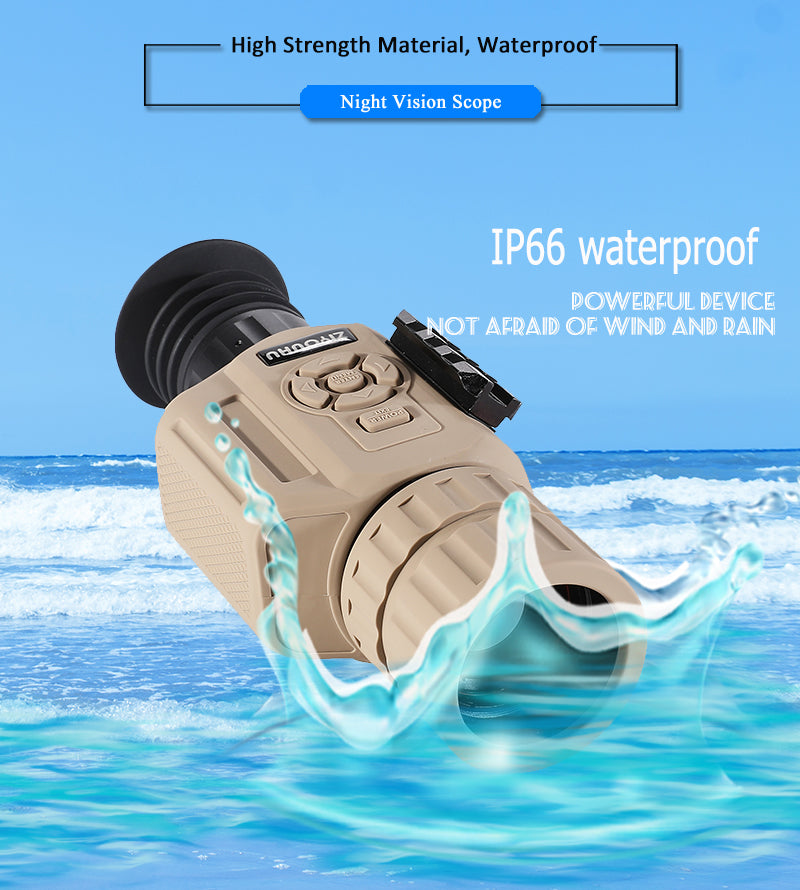

Waterproof：IP66

Operating temperature：-40℃ ~ +60℃

Storage temperature：-45℃ ~ +65℃

Input voltage：DC5V

Battery capacity：26500A rechargeable lithium 3.7V @ 3500mAH

Working time：>7 hours

Product size：200×75×85 (mm)

Product weight：≤ 730kg
