Digital Painting Color Meter AC-115S LED Lamp Triple LCD Display USB RS-232 tristimulus for textile paper Leather painting

 Ditital Painting Color meter

     Product Description

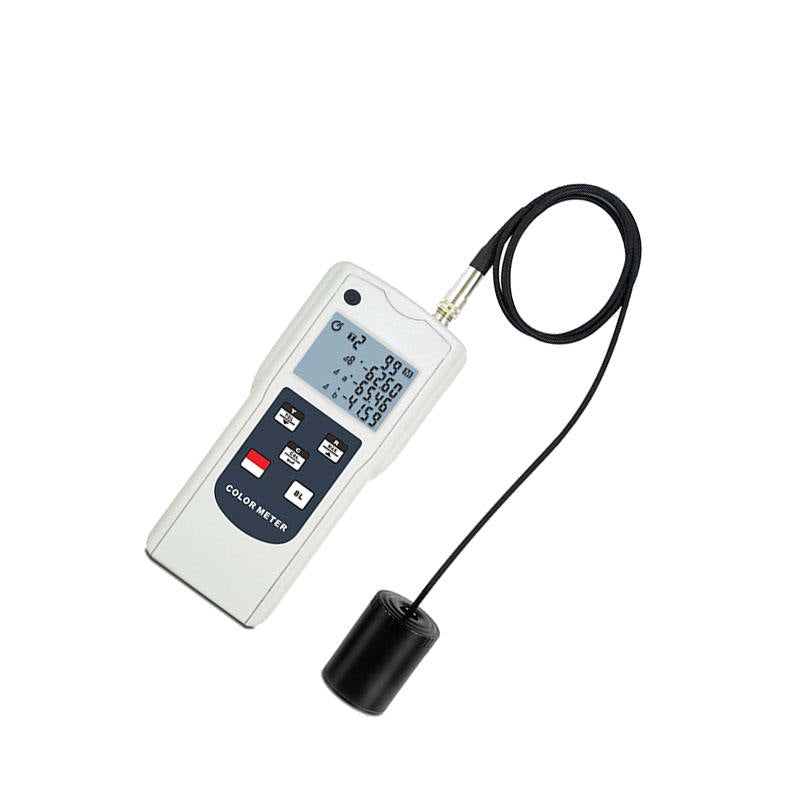

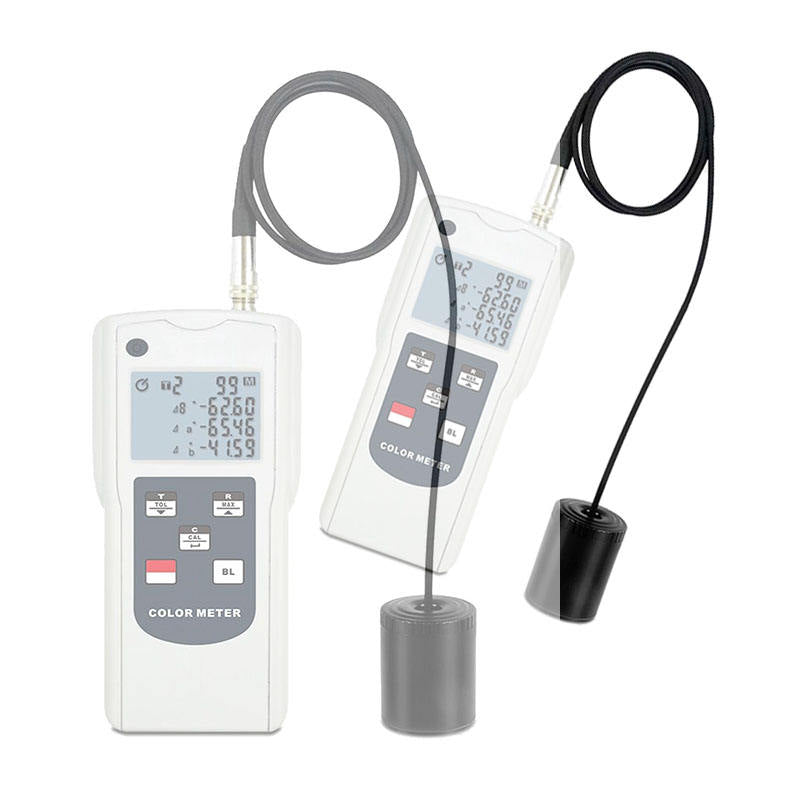

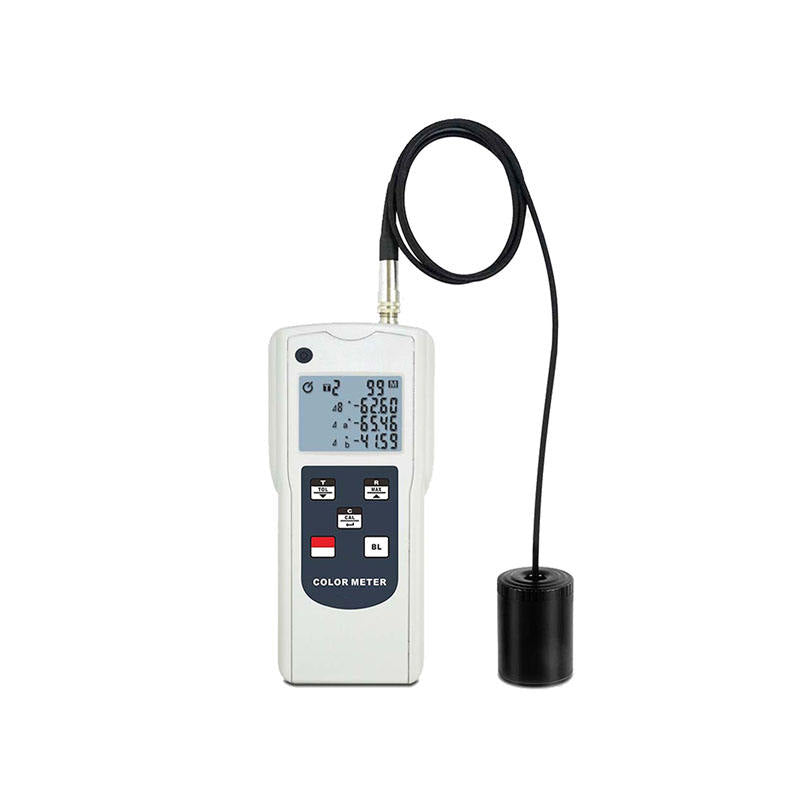

      Color Meter AC-115S is an extremely compact, extremely easy-to-use tristimulus color meter specially designed for measuring the color difference between two colors.

 The meter is designed for measuring the color of no lighting and non-fluorescent sample such as textile, paper, leathers, painting materials, etc. It is the useful tool for the quality control and wide industrial application.

   Product Feature

   * The measuring head of meter need to touch with color sample without any distance.

 * Color difference displayed (L*, a*, b*), (E*ab, C*ab, H*ab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI , Tw)

 * Color space displayed (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw).

 * Statistical function (Maximum, Minimum, Average and Standard Deviation)

 * Color difference tolerance set to perform PASS/ WARN/ FAIL.

 * Store 9 color-difference target colors.

 * User calibration function ensures higher accuracy.

 * Auto memory (99 sets) & Read function.

 * Digital back light display.

 * Auto power off function.

 * Use USB data output and RS-232 data output with connection PC.

   Product Parameters

                  Display      Triple 4 digit LCD Display                Auto power off      Approx. 3 minutes                Data memory capacity      99 set. (Direct reading from LCD display)                Low battery indication                Temperature      Operating: 0~40°C(32~104°F),

 Storage: -10~40°C(14~104°F)                Humidity      Operating: <85%RH.,

 Storage: <70%RH.                Power source      4x1.5 AAA (UM-4) Battery                Dimensions      Main unit: 140x70x31mm                Sensor : Φ44x55mm                Weight      205g (not including battery)                Illuminating/ Viewing geometry      45°/ 0°: Illumination at 45°, measrement at 0°                Illuminant      White LED lamp                Measuring area      Approx. Φ10mm                Display modes      Color difference: (L*, a*, b*), (E*ab, C*ab, H*ab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw)                Operating Temperature      Color space: (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw)                Target color memory      9 channel; set by measurement or keypad                Measuring range      L*: 5 to 100                Measurement conditions

 Observe: CIE 2° Standard Observer                          RepeatabilIty      Standard deviation within E*ab 0.5 (Measurement conditions: Average of measurements of standard white plate)                Measurements interval minimum      Approx. 2 seconds

   Product Accessories

 Standard Accessories

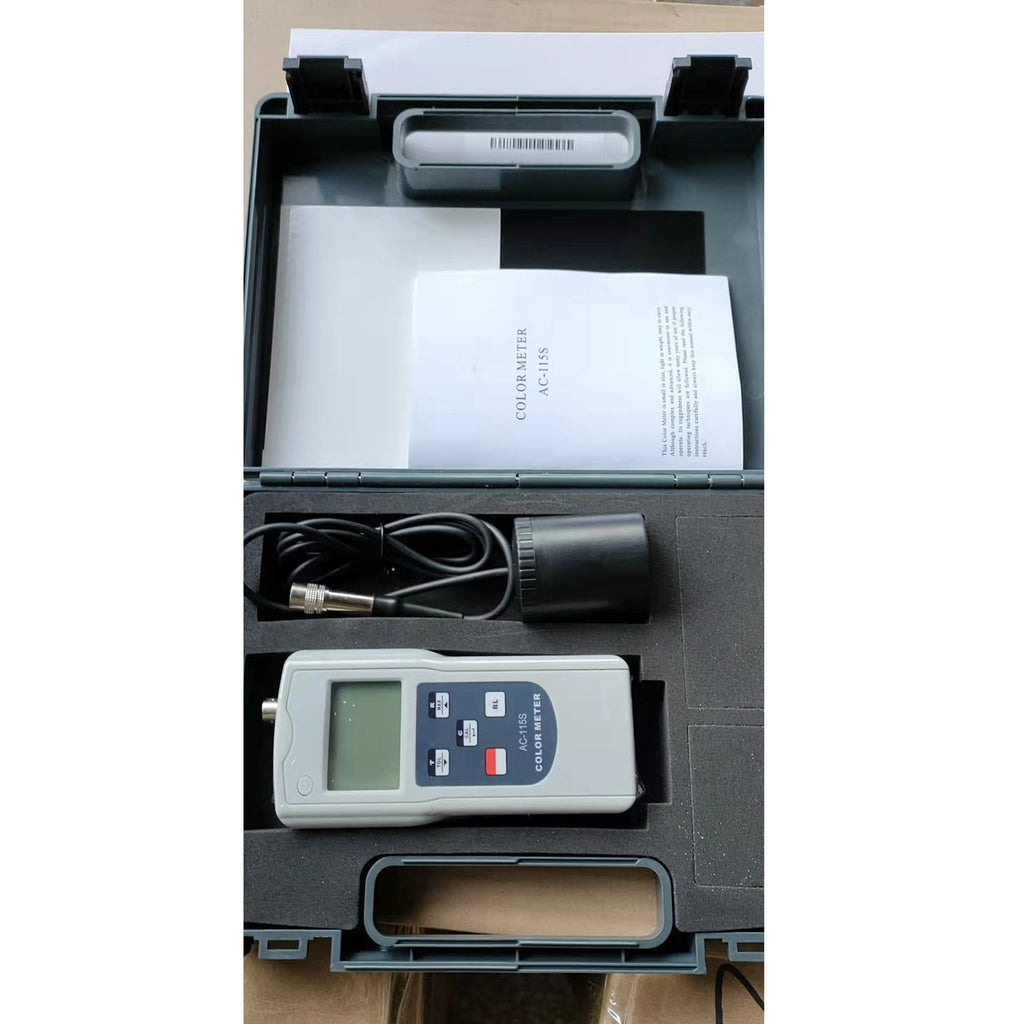

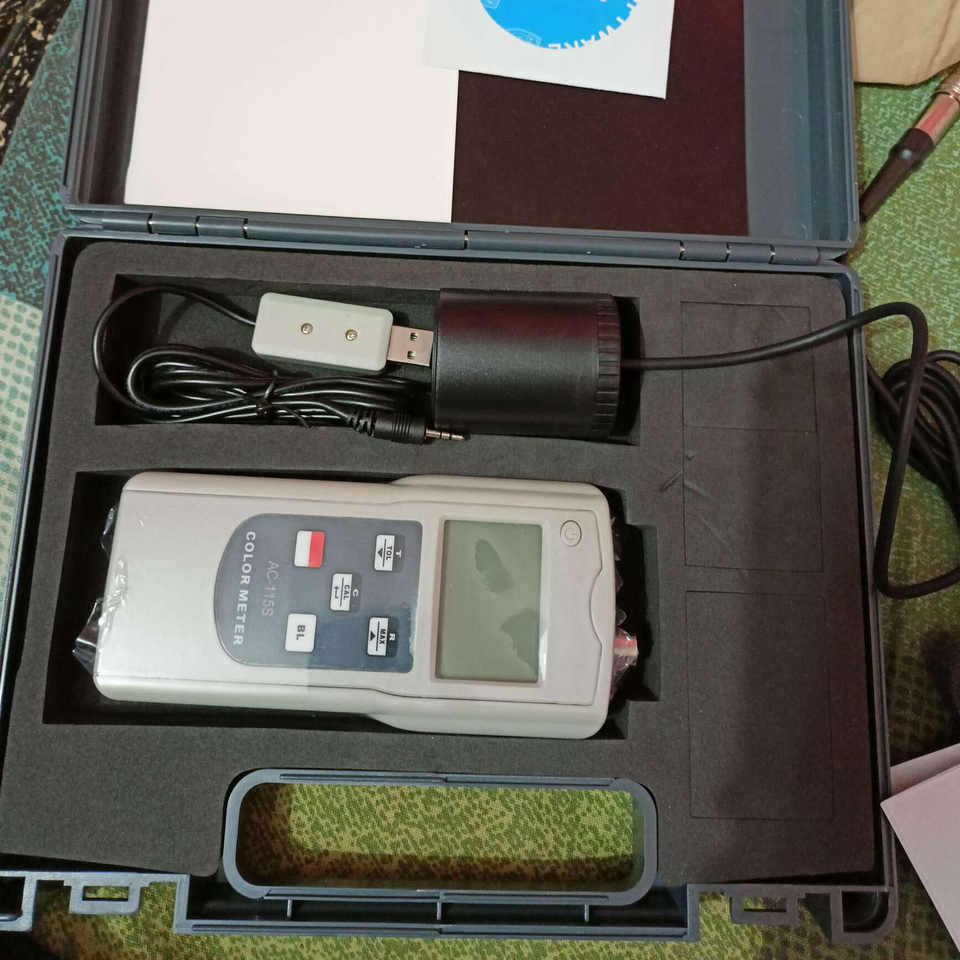

       Main Unit                  Measuring head                  White calibration card                Carrying Case                Operation Manual                 Optional Accessories

         USB data output

   Buying Guide

   When you choose the model number of instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.

   The following item is optional accessories choices

   Standard Accessories+USB data output
