Description

 Display method:

 LED Screen display

 Atmospheric pressure: 86Kpa - 106Kpa

 Sampling time: 1.5 seconds

 Product Size:270*90*35mm

 Detection temperature: -10°C to 50°C;

 Relative humidity: 20% - 85%

 Storage temperature: -10°C to 60°C;

 Power source: Lithium battery with 2000 mAh capacity;

 5V DC power charging

 Product weight: 350g

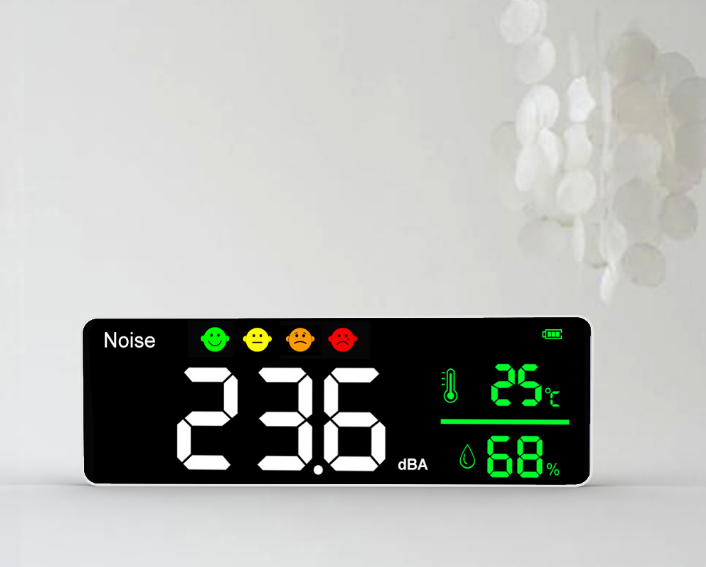

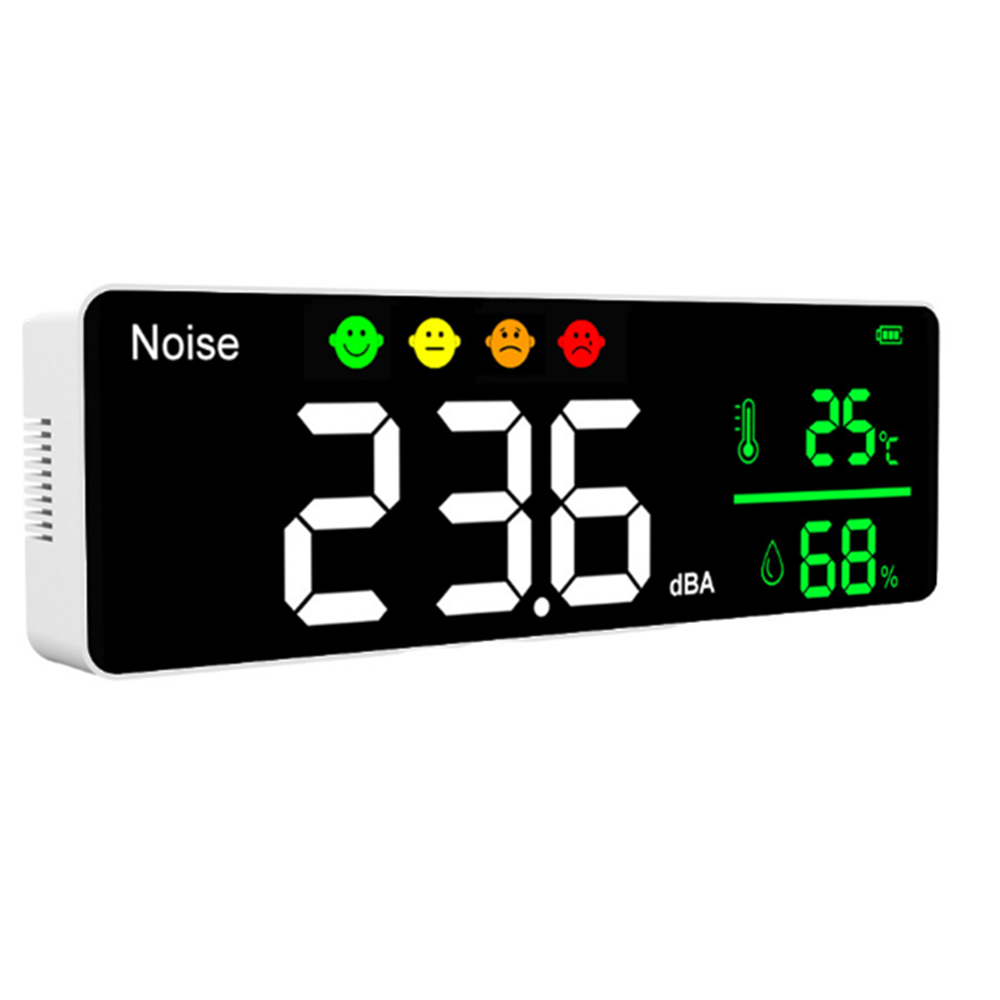

 This product is a decibel meter that detects，

 Noise,Temperature, and Humidity. it combines sensors

 real-time monitoring of decibel，temperature, and

 Please read the instructions carefully before using this

 device.

 Please keep the manual handy for quick reference and

   troubleshooting.

   Avoid covering the air intake areas during use to avoid

   inaccurate measurements.

   Avoid use of solvents to clean the product as residual

   fumes will skew air quality readings.

   Avoid water or other liquids near the product to avoid

   electrical damage.

      Do not allow unauthorized modification or repair of this product.

     Features:

     -Large screen LED display

     -Support real-time testing of the concentration of decibel

     -Large 2000mAh capacity Lithium battery

     -

         -Adjustable LED brightness

       Noise indicator

       30dB~65dB Green

       65dB~85dB Yellow

            85dB~130dB Red

Key operation

Power button, Press to turn on/off

Adjust the brightness-make it brighter

Adjust the brightness-make it darker

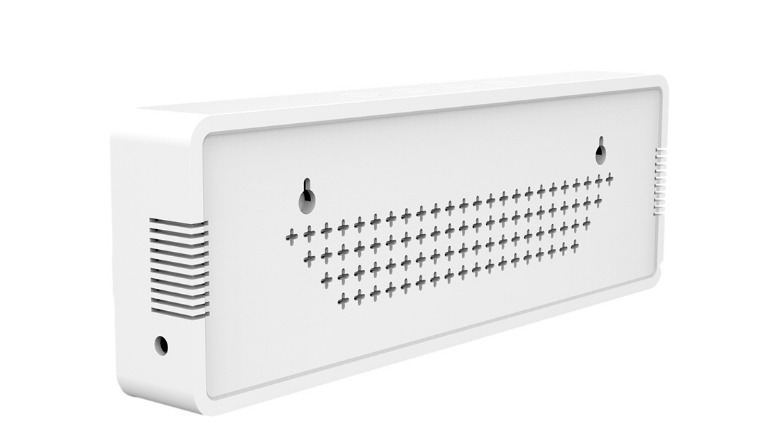

DC adapter input port

LED display

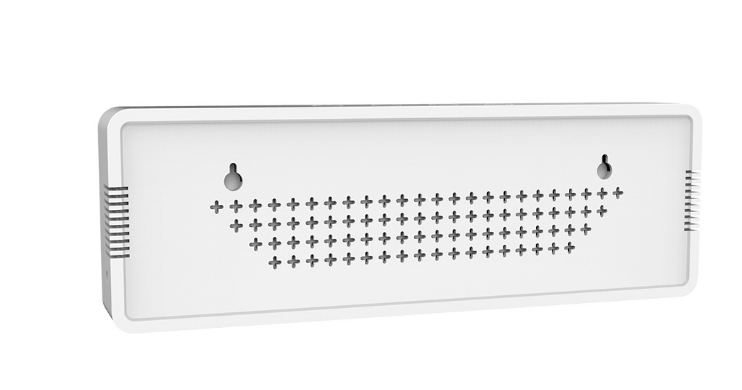

         Installation Notes

         The positioning sticker is attached to the position to be

         installed.

         2)Punch a 6mm hole at the 2 marked positions of the

         positioning sticker and drive the rubber plug into the wall.

         3)Drive in the screws, and pay attention to about 4mm

         exposed. Then hang the CO2 meter up.

         4）Connect one end of the USB cable to the USB power

         adapter, and the other end （round connector）to the

         power input port on the side of the device(input voltage

         ：DC5V)

         Working method

         Under normal working conditions, don't do any settings,

         just plug USB port to the power adapter and the DC

         round head into the device. You can test the current CO2

         value and temperature and humidity in real time.

         Automatic calibration

         During the first use, please Turn on device and keep

         more than 24 hours, the device will automatically

         calibrate. (Do not power off and restart halfway when

               calibration)

           Technical parameter

           Input voltage: DC5V 1000mA

           Temperature measurement range: -10.0°C~+50.0°C

           Temperature accuracy: +/- 1.0°C (0°C~40°C)

           Humidity measurement range: 20%~85%Humidity

                  accuracy: +/- 5%

             Specification for Noise:

             Measuring range: 30~130dB Accuracy:±1.5dB

             Frequency range: 50Hz ~8.5kHz Resolution: 0.1dB
