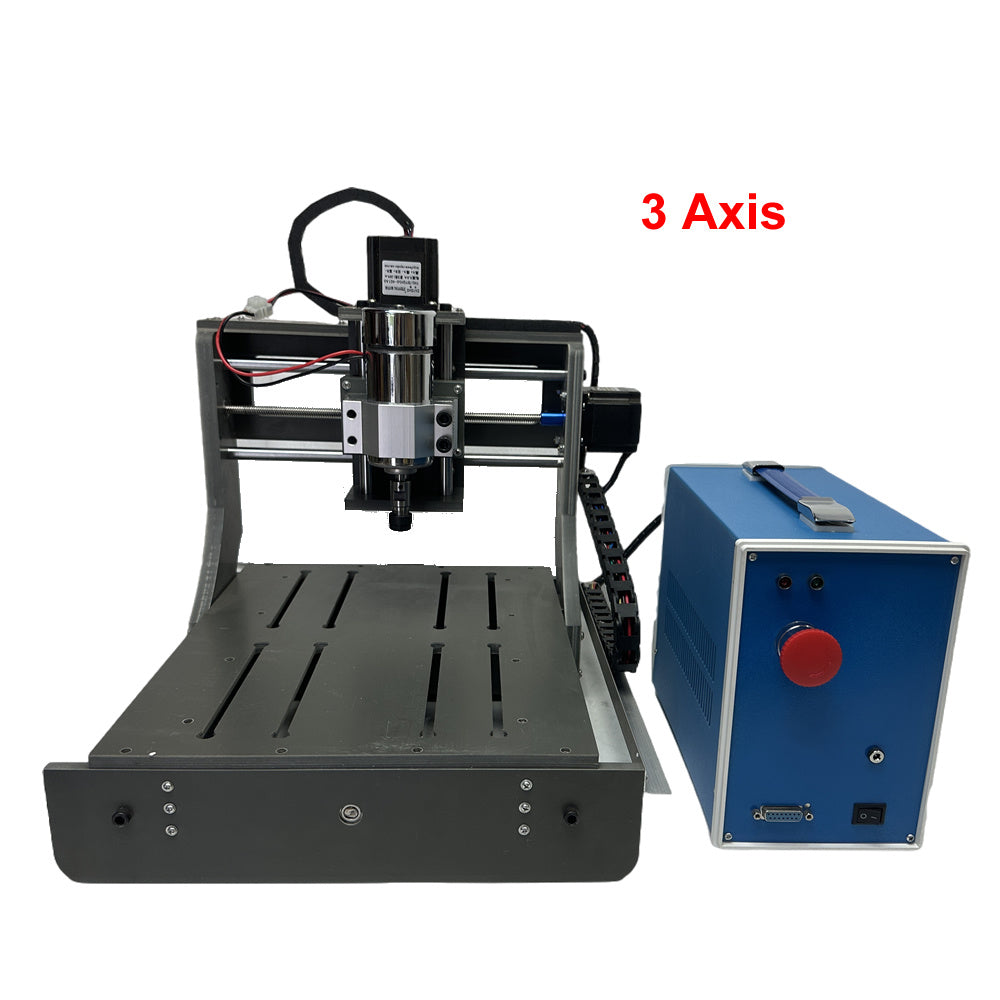

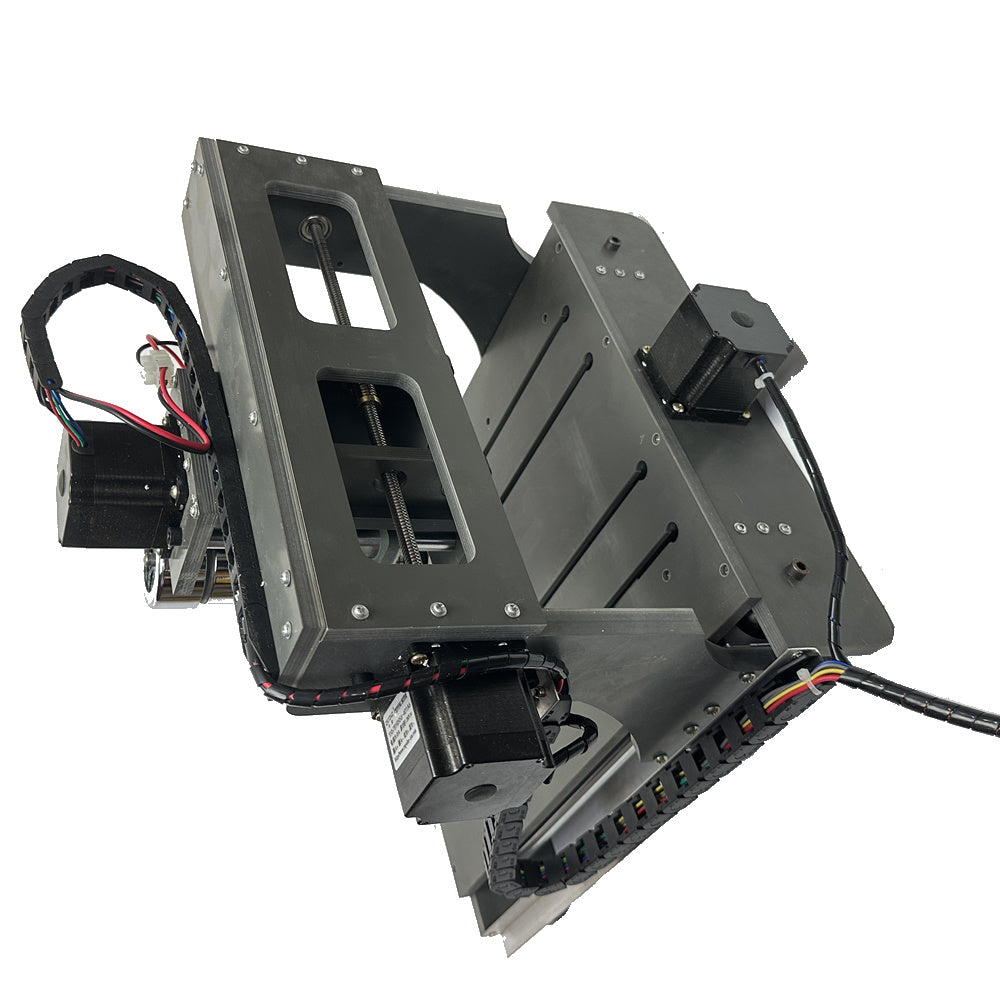

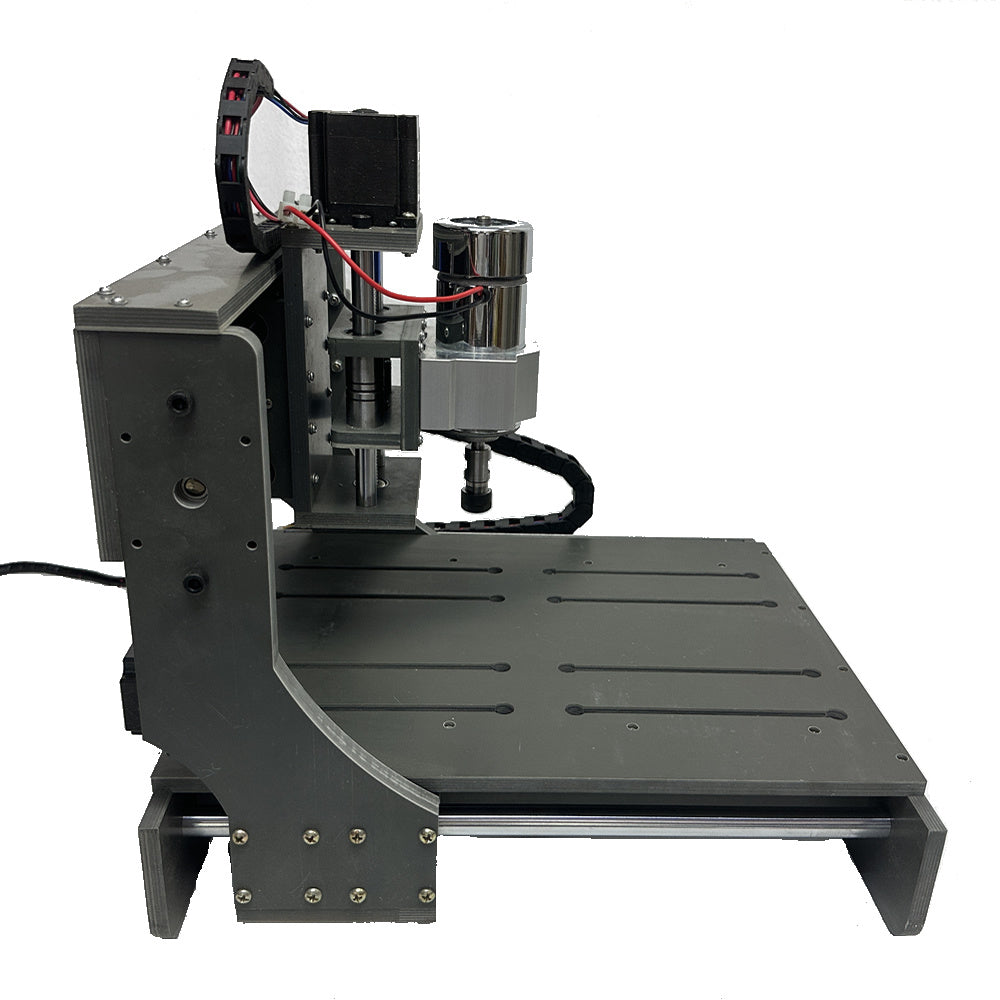

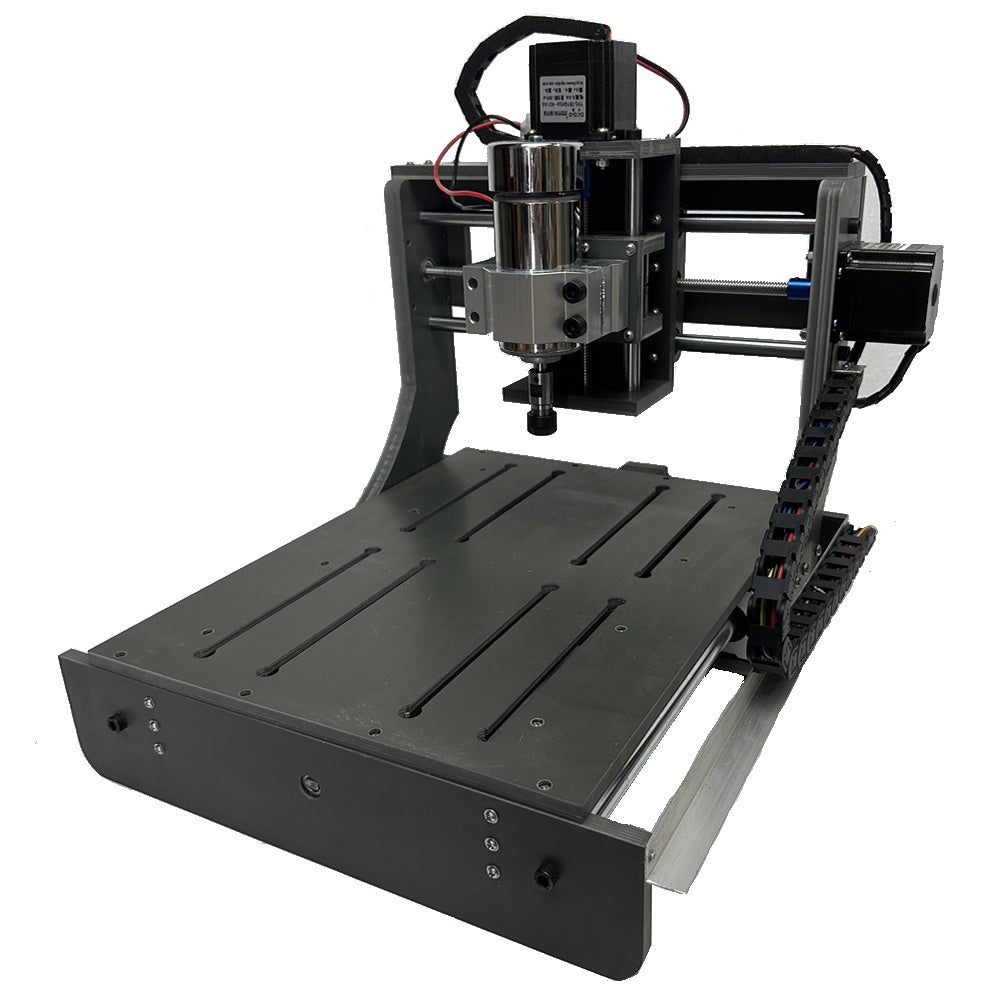

Technical Parameters
Effective travel : XYZ=200*270*58 mm;
New 57 stepper motor with a drive current of 2.4A;
Spindle motor: 300W high-speed,
Collet chuck: ER11-3.175mm
Rail type:
X axis is a 12 mm diameter hard axis,
Y axis is a 16 mm diameter hard axis,
Z axis is a 12 mm diameter hard axis;
XYZ axis are T8 stainless steel screw, with double nut back to poor organization
USB port (Windows 7, 10), CNCUSBControl

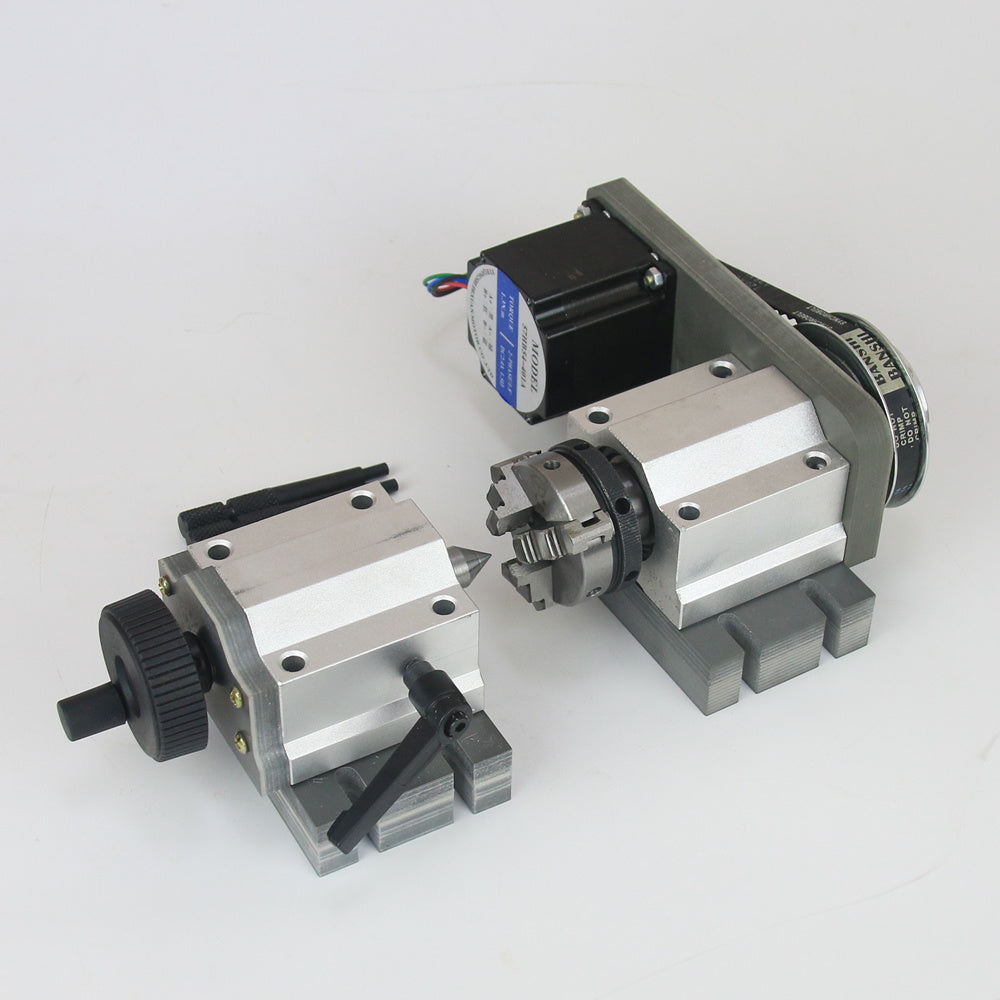

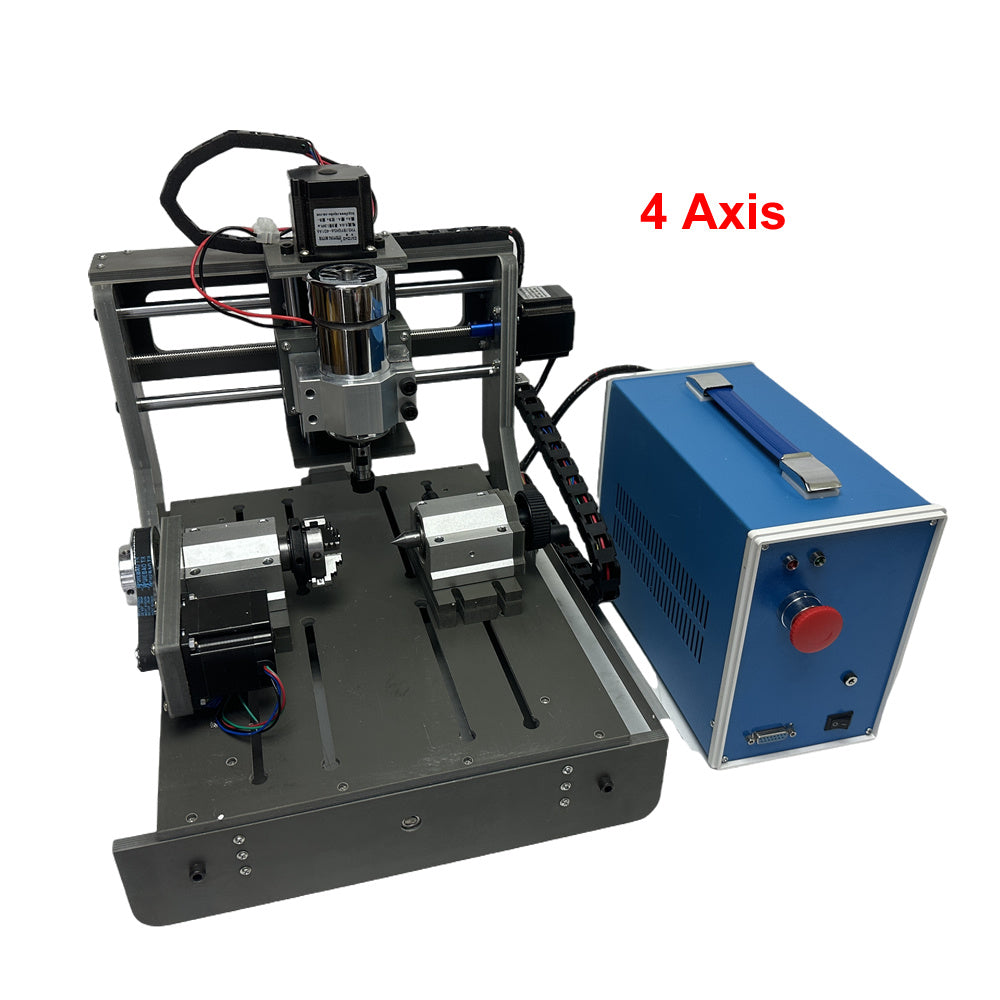

4th Axis:
Center height: 51mm
Reduction ratio: 4:1
Chuck: 50mm 3 Jaws
Stepping motor: NEMA23 57mm-2.4A
Weight: 3.6kg
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
