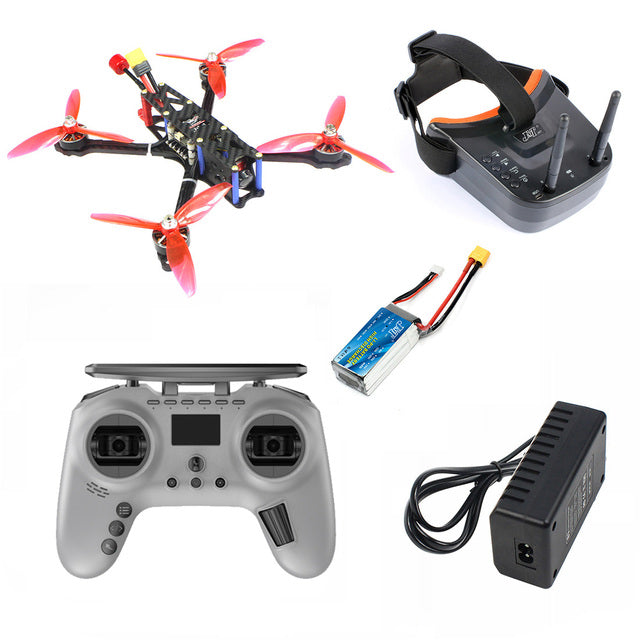

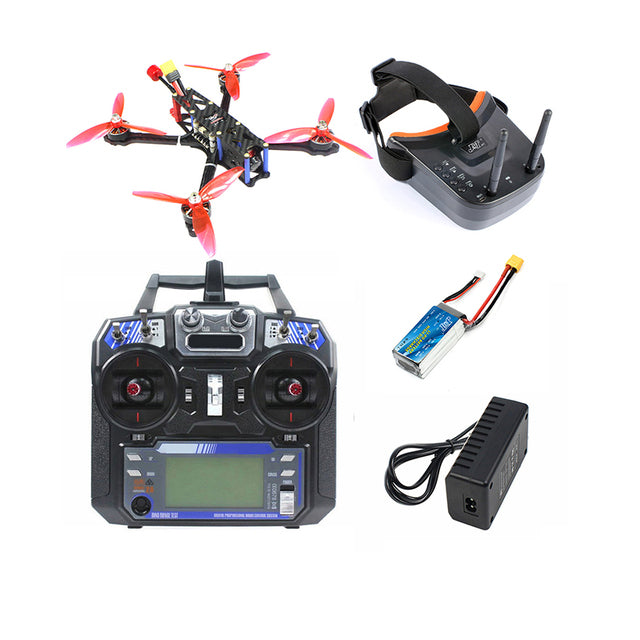

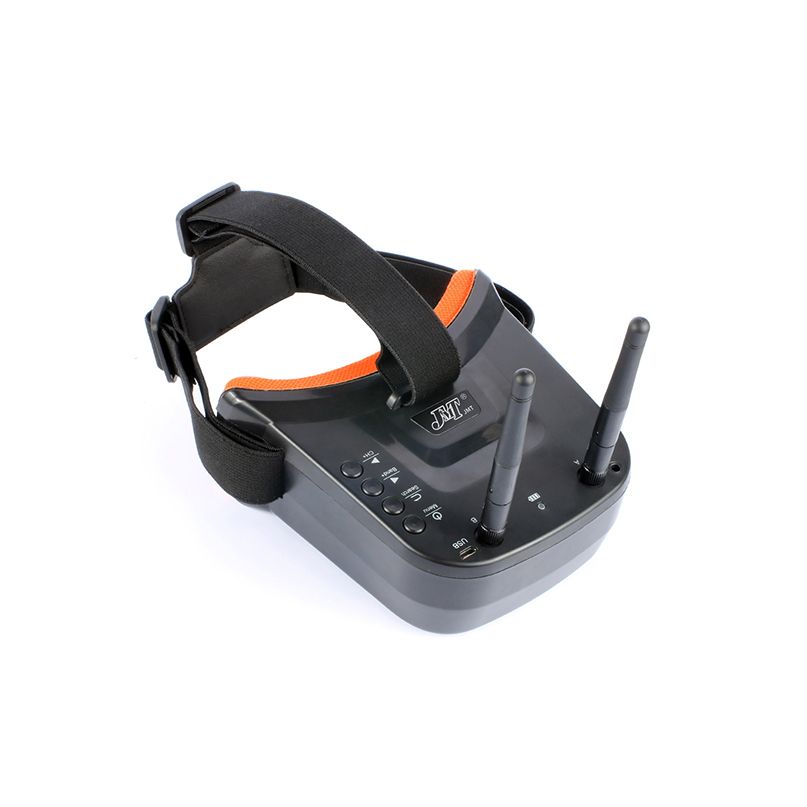

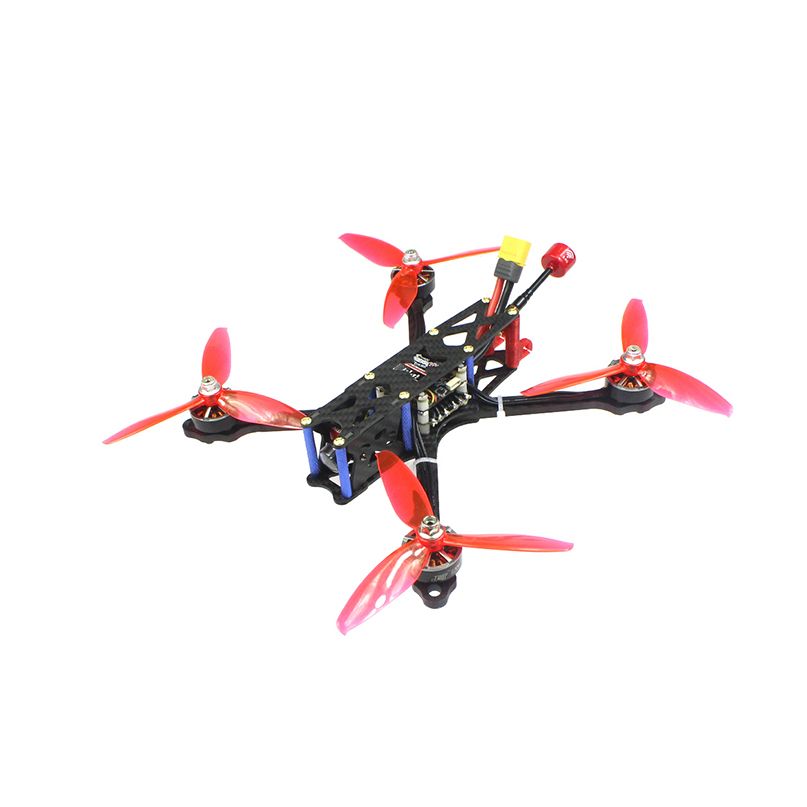

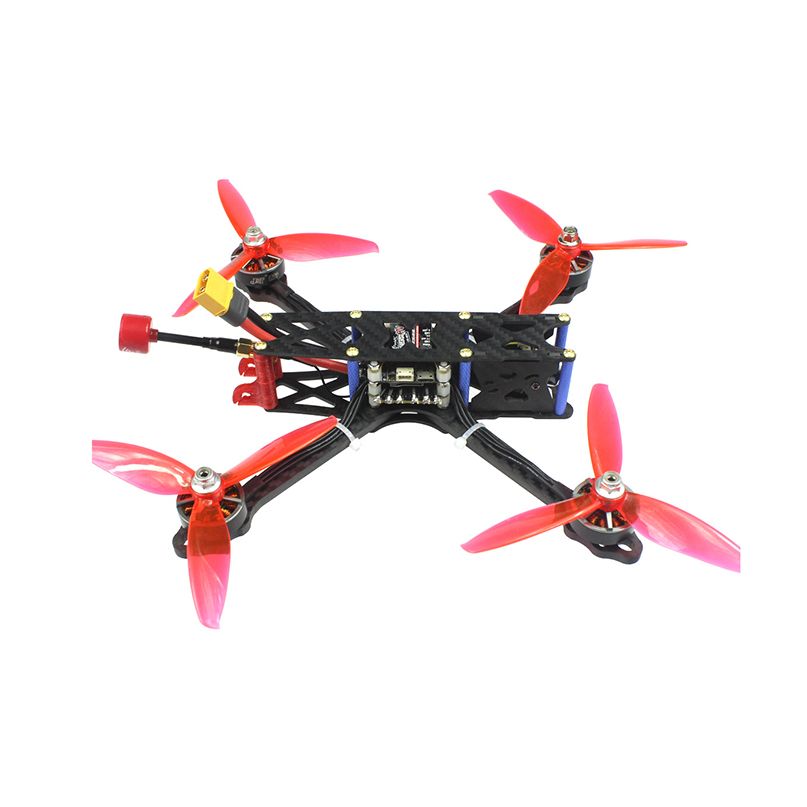

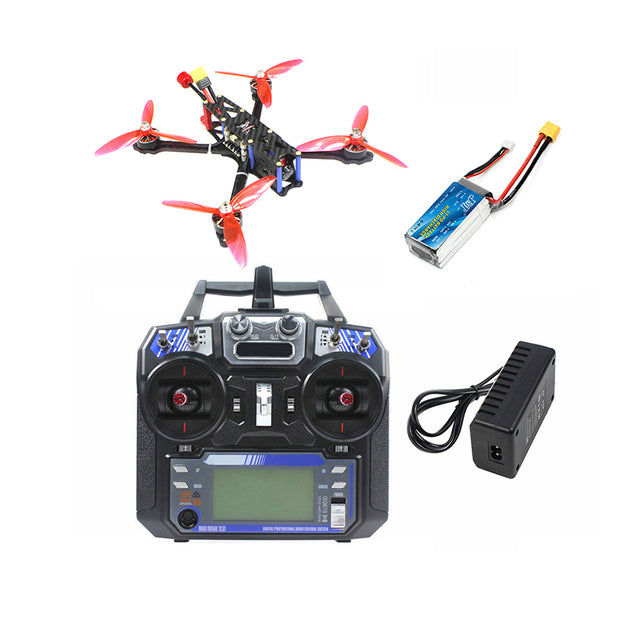

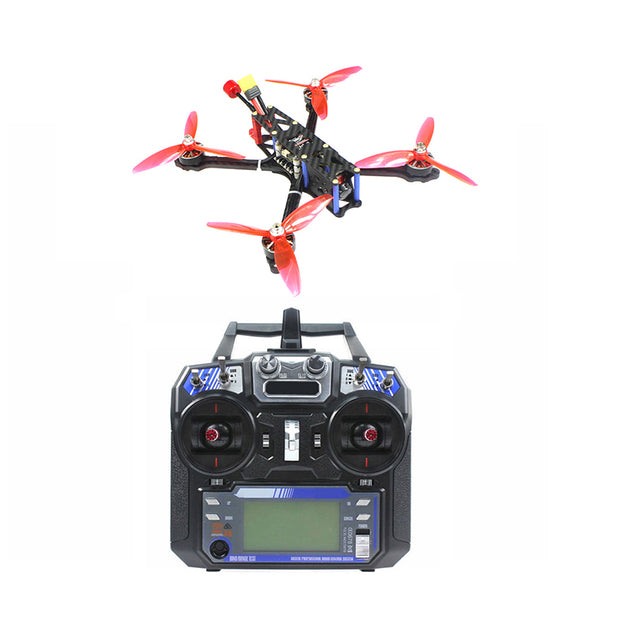

DIY 225mm 5inch PNP BNF RTF FPV Racing Drone RC Quadcopter 3-4S with Ratel 2 Camera 2306-2400kv Motor 3inch Mini FPV Goggles
Functions and features:
Wheelbase 225mm
Built-in OSD Betaflight
Support BLHeliSuit configuration
Support voltage 3-4S
7-10 minutes flight time

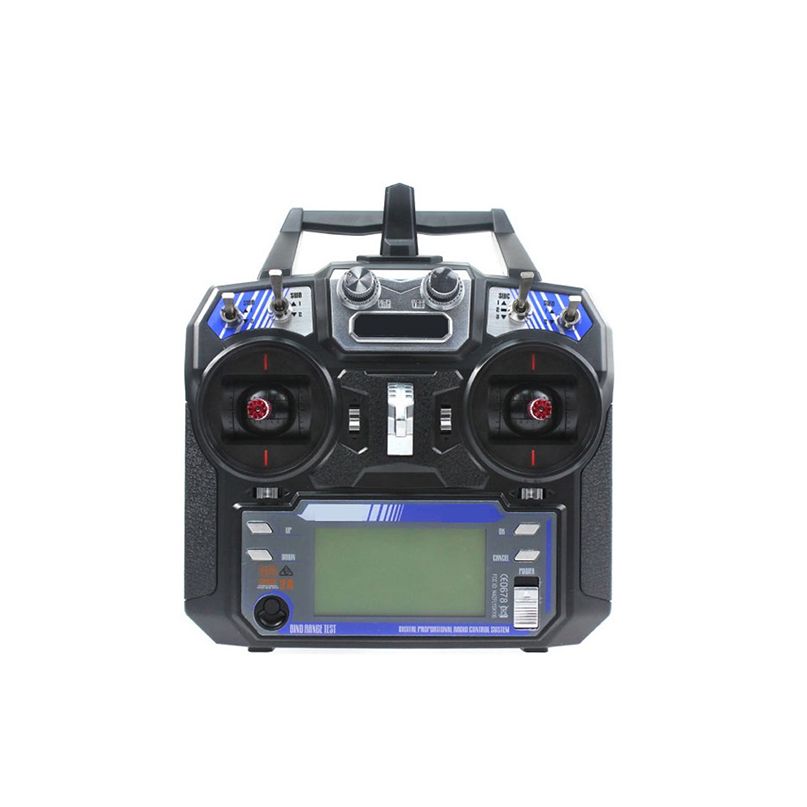

The remote control distance is about 400 meters (FLYSKY remote control), about 2000 meters (T-PRO remote control)
Propeller:
Model: 5043
Material: PC
Weight/G: 4.63G
Inner diameter of center hole: 5mm
Paddle diameter: 13.5mm
Center thickness: 7mm
Maximum blade width: 15.58mm
ESC:
Working voltage: 2-6S
Maximum continuous working current: 45A
Maximum instantaneous working current: 50A
Support communication modes: DShot150/300/600, PWM, Oneshot125, Oneshot42 and Multshot
Firmware version: BL16.7
Installation hole distance: 20 * 20mm / 30.5 * 30.5mm
Product size: 44 * 44 * 5.5
Packing size in mm: 62 * 58 * 18 mm
Product net weight: 13.6 grams
Package weight: 27 grams
VTX:
Weight: 12g
Input voltage range: 7-24V
Frequency: 48CH
Output power: 0mW / 25mW / 100mW / 200mW / 400mW / 600mW switchable
Transmission distance: ≥0.5km25mW, ≥1km200mW, ≥2km600mW
Installation size: 30.5*30.5mm
Motor:
2306 motor
Stator diameter: 23 mm
Stator thickness: 6 mm
Number of stator arms: 12 pieces
Number of stator poles: 14
Motor KV: 2400
Maximum continuous power: 750 watts
Weight: 32 grams
Outer diameter: 28 mm
Support voltage: 3~4S
Flight controller:
Name: F4
Size: 36x36mm
Mounting hole: 30.5x30.5mm
STM32 F405 MCU can shorten the cycle time.
Support SBUS / PPM / IBUS receiver mode
Camera:
Sensor: CMOS 1/1.8
Lens: 2.1mm
Video format: PAL/NTSC switchable
Resolution: 1200TVL
Input voltage: 5V-40V
Weight: 5.9g
Size: 19*19*20mm
White balance: automatic
Receiver version:
FRSKY version, FLYSKY version, without receiving version.
