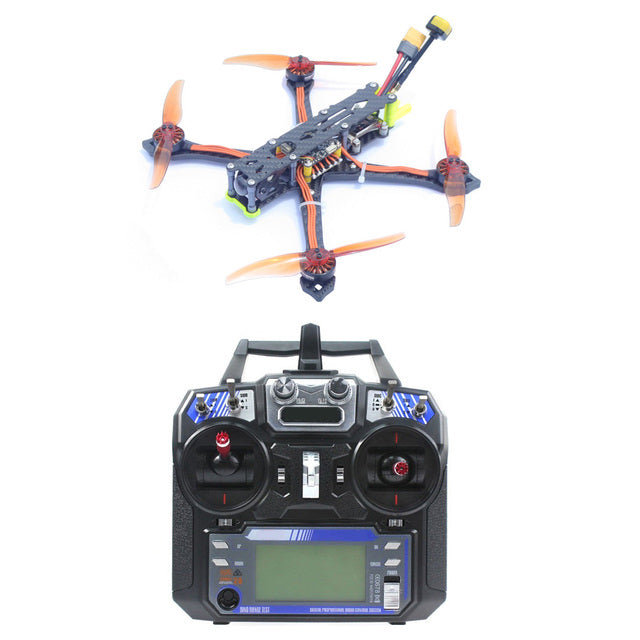

IY XY-5 5inch Quadcopter 1200TVL 2.1mm FPV Camera W/ HK8B45 BLHeli-S 45A 4IN1 ESC JUMPER T-PRO ELRS Radio RTF FPV RC Drone

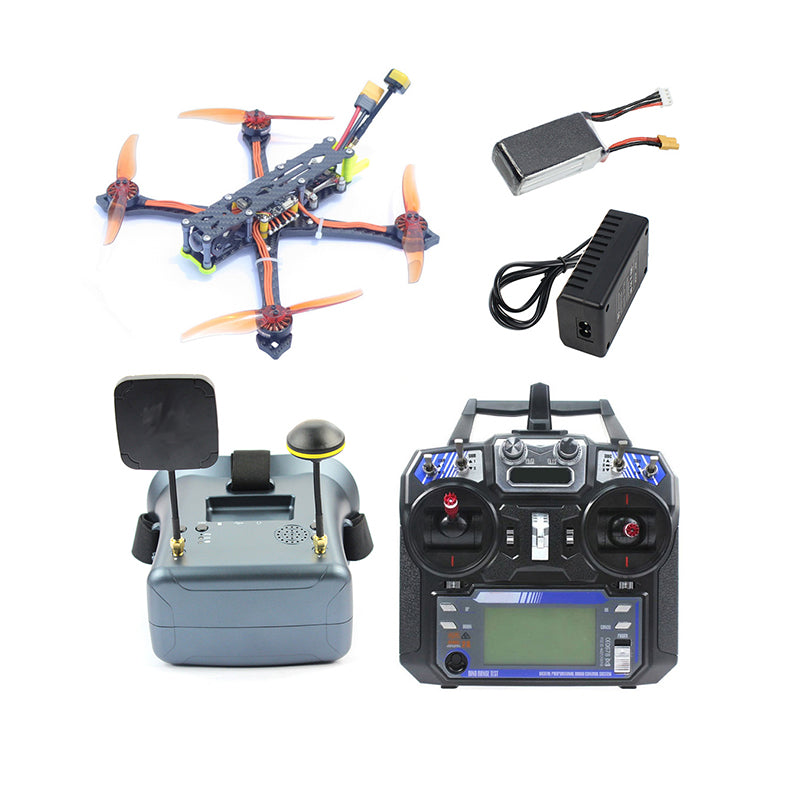

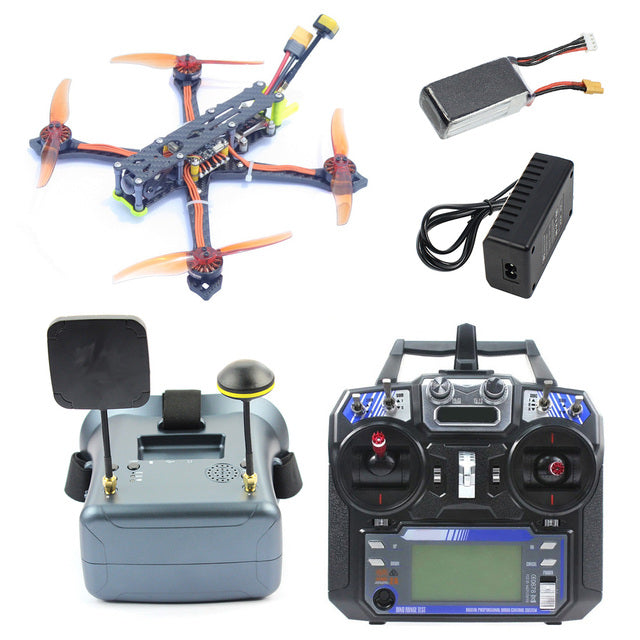

Package Listing:

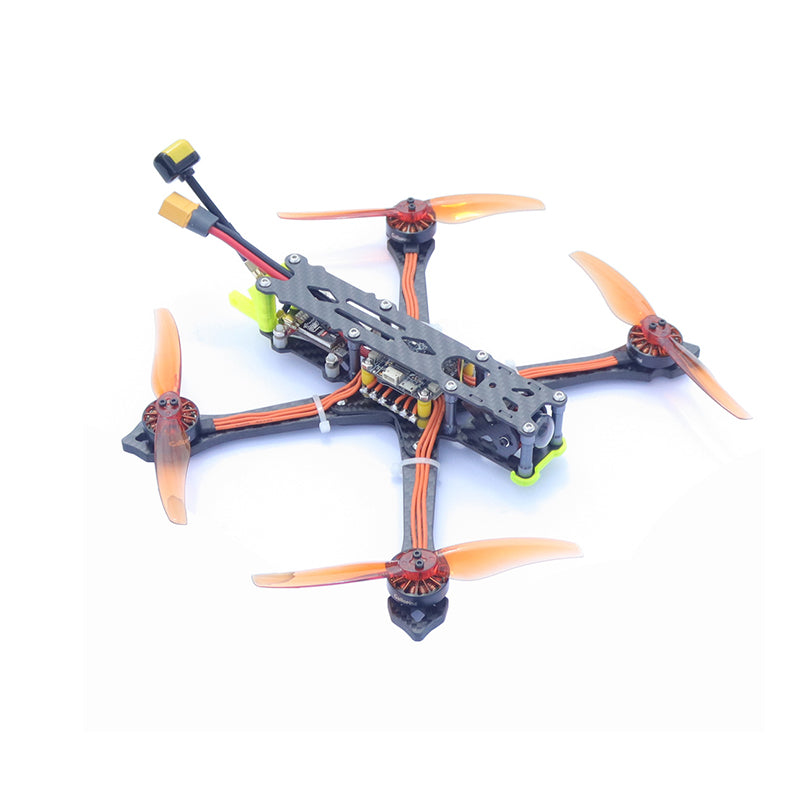

XY-5 V2 5inch 218mm Wheelbase Frame Kit X1

HK8B45 BLHeli-S 45A 4in1 ESC X1

betaflight OMNIBUS F4 Pro(V2) built-in OSD/BEC Flight Controller X1

2004 2900KV 1.5mm Shaft Brushless Motor X4

Caddx. Ratel 2 caddx fpv micro size starlight low latency freestyle FPV Camera X1

VT5804M V2 600MW 48CH VTX X1

5V Buzzer Alarm X1

Gemfan LR 5126 2-Blade CW CCW Propellers X2

FLYSKY Receiver/FRSKY Receiver/ELRS Receiver/DSMX/2 Receiver X1(Optional)

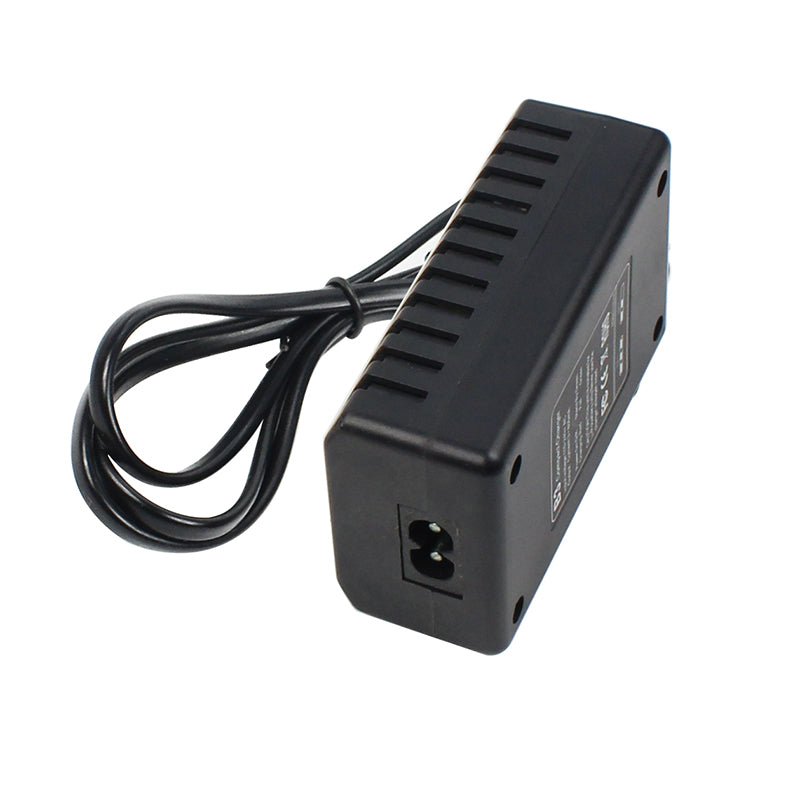

IMAX B3 PRO 2s-3s Blance Charger X1(Optional)

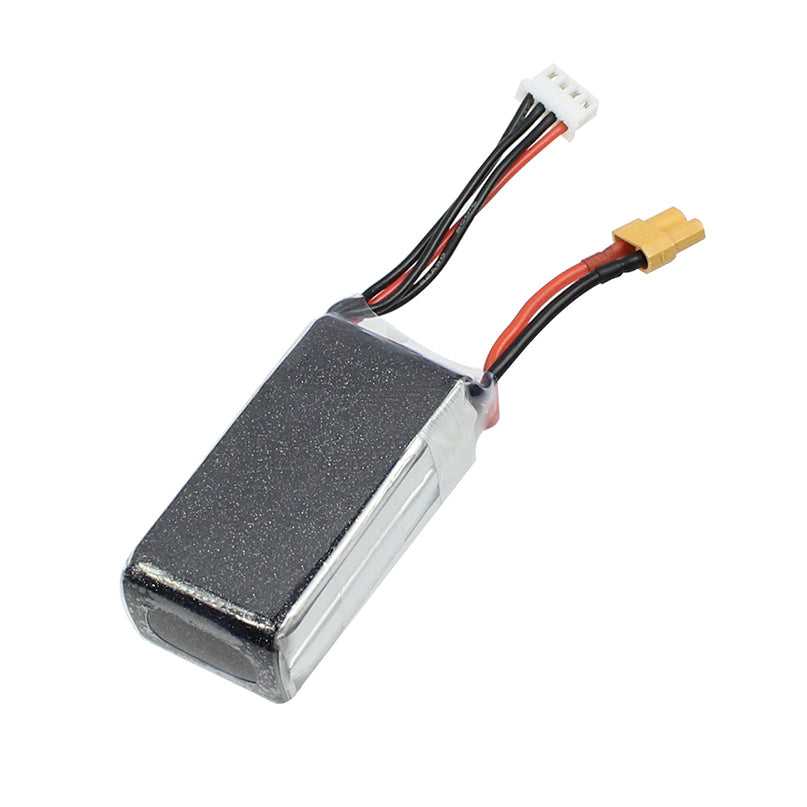

11.1v 1500mah 40C XT60 Lipo Battery(Optional)

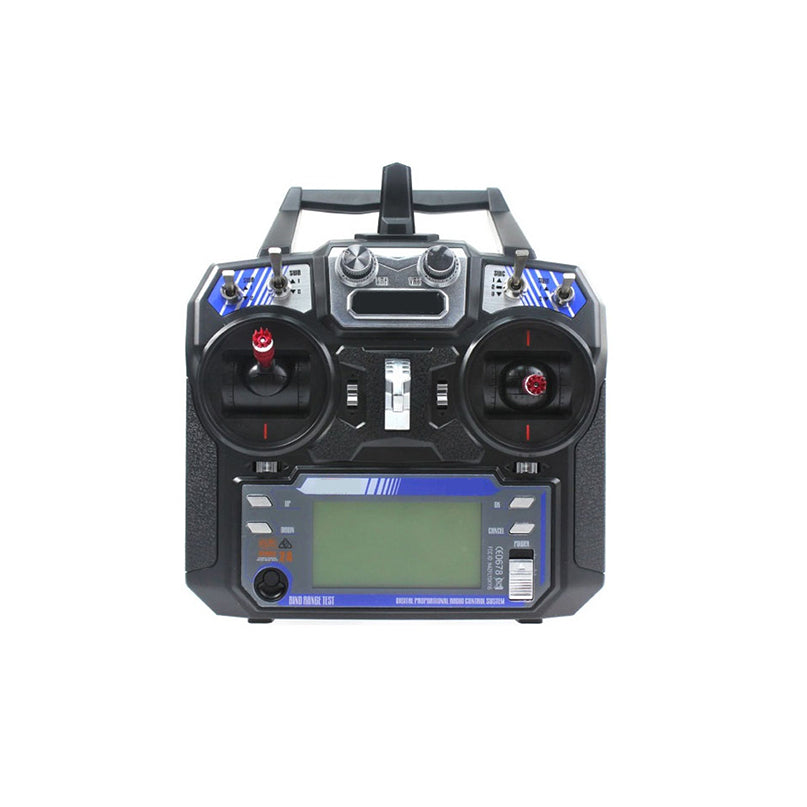

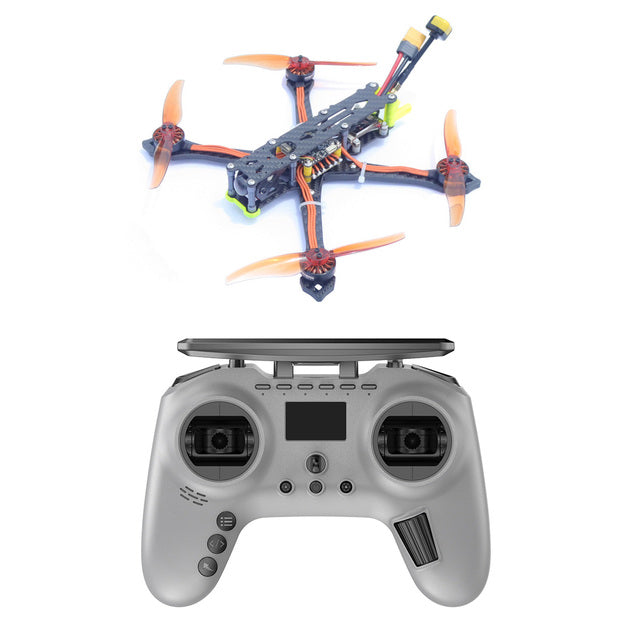

FLYSKY i6 or JUMPER T-Pro built-in 2.4G ExpressLRS Radio Transmiter(Optional)

5.8G FPV VR 40CH Goggles(Optional)

Functions and Features:

Wheelbase: 218mm

Support voltage: 3-4S

Battery life: about 12 minutes

Remote control distance: With Flysky FS-i6 Transmitter is about 400 meters, with Jumper T-PRO ELRS Transmitter is about 2000meters

Goggles can record video

Frame kit

Wheelbase: 218mm

Arm thickness: 5mm

Side plate thickness: 1.5mm

Upper and lower plate, center plate thickness: 2mm

Flight control installation size: 20x20mm(M2), 30.5x30.5mm(M3)

Motor installation size: 12mm(M2), 16mm(M3), 19mm(M3)

Camera installation size: 19mm

Aluminum column height: 25mm

Weight: 135g

Propellers:

Specifications: 5126

Length: 5.1inch

Material: PC

Center hole size: 1.5mm

Motor

Specification: 2004

KV: 2900KV

Size: φ24.8*12mm

Motor shaft: 1.5mm

No-load current (10V): ≤1.2A

Power ceiling: 406W

Slot pole: 12N14P

Voltage: 3-4S

Weight: 17.12g

ESC

Working voltage: 2-6S

Maximum continuous working current: 45A

Maximum instantaneous working current: 50A

Supported protocols: DShot150/300/600 PWM, Oneshot125, Oneshot42 and Multshot

Software: BLHeliSuite

Firmware version: BL16.7

Installation hole distance: 20*20mm / 30.5*30.5mm

Product size: 44*44*5.5mm

Product net weight: 13.6g

Flight Controller

MCU: STM32F405RGT6

Barometer: BMP280

Gyroscope: MPU6000

OSD: AT7456E

Mounting hole: 30.5x30.5mm

Built-in 5V BEC

Weight: 8.1g

BUZZER

Input Voltage: 2-4S Lipo

ESC current: 13A

Firmware: BLHELI_S GH-30.HEX

Supports PWM, Oneshot42, Oneshot125, Multishot, Dshot150 and Dshot300, Dshot600

VTX

Full format video format: NTSC/PAL

Weight: 12g

Input voltage range: 7-24V

Frequency: 48CH

Output power: 0mW/25mW/100mW/200mW/400mW/600mW switchable

Camera

Resolution: 1200TVL

FOV: 165°

Lens: 2.1mm

Video format: NTSC/PAL (switchable)

Ratio: 4:3/16:9 (switchable)

Input voltage: 5-40V

Size: 19*19*20mm

Weight: 5.9g

Goggles

1. Dual antennas at the same time, the signal is stable

2. Built-in DVR recording function, support 32G memory.

3. Built-in 3.7V 2000mah battery, which can support 3 hours of work per charge.

4, USB interface fast charge.

5. USB data export.

6. Support multiple languages.

7. Multi-function menu.

8. One-key search frequency.
