DPA-1698 High Power Dual Channel DDS Function Signal Generator Power Amplifier DC Power Amplifier 40V 0-100KHz EU/US Plug
OOTDTY
Dual Channel DDS Function Signal Generator High Power Amplifier DC Power Amplifier 40V 0-100KHz DPA-1698 EU Plug
Features:
1.High Quality:DPA-1698 dual-channel power signal amplifier is made of high-strength aluminum alloy, strong and durable.
2.Good Performance:Featuring excellent heat dissipation.

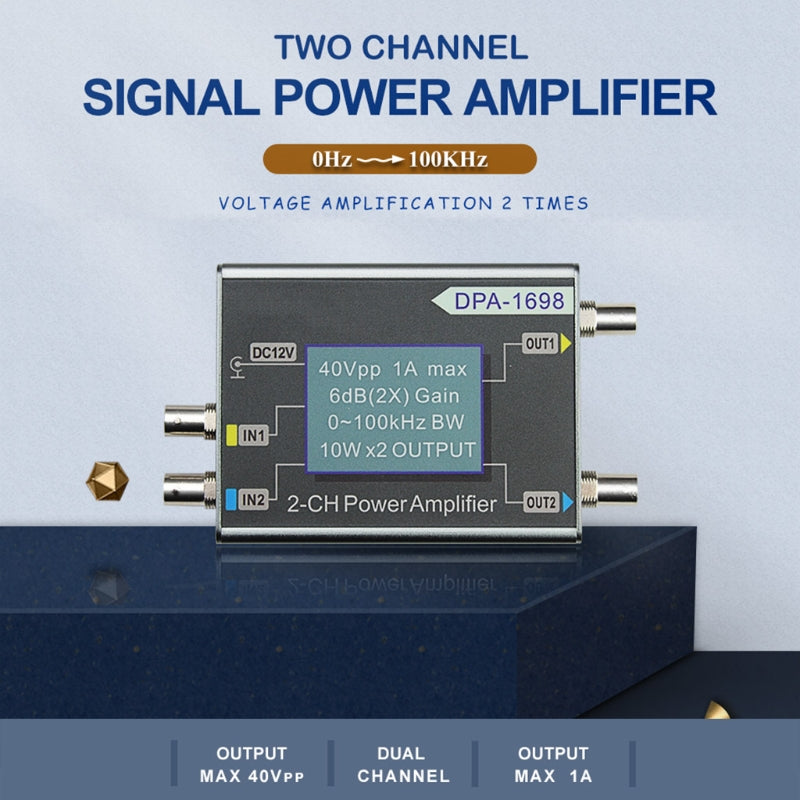

3.Wide Range:2 times the amplitude of the input signal, the single channel current can reach 1A, the frequency range is 0-100KHz.
4.Safe Use:The power supply adopts 12V5A power adapter, which is very safe.
5.Application:It is very suitable for use in teaching equipment, industrial control, product line testing, metal detection, physiotherapy, beauty, ultrasonic equipment driving and other fields.
Descriptions:

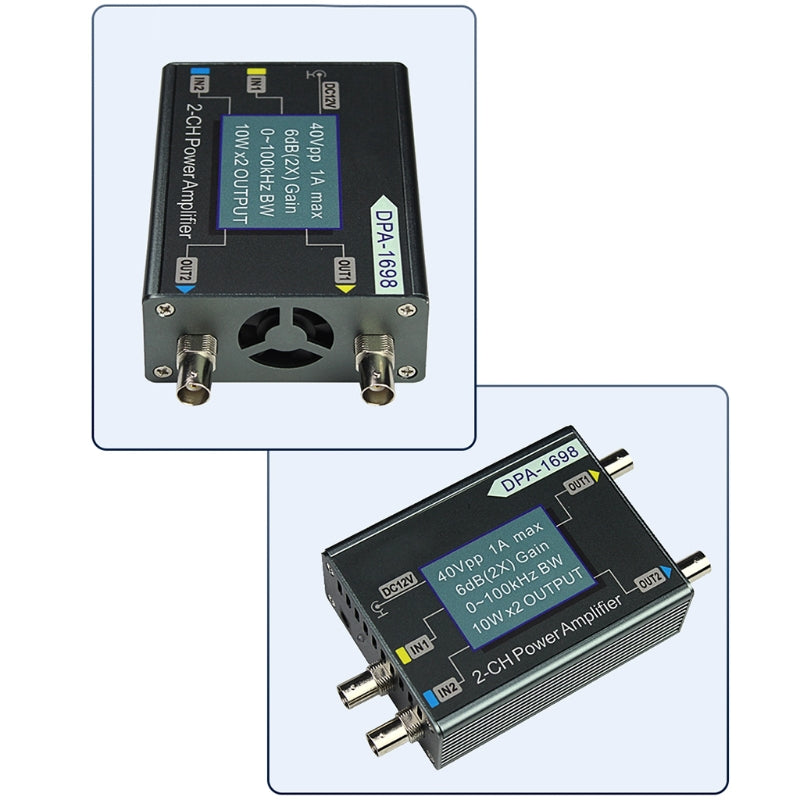

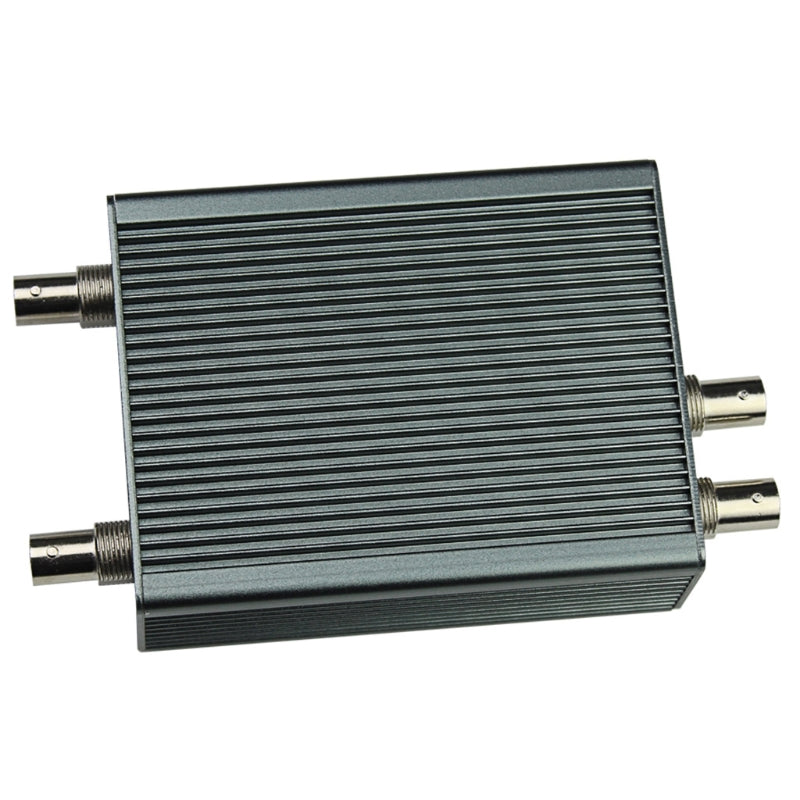

1.Made of high-strength aluminum alloy, the DPA-1698 dual-channel function generator amplifier is strong and durable, featuring excellent heat dissipation.
2.The power supply is very simple and convenient to use.
3.It can be used together with our signal generators and signal generators produced by other manufacturers.
Specifications:
Model:DPA-1698
Signal Bandwidth:0-100 kHz
Input Voltage Range:0-20Vpp
Output Voltage Range:0-40Vpp
Voltage Gain:6dB (double amplification)
Output Maximum Current:1A
Maximum Output Power:10W*2
Output Impedance:≤1Ω
Output Phase:In phase with input
Distortion:≤1%
Flatness of Output Signal:±1dB
Input Power Supply Voltage:DC12V±10%
Input Maximum Current:5A
Size:103.3x80x37.6mm/4.07x3.15x1.48in
Weight:351g/12.29oz
Type:US, EU(Optional)
Color:Black
Package Information:
Package Size:195x160x60mm/7.68x6.3x2.36in
Package Weight:850g/29.75oz
Package Included:
1 x DPA-1698 2-CH Function Generator Amplifier

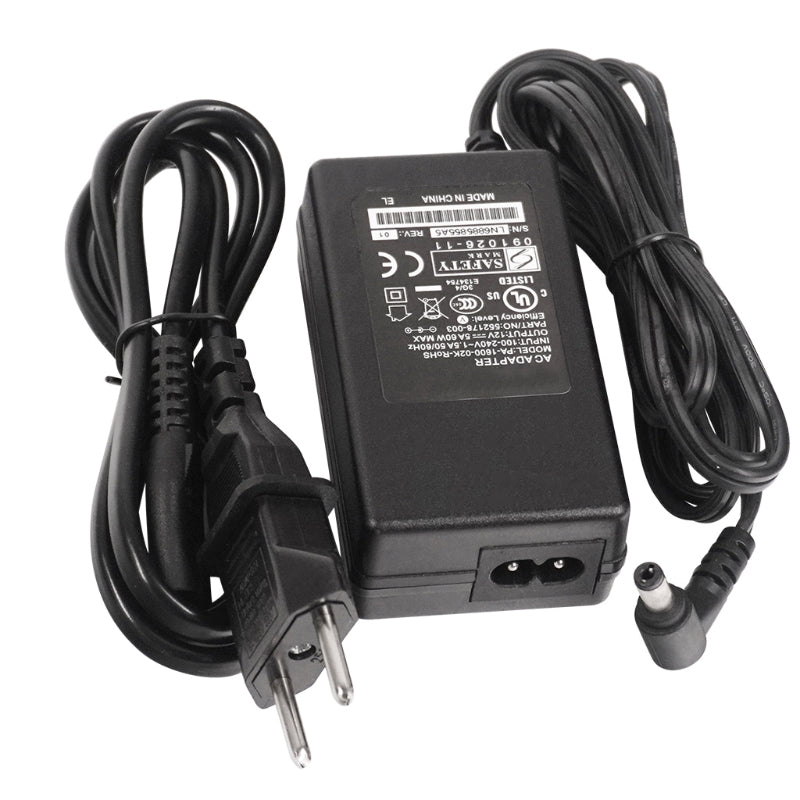

1 x Power Adapter (EU)
1 x Q9-Q9 Cable
