ADOPTS WITH LITHIUM CELL MANAGEMENT OFFERS FAST AND SAFE CHARGING--Adopt intelligent lithium cell management IC for fast and safe charging
BALANCING CHARGING EXTENDS BATTERY LIFE--With balance charging to balance the characteristic of each battery in battery pack and prolong battery life
MULTI-OVER PROTECTION ENSURES SAFETY USE--Provide a variety of protection functions including overcharge, over-discharge, short circuit, and temperature protection
EQUIPPED WITH ALUMINUM FIN ENSURES QUICK HEAT DISSIPATION--Equipped with thickened aluminum fin to achieve quick heat dissipation
MANY TIMES TESTING ENSURES HIGH QUALITY--This product has gone through load and aging test for quality assurance
Discharge current: 40A
Charging current (same port): 15A
Main circuit on-resistance: less than or equal to 15m ohm
Charging voltage: 71.4v
Overload protection:
Detection voltage: 4.25 +/- 0.025v
Detection delay: 1000ms 500ms
Release voltage: 4.15 +/- 0.05v
About discharge protection
Detection voltage: 2.8 +/- 0.1v
Detection delay: 1000ms 500ms
Release voltage: 3.0 +/- 0.1v
Balance voltage:
Detection voltage: 4.15 +/- 0.025v
Current balance: 42MA
Overcurrent Protection:
Detection voltage: 150MV
Detection delay: 1000ms 500ms
Current protection: 100 +/- 20a
self-consumption:
Working power consumption: 35ua
Sleep power consumption when discharging: 10ua
Operating temperature range: -30/+80℃
colour: as shown
Material: ABS+metal

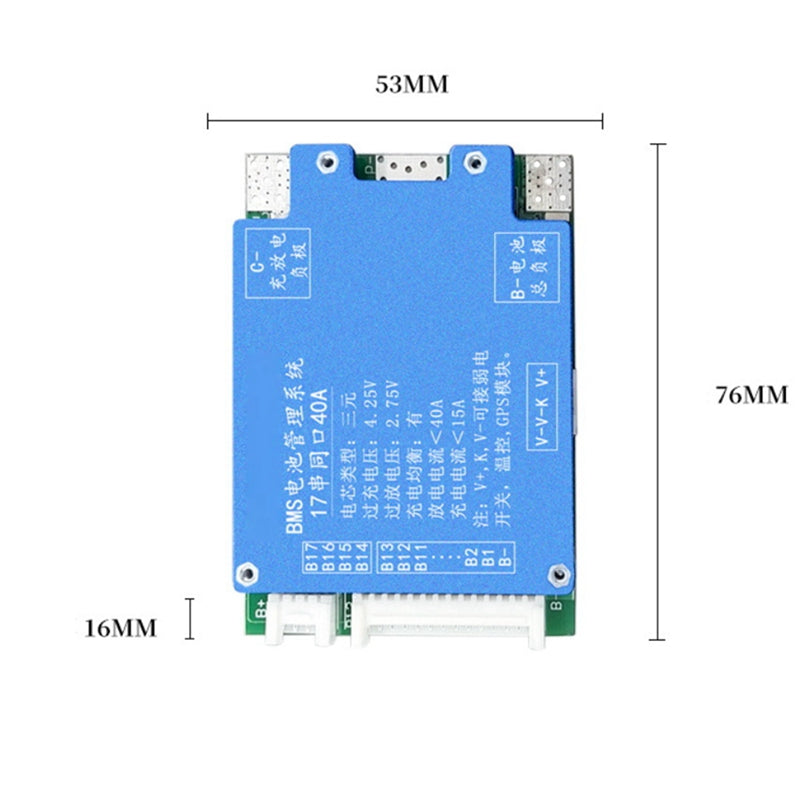

Size: 76x53x1.6mm
Package Contents:
1 x bms battery charging protection board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
