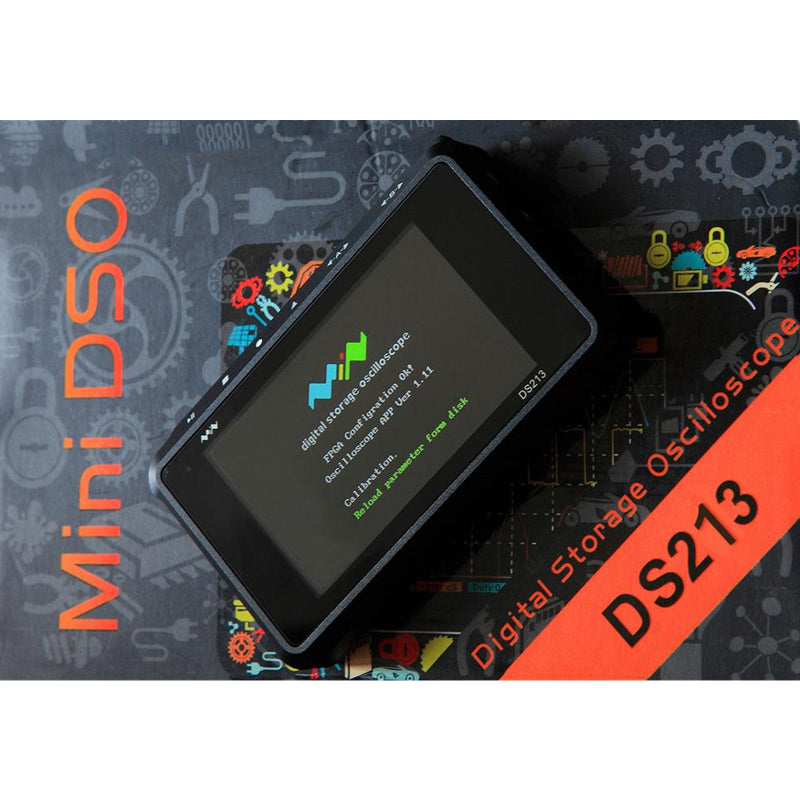

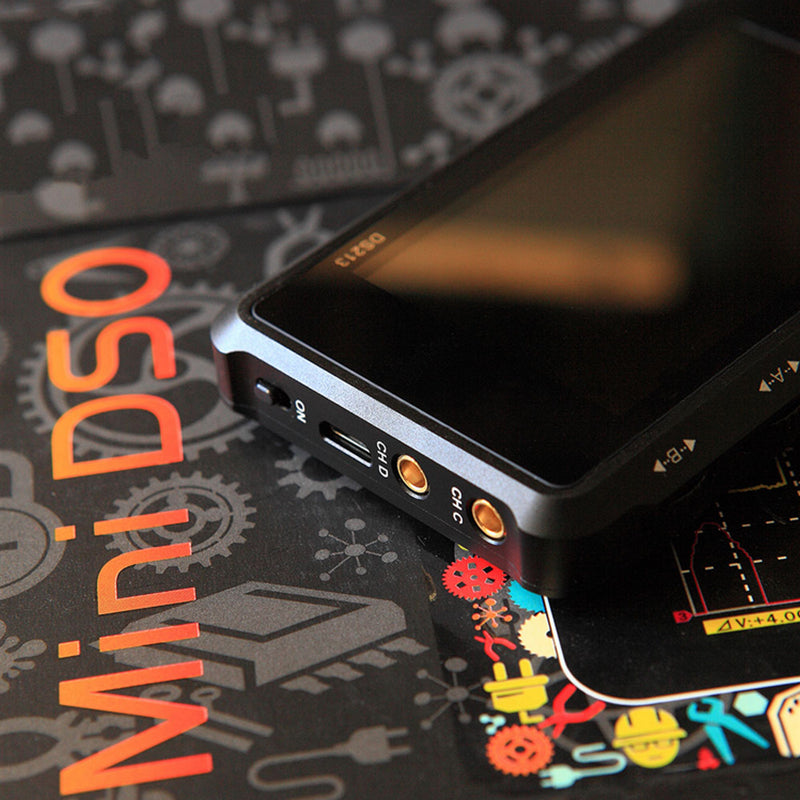

Mini DSO Pocket Size DSO213 Digital Oscilloscope USB Handheld Oscilloscopes Kit Analog Bandwidth Osciloscopio DS213

         DS213 is a “5-track, 4-wave line” digital storage oscilloscope for general-purpose electronic engineering task and it is based on ARM Cortex M3 core. DS213 uses FPGA to manage external ADC’s control and data cache mode. It provides 4 application partitions for loading and upgrading up to 4 different application firmware. It also has built-in 8MB USB flash drive for storing waveforms and upgrading system firmware. The oscilloscope code application layer is open source, and users can develop oscilloscope firmware according to their needs

    Product Features

    Mini size, light weight, portable and handheld;

     It can store waveforms, making waveform analysis clearer and more effective;

    Multiple trigger modes, support Ascend/Descend Edge Trigger, Positive/Negative Pulse Trigger, and Logic Trigger;

    Powerful ability to process waveforms, it can automatically measure parameters such us voltage, frequency and pulse width.

    Technical Specifications

    CPU: ARM Cortex M3

    FIFO & Control: FPGA

    ADC: HWD9288-100

    Analog Channels: 2（[CH_A] [CH_B]）

    Digital Channels: 2（[CH_C] [CH_D]）

    Operation Channel: INV [CH_A], INV [CH_B], [CH_A]+[CH_B]、 [CH_A]-[CH_B]、[CH_C]&[CH_D]、[CH_C] | [CH_D]

    Vertical Sensitivity: 10mV-10V/div (1-2-5 STEP) (using X1 probe)

    100mV-100V/div (1-2-5 STEP) (using X10 probe)

    Vertical Resolution: 8 bits

    Sample Memory Depth: 4 channels, 4*4K

    Coupling: DC, AC

    Max Input Voltage: ±40Vpp (using X1 probe)

    ±400Vpp (using X10 probe)

    Trigger Types: Ascend/Descend Edge Trigger Mode, Positive/Negative Pulse Trigger, Logic Trigger

    Trigger Mode: Auto, Normal, Single, Slow

    Trigger Source: [CH_A] [CH_B] [CH_C] [CH_D]

    Signal Source: Square Wave: 10Hz to 8MHz, in total 20 shifts and 3 Vpp Signal Sources;

    Sine/Triangle/Sawtooth Wave: 10Hz to 20MHz, in total 11 shifts and 3 Vpp Signal Sources

    Storage: built in 8M USB disk

    File Types: BMP、BUF、CSV

    Auto Measurement Types: Signal sequence/cycle/duty ratio, peak voltage/virtual value/max value/min value/average

    Cursor Measurement: Time value, Amplitude value

    Display Modes: 4 wave lines: Line 1: [CH_A], HIDE

    Line 2: [CH_B], HIDE

    Line 3: [CH_C], REC_1, REC _2, REC _3, REC _4, HIDE

    Line 4: [CH_D], [CH_A]+[CH_B], [CH_A]-[CH_B], [CH_C]&[CH_D], [CH_C] | [CH_D], HIDE

    Sampling Mode: Real-time Sampling

    Sampling Rate: 100M Sa/s

    Battery: 1000mAh

    Size: 99.5mmx58.5mmx13.5mm

    Weight: 129g (with battery)

         Certificate: CE, FCC

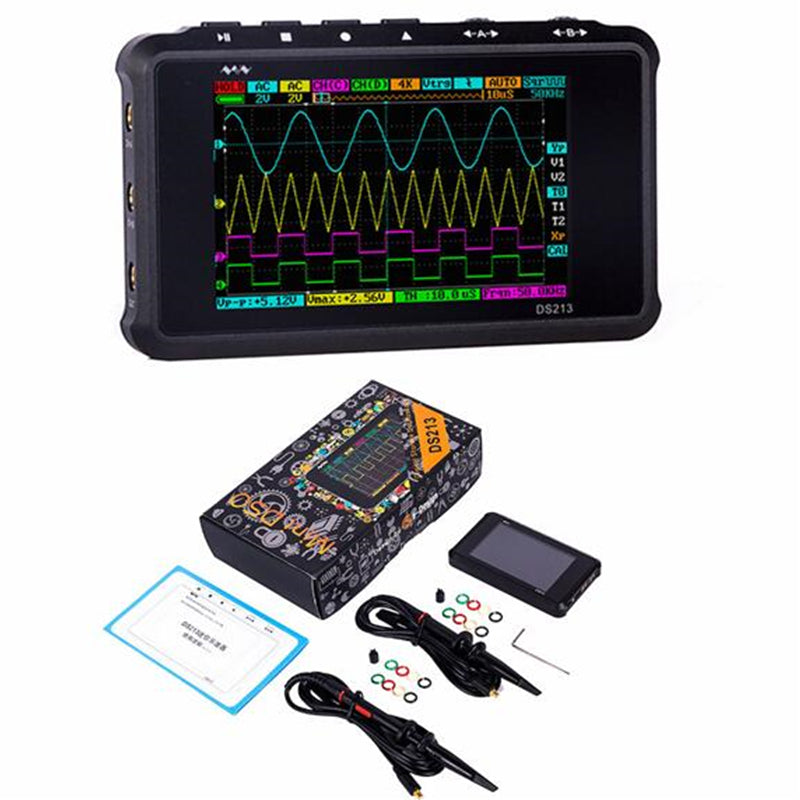

         Package included :

         1 x DS213 Digital Oscilloscope

         1 x X10 Probe

         1 x X1 Probe

         1 x USB Cable

         1 x Screw driver

         1 x Cover Bag

         1 x User Manual

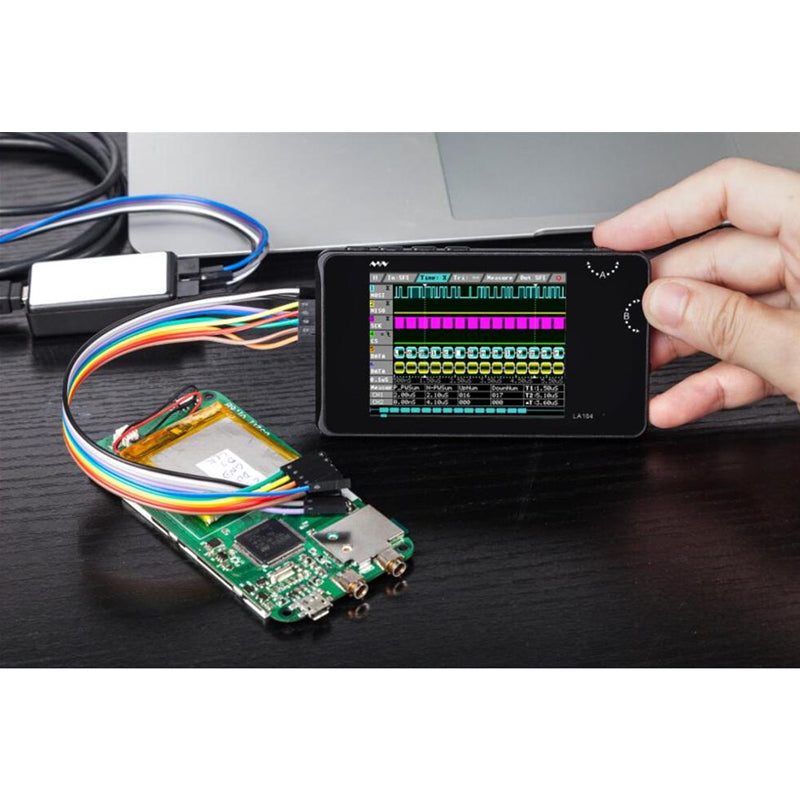

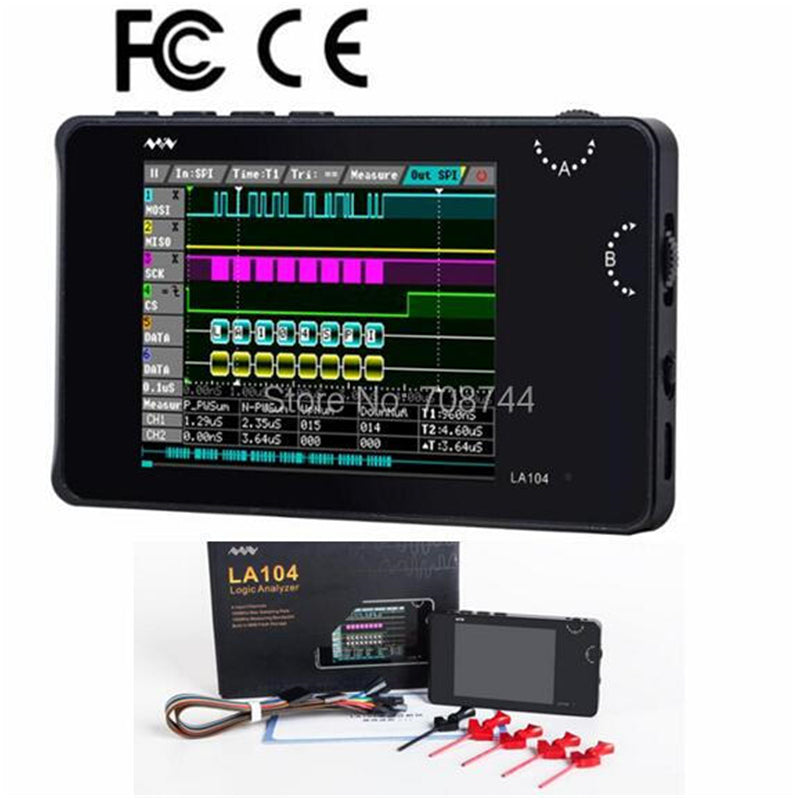

          Mini DSO LA104 Digital Logic Analyzer 2.8" Screen 4 Channels Oscilloscope SPI IIC UART Programmable 100MHz Max Sampling Rate

   Features

     Model: LA104 Logic Analyzer

     Color & Material:  Black Metal Case

     Input channels:  4

     Output channels:  4

     Maximum sampling rate:  100MHz

     Minimum captureable pulse width:  10ns

     Equivalent input impedance:  1M Ohm

     Programmable type:  SPI IIC UART

     3V Power output channel:  1

     Built-in battery capacity:  550mAh

     Certifications:  CE, FCC

     Storage:  Built-in 8MB Flash

     Screen Size:  2.8"

     Resolution:  320*240

     Product Size:  100*56*8.6 mm

  Input

  ●Channels:4

  ●Max Sample Rate:100Mhz

  ●Minimum capture pulse width:10ns

  ●Input impedance:1MΩ

  Output

  ●Channels:4

  ●Mode:SPI,I2C,PWM

  ●3V out put Channel:1

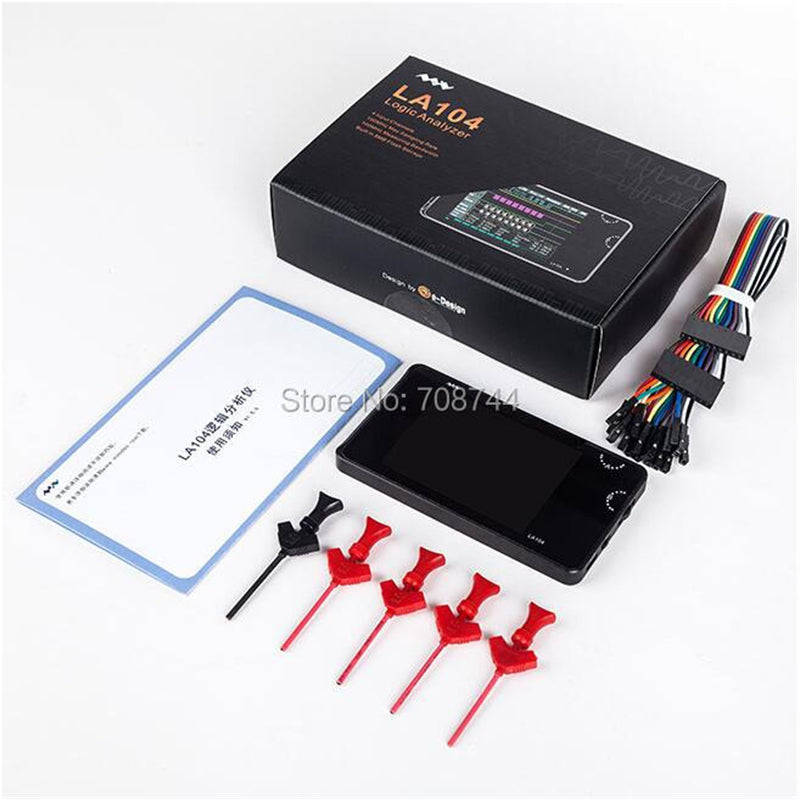

     Packing list

     1* LA104 Logic Analyzer

     20* Dupont Line

     5* Probes

     1* User Manual

   DSO213

Mini DSO LA104
