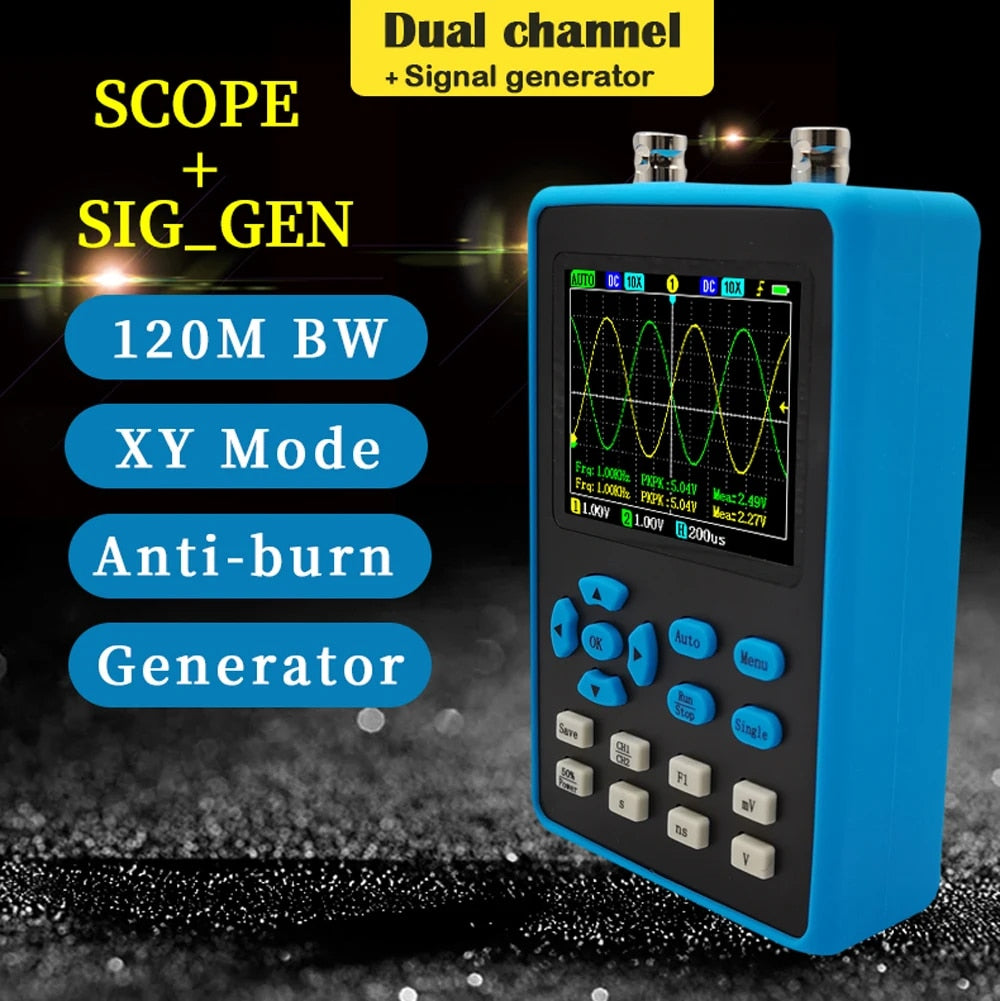

This DSO2512G 120M bandwidth oscilloscope with powerful functions, like adopt ARM and FPGA chip collocation, also can output Various waveforms of 2.5V amplitude such as sine waves, half waves and so on. Come on and try it, it will not let you down.

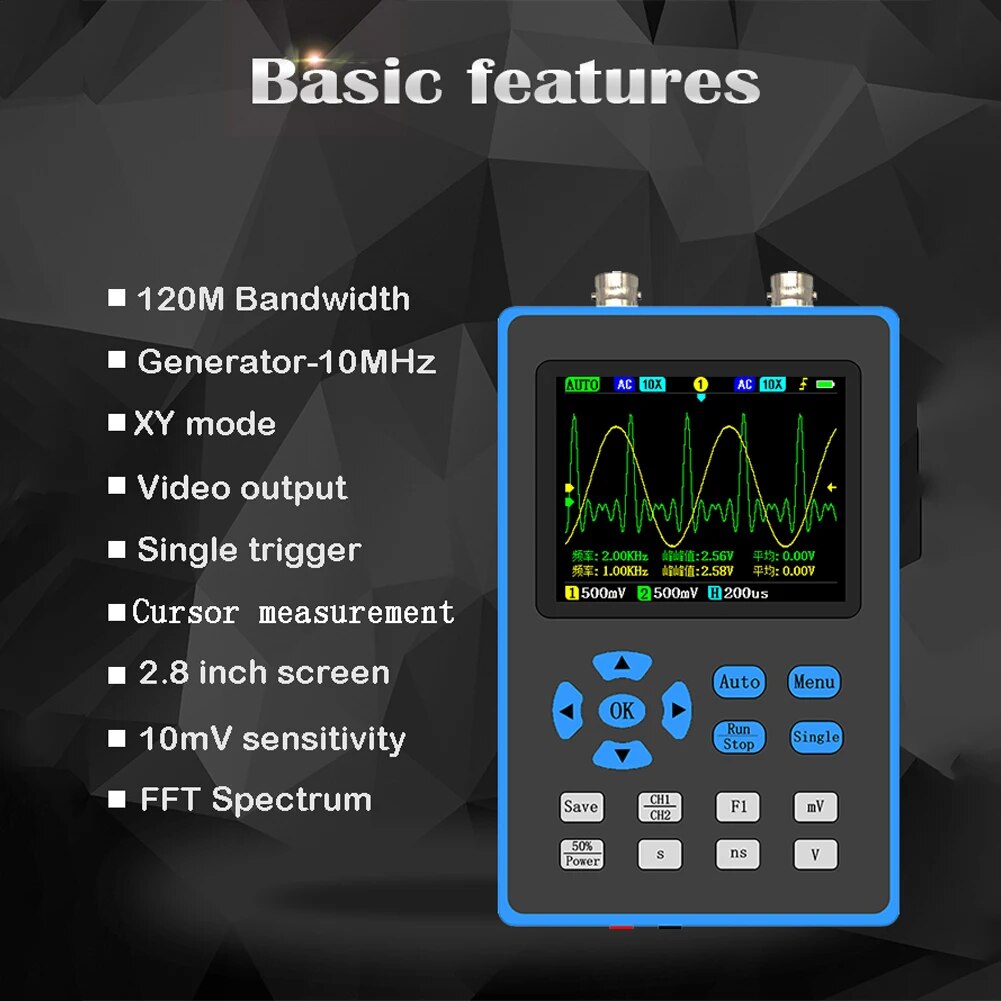

Features:
Adopts ARM and FPGA chip collocation, provides high-speed signal acquisition and high-speed data processing to give you a smooth use experience and rich functions.
When the channel two closed, the bandwidth can reach 120M, the bandwidth is 60M when the channel 1 and 2 open at the same time.

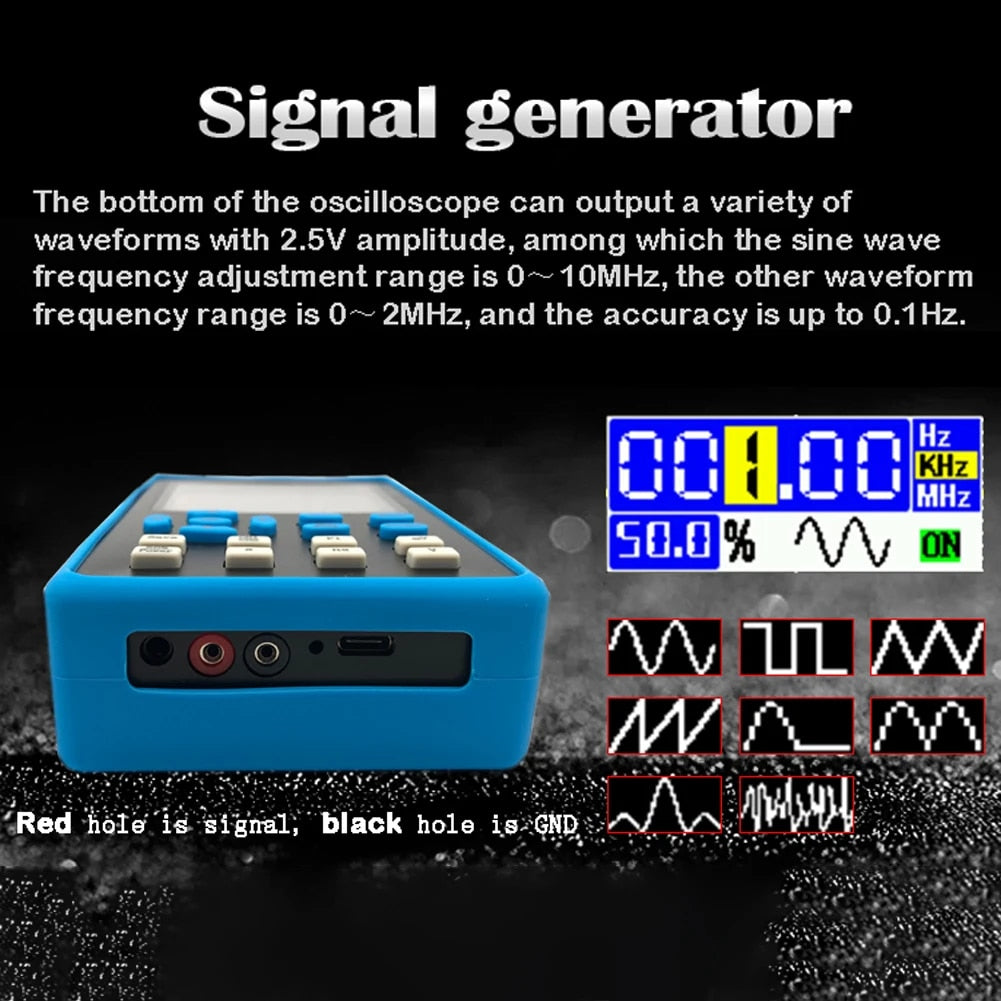

The bottom of the oscilloscope can output a variety of waveforms of 2.5V amplitude such as sinewaves, squarewaves, trianglewaves, halfwaves, singhwaves, among which the frequency adjustment ranges of sinewaves is 0~ 10MHz, the frequency ranges of other waveforms is 0~2MHz, and the accuracy is up to 0.1Hz. Signal generators are widely used, such as squarewaves for new probe calibration, driving MOS tube, etc., sinewaves can be used for testing audio distortion, etc.
There are 14 measurement options available: Frequency, P-eak to P-eak, Duty cycle, Amplitude, RMS, Average, Period, +Pulse width, -Pulse width, Max, Min,Top, Base, -Duty cycle.
There are three types of trigger mode: auto, normal and sin-gle, the automatic trigger can update the waveform in real time without triggering, the normal trigger need have a waveform trigger to update the waveform and the sin-gle trigger will sample a fr-ame of waveform and stop automatically after the k-ey is pressed.
Through USB cable connection, the waveform map can be exported to the com-puter (up to 50 at a time)  for you re others to use.
Support scaling waveform after stopping: after stopping, you can drag the waveform from left to right to find the place you are interested in to expand the observation details and analyze the cause of the problem.

Specifications:
Material: ABS
Channels: 2
Coupling: AC/DC
Precision of V: ±2%
Bandwidth 120M

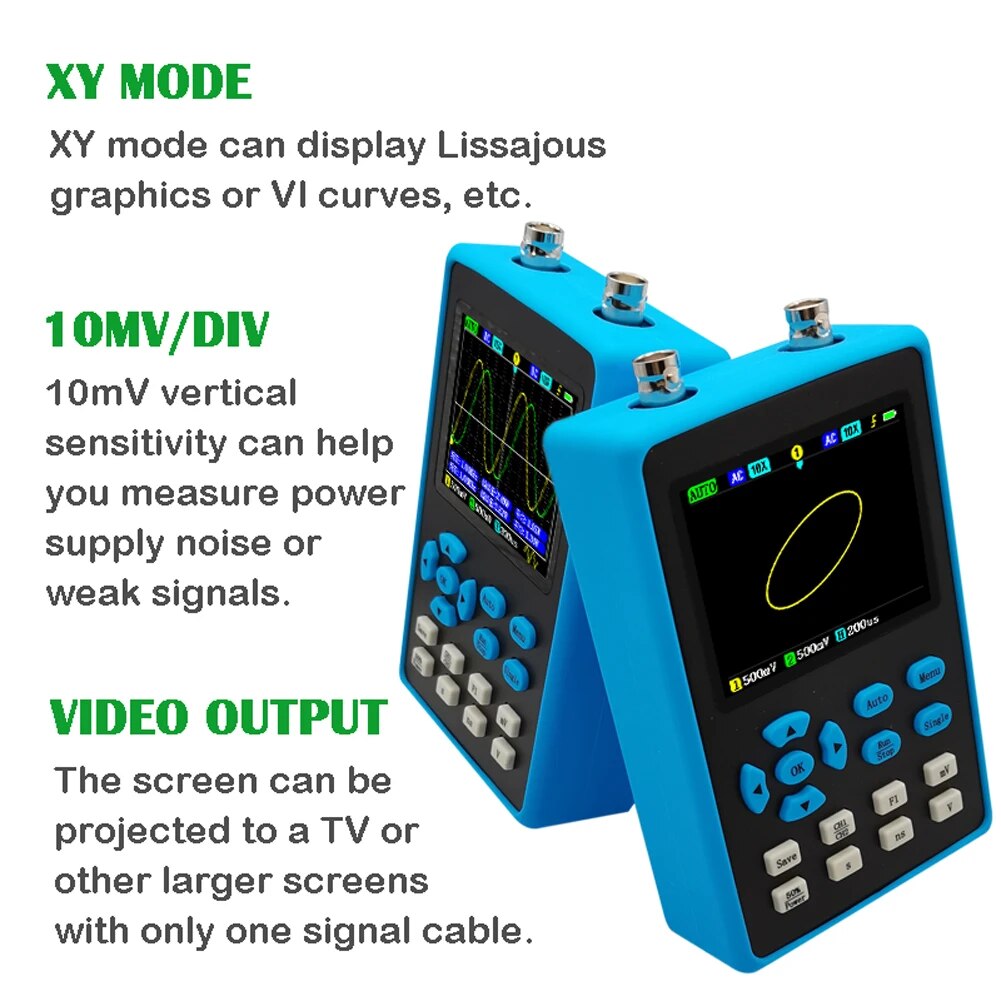

 XY mode: support
Sampling rate: 500M
Screenshot: support
Rise time: <3ns
Frequency: ±0.01%
Storage depth: 128Kbit
Sin-gle: support
Impedance: 1MΩ
FFT: support
Time base: 5ns~10s
Wa-ve out amp: 2.5V
Ver sensitivity: 10mV/div~10V/div
Waves out freq: 10MHz(sin) 2MHz(other)
Max voltage ±40V(x1), ±400V(x10）
Trigger type: rise/fall
Display mode: YT/Roll
Persistence: None/1s /∞
Battery: 1 * lithium battery, 4000mAh (included)
Package size: 210 * 140 * 115mm / 8.3 * 5.5 * 4.5in
Package weight: 689g / 1.5lb

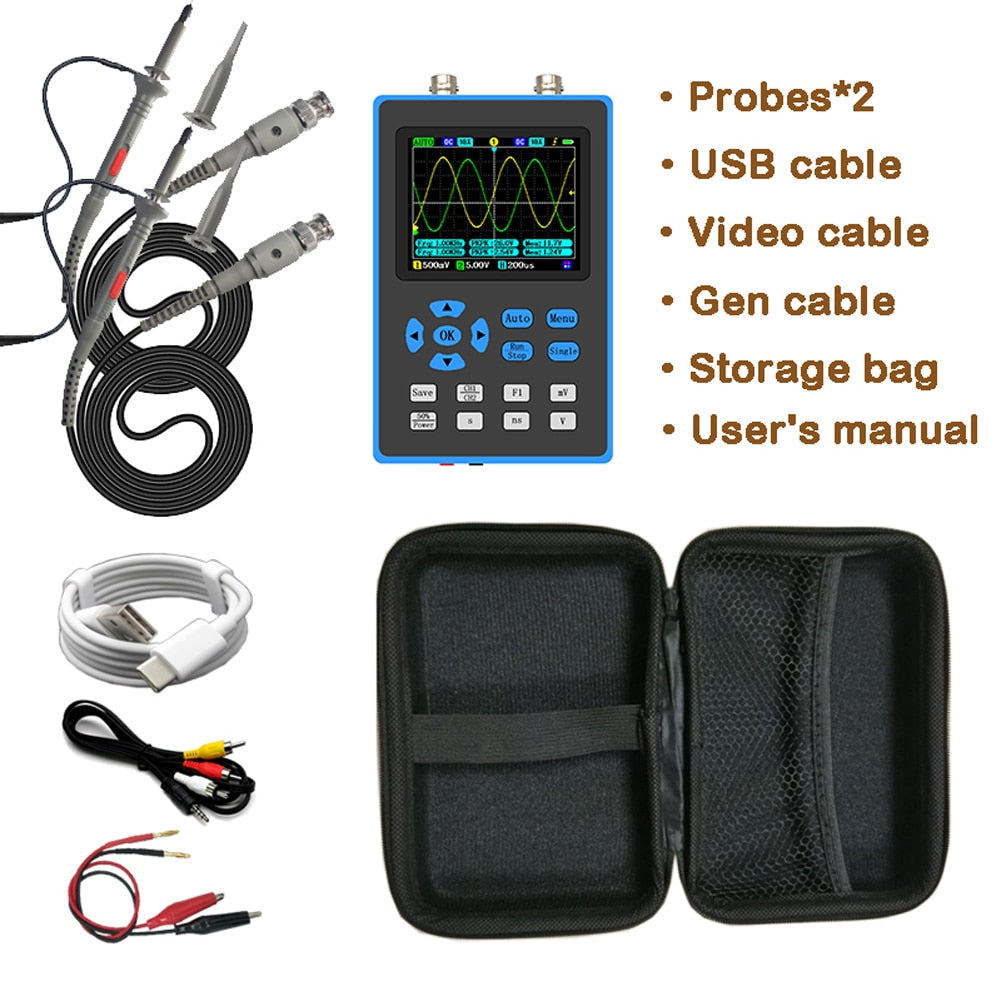

Packing list:
1 * Oscilloscope
2 * Probes
1 * Video Cable
1 * Gan Cable
1 * Storage Bag
1 * User Manual
