Features:

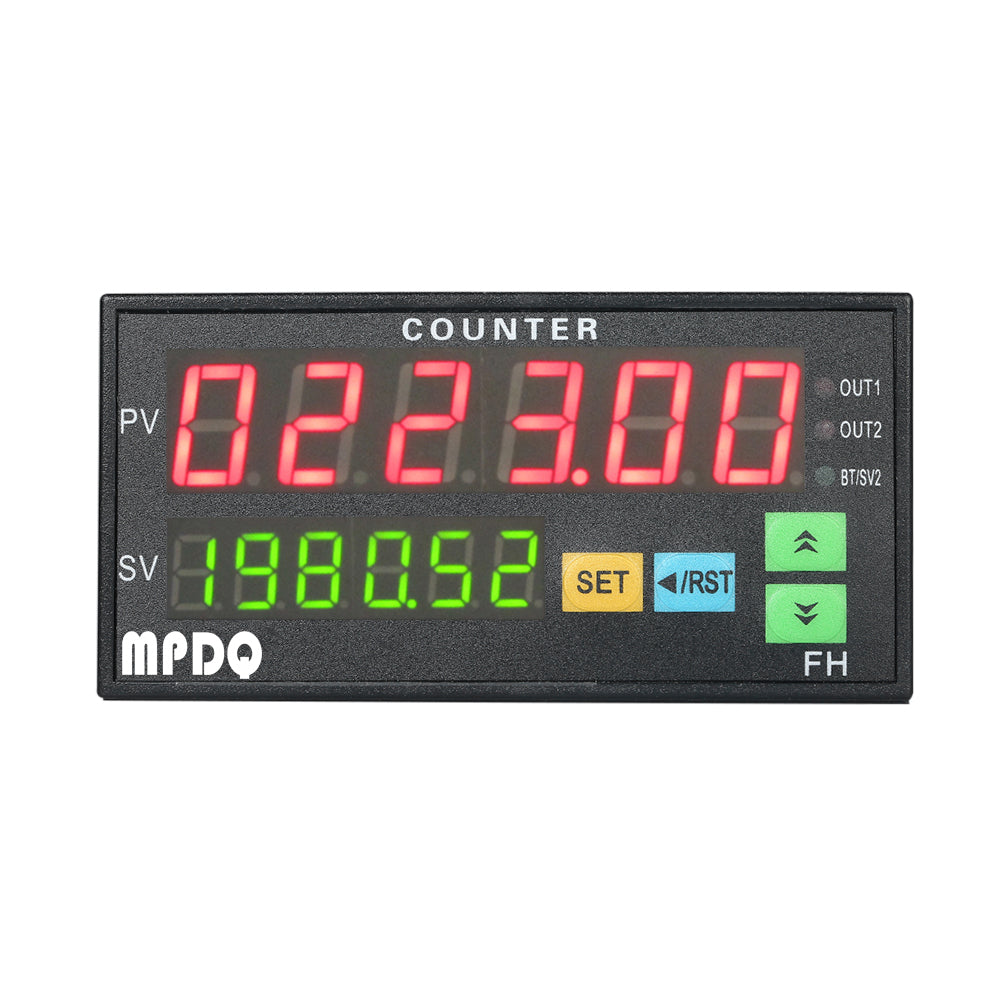

Dual 6 digits light-emitting diode display for clear reading.
NPN and PNP sensor input is switchable.
Includes 4 kinds of input mode, 6 kinds of output mode for option.
Input and output is optional isolated.
Counting Range: -199999～999999; Preset Range: 0.00001-999999.
Can set alarm value for relay output.
Can be connected with encoder, proximity switch, photoelectric switch, optical sensor, laser sensor, etc.
Widely applied in chemical, machine, light industry, etc.
Specifications:
Material: ABS
Voltage: 90~265V AC/DC
Auxiliary Power: 24V DC
Input: Pulse Signal: Square Wave and Sine Wave: 5V≤H≤30V 0≤L≤2V up edge active
Input Impedance: ≥10KΩ
Counting Speed: 30/5000CPS
Counting Range: -199999～999999
Preset Range: 0.00001-999999
Response speed: switch type input 0~5000hz, incremental encoder input 0~2000hz
Accuracy: ±0.1%F.S
Output: 2 Relay Contact Output
Environment Temperature: 0～50℃
Storage Temperature: -10～60℃
Environment Humidity: 35～85%RH
Insulation Resistance: ≥10MΩ
Power Consumption: ≤5W
Contact Edge: Up edge active

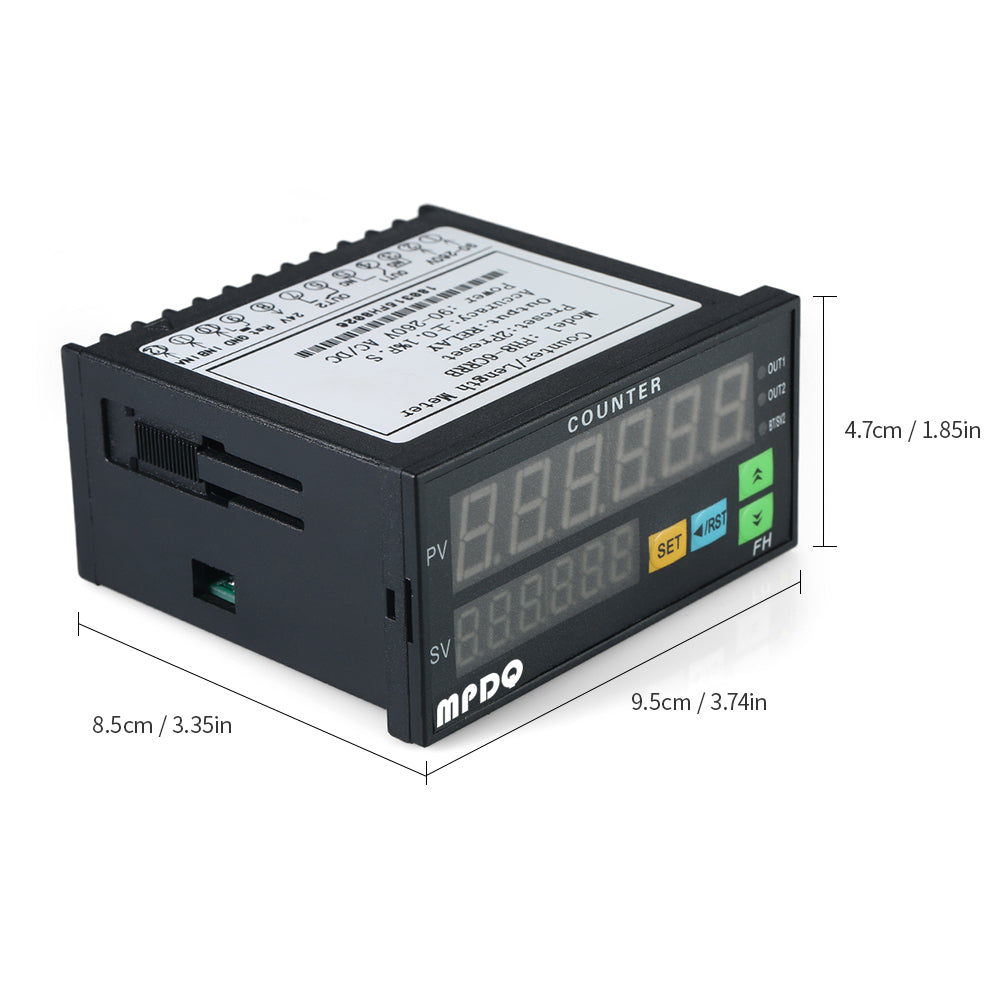

Item Size: 9.5 * 8.5 * 4.7cm / 3.74 * 3.35 * 1.85in
Item Weight: 167g / 5.89oz
Package Weight: 203g / 7.16oz
Package Size: 11 * 10.1 * 5.5cm / 4.33 * 3.98 * 2.17in

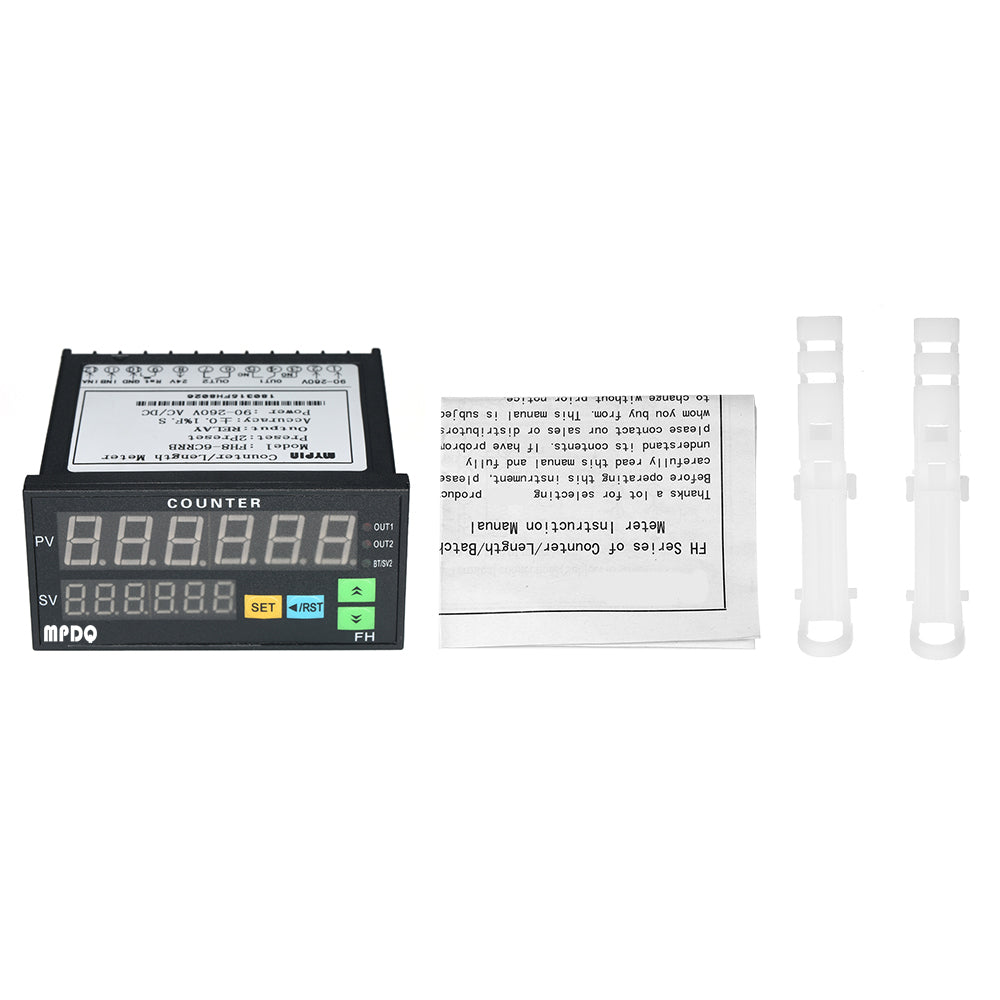

Packing List:
1 * Counter
2 * Brackets
1 * User Manual (English)
