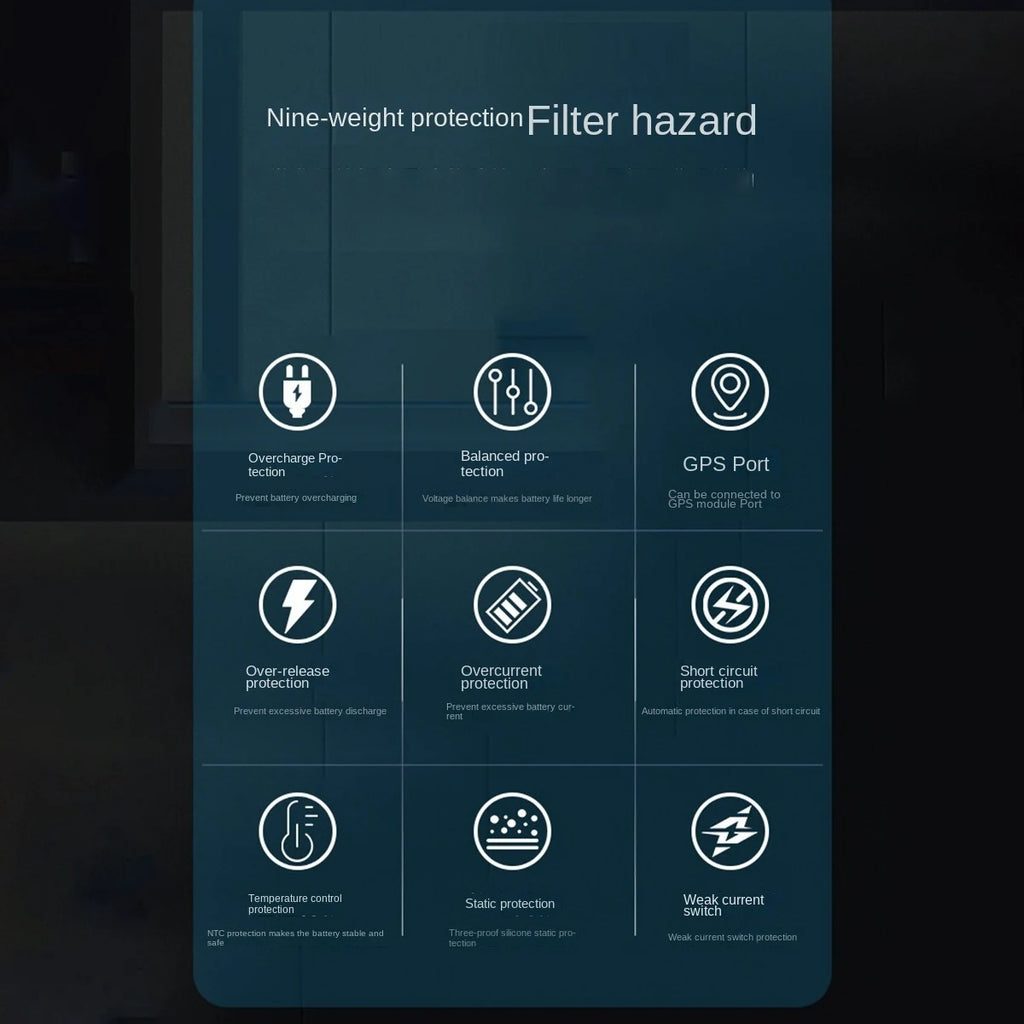

Balance protection, battery voltage balance, make battery life longer
Stable heat dissipation, stable heat dissipation of the aluminum substrate, safer
TVS safety protection absorbs anti-high voltage, reduces MOS tube breakdown, ultra-low internal resistance MOS
Suitable for most electric tools on the market, electric scooters, electric bicycles, electric tricycles, electric motorcycles, electric vehicles, electric tools, etc.

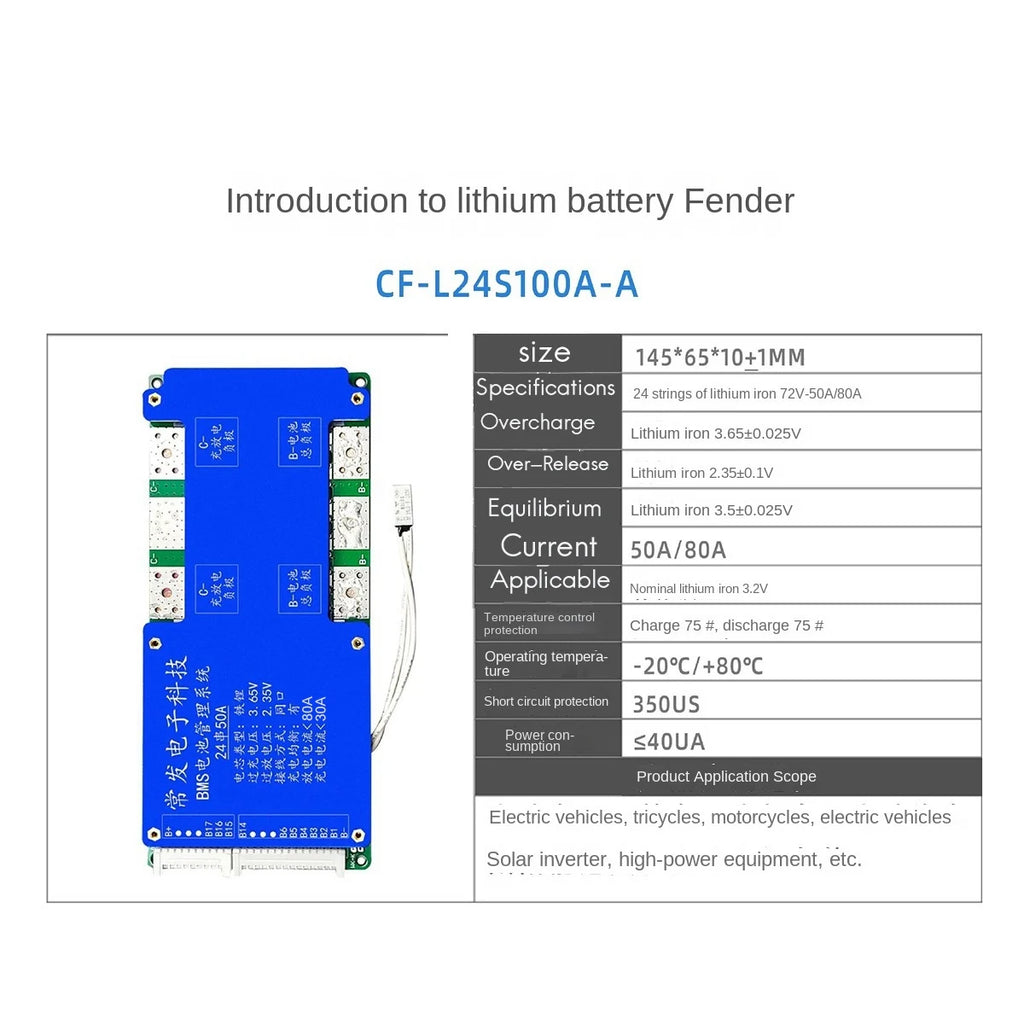

Product name: Lithium battery protection board
Product type: 24S 72V 50A/80A (with Equalization temperature control)
Specifications: 24S Lithium Iron 72V 50A/80A
Iron lithium battery nominal: 3.2V

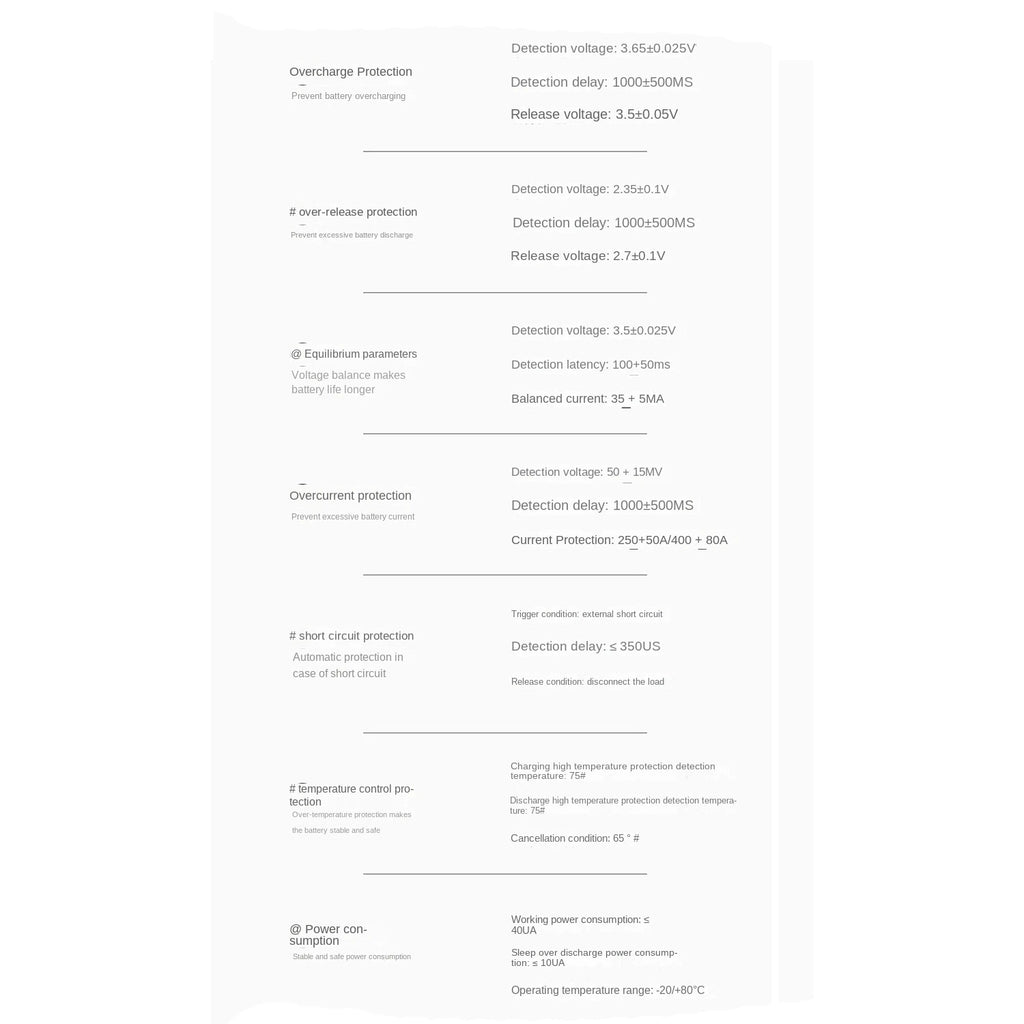

Overcharge: Iron Lithium 3.65±0.025V
Overdischarge: Iron Lithium 2.35±0.1V
Equalization: Iron Lithium 3.5±0.025V
Current: 50A/80A
Charging current (same port): less than equal 20A/less than equal 30A
Main circuit on-resistance: less than equal 15Mohm/less than equal 10Mohm
Discharge overcurrent protection: 250±50A/400±80A
Temperature control protection: charge at 75°C, discharge at 75°C
Working temperature: -20℃/+80℃
Short circuit protection: 350US
Self-consumption: less than equal 40UA
Product application range: for Electric vehicles, tricycles, motorcycles, electric vehicles, solar inverters, high-power equipment, etc

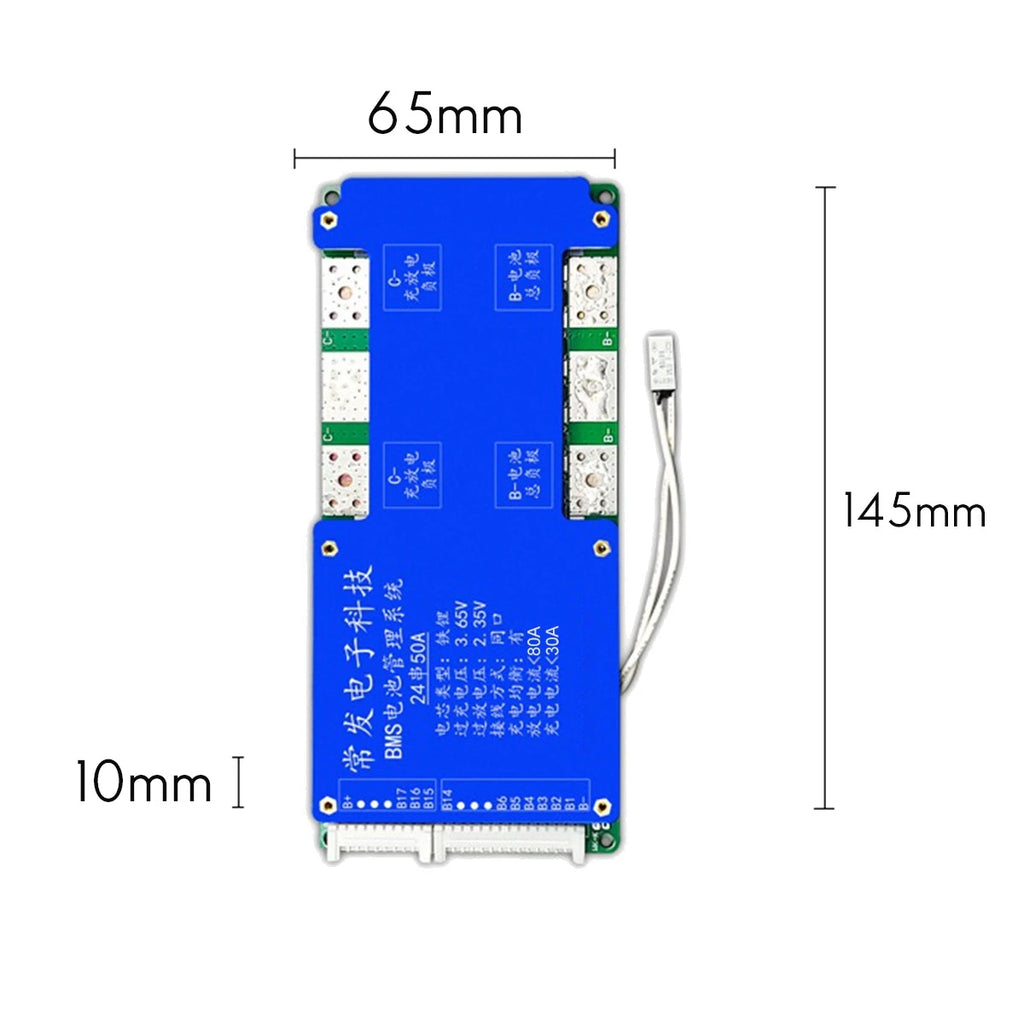

Product size: 145x65x10mm
Colour:blue
Material:PCB+Metal
Package Contents:
1 x lithium battery protection board
1 x cable
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
