Description:
Brand: Eachine

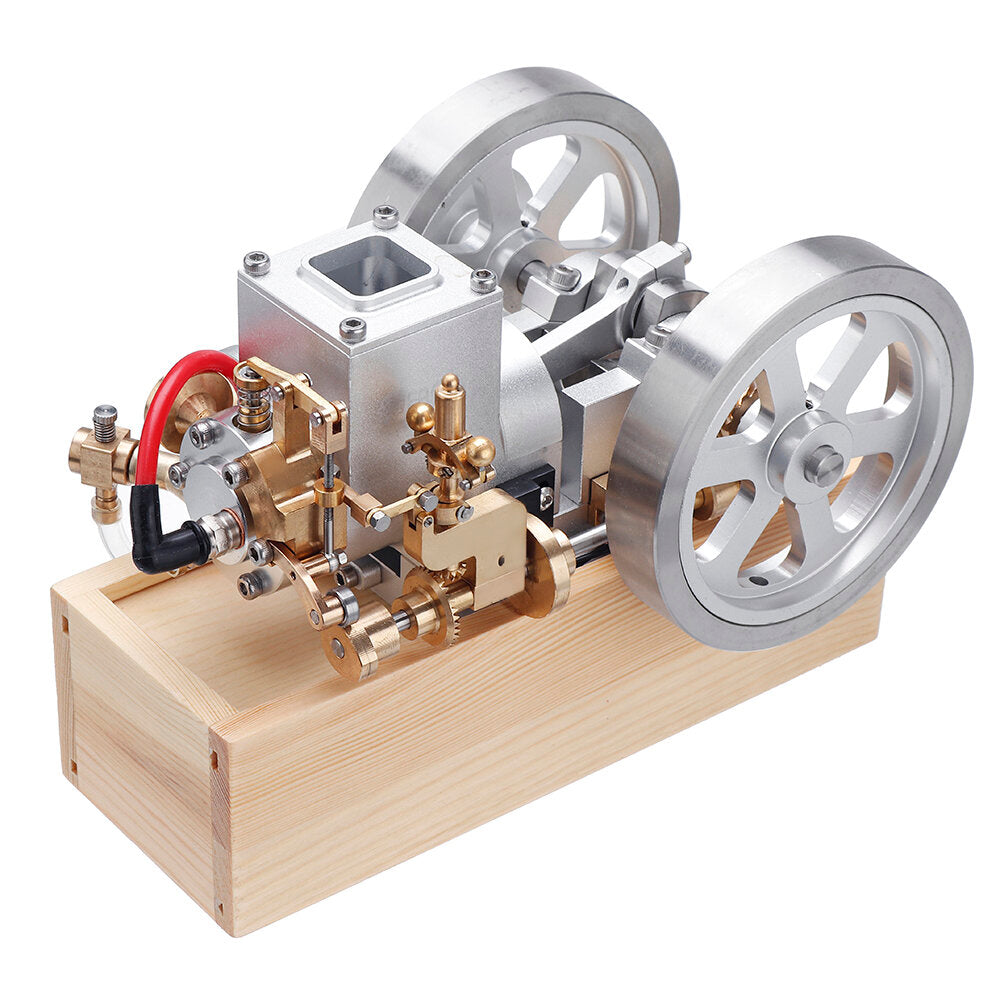

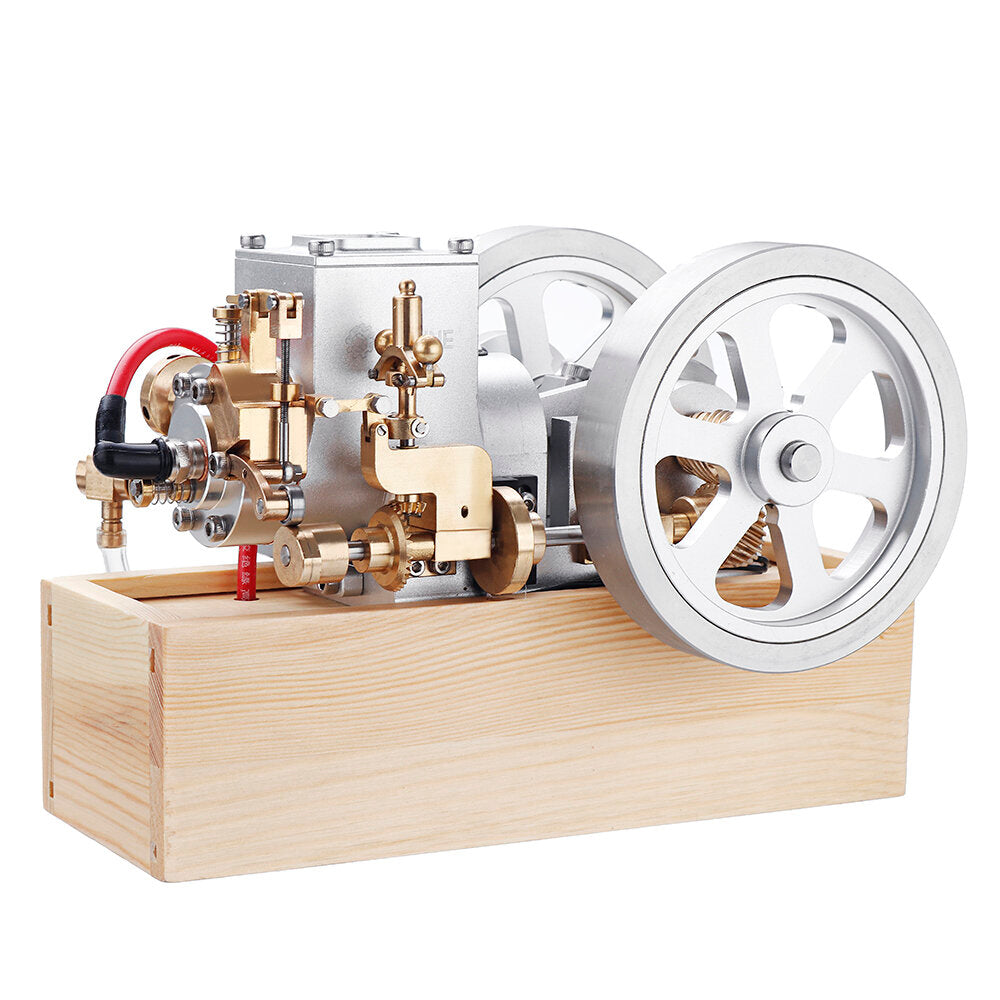

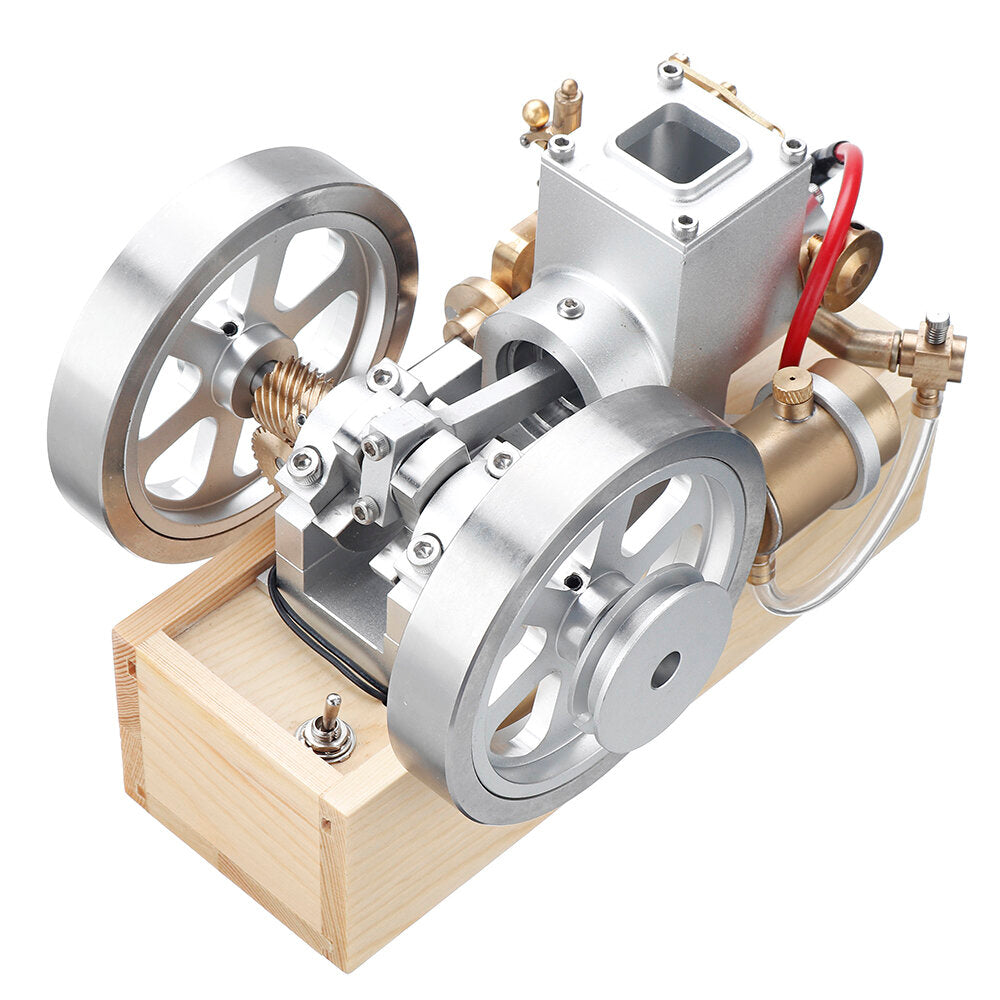

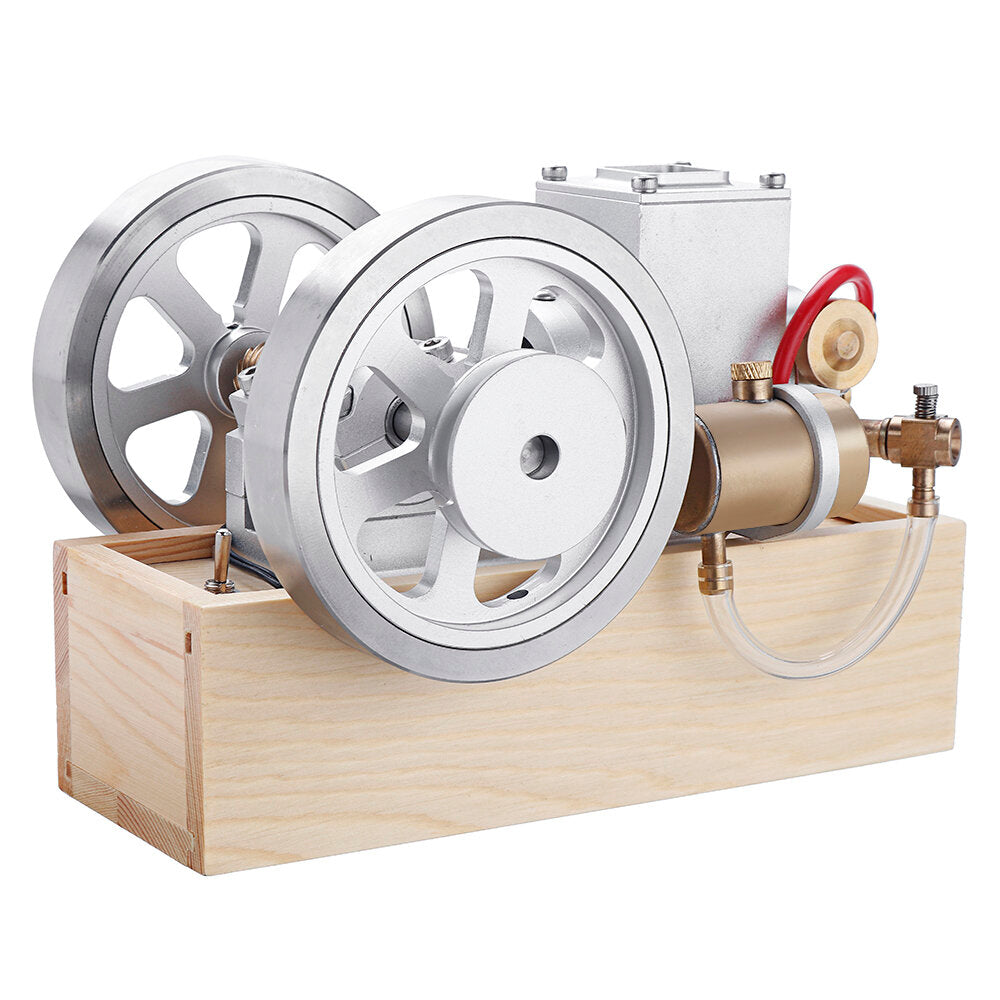

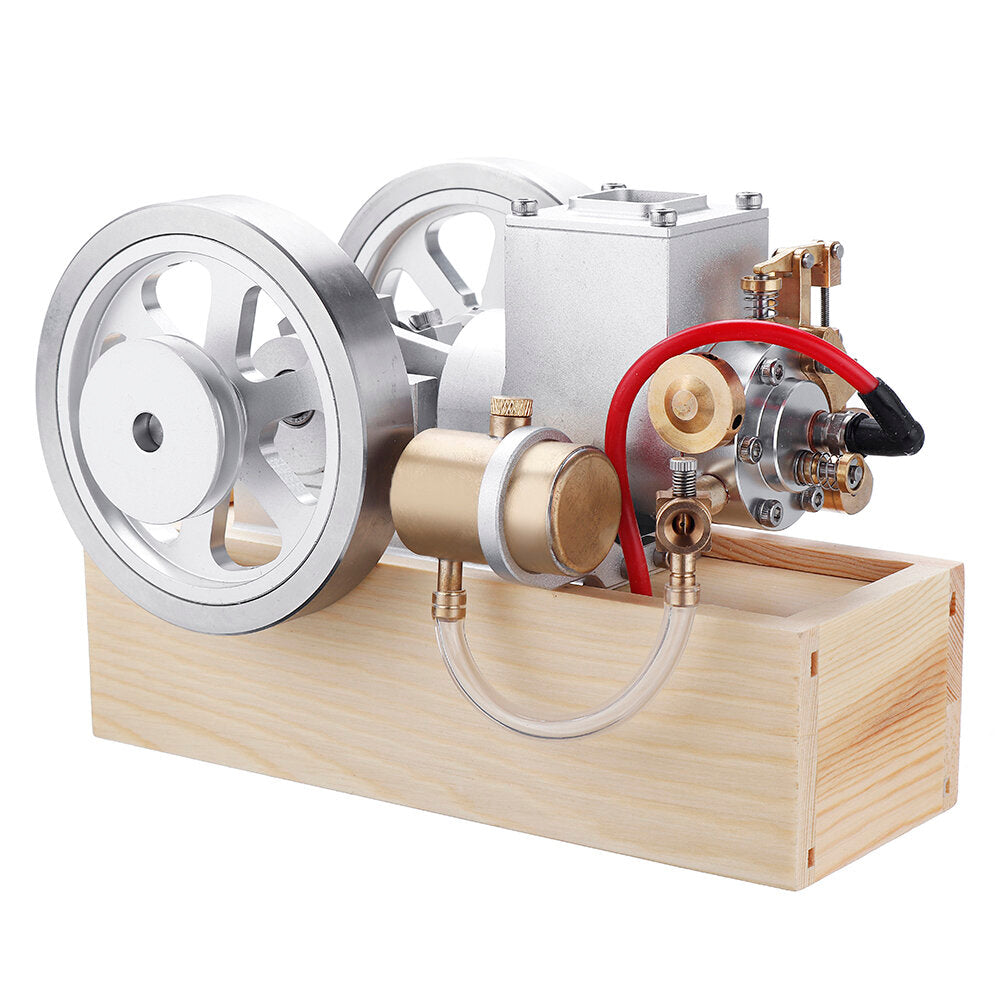

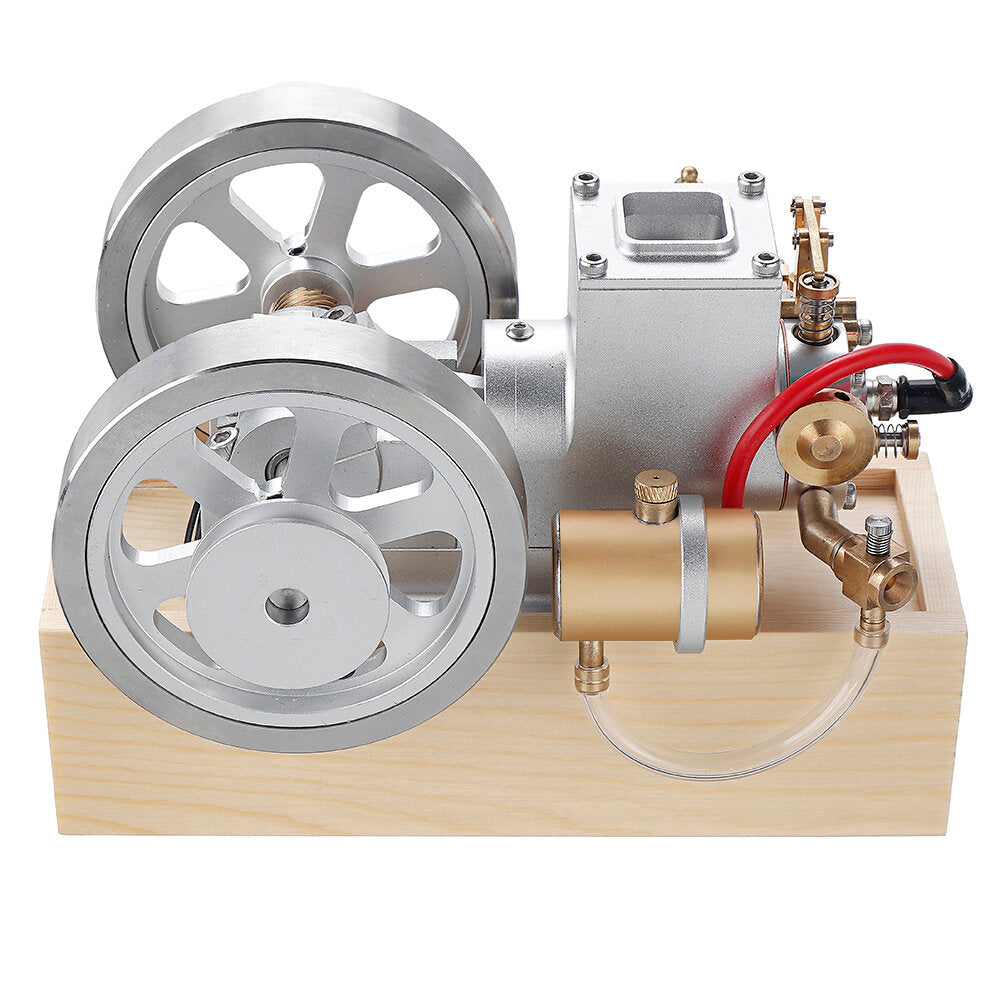

Name:Eachine ET6 Horizontal Hit and Miss Complete Engine Model
Size: 180*125*125MM
Displacement: 6CC.
Cylinder diameter: 22MM.
Itinerary: 20MM.
Weight: 1610G
Material: Brass And Stainless Steel
This is a horizontal gasoline engine model, it is an ancient structure that uses water to cool.
This engine uses a 90-degree helical gear transmission, and the flywheel speed limiter is connected with a large bevel in the middle. The engine will be more appreciated when working.
The engine uses a side valve design. Different ordinary valve structures further increase the difficulty of our processing. Through the compact side transmission mechanism, it can be seen that this is a unique engine.
You only need to add petrol to the tank and add the battery (3.7V) will be able to start it.
Features:
Engine startup steps:
1.Open the bottom plate to check the wiring of the engine, connect thefuel tank pipe, and install the three No. 5 batteries to close the bottomplate.
2.Fill the fuel tank with gasoline (95#). When the filling is completed,make sure there is no air in the oil pipe.
3.on the right side of the engine (installation of the flying hammerposition), slowly turn counterclockwise by hand to buy more than oneturn, its role can make the mixed gasoline fully enter the cylinder.
4.Turn on the power switch and turn the flywheel to start the enginecounterclockwise on the right side of the engine (installing the flyinghammer position).
Precautions:
1.If the ignition device is normal and the cylinder is under normalcompression, if the machine still does not start normally, it is very likelythat the carburetor needle should be adjusted.
2.screw the screw on the top of the carburetor, then loosen 1/4 turn, startthe flywheel, This can be done several times to make the mixing ratio ofgasoline and air reach the normal working mix ratio.
Note:
1.Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
2.Please allow little differs due to manual measurement.
3.Kids should be accompanied by adult.
Package Included:
1x Eachine ET6 Model
1xEngineSparePartsStartDevice
