| PC model | NANO10 | |
| PC size | 136mm(L)*126mm(W)*42mm(H) | |
| Cooling system | Equipped with heat dissipation holes, silent fan for heat dissipation | |
| Color | Black | |
| Motherboard model | NANO8U, NANO10U | |
| Motherboard | CPU |
Support Intel ® Whiskey Lake 8th generation Core i3-8145U, i5-8265U, i7-8665U, etc; Support Intel ® Comet Lake 10th generation Core i3-10110U, i5-10210U, i7-10510U, etc; |
| Memory | 1*NB DDR4,supports 2133/2400/2666MHz memory, low voltage 1.2V, maximum support 32GB | |

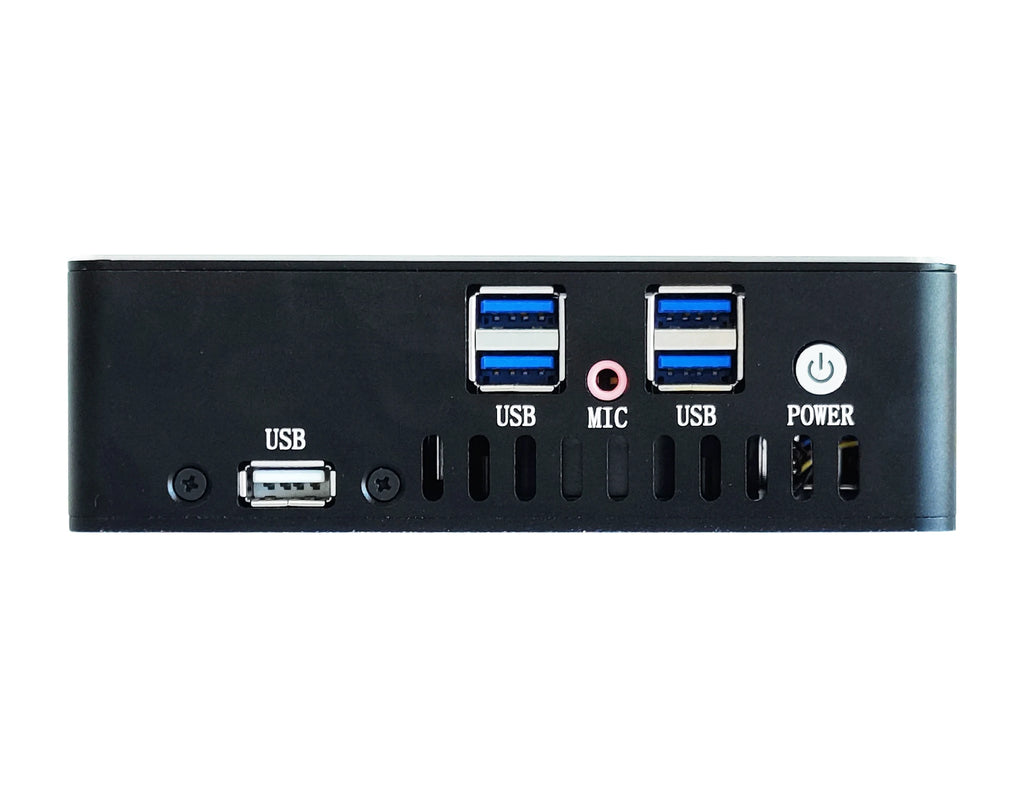

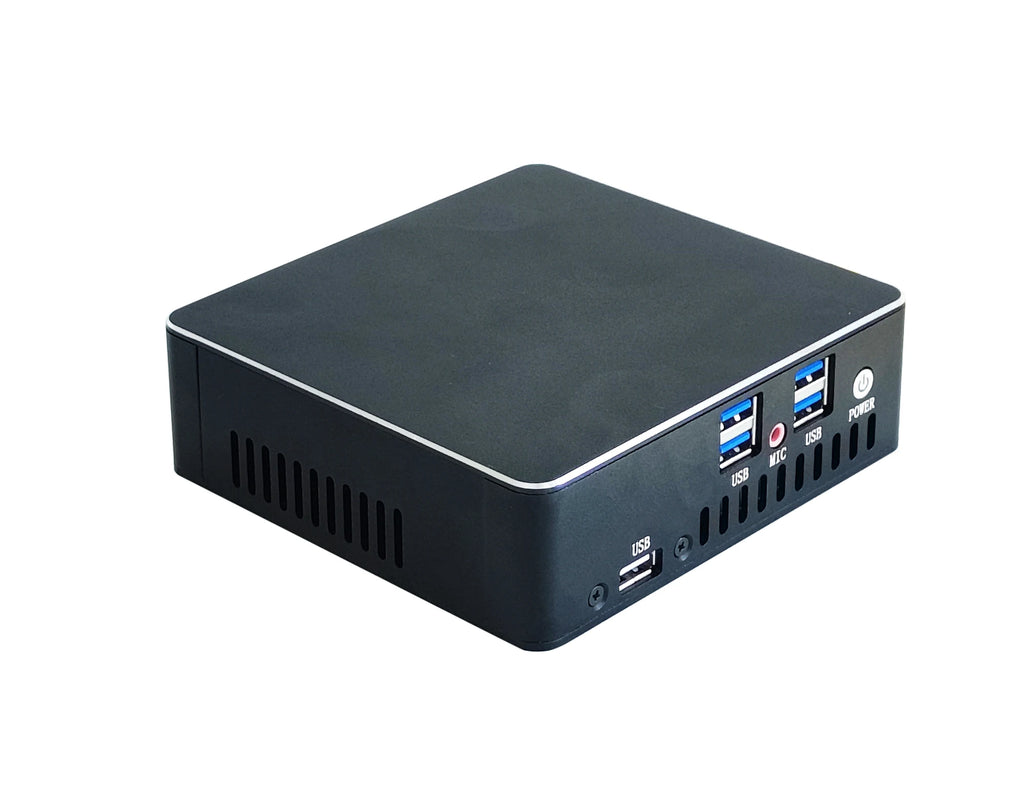

| Front panel interface | USB |
4*USB3.2 Gen1 interface 1*USB2.0 interface |
| POWER | 1*switch button; | |
| Audio | 1*MIC_IN interface(red),microphone input; | |

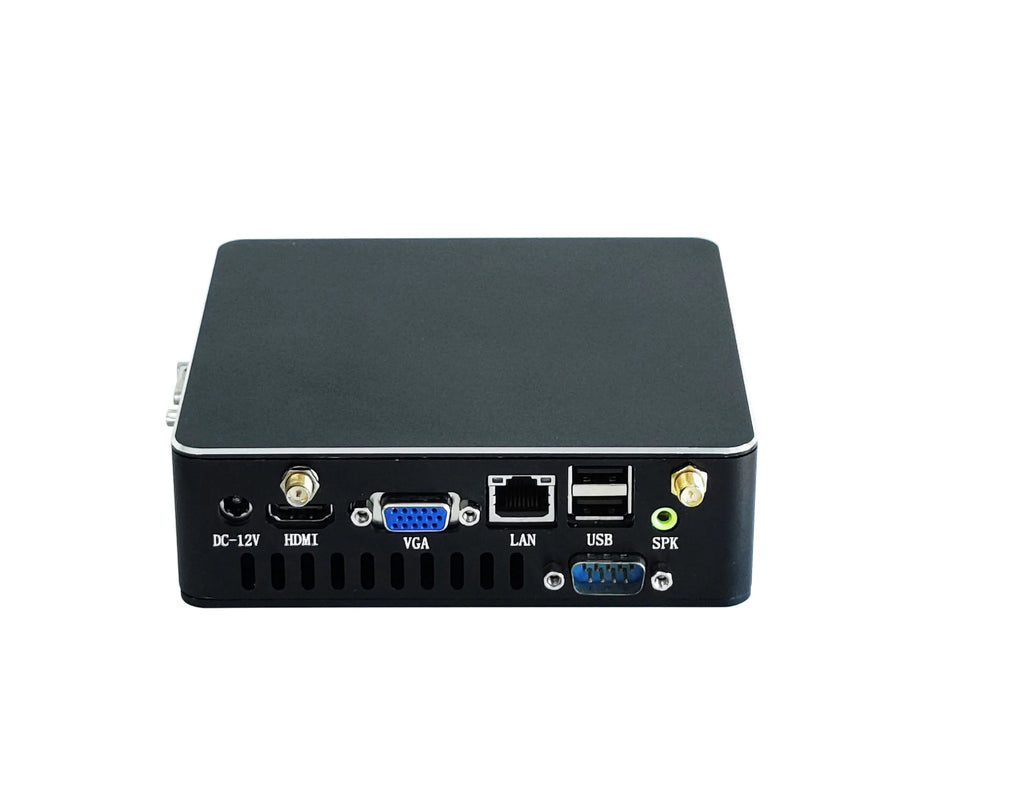

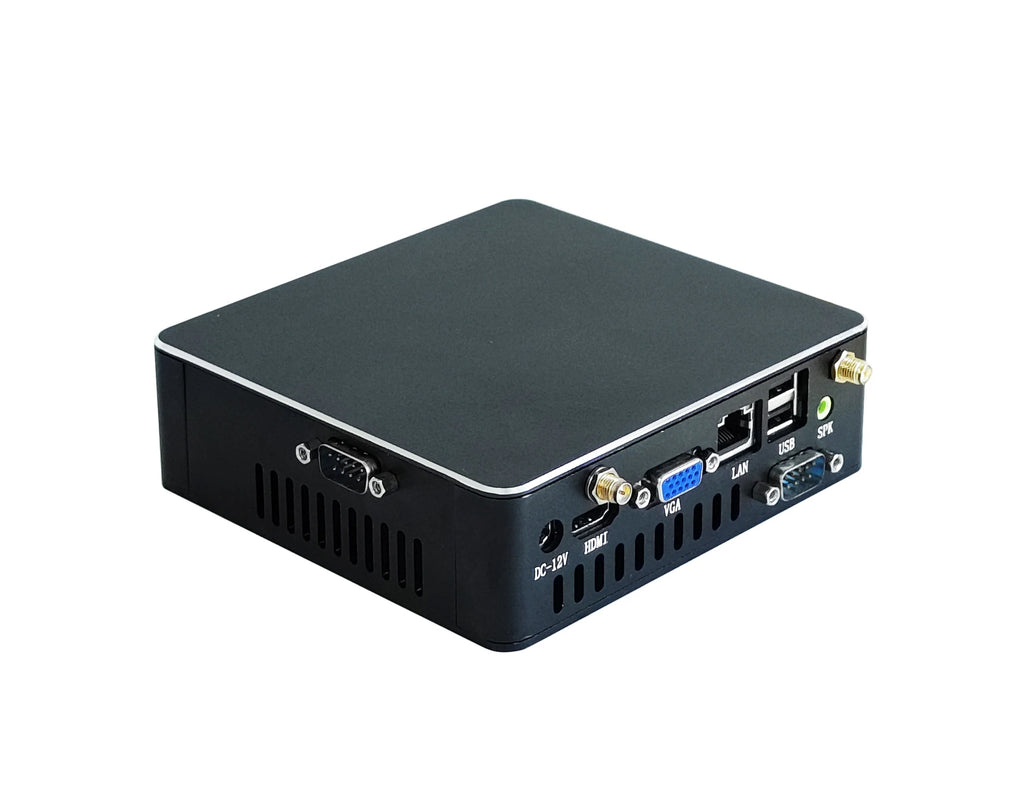

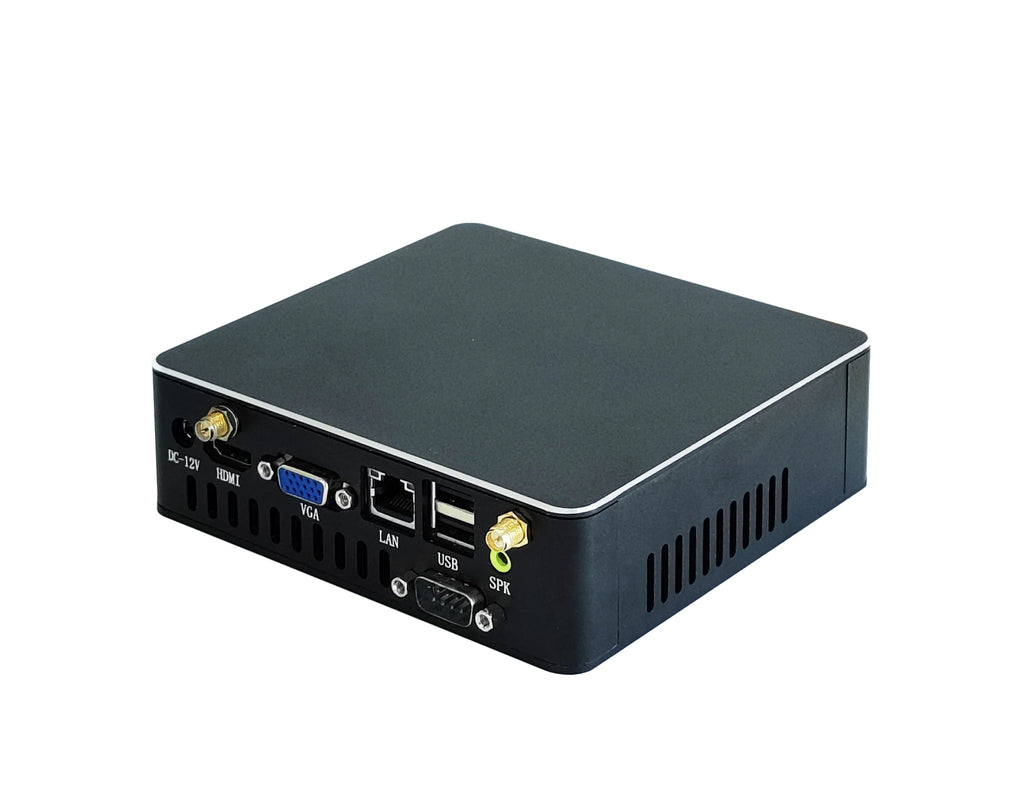

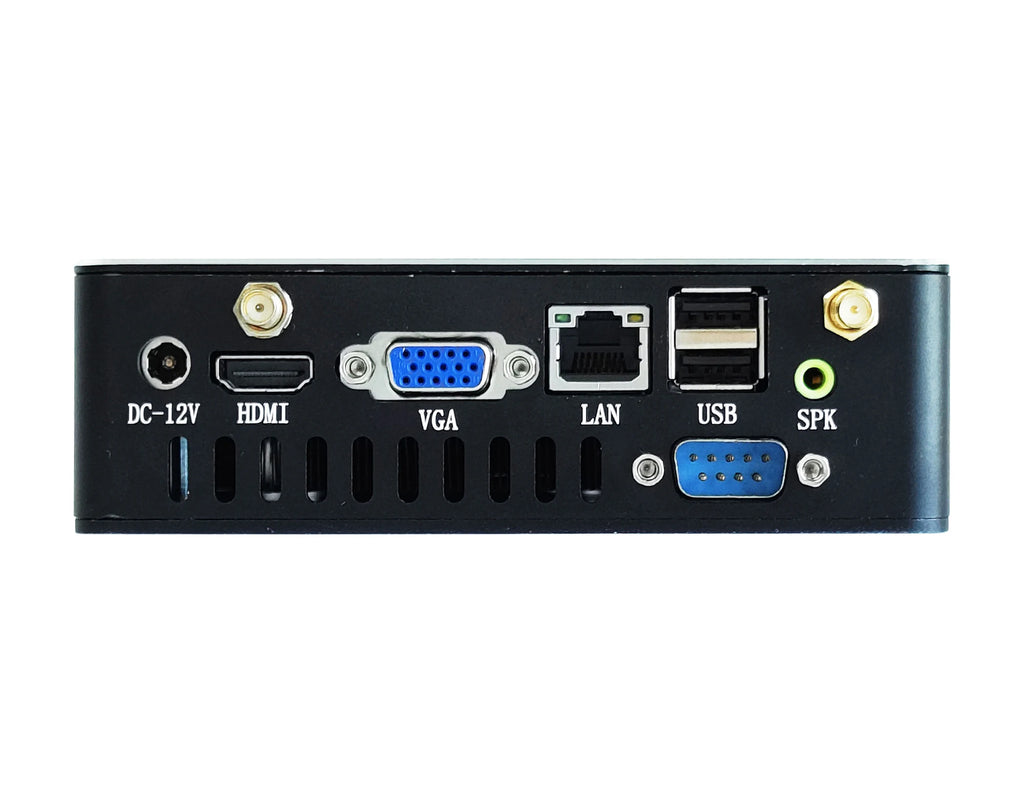

| Rear panel interface | Power port | 1*DC power interface (5.5*2.5mm), supports 12V/19V power supply, recommended to use 12V/7A or 19V5A or above power supply |
| Display port |
1*VGA interface (1920*1080@60Hz) 1*HDMI® 1.4 interface (4096/3840*2160@30Hz) |
|
| LAN |
1*LAN: Supports Realtek 8111H Gigabit Ethernet card; Optional support for Motorcomm YT6801 Gigabit Ethernet card; 2*LAN: Supports Realtek 8111H+Realtek 8111H; Optional support for Motorcomm YT6801+Motorcomm YT6801; Support network wake-up function and PXE diskless boot function; |
|
| USB | 2*USB 2.0 interface (not available on dual network PC) | |
| COM |
1*COM port, supports RS232 by default; Optional support for RS232/RS422/RS485 |
|
| Audio | 1*LINE-OUT interface (green), audio output | |
| WiFi | 2*WiFi antenna interface | |
| Side panel | COM | 1*COM port, supports RS232 by default; |
| Storage | M.2_SSD |
1*M.2 slot, supports Key-M interface M.2 2280 hard drive, optional M.2 2242 hard drive; Default support for coexistence of SATA protocol and NVME (PCIE) protocol; |
| Expansion | Mini-PCIE | 1*Mini-PCIE slot, supports WiFi and Bluetooth modules; Can be modified to support MSATA. |
| Operating environment |
Working temperature: -10℃ ~ 60℃ Storage temperature: -20℃ ~ 70℃ Relative humidity: 5%-95% relative humidity,no condensation Working vibration: 0.5g rms/5-500HZ/random/operating |
|
| BIOS |
Supports power on, timed power on, remote power on/off, etc |
|
| Watch Dog |
Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) |
|
| Operating system |
Supports Windows 11, Windows 10, Linux, etc |
|
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
