Vocalists, Guitarists, and Mobile Mixers

.USB Type-C and Type-A Connectivity

.1 Mic Preamp, 1 Hi-Z Input

.1/4" Line/Headphone Output

.24-Bit / 192 kHz AD/DA Converters

.Bus Powered / Mac, Windows, iOS

.Switchable Phantom Power

.Selectable Mono/Stereo Monitoring

.Virtual Loopback for Internal Recording

.DJ Software, Jamming Tool, Amp Simulator



UGM192

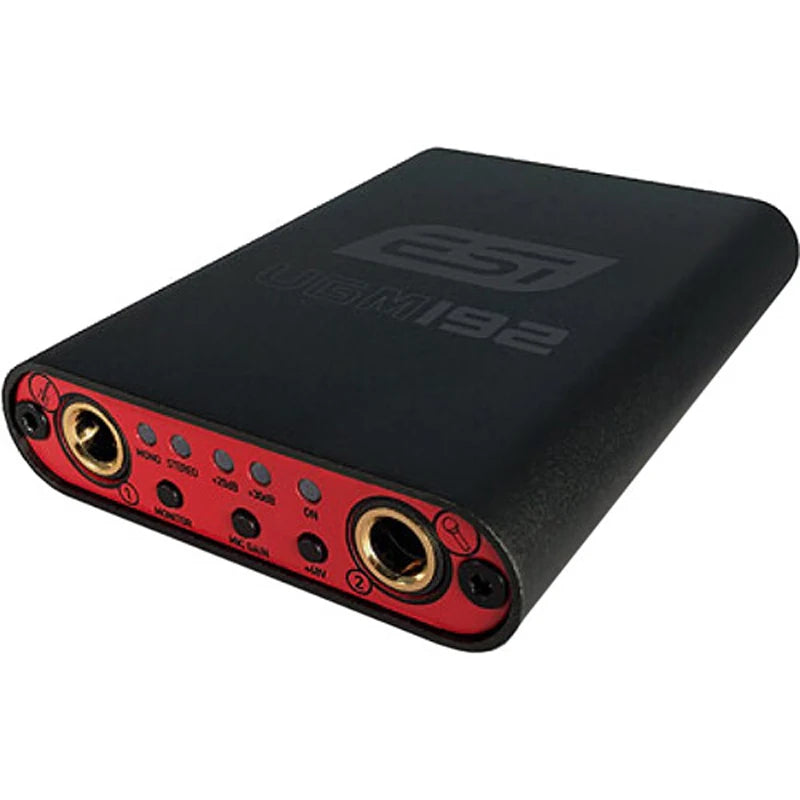

Ultra Mobile Guitar & Microphone 24-bit / 192 kHz USB Audio Adapter



As an ultracompact, pocket-friendly 2x2 USB Type-C audio interface that supports high-resolution audio, the ESI UGM192 offers vocalists, guitarists, and mobile mixers a highly portable and simple solution for getting a mic and instrument into their Mac/Windows computer or iOS mobile device. It sports one mic preamp with phantom power and a balanced 1/4" TRS input, an unbalanced 1/4" TS Hi-Z input, and a 1/4" stereo line/headphone out, all capable of resolutions up to 24-bit / 192 kHz.



Up to 30 dB of mic gain is on hand at the push of a button, and the mono/stereo monitoring mode is just as easy to set. Since it is 100% class compliant and bus powered, the UGM192 interface is compatible with a host of devices. Run the UGM192 with your favorite DAW or use the supplied software bundle to start creating tracks.



High-Resolution Recording and Playback

.24-bit / 192 kHz AD/DA conversion with 114 dB dynamic range (A-weighted)

.Provides one microphone input and a guitar/bass input

.Ultracompact form factor perfect for mobile recording, mixing, and Hi-Fi playback

I/O

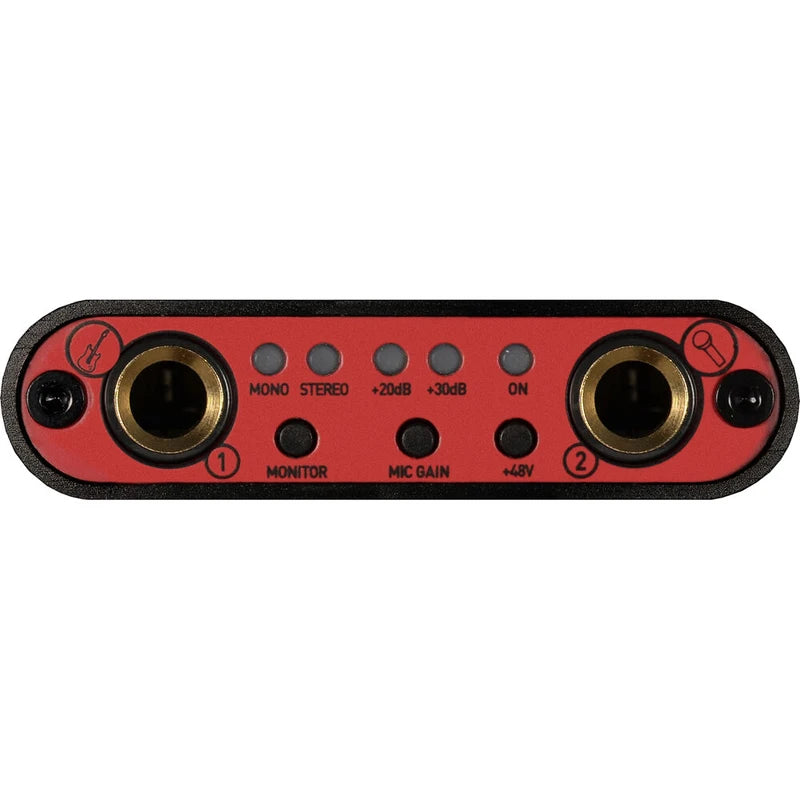

.One microphone preamp with 48V phantom power, up to 30 dB of gain, and a balanced 1/4" TRS input

.One Hi-Z instrument input via 1/4" TS jack

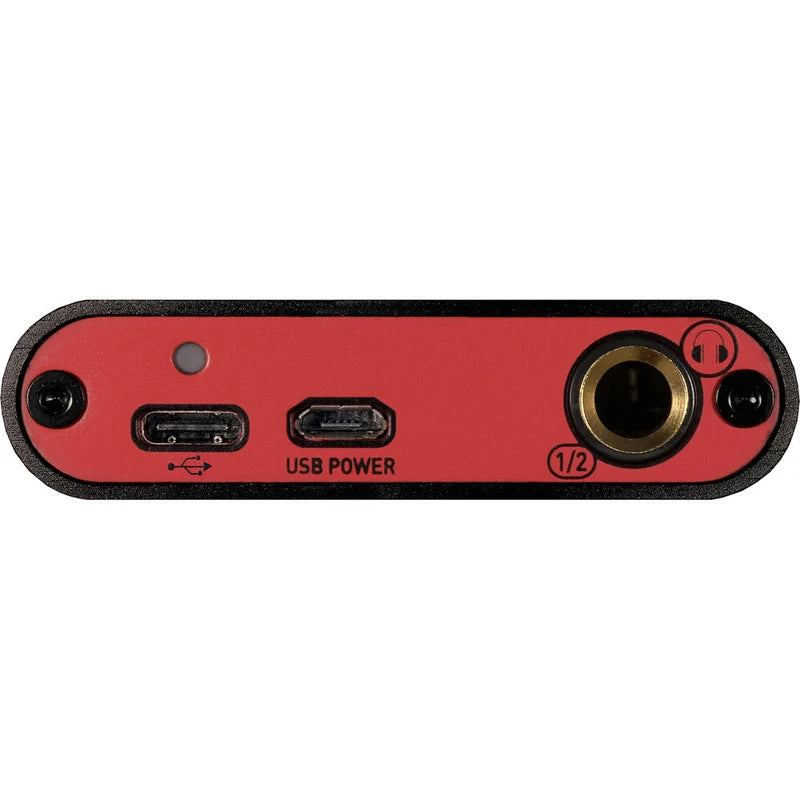

.1/4" stereo line/headphone output with selectable mono/stereo monitoring

Loopback for Internal Playback Recording (Windows)

.DirectWIRE support for Windows, with virtual audio channels for internal loopback recording

.Play any audio signal in any application, while you record it with different software

.Record what you are streaming online

.Print the output of a software synthesizer application

Versatile Compatibility

.USB 3.1 Gen 1 audio interface with USB Type-C connector

.USB 2.0 compatible

.Bus powered via USB

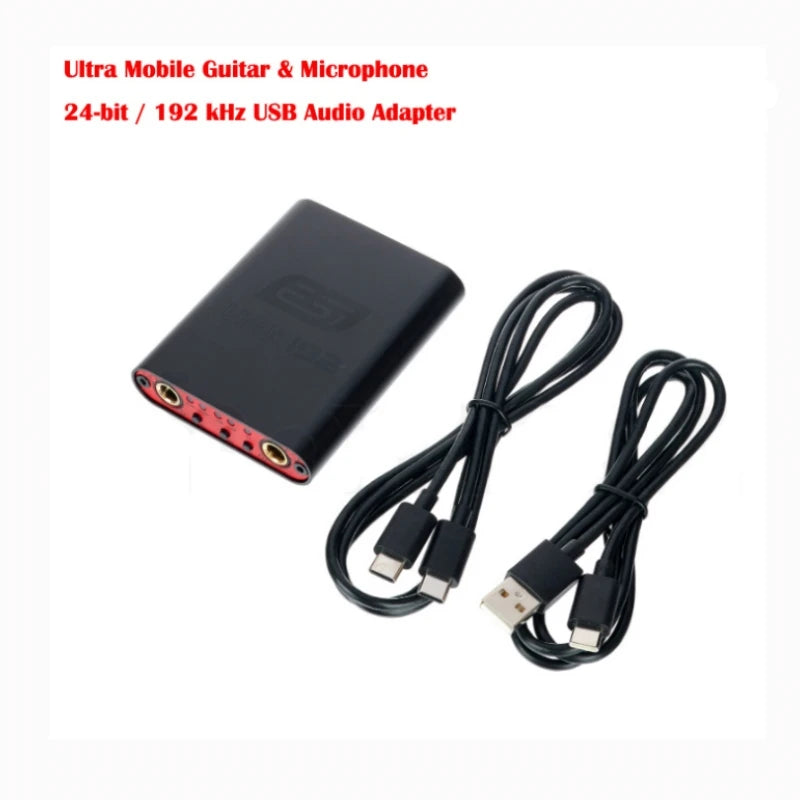

.Includes USB Type-C cable, and USB Type-C to USB Type-A cable

.Compatible with macOS/Windows computers and mobile devices

.100% class compliant, works with Core Audio

.Supports ASIO 2.0, WDM, MME with ESI's EWDM drivers, and Core Audio

Bundled Software

.Audified inTone 2 ESI Edition: Jamming tool for producing mixes of multiple audio signals and instruments, playing files, changing tracks, and preparing streams for podcasts and recordings

.GK Amplification 2 LE and ampLion Free: Bass and guitar amp simulator software

.Stanton Deckadance LE v2: DJ software that elevates the freedom of creative expression for remix and groove producers, turntablists, and club/mobile/home DJs
