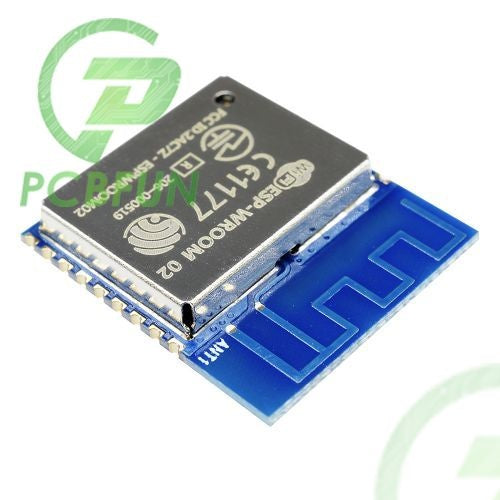

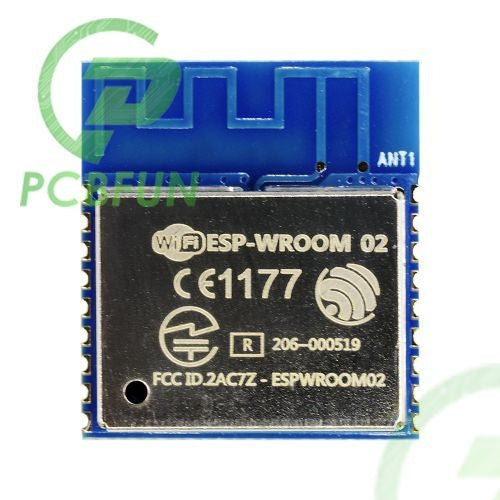

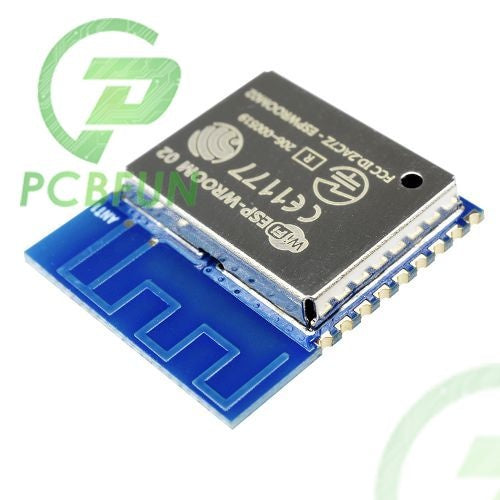

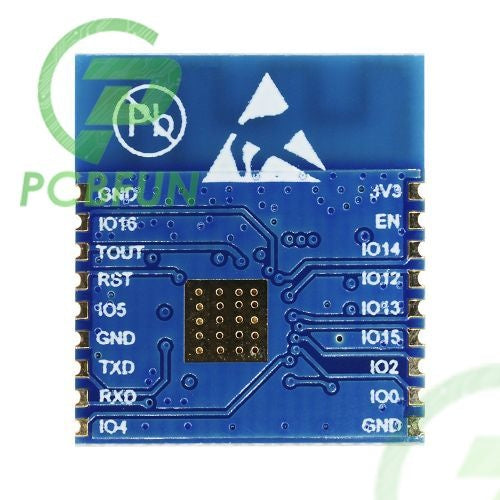

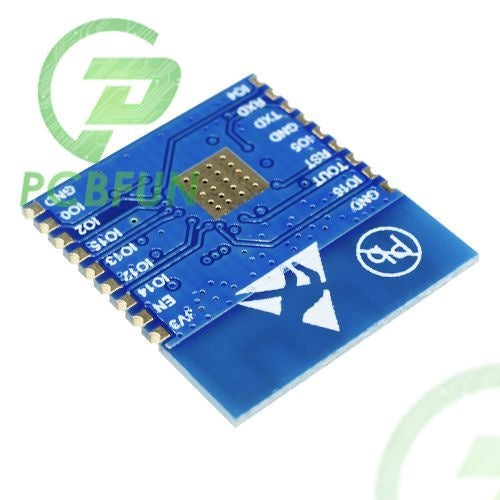

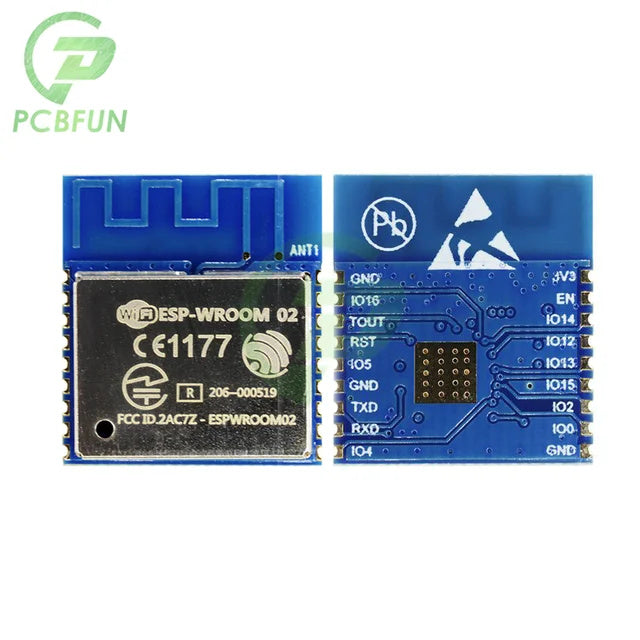

ESP8266 ESP-12F12E 12S 01S Serial WIFI Module 3.3V Remote Wireless Transceiver Control ESP-WROOM-02 Expansion Board for Ardunio

ESP8266 ESP-12F12E 12S 01S Serial WIFI Module 3.3V Remote Wireless Transceiver Control ESP-WROOM-02 Expansion Board for Ardunio

Name: ESP8266 ESP-12F12E 12S 01S Serial WIFI Module 3.3V Remote Wireless Transceiver Control ESP-WROOM-02 Expansion Board for Ardunio
Brand: mickcara
SKU: d89a38-1-1pcs-CHINA
Price: 44.00 USD
Availability: InStock

2 sold in last 8 hours

Brand: mickcara

Product Code: d89a38-1-1pcs-CHINA

Availability: In stock

🔥BUY 3 GET 4th 50% OFF 🔥 CODE:MK50
🔥BUY 2 GET 3rd 35% OFF🔥 CODE: MK35
🔥BUY 1 GET 2nd 35% OFF🔥 CODE: MK20

$44.00

Quantity:

Subtotal: $44.00

283 customers are viewing this product

Tags:

Description

Product Features:

1.ESP8266-12F with perfect peripheral circuitry, four-layer board board process, enhanced impedance matching, better signal output, both stability and anti-jamming ability, have been substantially improved.

2.ESP8266-12F is fully compatible with the previous firmware, pins in the ESP-12 on the basis of six new IO ports, SPI port pinout, development is more convenient, more widely used.

3. Easy to use, based on the ESP8266 chip development, the module integrates the transmission function, get to use.

4. Support serial AT instruction set, users can realize network access through the serial port.

5. Widely used in smart wearable, smart home, home security, remote control, automotive electronics, smart lighting, industrial IoT and other fields.

Product Description:

The ESP-12F WiFi module supports the standard IEEE802.11 b/g/n protocols, complete TCP/IP stack. Users can use the module to add networking capabilities to existing devices or build standalone network controllers.

The ESP8266 is a high-performance wireless SOC that provides maximum utility at minimum cost, offering unlimited possibilities for embedding WiFi functionality into other systems.

The ESP8266 is a complete and self-contained WiFi networking solution that can operate independently or as a slave on other host MCUs.

The ESP8266 is able to boot directly from external flash memory when the application is on board and is the only application processor in the device. The built-in cache memory facilitates improved system performance and reduces memory requirements.

The ESP8266's powerful on-chip processing and storage capabilities allow it to integrate sensors and other application-specific devices through the GPIO port, realizing the lowest up-front development and running with the least amount of system resources.

Product Features:

Smallest 802.11b/g/n Wi-Fi SOC module

Built-in Tensilica L106 ultra-low-power 32-bit micro MCU, main frequency support 80 MHz and 160 MHz, support RTOS

Built-in 1 channel 10 bit high precision ADC

Supports UART/GPIO/ADC/PWM/IIC.

SMD-22 interface

Supports multiple sleep modes, deep sleep current as low as 20uA

Serial port rate up to 4Mbps

Embedded Lwip stack supports STA/AP/STA+AP operating modes.

One-key network support for serial port local upgrade and remote firmware upgrade (FOTA)

) General AT commands can be quickly started to support secondary development, integrated with Windows, Linux development environment

Power supply voltage: 3.0V ~ 3.6V

Supply current: 500mA

Operating temperature: -20 ℃ ~85 ℃

Storage environment: -40 ℃ ~ 85 ℃ , 90%RH

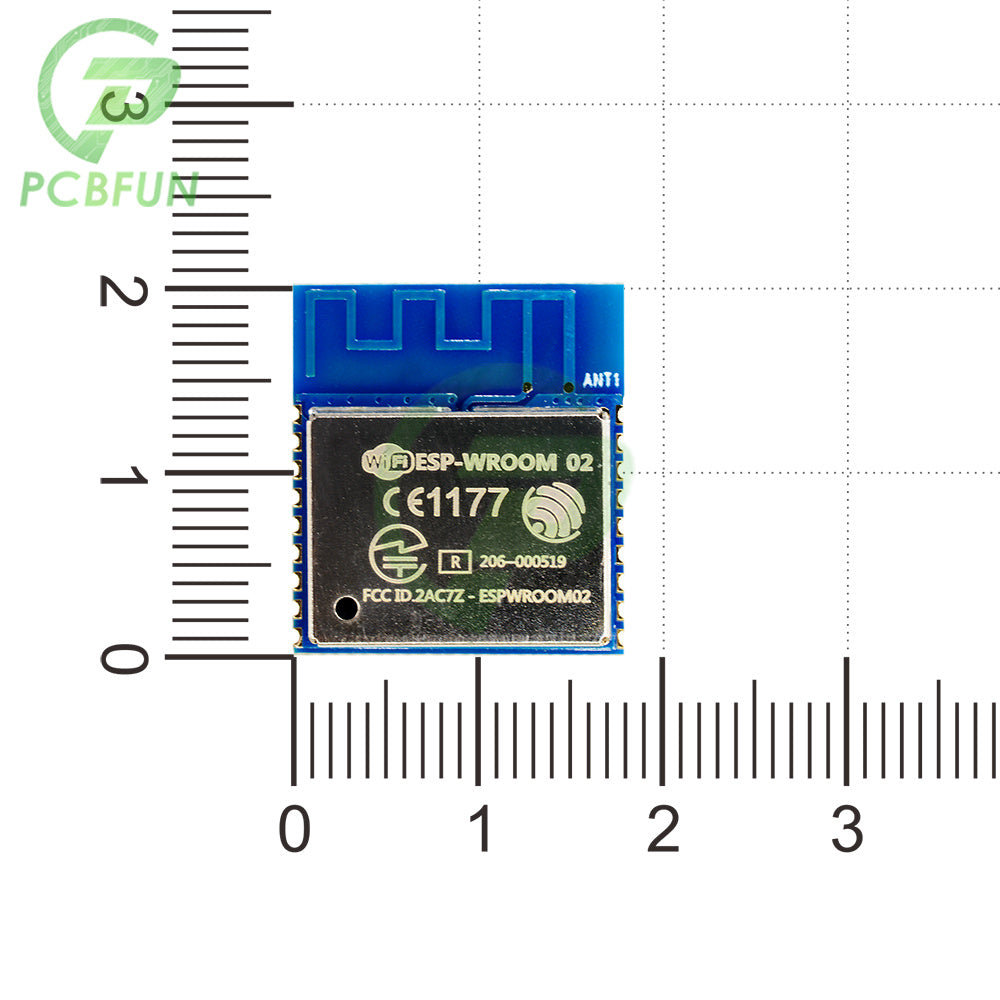

Dimensions:

About 24*16*3MM

Product List:

1X Module
