ESP8266 WIFI 22 Channel Relay Module ESP-12F Relay Development Board Power Supply 5V/12V/24V/10A for Smart Home Wireless Control
Feature:
1: Wide range of applications
2: Simple to use
3: high temperature resistance
4: Long service life
5: Exquisite appearance
Description:

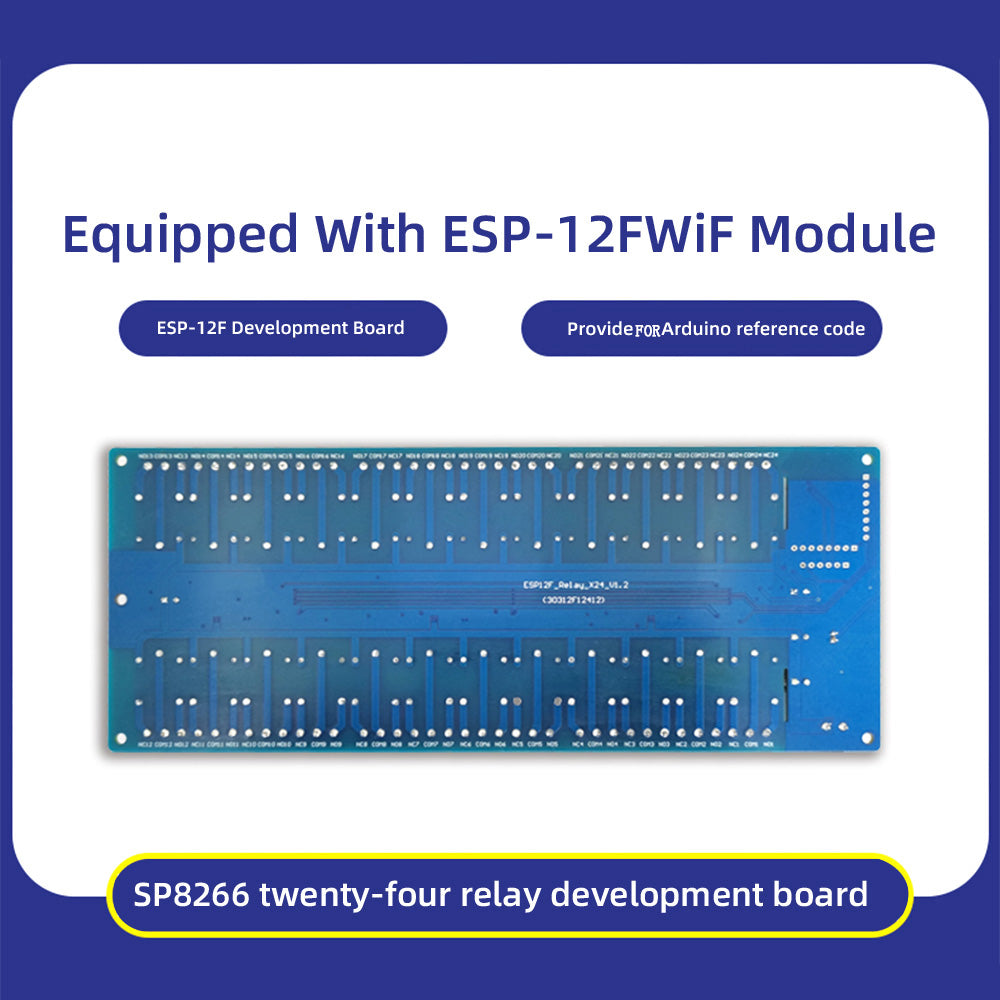

ESP8266/24-channel 10A relay development board is equipped with ESP-12FWiFi module, I/O ports are all lead out, support DC5V/12V/24V power supply mode, provide development environment reference code, suitable for ESP8266 secondary development and learning, smart home wireless control and other occasions.
Specifications:
1. Onboard mature and stable ESP-12F WiFi module, large capacity 4M Byte Flash;
2. The I/O port and UART program download port of the WiFi module are all led out, which is convenient for secondary development;
3. Power supply mode supports DC5V, 12V, 24V;
4. Onboard WiFi module RST reset button and a programmable button;
5. ESP-12F supports the use of development tools such as Eclipse IDE, and provides reference programs in the development environment
6. Twenty-four on-board 5V/10A relays, 12V/10A relays, 24V/10A relays, output switch signals, suitable for controlling loads with a working voltage within AC 250V/DC30V;
7. Onboard power indicator, relay indicator and 1 module comes with LED.
8. Onboard three shift registers 74HC595 control relay switch

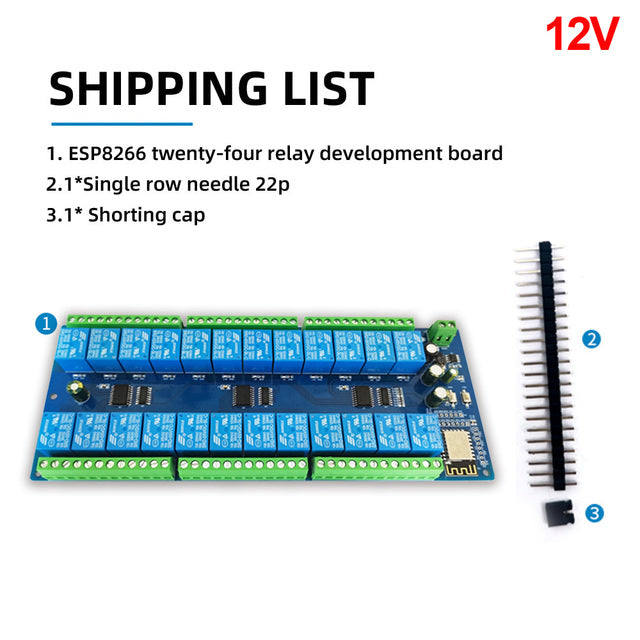

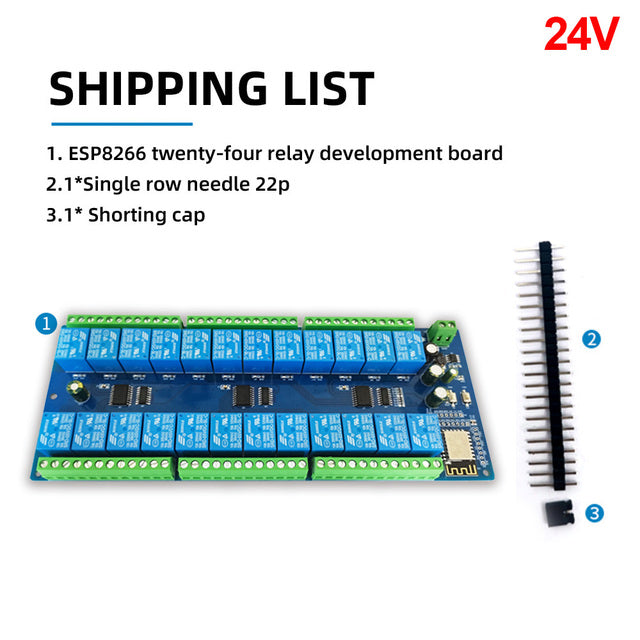

Package Included:
1*ESP8266 twenty-four relay development board
1*Single row needle 22p
1*shorting cap
