ET44 series desktop bridge LCR
Introduction to the
Product description:
ET44series LCR digital bridge is designed using automatic balance bridge principle component parameter analyzer, the tests of 10 hz ~ 100 KHZ bandwidth, 0.1
Product features:
Measuring frequency up to 100 KHZ,
Test level 10 2000 mv,
Support dc resistance (DCR), electrolytic capacitor measurement
The internal bias voltage output 0 mv 1500 mv
3.5 inch TFT display, five shows
Communications: USB Device, RS232 , Handle,
Data record function (maximum, minimum, average)
Support SCPI communication protocol
P
Basic measurement accuracy of 0.1%
Manual and automatic range
With open circuit and short circuit calibration function
Comparator separation (5), alarm function
Main technical indicators:
|
Model |
ET4401 |
ET4402 |
ET4410 |
|
Testing frequency |
10 Points(100,120,200,400,800,1K,2K,4K,8K,10K) |
12 Points(100,120,200,400,800,1K,2K,4K,8K,10K,15K,20K) |
16 Points(100,120,200,400,800,1K,2K,4K,8K,10K,15K,20K,40K,50K,80K,100K) |
|
Display screen |
3.5 TFT LCD screen |
||
|
Number of display digits |
Principal parameter: 5 digit Secondary parameter: 5 digit |
||
|
Measured parameter: |
Principal parameter: L/C/R/Z Secondary parameter: X/D/Q/θ/ESR |
||
|
Measurement range |
L:0.001µH9999H, C:0.001pF99.999mF, R:0.0001Ω99.99MΩ |
||
|
Basic accuracy |
0.1% |
||
|
Measuring display speed |
2 time/s (slow), 4 times/s (medium), 8 time/s (fast) |
||
|
Internal bias |
0-1500mV adjustable, at a step of 1mV. |
||
|
Testing level |
Six fixed level(0.1V,0.3V,0.6V,1V,1.5V,2V) |
||
|
Signal source output impedance |
30Ω,100Ω |
||
|
Calibration function |
Open circuit calibration, short circuit calibration |
||
|
Screening function |
The limit range of screening can be set to -50%50%, and the fixed points are 1%, 5%, 10% and 20%. |
||
|
Comparator |
|
||
|
Interfaces |
standard: RS232, USB Device, Handler ; |
||
|
Others |
|
||
General technical specifications:
Power voltage: 220V.AC/50Hz ±10%,OR 110V.AC/50Hz ±10%
Power consumption: 10W
Display: 3.5 TFT LCD, resolution 480*320
Interfaces: standard: RS232(or 485), USB Device, Handler ;
Service environment: 0°C-40°C
Sizes: 265mm*105mm*305mm (L*W*H)
Weight: 2.1kg

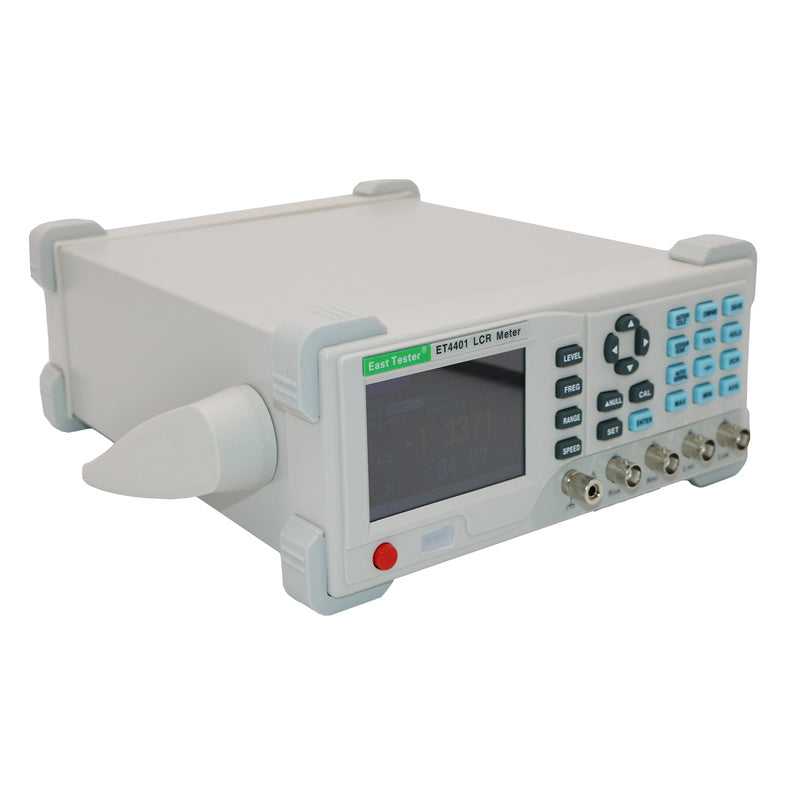

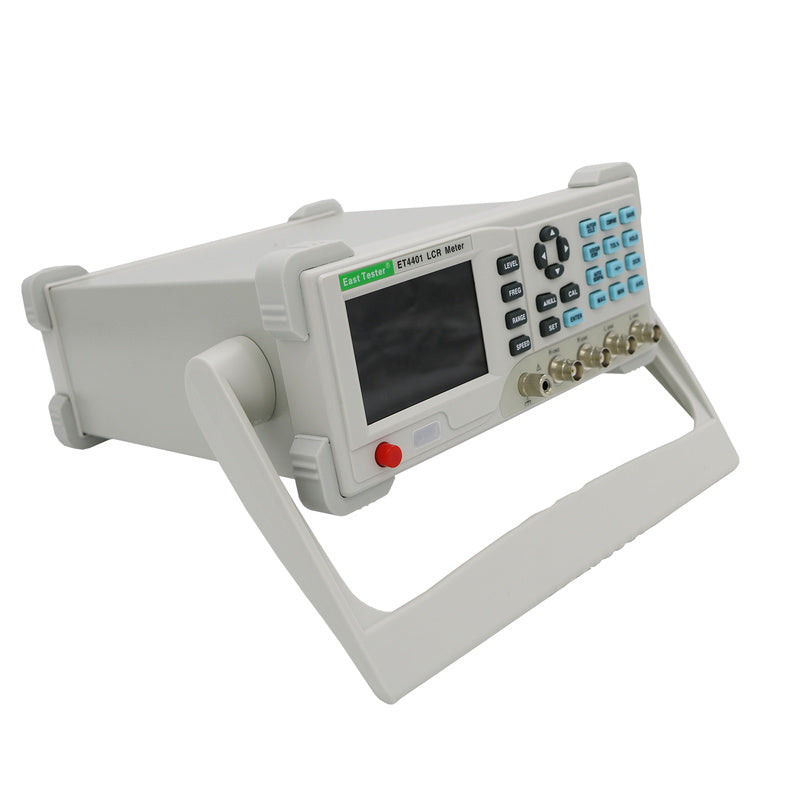

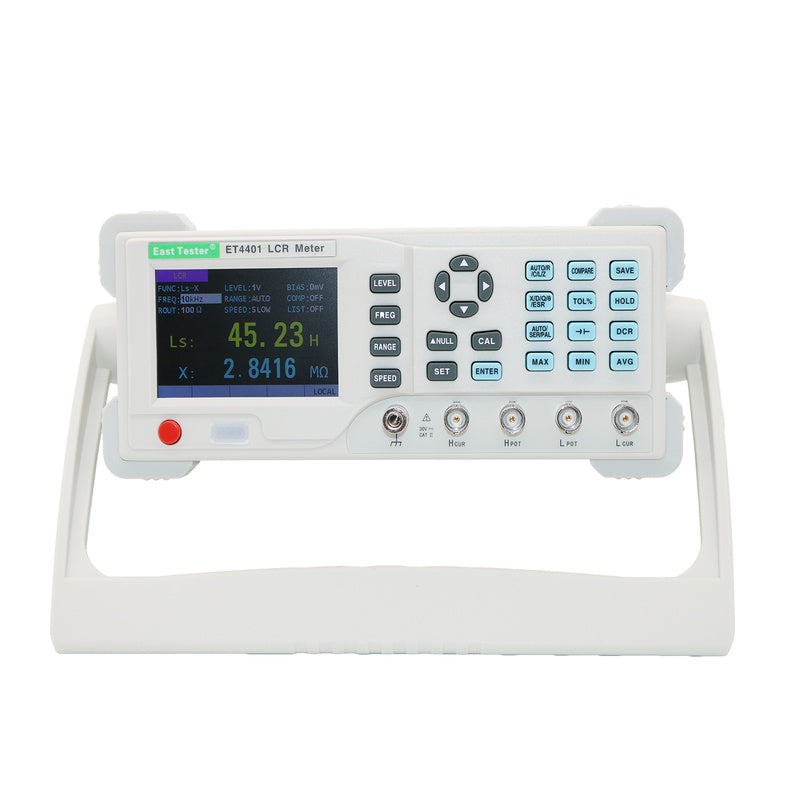

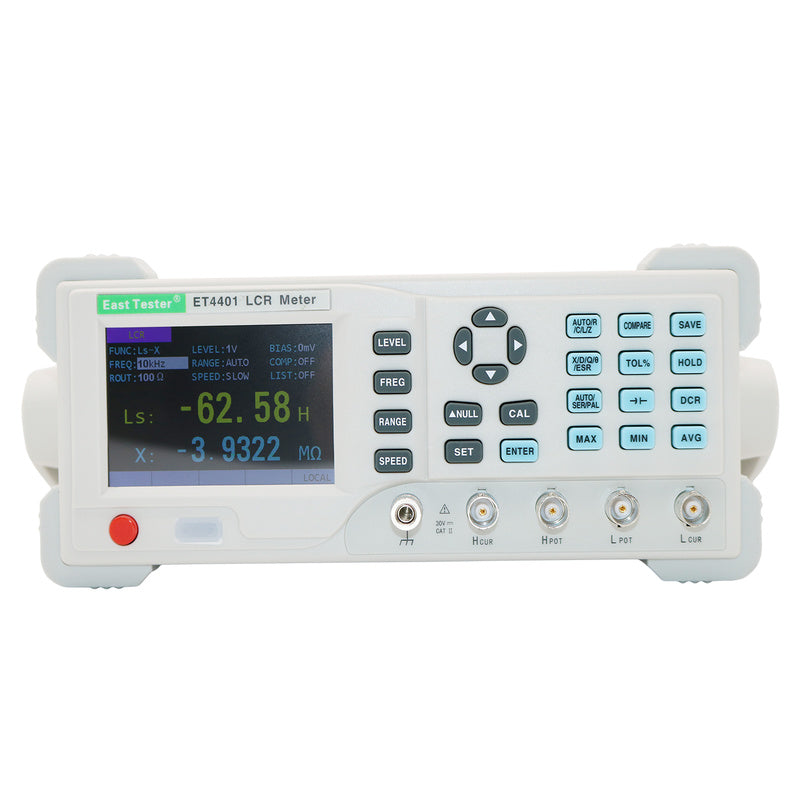

ET4401

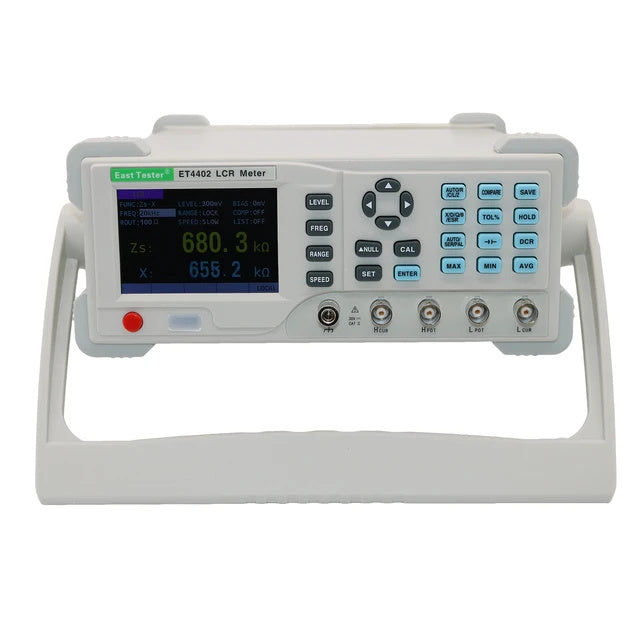

ET4402

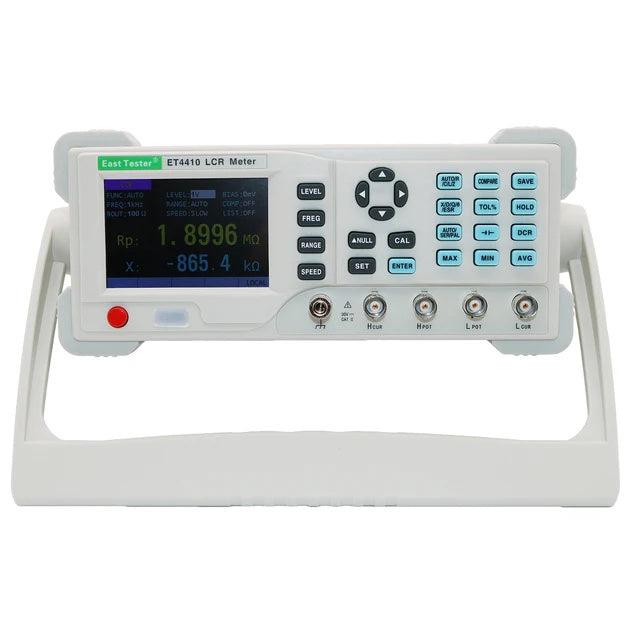

ET4410
